Features:
1）8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.).
2）Video Help Function, provides the video help of diagnostic which can be watching online,
3）The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data.
4）Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.
5）Transmit signals through USB 2.0 interface plug and play, and no need extra power supply;
Technical Parameters
Function Selection
There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.

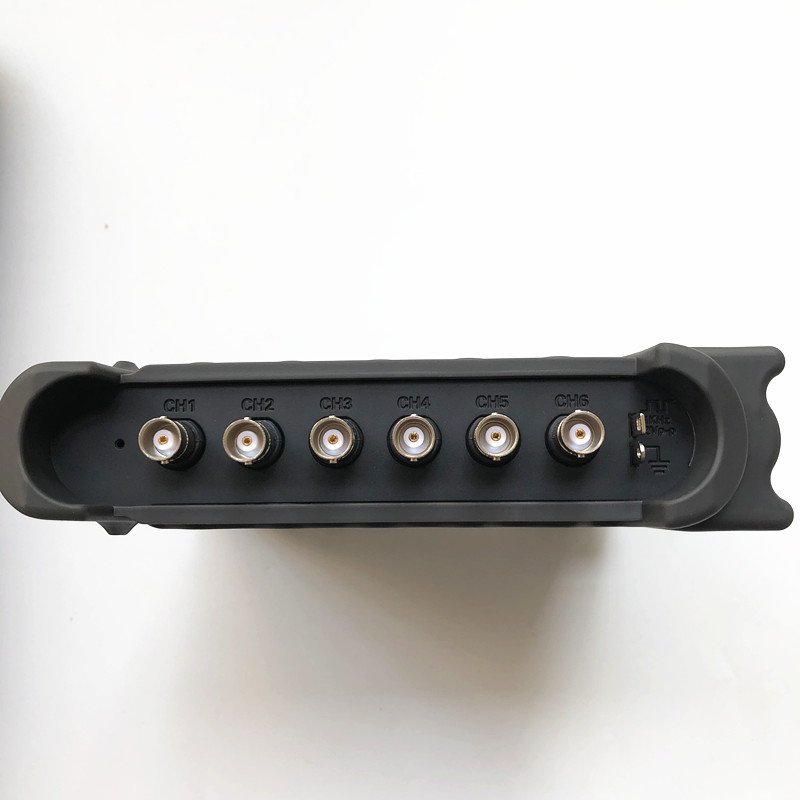

8CH Vehicle Diagnosis
8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.
Signal Generator
Signal generator function, can simulate crankshaft and camshaft signal.
One Button Screenshot
Save the current waveform and generate pictures. Storage location is optional and easy to find.
Reference Waveform
Over 80 types of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.
Measurement Method
20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.
The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.
REF Comparison Waveform
The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.
Data Storage
The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.
Waveform Record
Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.
Multi-language Support
Support the display surface in Chinese, English, German language, and it can be switched freely.
Cursor Measurement
Support 4 types of cursor measurement mode -cross,track, horizontal, and vertical.It’s easy to read out the time and voltage of irregular signal.
Color and Lightness
The background color is optional as user’s preference. And the lightness of waveform and gridding is settable.

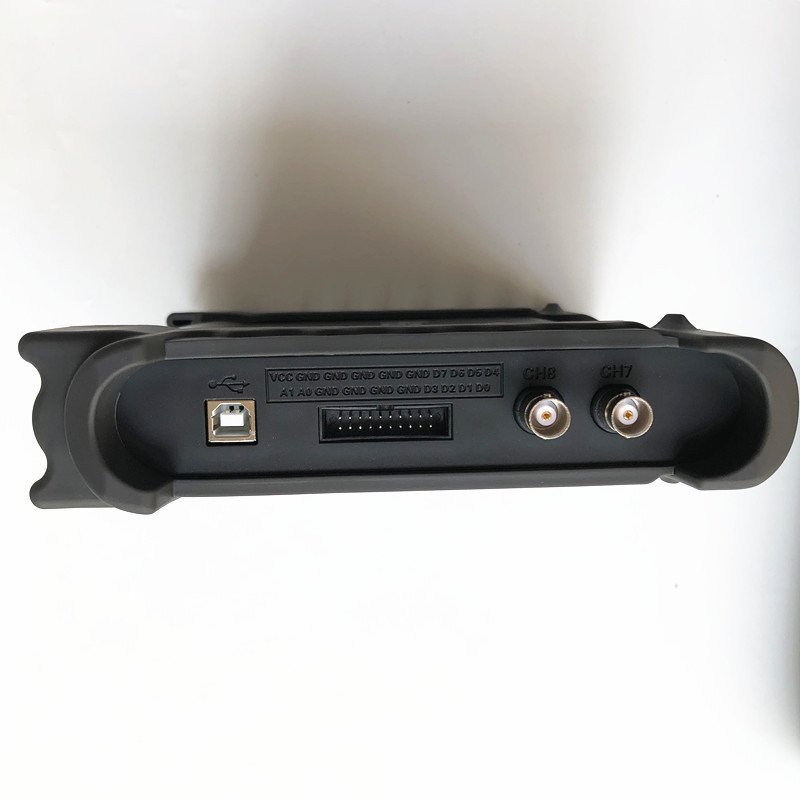

USB Communication
USB2.0 power supply + communication interface, plug and play, and support hot plugging.
Easy to Install Software
Install the PC software and start to use without any other drivers. Support WIN XP/7/8/10.
