Description
1. Compact and portable with a single handheld grip
2. Built in 2600mAh battery * two, Type C charging interface, can be powered by 5V2A power bank

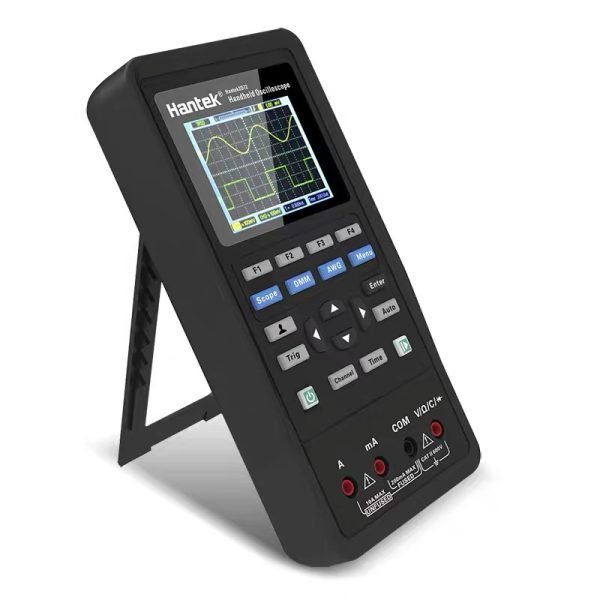

3. Suspended foot design, multi angle adjustment, anti drop and shock-absorbing, portable
4. AUTO one click test, testing essential functions for beginners;
5. One click waveform storage, convenient and fast
6. Adjustable screen brightness, screen rest time, sound
7. The system comes with calibration function, restoring factory settings

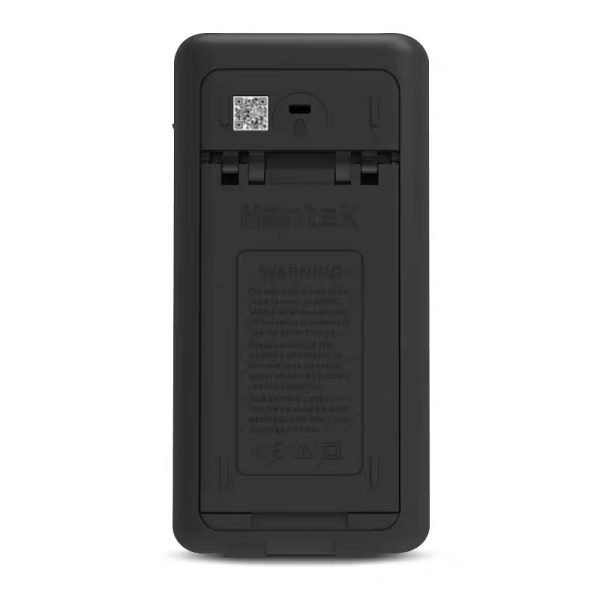

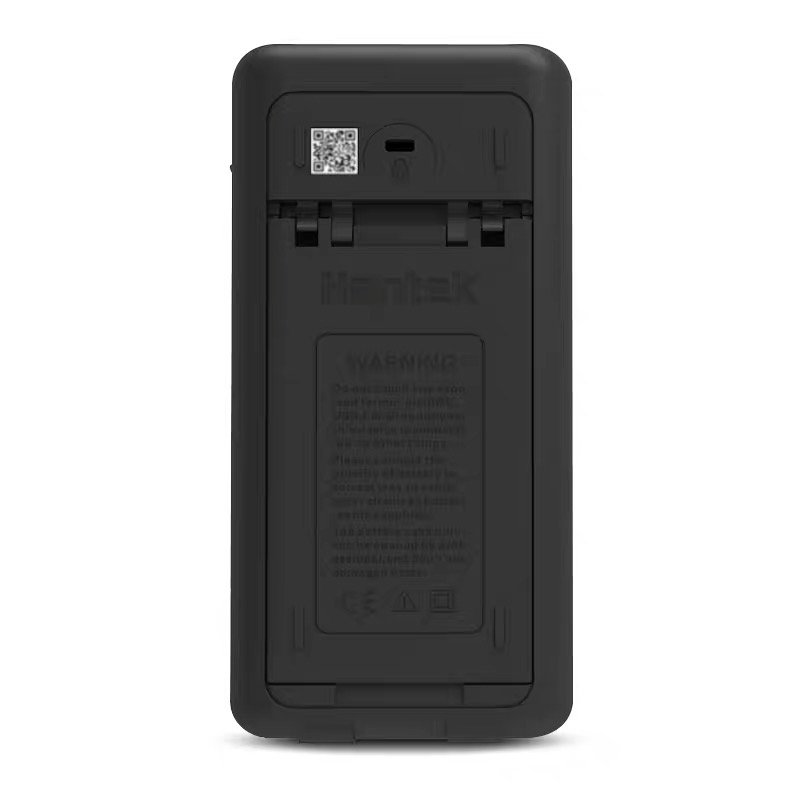

8. Scan Code Video Help Function: The back of the machine comes with a QR code, which allows you to scan the code and watch video help online
———————-
1. Dual channel measurement with optional bandwidths of 40MHz and 70MHz
2. Sampling rate 250MSA/S, storage depth 64K
3. Vertical 10mV/div -10V/div, vertical resolution: 8bit
4. Horizontal 5ns/div -500S/div
5. AUTO one click measurement function, supporting manual measurement of time and voltage, accurately measuring the required waveform
6: Measurement: frequency, period, average value, maximum value, minimum value, peak to peak value, top value, middle value, low end value, amplitude, root mean square
Positive duty cycle, negative duty cycle, rise time, fall time, positive pulse width, negative pulse width
7. Trigger: single, automatic, normal
8. Other functions: cursor measurement, X-Y mode, scrolling mode, PC upper computer
9. The standard configuration includes multimeter functions such as voltage, current, resistance, diode, capacitance, and on/off testing
10. Optional 25MHz signal generator (2D42/2D72)
11. Machine language: English
