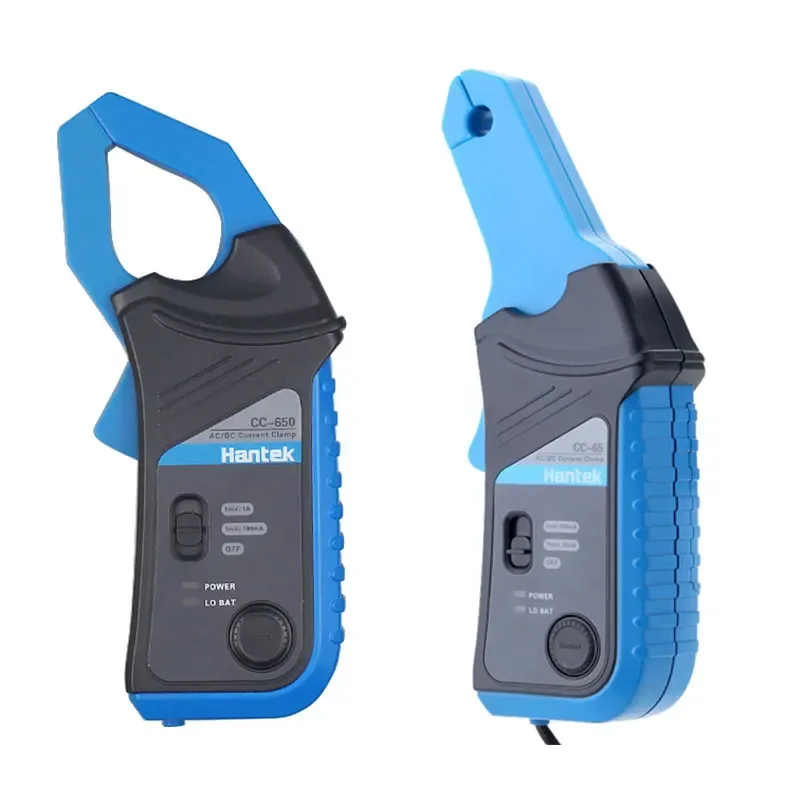

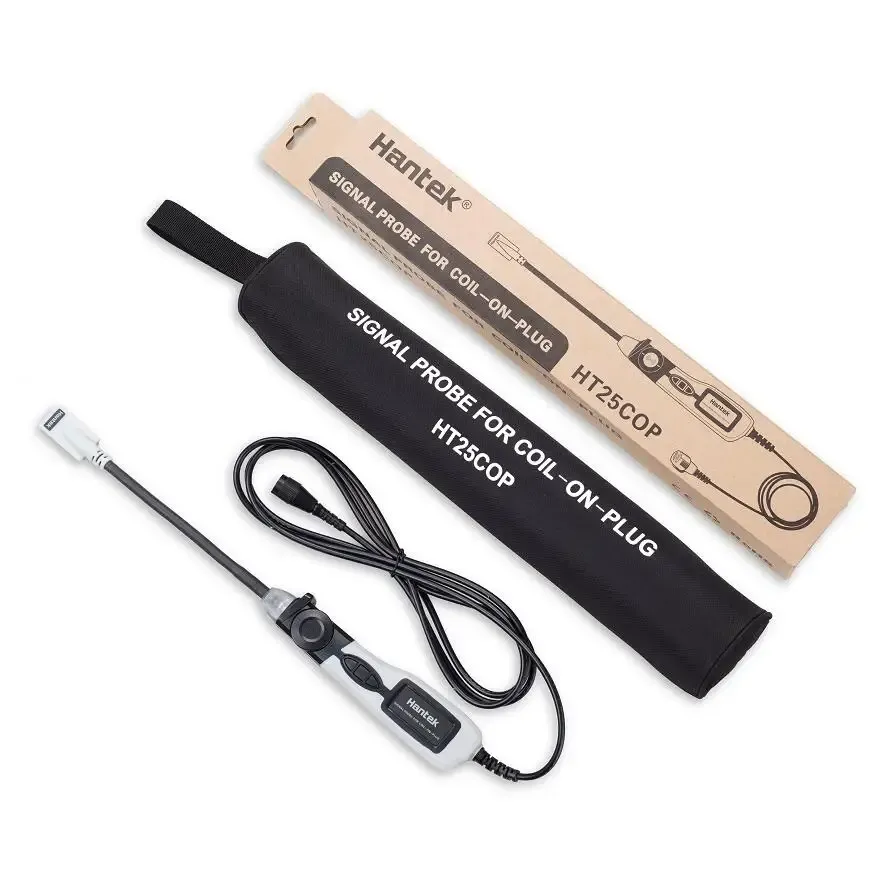

Hantek 6254BE Automotive Digital Diagnostic Oscilloscope USB PC 1GSa/s 250MHz 4CH Oscilloscope Equipped with HT25COP/CC65/CC650
Standard equipped over 80 types of automotive measurement function(Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge),USB 2.0 interface plug and play, and need no extra power supply, Support tablet PC,Support WIN10/ WIN8/WIN7etc. Free software upgrading constantly, higher cost performance, Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth, small size, easy to carry. Dynamic cursor tracking, waveform record and replay function.
Features:
Standard equipped over 80 types of automotive measurement function:
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;
Ignition: primary and secondary;
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;
Performer: Petrol/Diesel;
Starter and charging circuits.
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply.
Great function,More than 20 kinds of automatic measurement function,PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

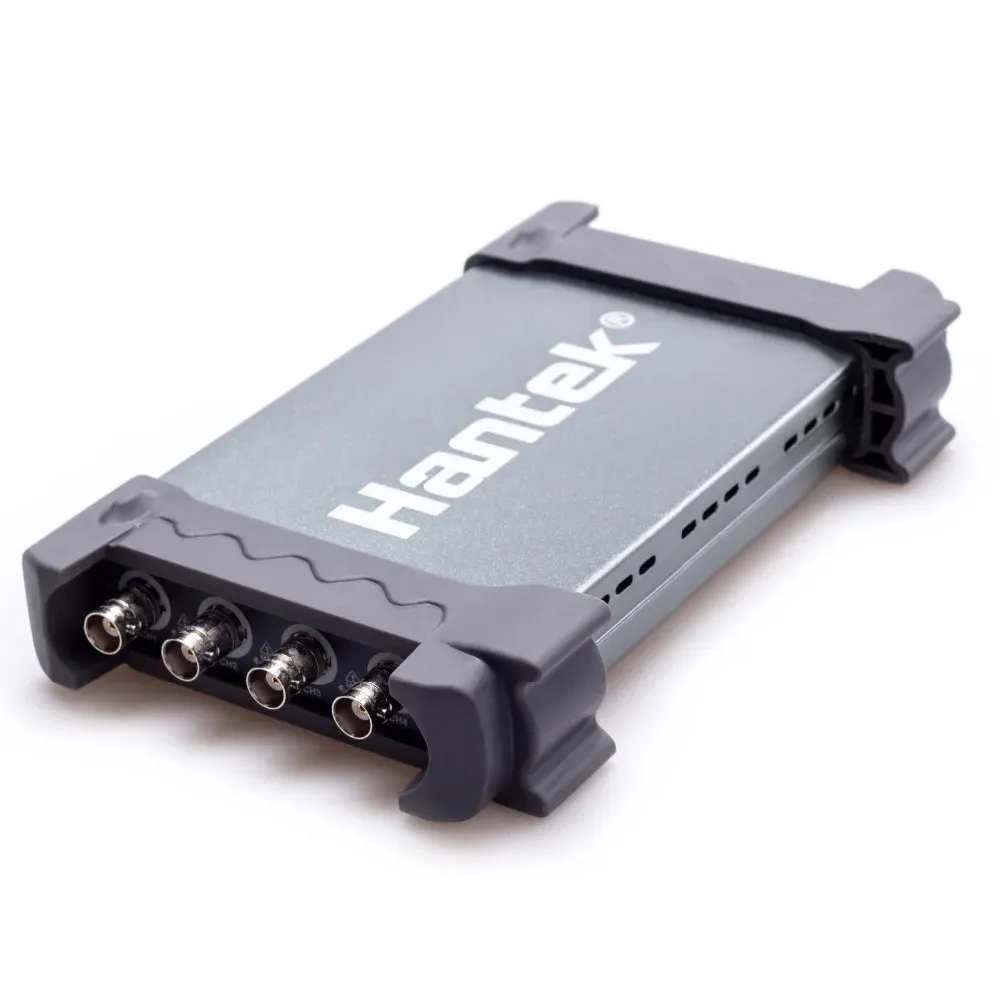

Good mechanical design with small size which is easy for carrying. The outer case is made by Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

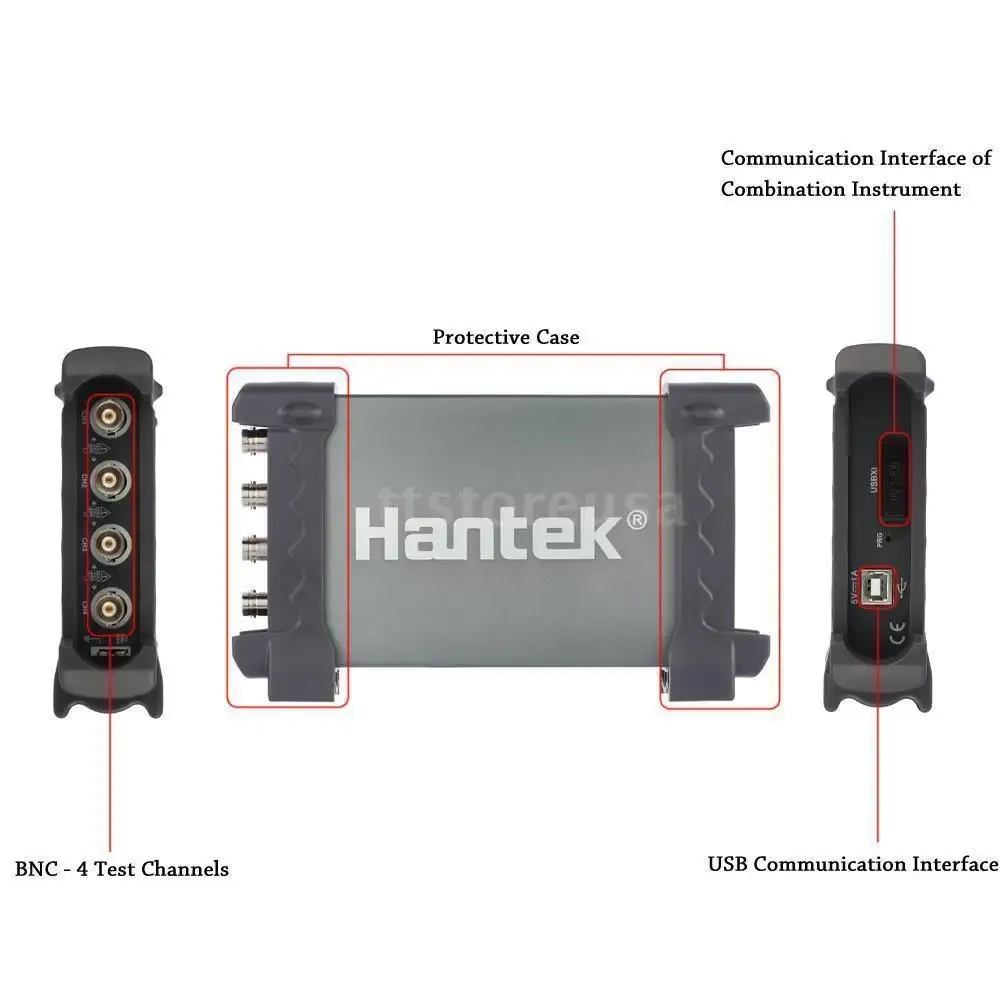

4 isolated channels oscilloscope, 1GSa/s real time sampling rate,2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth.
The waveform data could be output to EXCEL,BMP,JPG.

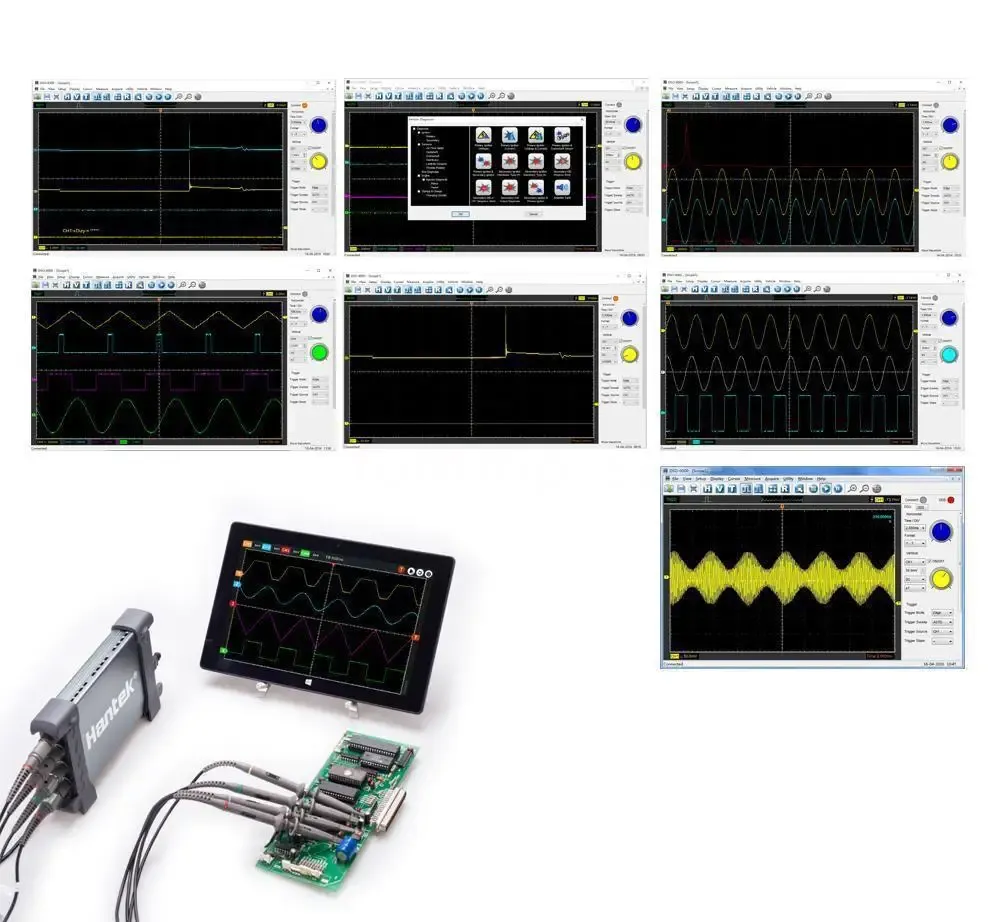

Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
FFT spectrum analyzer.
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview/VB/VC/QT developing examples.
Specifications:
Brand Name: Hantek
Material: Aluminium Alloy + Plastic
Model: Hantek6254B
Bandwidth: 250MHz
Oscilloscope Probe Model: PP-250
Item Size: Approx. 210 * 125 * 37mm / 8.3 * 4.9 * 1.5in
Item Weight: Approx. 453g / 16.0oz
Package Size: Approx. 25 * 18.5 * 11cm / 9.8 * 7.3 * 4.3in
Package Weight: Approx. 1310g / 46.2oz
Characteristic:
|
Model |
Hantek6254BE |
|
Bandwidth |
250MHz |
|
Channel |
4 CH |
|
Real-time Sampling Rate |
1GSa/s |
|
Memory Depth |
64K |
|
Time BasePrecision |
±50ppm |
|
Time Base Range |
2ns/div-1000s/div (1-2-4 sequences) |
|
Input Impedance |
1MΩ 25pF |
|
Input Sensitivity |
2mV/div~10V/div |
|
Vertical Resolution |
8Bit |
|
Vertical Displacement Range |
2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; |
|
DC Gain Accuracy |
±3% |
|
Bandwidth |
20MHz |
|
Trigger Mode |
Edge, Pulse, Video, Alternative |
|
Trigger Source |
CH1, CH2, CH3,CH4 |
|
Waveform Signal Process |
+,-,x,÷,FFT, Invert |
|
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
|
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Volume |
175mm * 105mm * 25mm |
Note:
Hantek 6074BE/6104BE/6204BE/6254BE Oscilloscope is for 3 years Warranty!
Please read the instruction manual data CD carefully to avoid injury and prevent damage to this product.

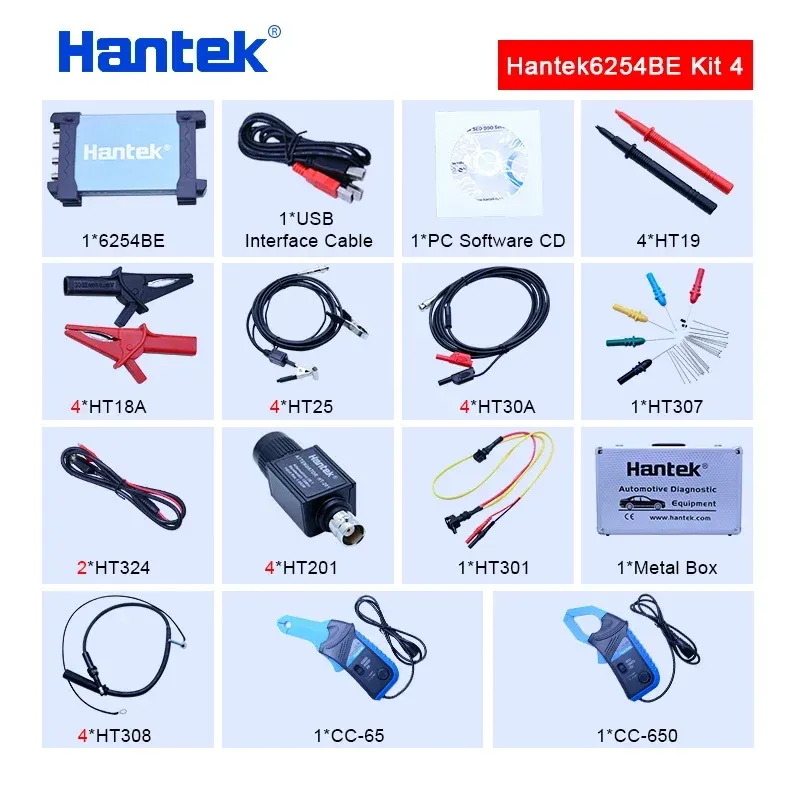

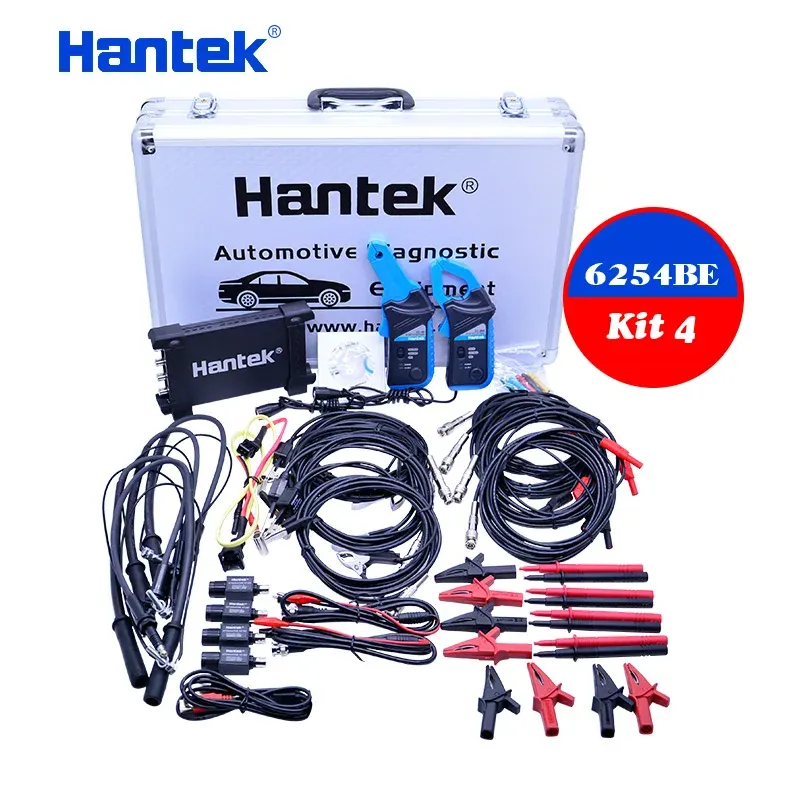

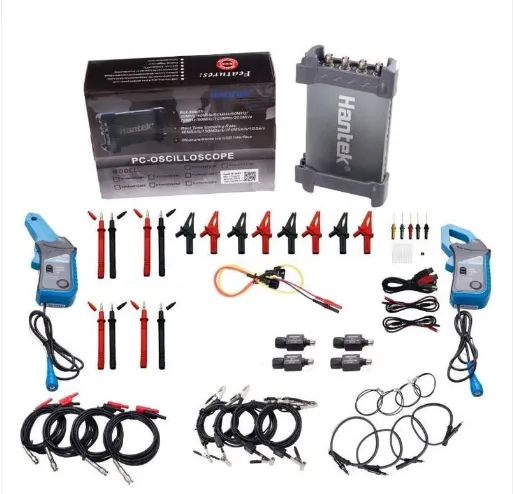

Package List:
