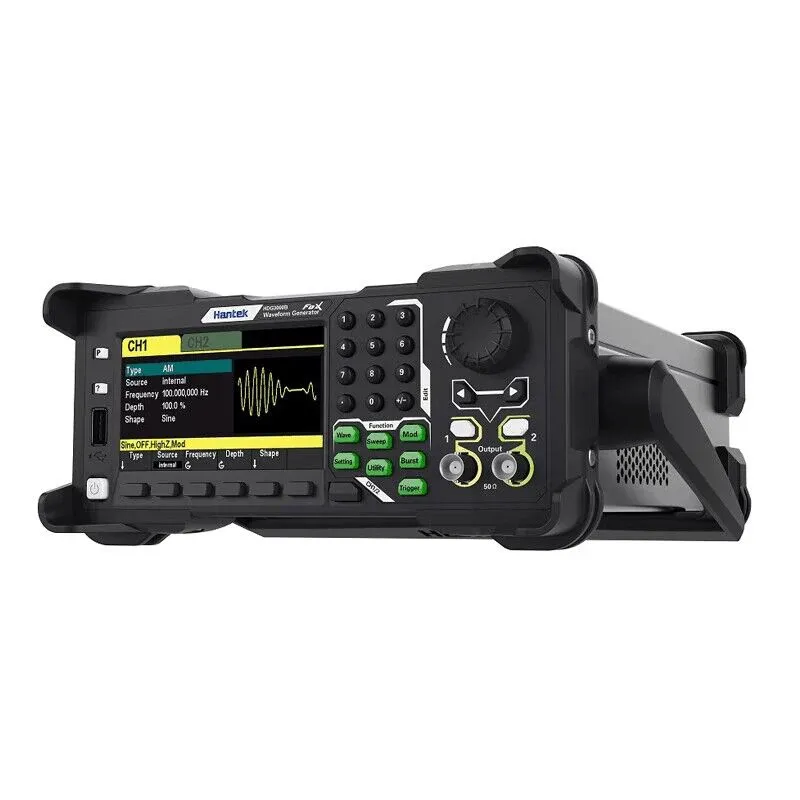

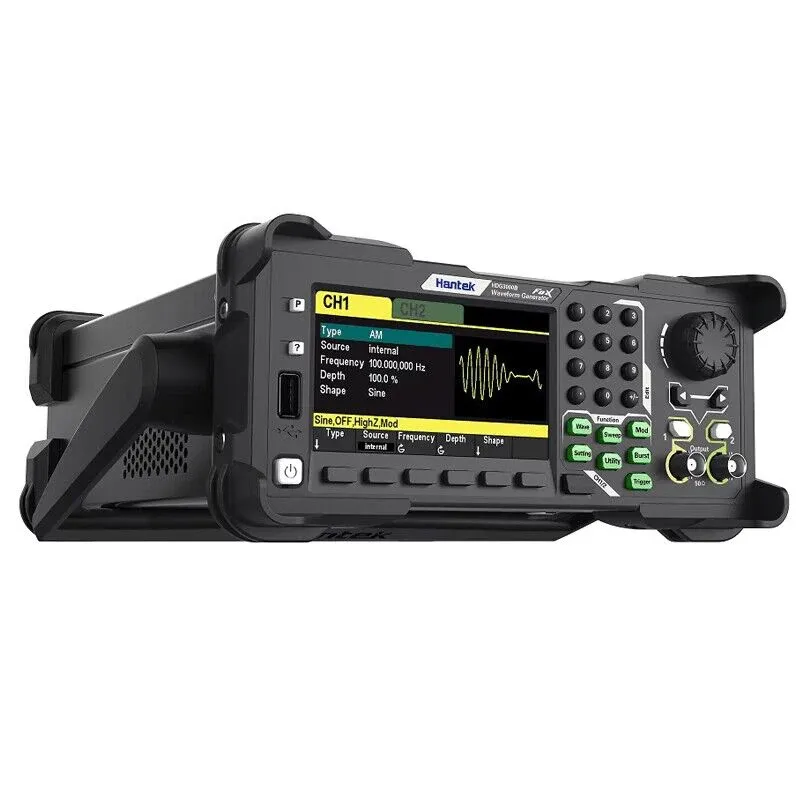

Name: Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Dual Channel Desktop Signal Source Signal Generator
SKU: GFX20330
Availability: InStock

Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Dual Channel Desktop Signal Source Signal Generator

1.HDG3000B series integrates5 functionsofarbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDSdirect digital frequency synthesis technology.

3.Up to300MSa/ssampling rate,16bitsvertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up to2Mensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

Features:

Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.
Up to 300MSa/s sampling rate, no distortion of analog waveforms.
16-bit vertical resolution ensures the accuracy of waveform amplitude.
Equip with dual channels with equal performance, equivalent to two independent signal sources.
The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
Rich modulation function, support for AM, DSB – AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
Built-in 80MHz high-resolution frequency meter.

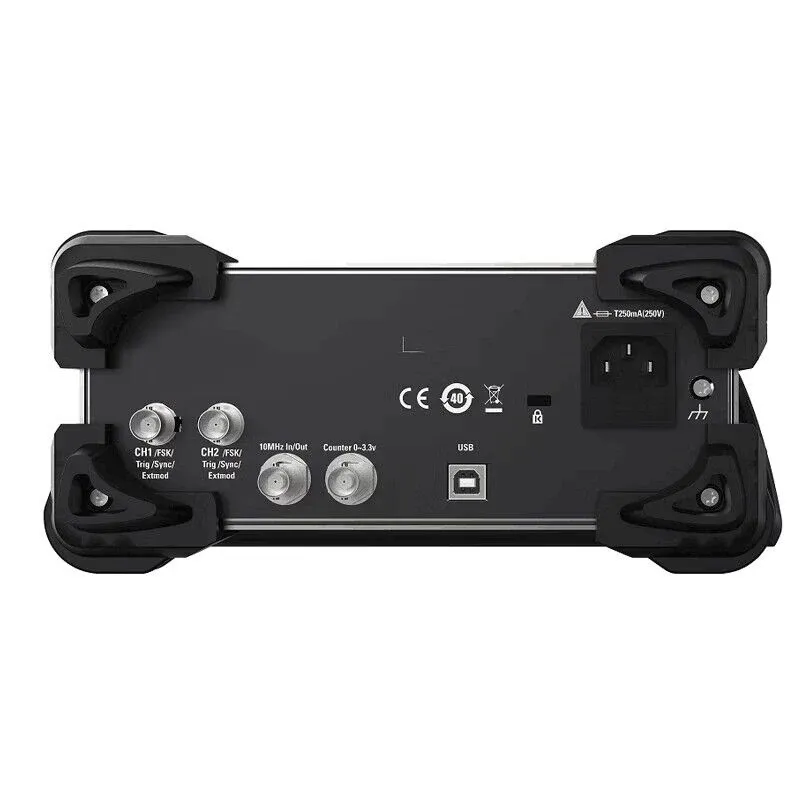

Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.

Comparison of Specifications:

Model	HDG3102B	HDG3082B	HDG3062B	HDG3042B	HDG3022B	HDG3012B
Channel	2
Wavelength	2M
Frequency range	100MHz	80MHz	60MHz	40MHz	25MHz	15MHz
Sampling rate	300MSa/s
Voltage resolution	16Bits
Waveform
Standard waveform output	sine wave, square wave, triangular wave, pulse wave, noise, harmonics
Arbitrary waveform output	160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc

Frequency meter
Measurement functions	Frequency, period, positive/negative pulse width, duty cycle
Frequency	1 μHz ~ 80 MHZ
Gate time	10ms~16s
Input signal range	0 ~ 3.3 V
Trigger property
Trigger input
Level	TTL – compatible
Slope	Up or down (optional)
Pulse width	>100ns
Trigger output
Level	TTL – compatible
The pulse width	>60ns
Maximum frequency	1MHz
Reference clock
External reference input
Lock range	10 MHz±50 Hz
Level	Low level: 0~400mV, high level: 2.5V~5V
Locking time	< 2 s
Input impedance	50 Ω, DC coupling
Internal reference output
Frequency	10 MHz + 50 Hz
Level	3.3 Vpp
Output impedance (typical value)	50 Ω, DC coupling
Synchronous output
Level	TTL – compatible
Impedance	50Ω, nominal value
General features
Interface	USB Host, USB Device
Display	4.3-inch color TFT LCD screen
Voltage	100-120VACRMS(±10%),45Hz to 440Hz, CATⅡ
	120-240VACRMS(±10%),45Hz to 66Hz, CATⅡ
Power	<30W
Fuse	T, 0.5 A, 250 v, 5 x20mm
Environment
Temperature range	Operation: 10°C~ 40°C
	Non-operation: -20°C~ 60°C
Humidity range	≤+104℉(≤+40°C):Relative humidity ≤90%
	106℉~122℉(+41°C ~50°C): Relative humidity ≤60%
Altitude	Operation: below 3000 meters
	Non-operation: below 15000 meters
Mechanical specifications
Dimensions (W × H × D)	308mm x 232mm x 110mm
Weight	3.09 KG

Packing List:
