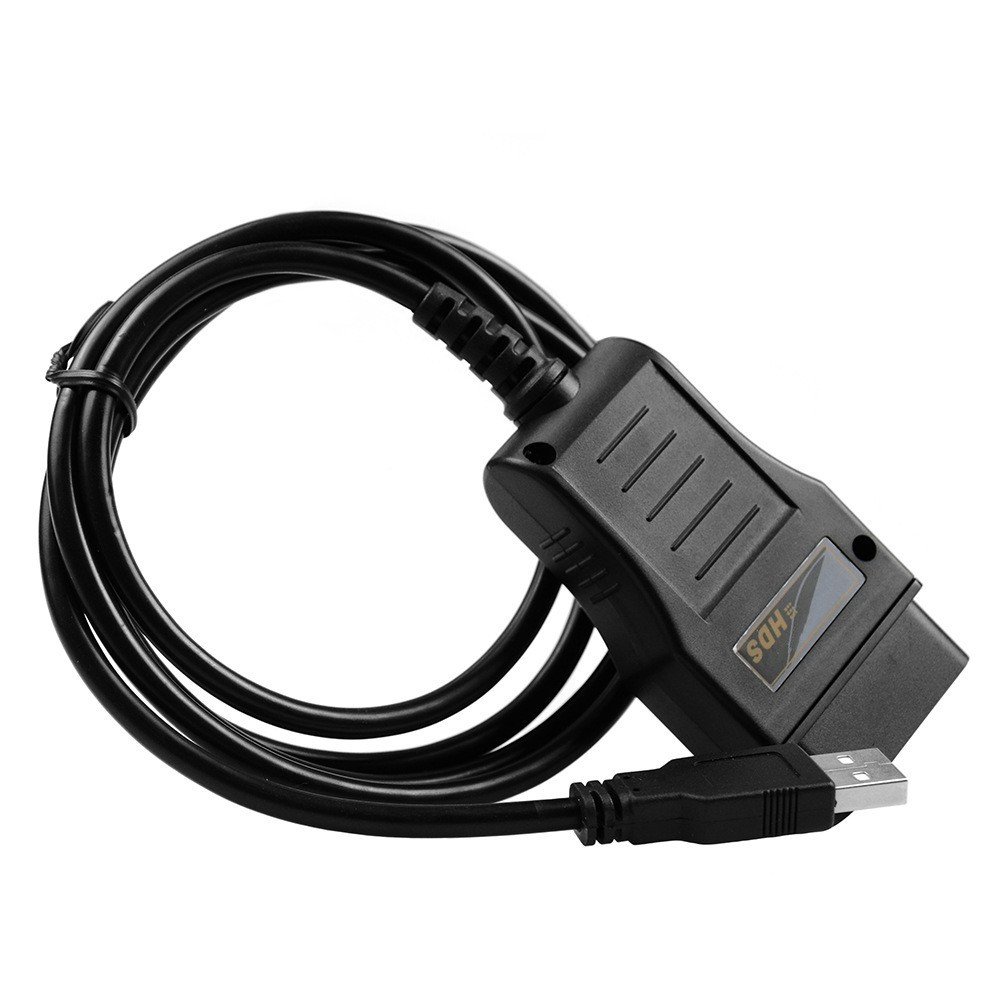

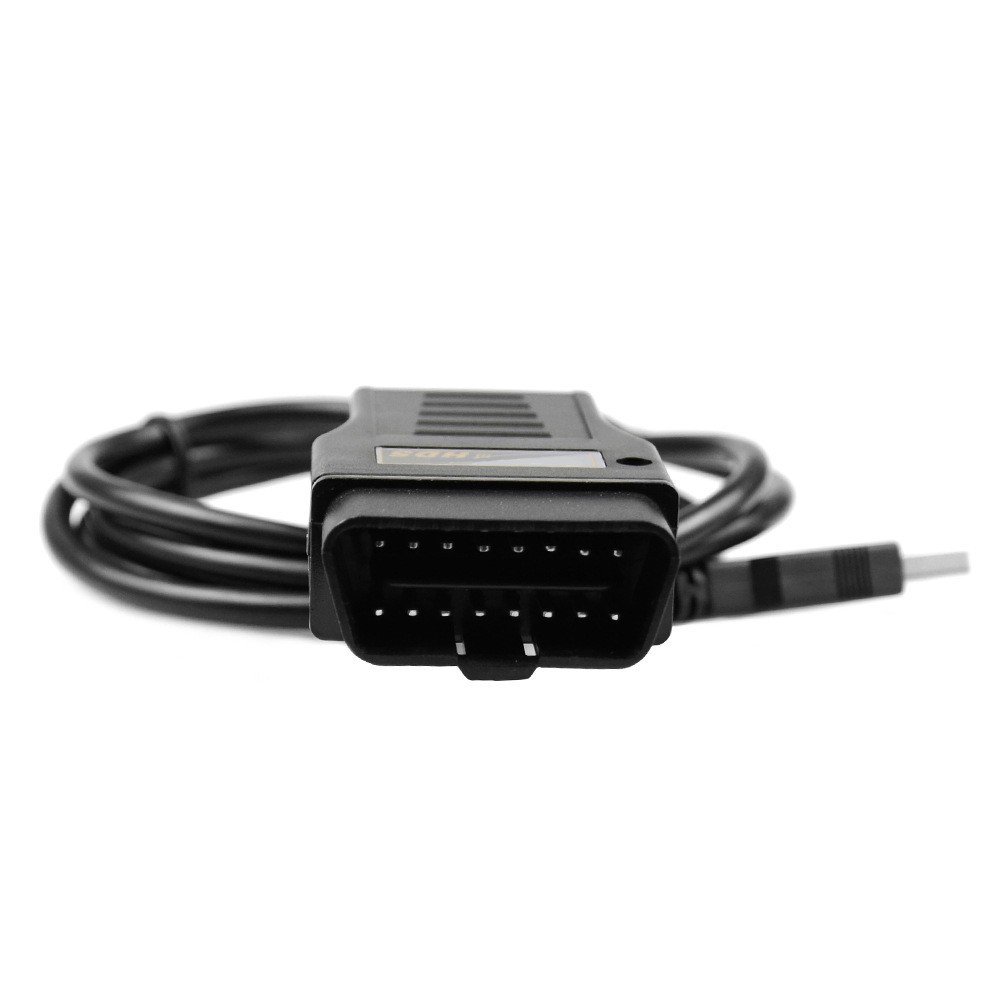

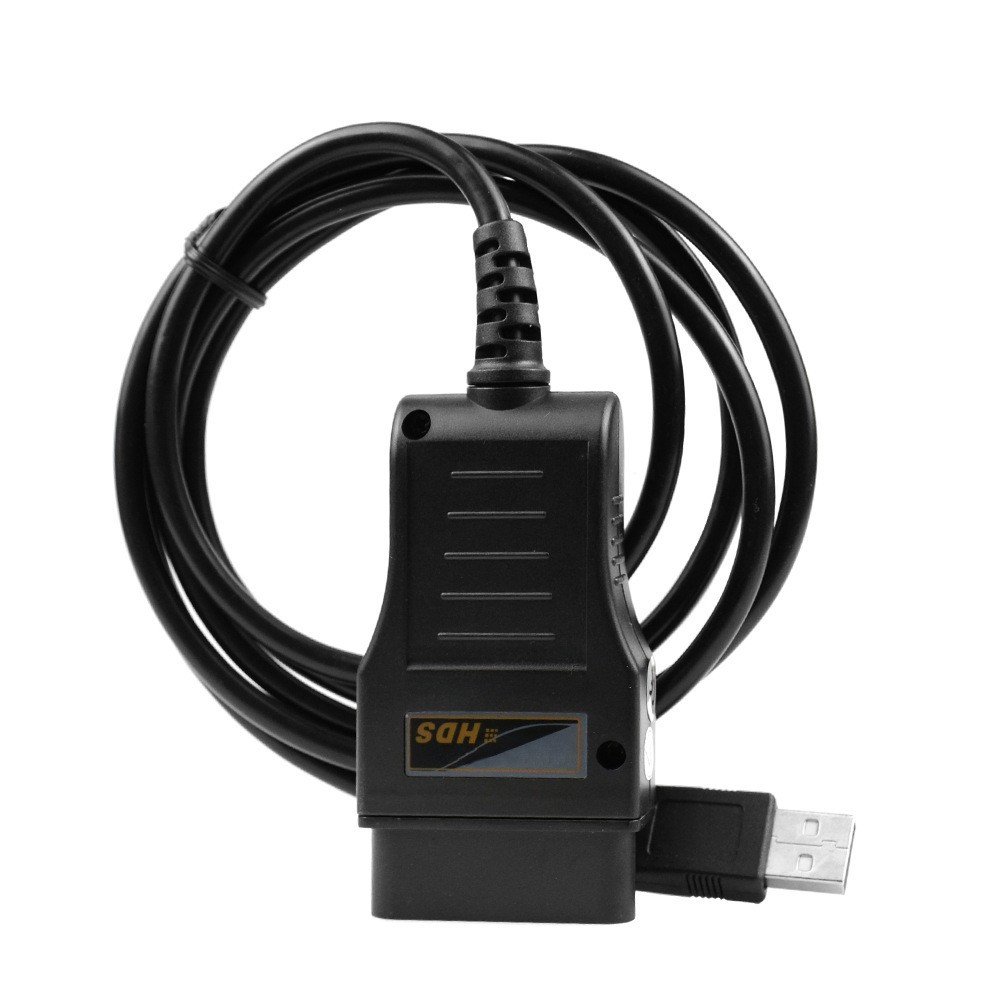

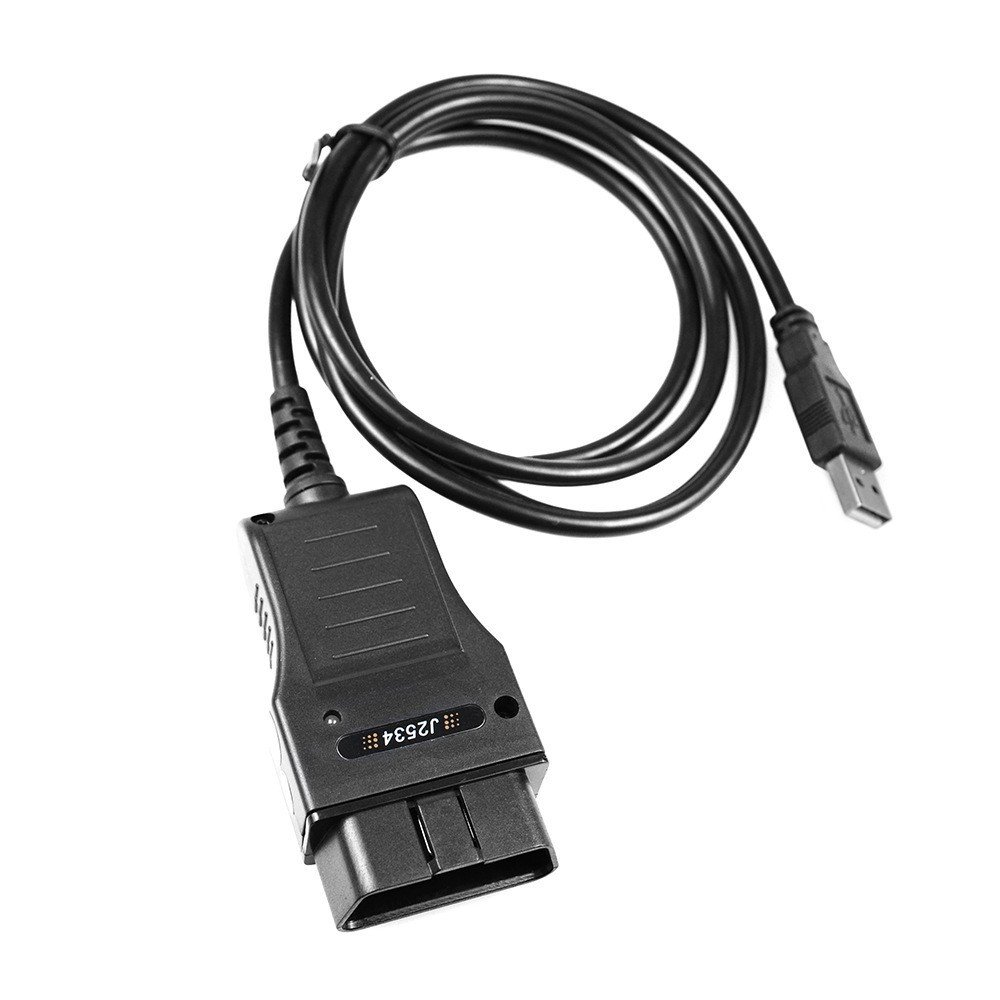

HDS Cable J2534 for Honda Detection Line Diagnostic Tool

Software Options: The HDS J2534 is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that this uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by it, with more being added all of the time. PCMScan Diagnostics and Data Logging Software

This full version of PCMScan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.
PCMScan running on ISO and VPW. PCMScan running on ISO(M-ISOCAN) or VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including many other automaker brands. By 2008 most vehicles on the road will be CAN based and supported by the ISO/CAN adapter.
API. HDS J2534 also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW tm, C or Visual Basic.

Material: chip
This is a low-cost, high-performance vehicle network interface that connects a laptop directly to the Bus Network via the OBD-II connector. HDS J2534 this product to be affordable for Professional Technicians, CarPCs, the aftermarket, and automotive enthusiasts.
Software Version: V3.016
Firmware Version: 1.4.1
Recommendation Operating System: XP 32bit
Applicable models: 2010 and 2010 before
This includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.

Key Features:

Lost cost, high performance pass-thru diagnostic tool for use with PC
Simple packaging with electronics contained inside the cable
J2534 and J2534-1 compliant device driver
Commercial Range (-30 to +70° C)
Dimensions: 3 inch x 1.75 inch
Cable length: 135 cm
Operating Voltage: Bus-powered by USB
Supported List:
Bus Protocols supported by the MFC for Honda
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
KWP2000 (ISO9141 / ISO14230)
Short to Ground pins 1, 9 and 15
VPP +5 Pin 12

Package list:

1 x HDS J2534 Cable
1 x Installation CD (J2534 compatible)
Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm
