JDiag M100 Motorcycle Diagnostic Tool For Kawasaki Yamaha Suzuki Motorbike Scanner Motor Scan Tool – Full Version

JDiag M100 Motorcycle Diagnostic Tool for Kawasaki Yamaha Suzuki Motorbike Scanner Motor Scan Tool – Full Version

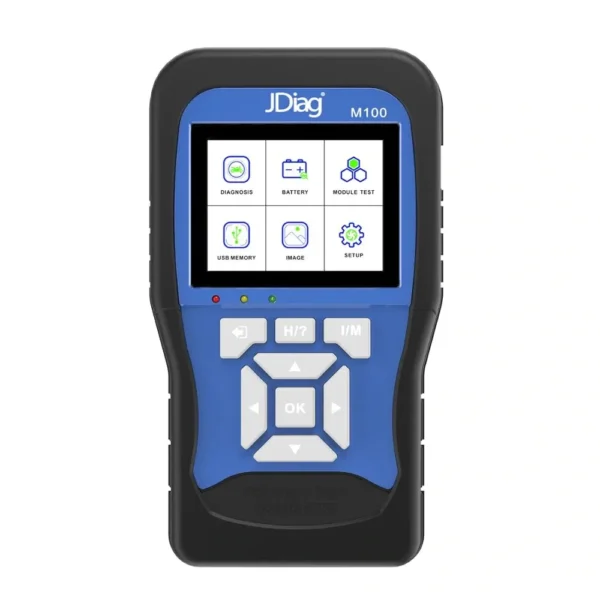

M100 Moto Scanner Universal Motorcycle Scan Tool

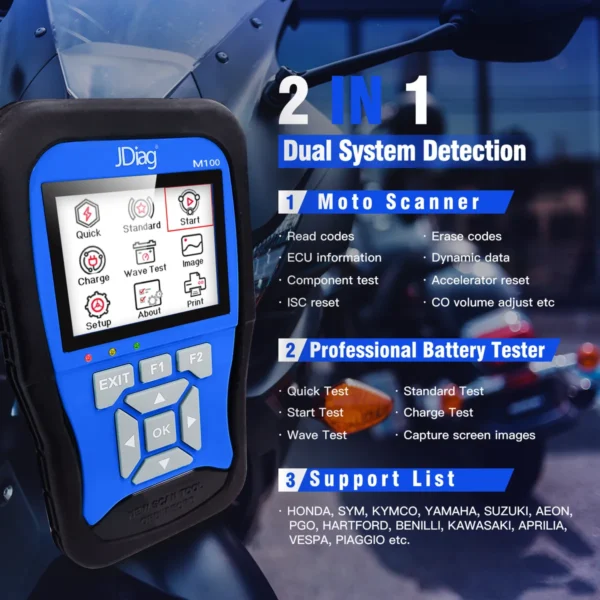

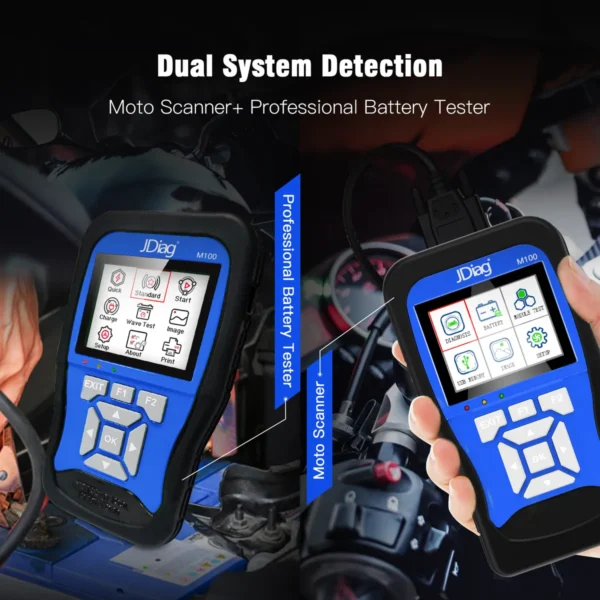

M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers’ diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).
It allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.
The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

M100 Moto ScannerFeatures:

1.Handheld operation, convenient and flexible to use
2.Support for SD cards to store data and upgrades,
3.Reserved CAN bus interface
4.3.2-inch color screen, clear display.
5.Dynamic data with numerical and waveform.

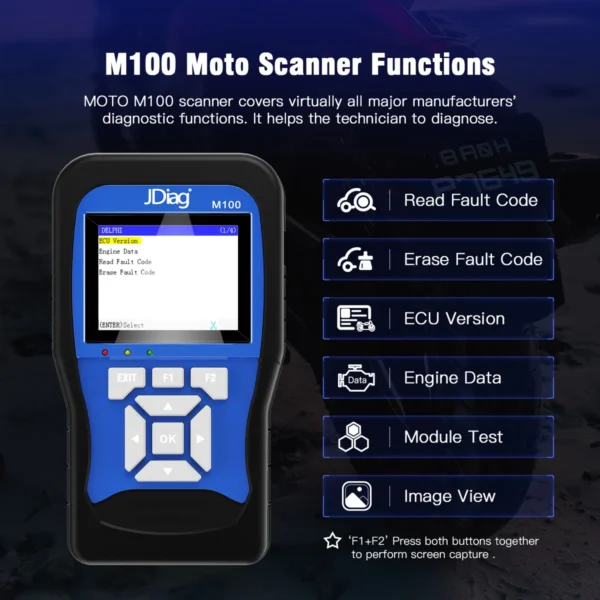

M100 Moto ScannerFunction:

1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Freeze data
6. CO idle speed adjustment
7. Actuators test
8. ABS system test
9. Trouble shooting guidance
10. Tire pressure system test
11. Anti-theft system test

M100 Moto ScannerSupport Motorcycle list:

Hartford, Aeon, Honda, SYM, Yamaha,Suzuki,Kymco,Kawasaki,Piaggio,PGO,KTM, etc

M100 Moto ScannerSupport Multi Languages: English , Chinese, Thai, Indonesian, Vietnamese,Malay.

M100 Moto ScannerSpecifications:
Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

Package Included:

1.Scan Tool main unit

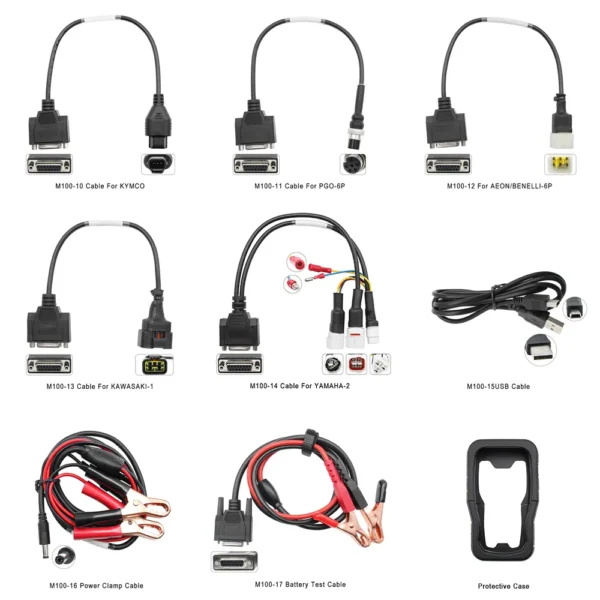

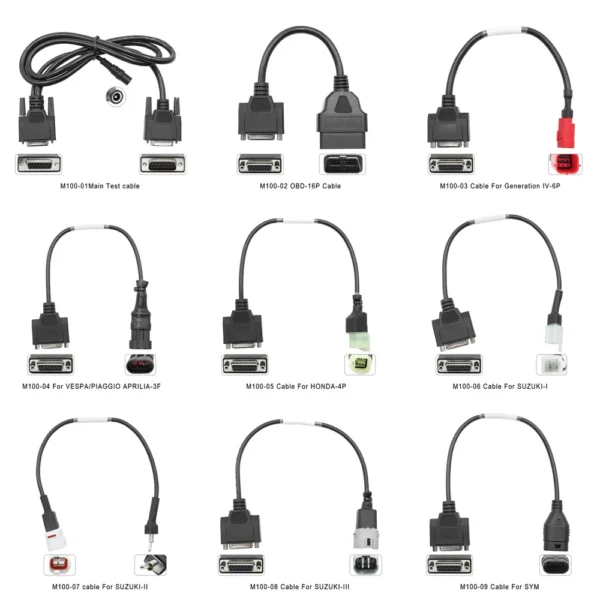

2.Test cables
3.USB Cable
4.User Manual
5.Protective ABS Toolbox
