Topdiag P100 Original Automotive Electrical Circuit System Tester

$75.39

In stock
Buy it now
Brands:
SKU: GFX24316

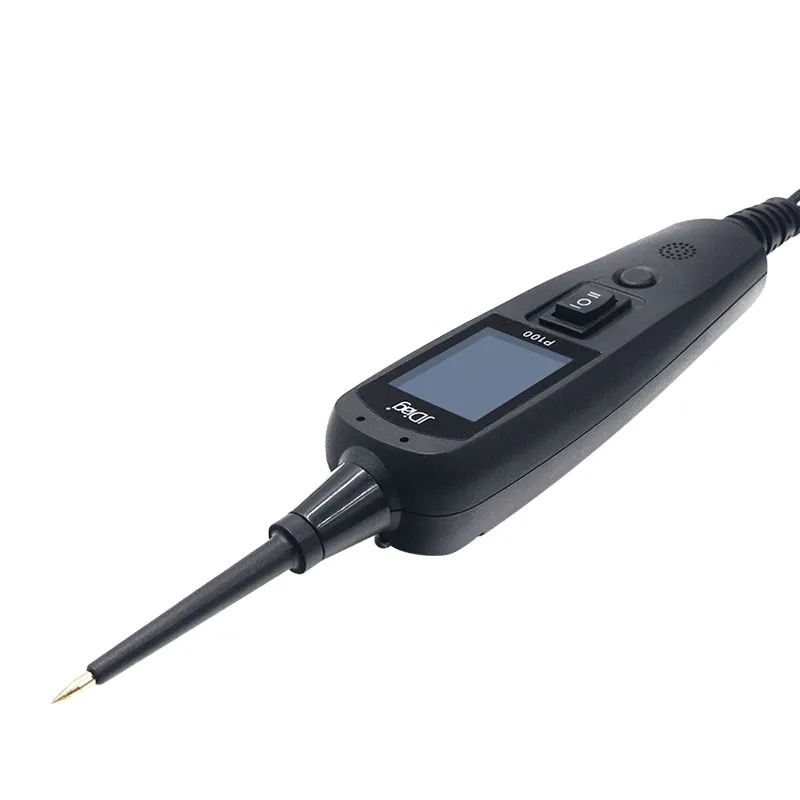

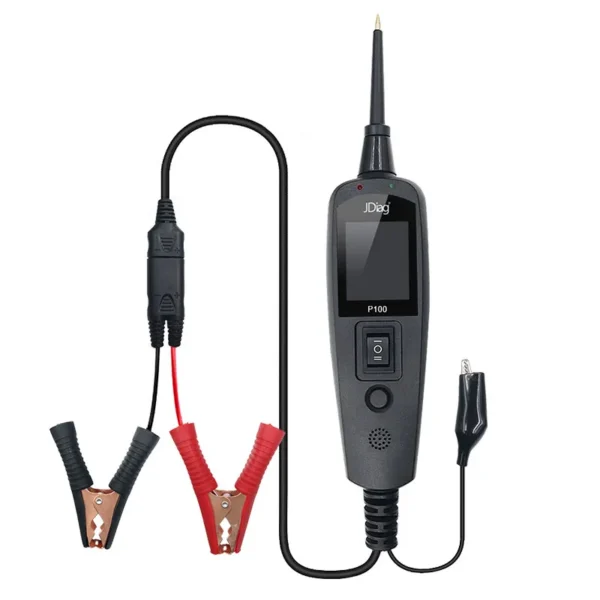

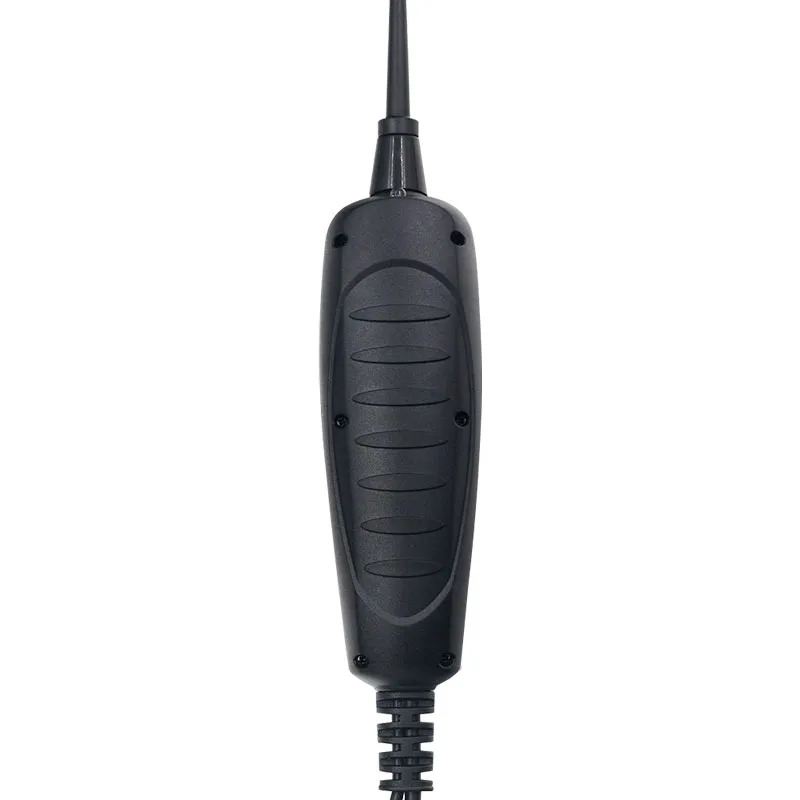

JDiag P100 Power Probe P-100 Electrical Circuit Tester For Cars Trucks Motorbikes Multi-Languages

1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
2.Resistance Continuity Testing- LCD Screen display the value of resistance.
3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
4.Components Activation in your hand, in the vehicle or W/Ground.

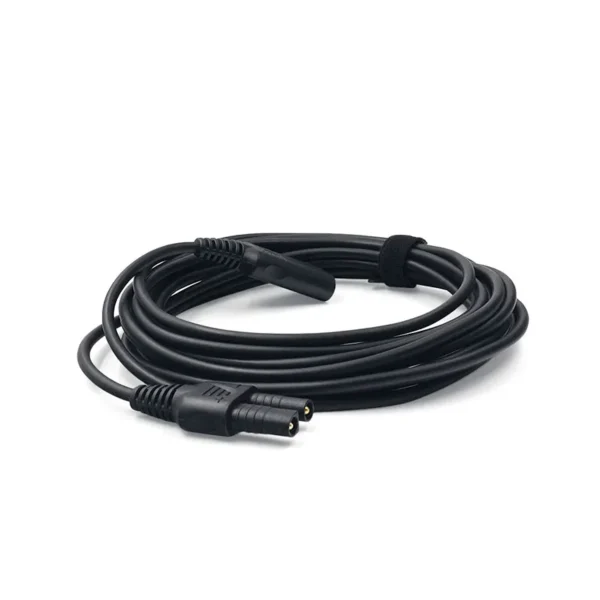

5.Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.
6.Checking for Bad Ground Contacts and Locating Short Circuits

How Does Jidag P100 work?

Specifications:

1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0 V power provided via vehicle battery
5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

Test Tool Specifications:

DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp

Testing Standard:

100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.

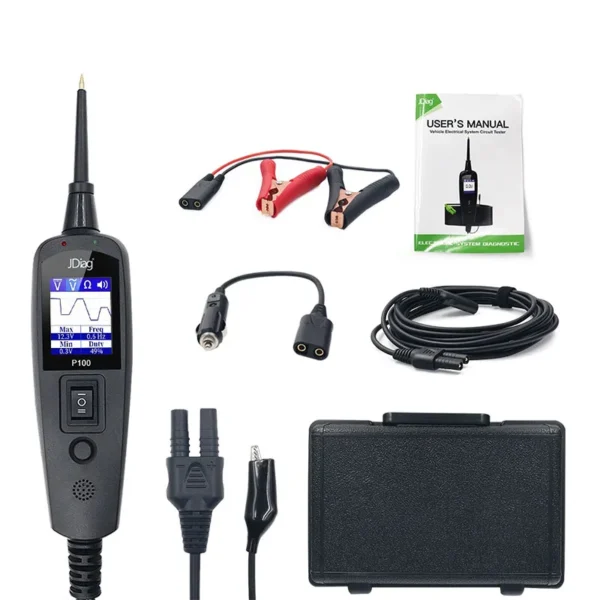

Packing List:

Weight 1.2 kg
Manufacturer

JDiag
