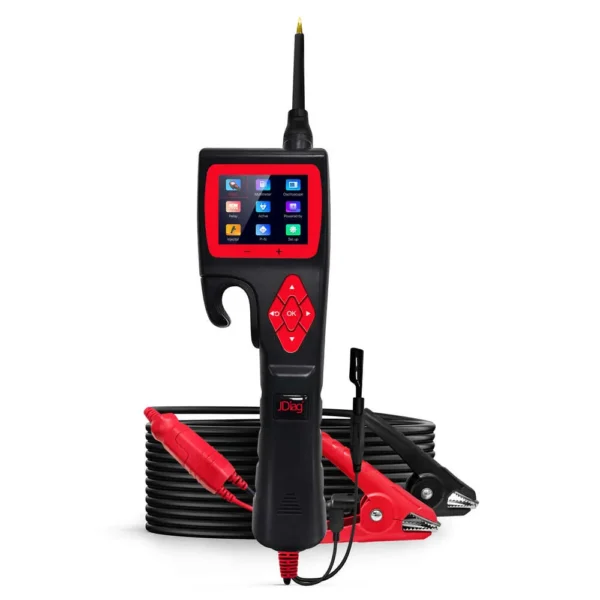

JDiag P200 Automotive Powerfull Probe Smart Electrical Circuit System Tester For Car Truck Motorcycle Boat

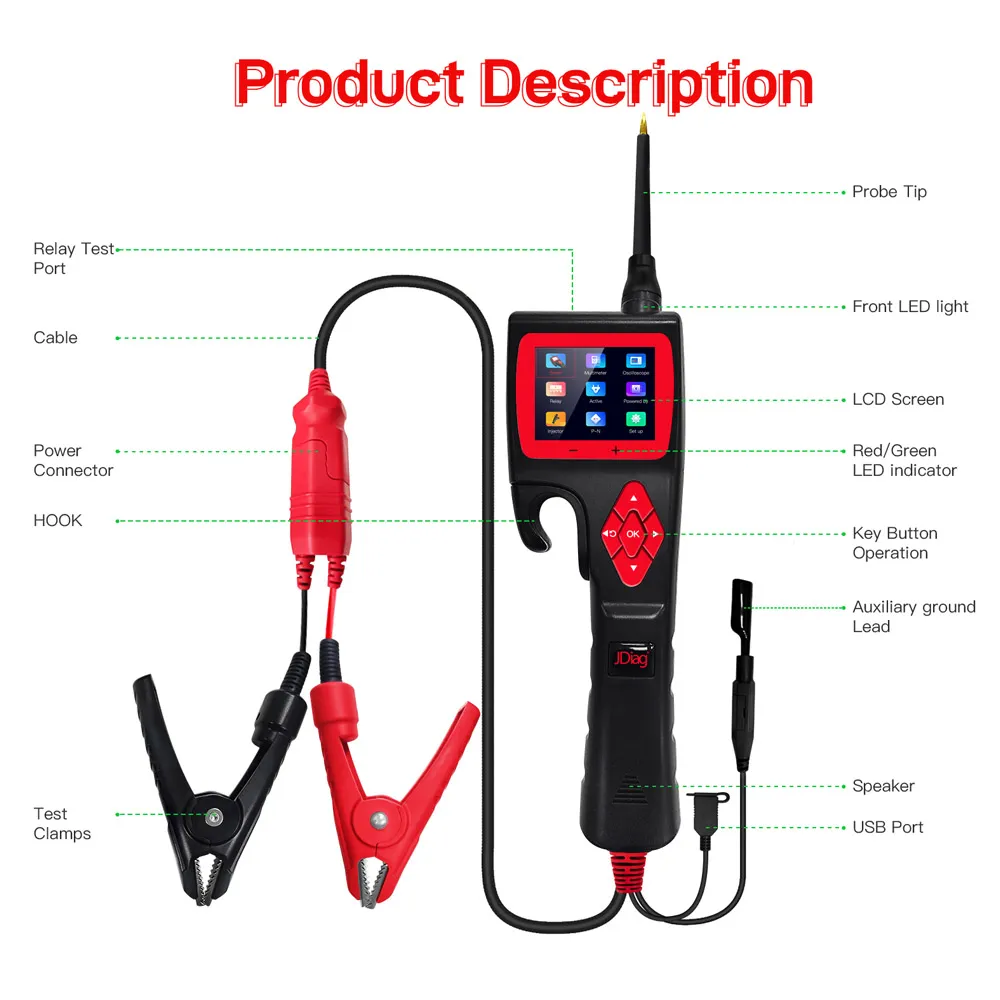

JDIAG P200 SMART HOOK Powerful Probe

Description:
JDIAG P200 SMART HOOK Powerful Probe, thenew generation of intelligent circuit analyzer,is the only circuit testerthat can be upgradedin the market. It cantestall 9V-30V electronic systemsquickly. The test time can be greatly shortened, making it moreconvenient, fasterand smarter!

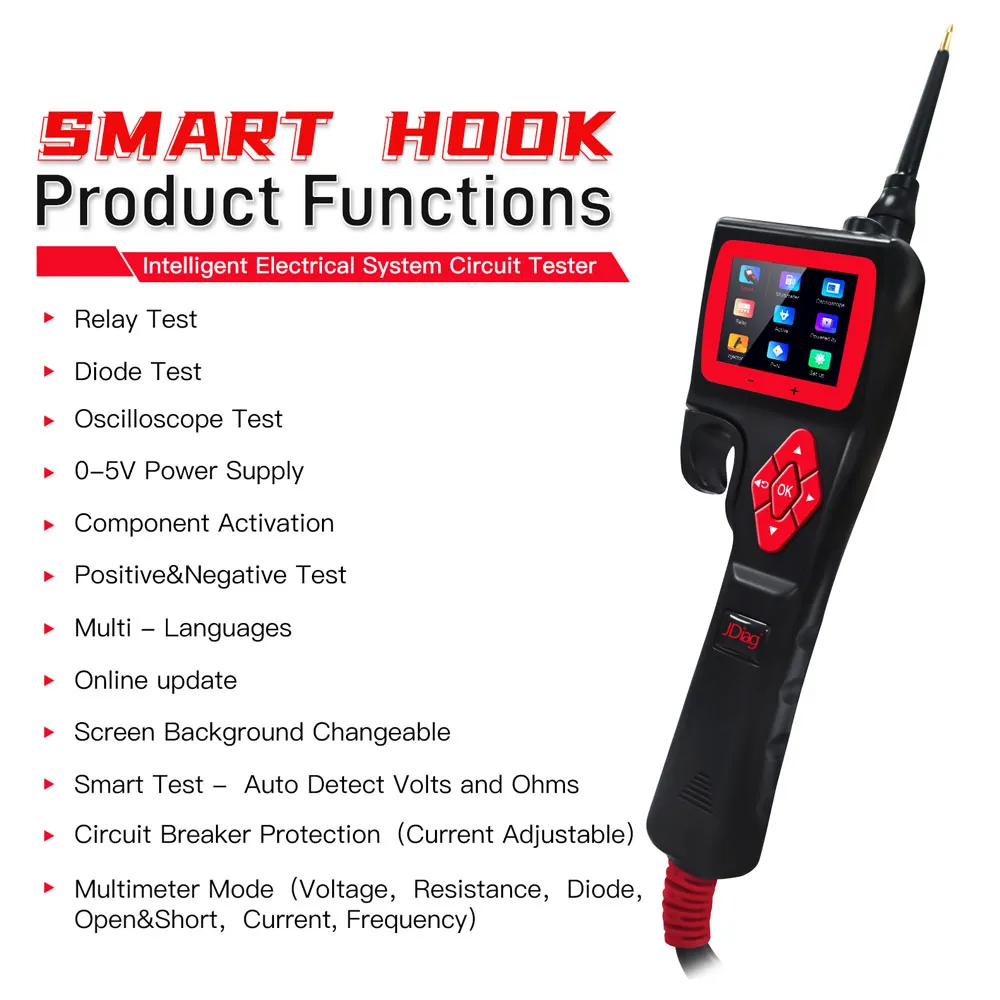

Features:

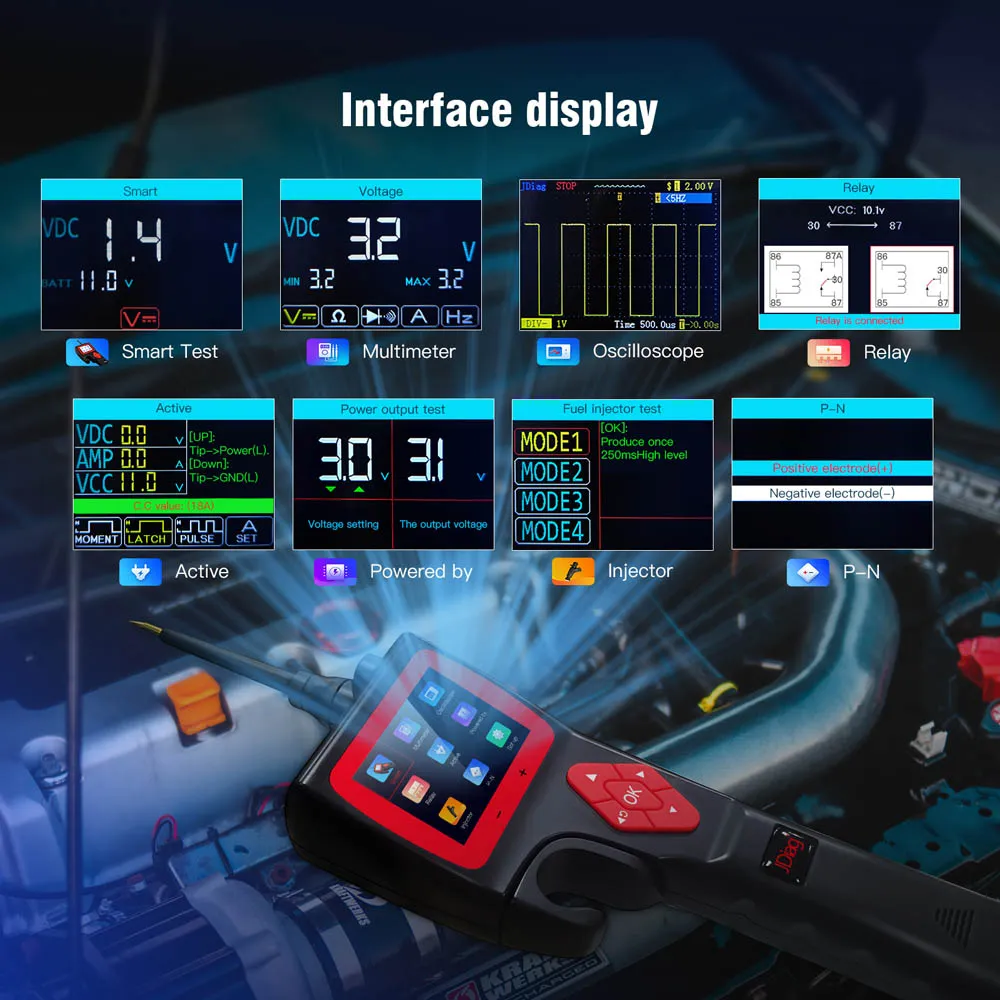

1. Intelligent identification of voltage/resistance

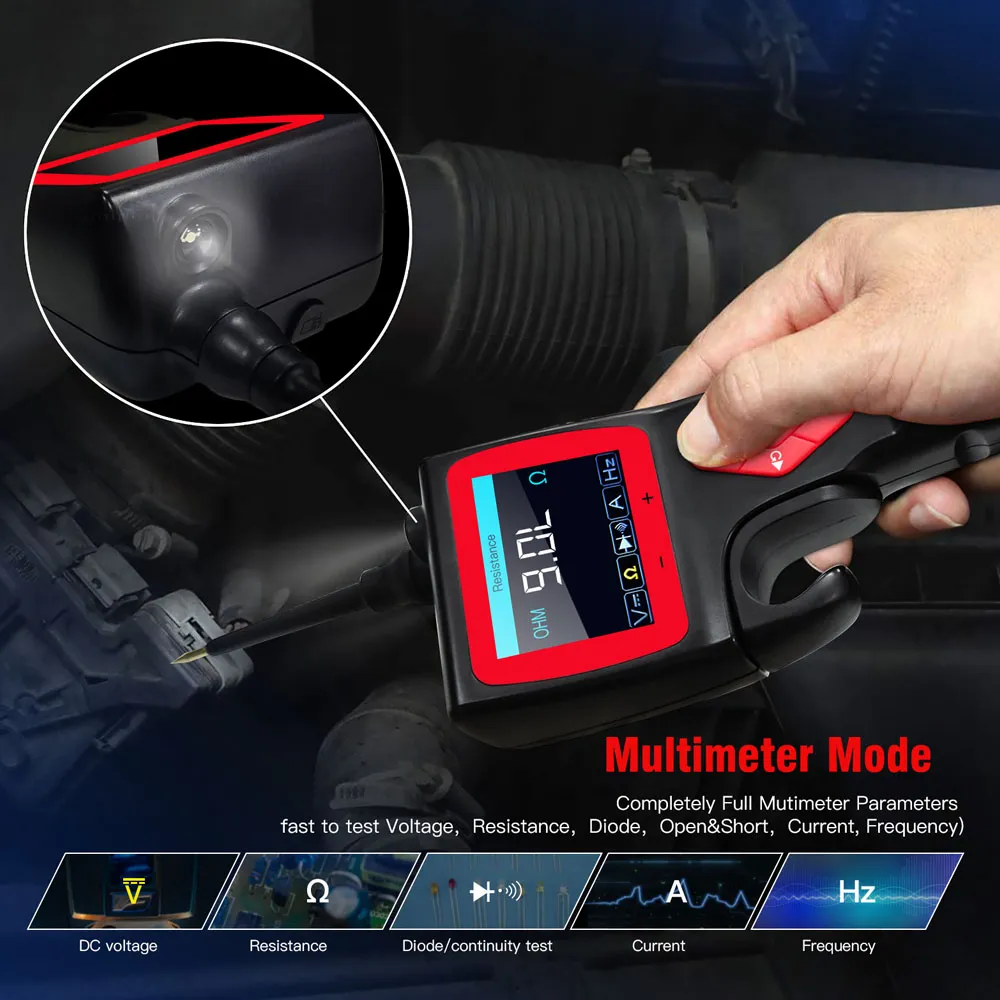

2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3. Relay test
4. Injector test
5. Diode test
6. Oscilloscope function
7. 0-5V adjustable power supply

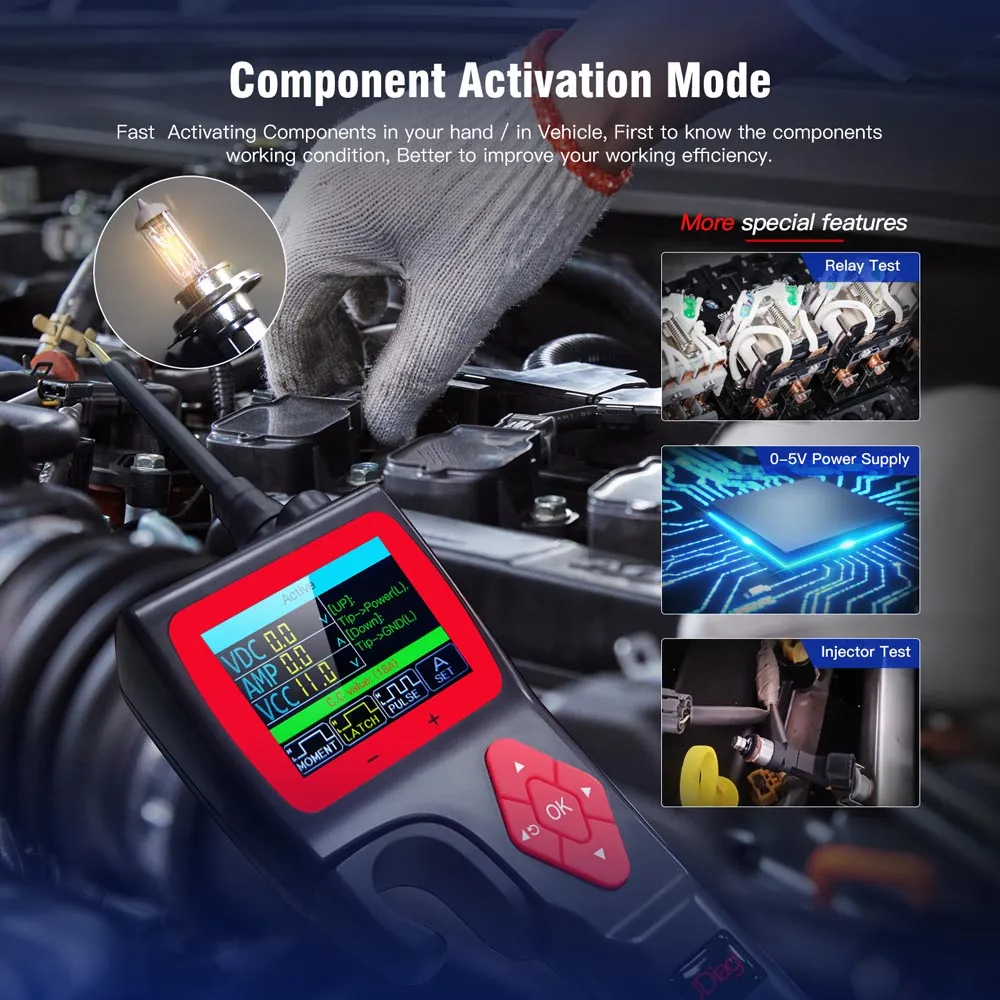

8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. Network can be upgraded online
13. Built-in Multi-lingualsettings.

Product specifications and parameters

1)Display:………… (320*240 DPI) TFT true color display
2)Working temperature: ……….. 0-60°C (32-140 F°)
3)Storage temperature:………..40-70°C (-40-185 F°)
4)External power supply: … 12V or 24V powered by battery
5)Minimum working voltage:…9V
6)Maximum working voltage: 30V
7)Maximum measuring voltage: 150V
8)Minimum measuring voltage: …………………0.1V
9)Resistance measurement range:… 1 ohm~200K ohm
10)Current measuring range: ………………… 0~18A
11)Maximum continuous current: ………………… 18A

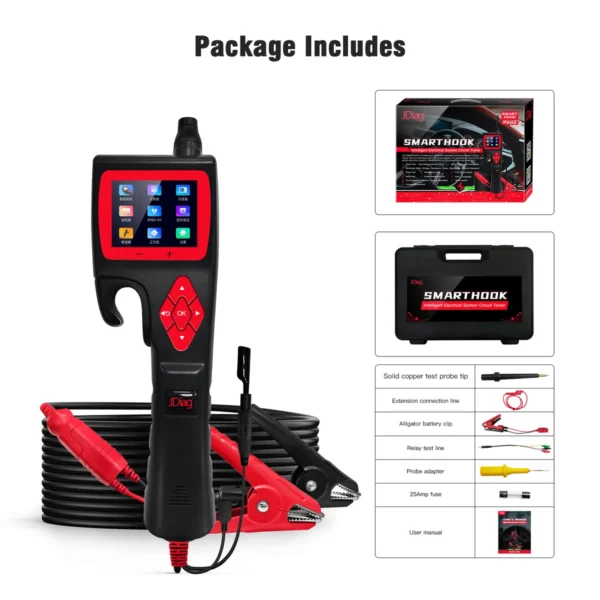

Package includes:

1pc xSolid copper test probe tip
1pc x Extension connection line
1pc x Alligator battery clip
1pc x Relay test line
1pc x Probe adapter
1pc x 25Amp fuse
