JDiag P200 Pro Smart Hook Master Edition Car Circuit Tester 9-48V Automotive Power Probe Electrical System Tester

JDiag P200 Pro Newest Smart Hook Master Edition Car Circuit Tester 9-48V Automotive Power Probe Electrical System Tester

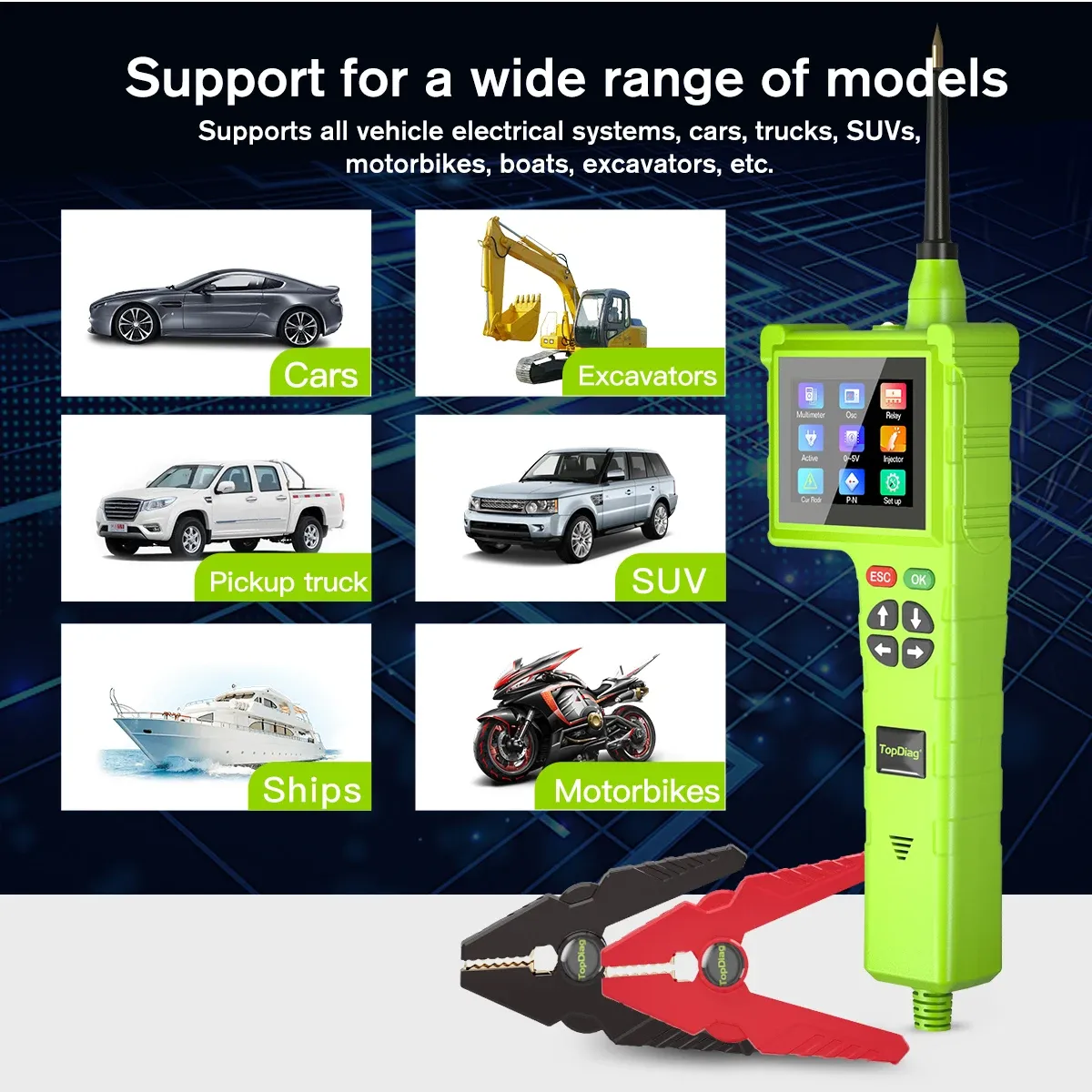

The Smart Hook Master Edition is the newest generation enhanced circuit tester, it is dedicated to privide comprehensivediagnosis for all electrical system between 9V – 48V, Especially designed for Motorcycles, Cars, Trucks, Boats, Construction machine etc.

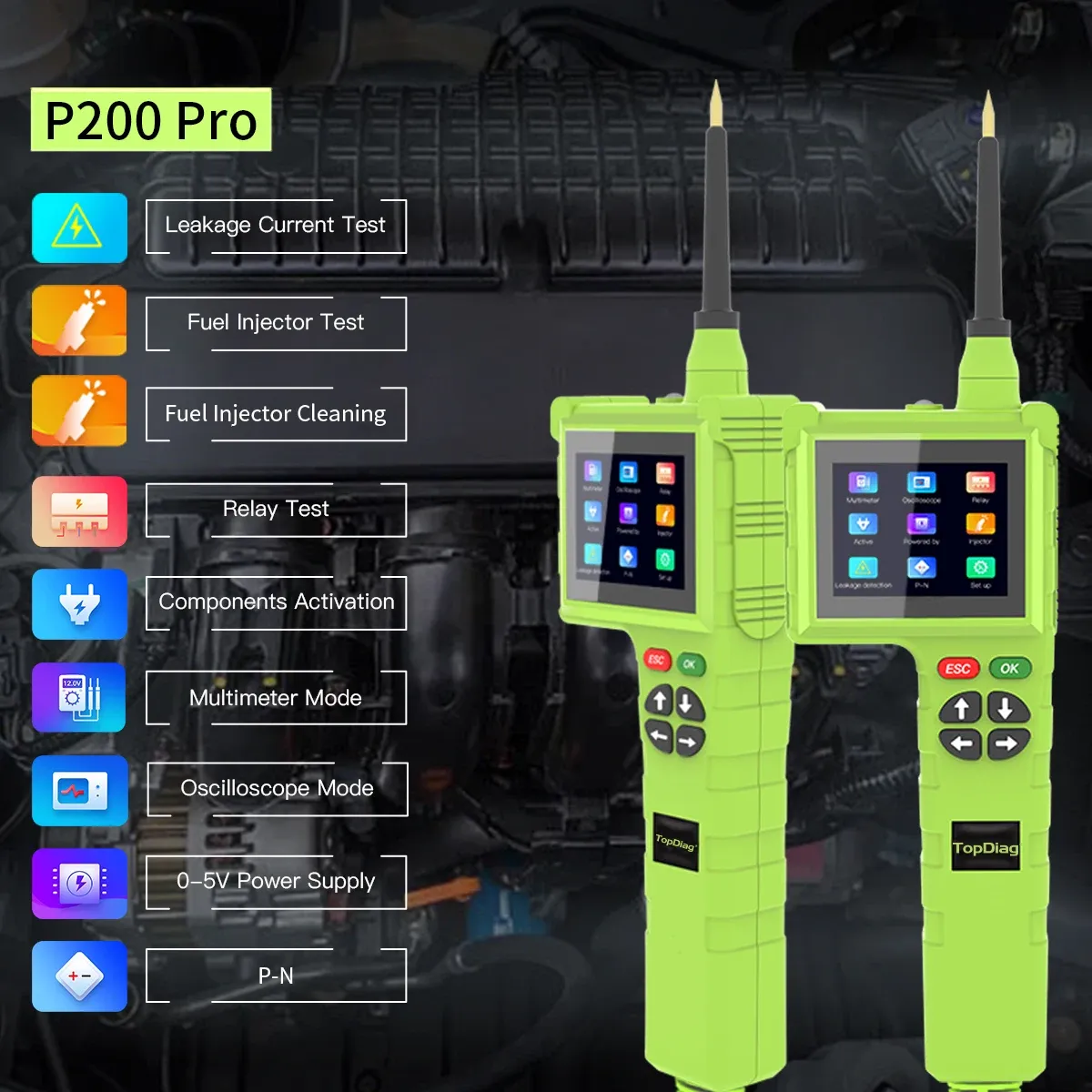

P200 PRO Features:

Leakage Current Test

Fuel Injector Test

Fuel Injector Cleaning

Relay Test

Components Activation

Multimeter Mode

Oscilloscope Mode

0-5V Power Supply

P-N

Fuel Injector cleaning Instructions:

1. Turn off the vehicle’s engine

2. Connect the BLACK clip to the negative termainal of the battery and the RED clip to the positive terminal of the

battery.

3. Unplug the connector from the fuel injector, connect the probe auxiliary ground lead to the negative side of the

injector, positive side of the injector.

4. After enter into the injector test function, select the test mode.

5. Press “OK” button to trigger the test.

6. Check the injector spraying status to diagnose the condition.

Support Multi-languages:

English

Espanol

Deutsch

Francais

Italiano

Portugal

Polish

Russian

Vietnamese

Thailand

Indonesian

Filipino

Malay

Arabic

Koream

Japanese

Leakage Detector Function:

Can record the leakage current for one hour and play back

Nozzle Detection:

Support analog output nozzle signal, support nozzle singal signal acquisition and analysis of its parameters, draw its signal waveform fuel injector cleaning

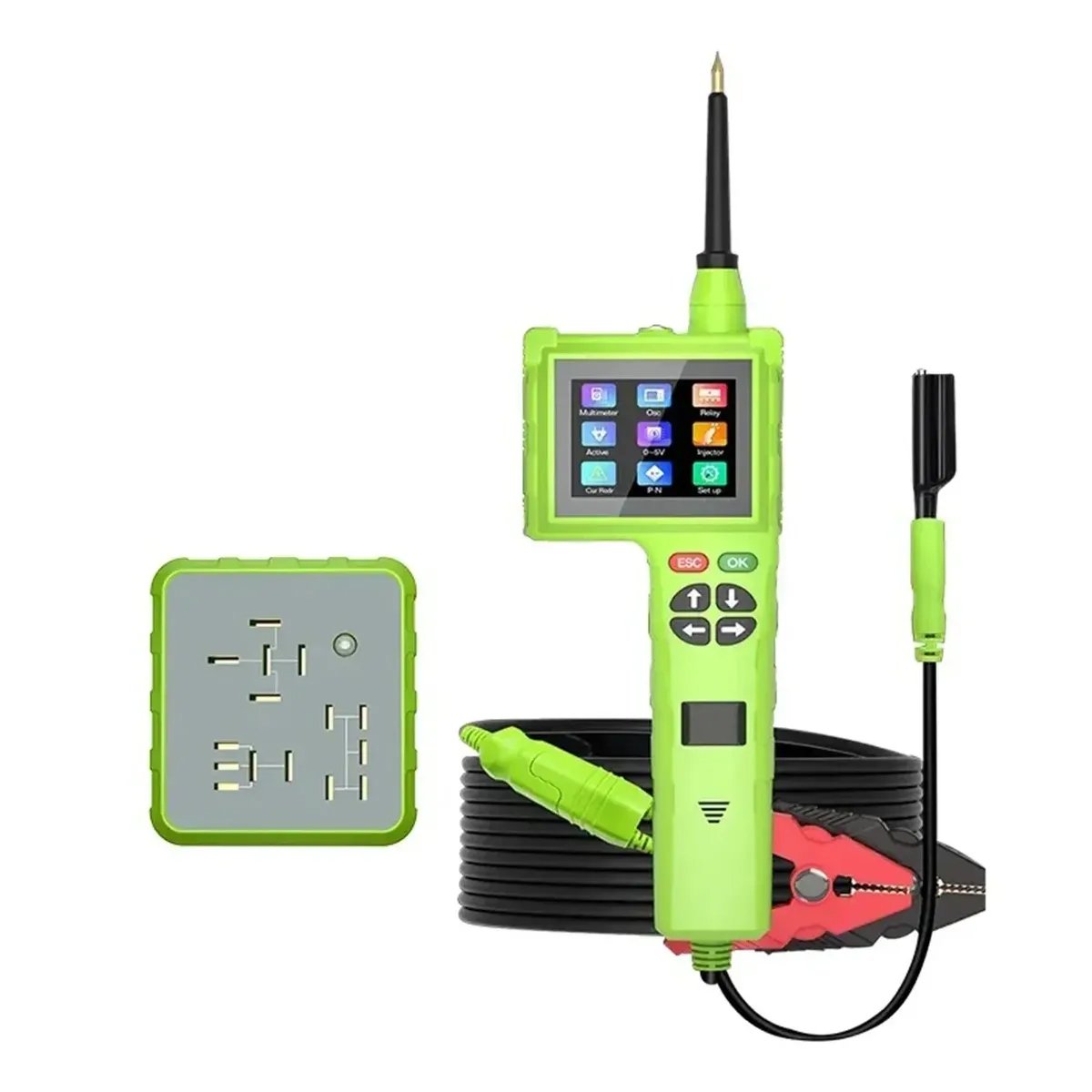

Relay test:

separate relay test box for easy wiring, connecting the host through Type-c

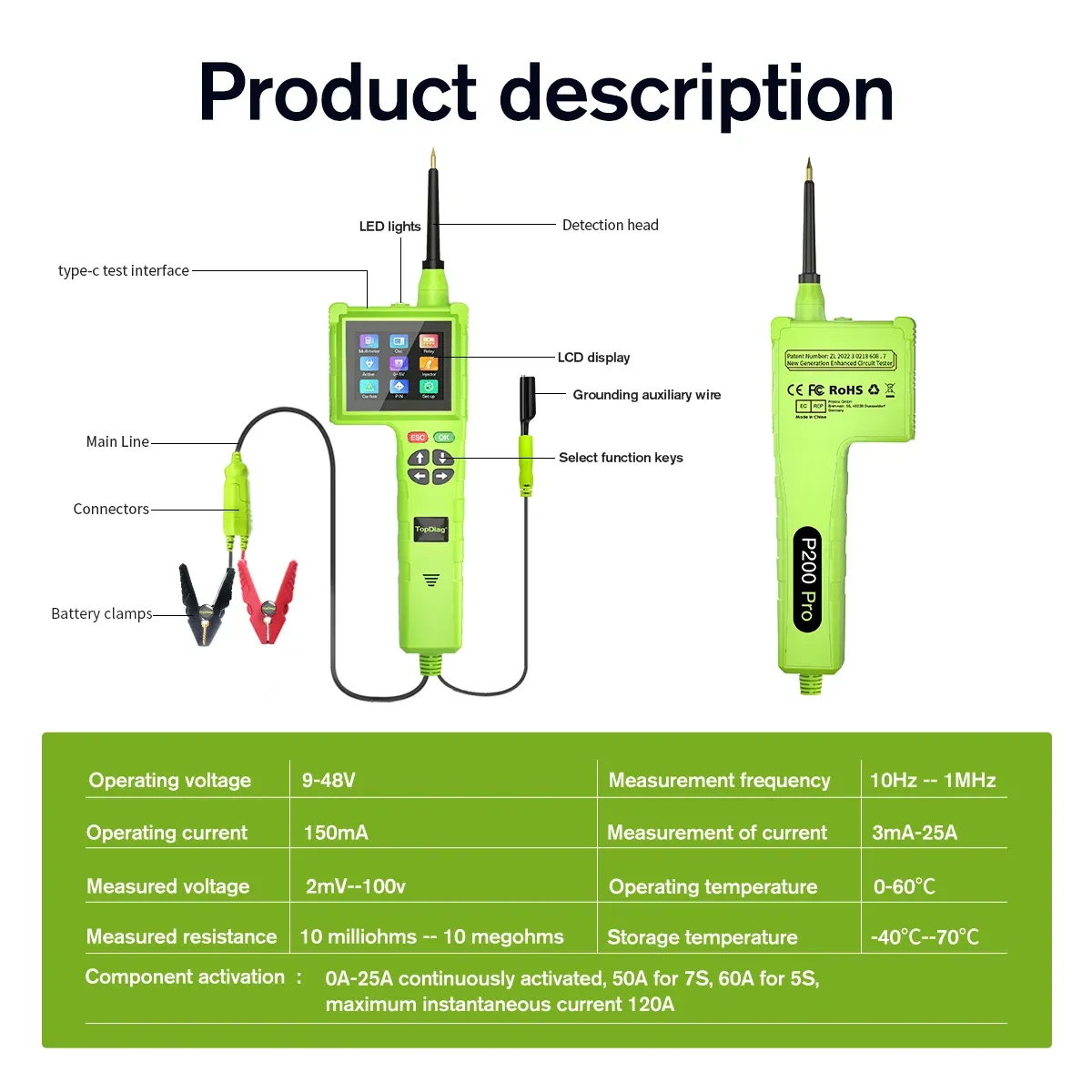

Specification:

Operating Voltage: 9-48V

Frequency test: 10 Hz-500 KHz

Test voltage range: 2mV~99.9V

Component activation: 100AMPS test

Screen size: 2.4 inch TFT, supports hibernation mode

Resistance measurement range: 0.01 ohm~10 Mega ohm

External power supply: 12V or 24V, battery powered

Operating temperature: 0-60 ( 32-140F)

Storage temperature: -40-70 (-40-185F)

Current test range: 2mA-100A (MAX) Maximum continuous load 25Amps maximum intermittent load 65 Amps for 8s.
