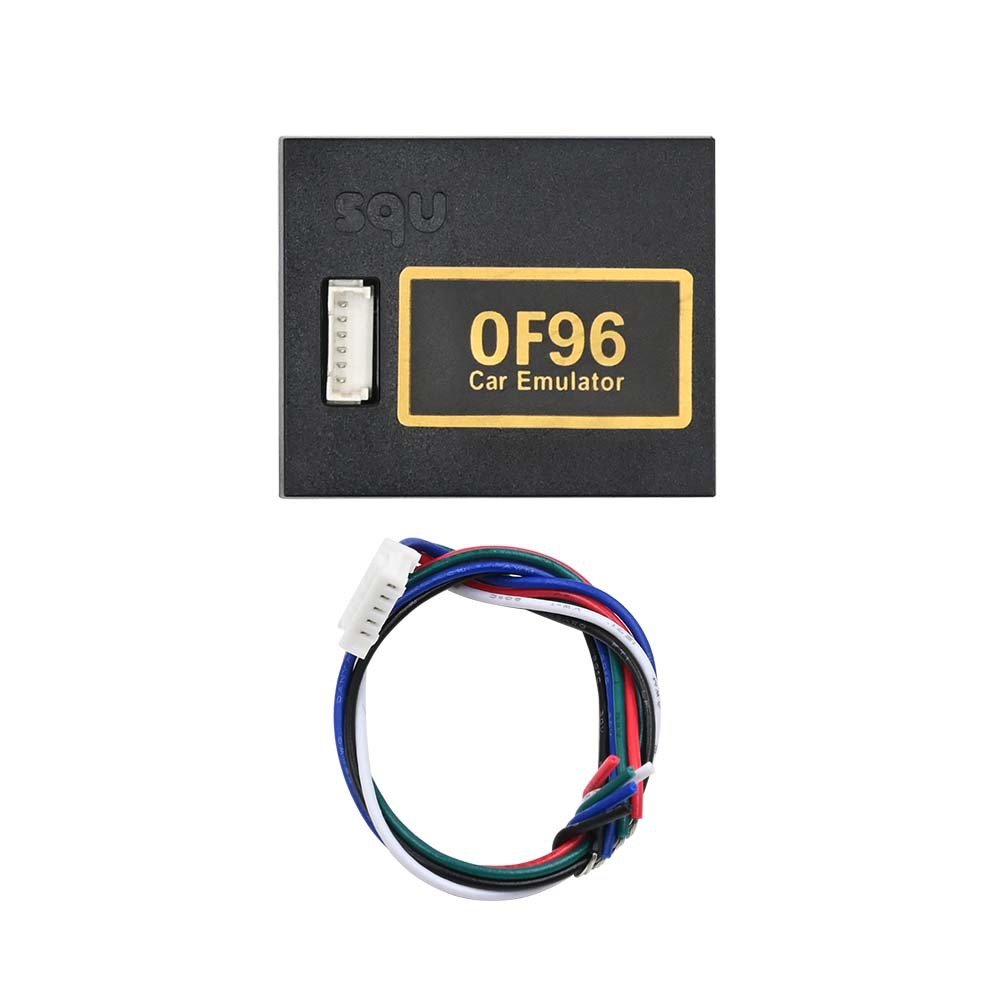

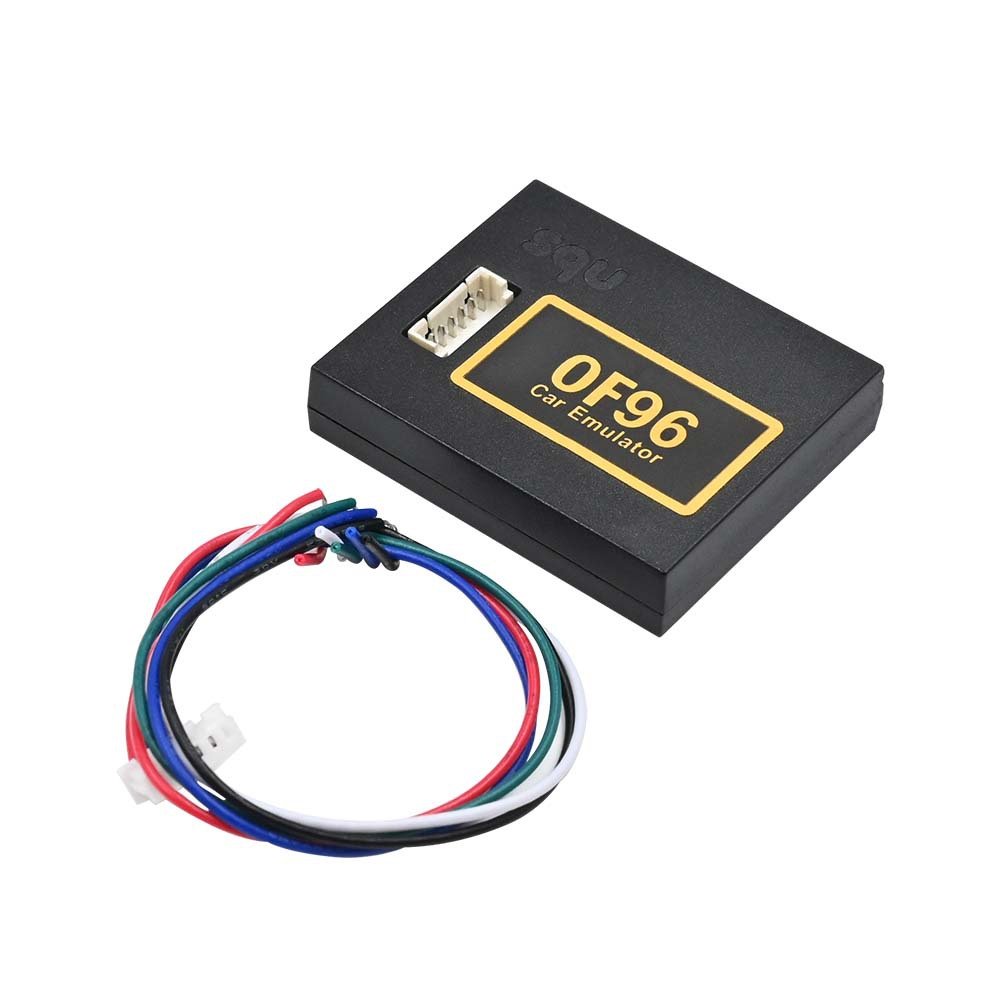

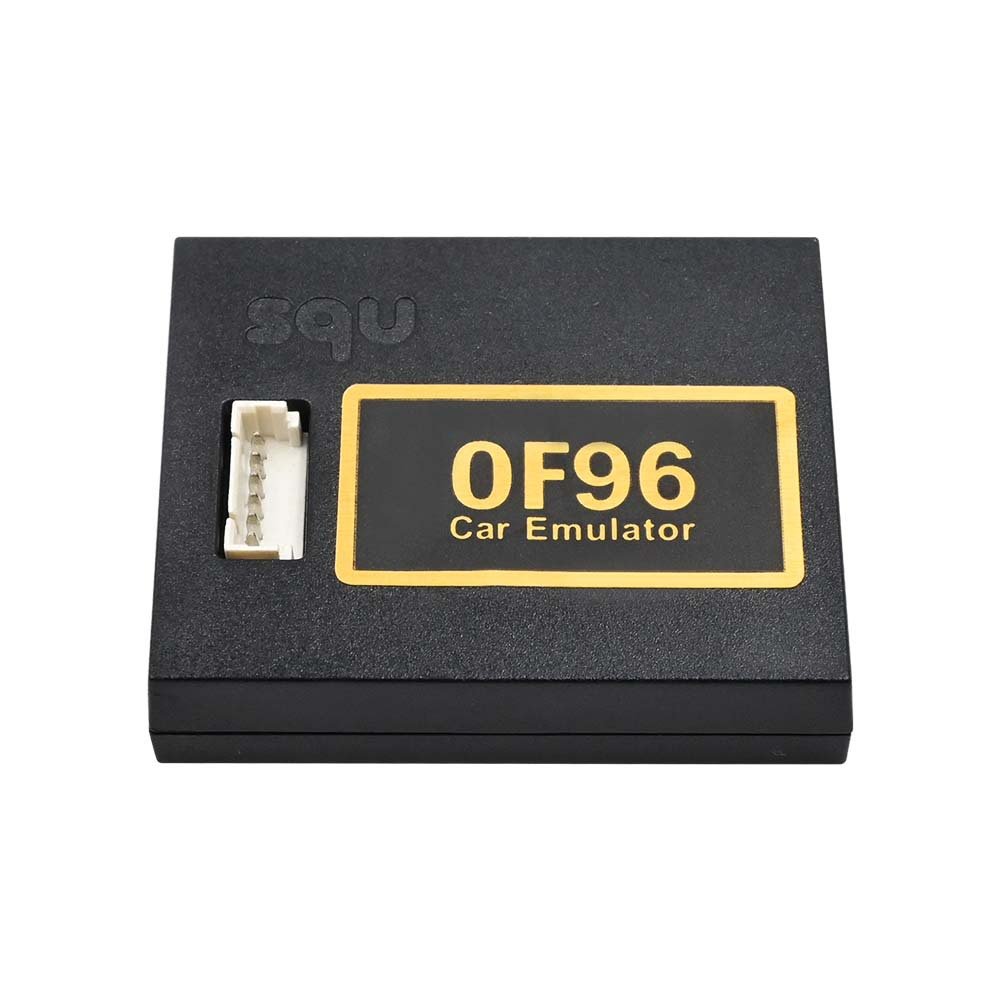

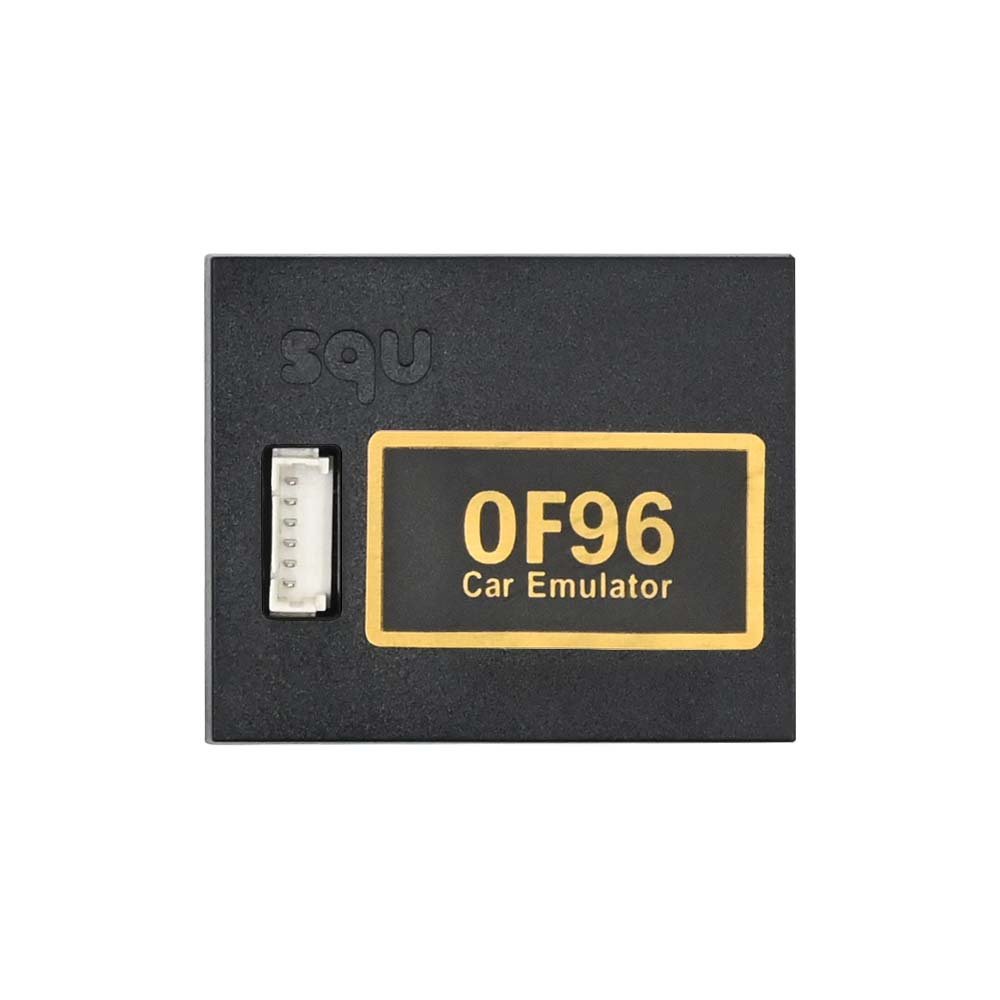

Julie V96 Universal CAN K-Line ESL/ELV/Airbag Immo Emulator

Note: The product does not include instructions, please don’t purchase it if you don’t know how to use .

If use this Emulator for Can-Bus cars, you need solder an 120Ohm resistance on the PCB

V96 Emulator New Universal IMMO Emulator Function:

1. For VW automatic immo OFF

Programs no.1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention!Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from6to15.

2. For VW automatic immo ON

Programs no.1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention!Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6to15.

3. For VW without CAN

Audi,Seat,Skoda,VW

W1 and W2 systems up to around 2001.EDC15 and 5-socket LT28/LT35 ECUs-when the chassis numbers are not entered-even up to 2006.Diesel and petrol Ford cars with VW systems(the VW symbol is visible on the ECU).

4. For VW-Hitachi

Audi,Seat,Skoda,VW It is suitable for VAG group cars with Hitachi ECU to about 1997.

5. For VW-Valve Code

Audi,Seat,Skoda,VW To unlock the valve code on injection pump in vehicles VW 1.9 Diesel.

6. For VW EDC15 immo OFF (single use) for Audi,for Seat,for Skoda,for VW Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008(except for Audi with coded pump)

Suitable for vehicles with 2-socket ECUs.

7. For VW EDC15 immo ON (single use) for Audi,for Seat,for Skoda,for VWUse:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems,diesel engines from 2000 to 2004,some to 2006,and even 2008(except for Audi with coded pump)

Suitable for vehicles with 2-socket ECUs.

8. For VW EDC16 K-LINE immo OFF (single use) for Audi,for Seat,for Skoda,for VW Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

9. For VW EDC16 K-LINE immo ON (single use) Audi, Seat, Skoda, VW Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for VW

Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for VW

Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for VW

Use: Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for VW

Use: Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

14. For VW ME7 immo OFF (single use) for Audi, for Seat, for Skoda, for VW

Use: Suitable for vehicles with ME7 Bo-sch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008

15. For VW ME7 immo ON (single use) for Audi, for Seat, for Skoda, for VW

Use: Suitable for vehicles with ME7 Bo-sch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008

16. For Chrysler

Use:

– For Chrysler Voyager 2.5TD 1999-2001

– For Dodge Caravan 2.5TD 1999-2001

– For Jeep Cherokee 2.5TD 1999-2001

17. For Citroen, For Peugeot with CAN

Use: EDC16 1.4 1.6 HDI with CAN

EDC15 HDI with CAN

18. For Daewoo 1

Use:

ECU with 2 white – red sockets

ECU with a blue socket

19.For Daewoo 2

Use:

Matiz SIEMENS, KEMSCO ECU

Tacuma KEMSCO ECU

Lanos 1.4 OHC hybrid ECU

Kalos SIRIUS D42 1.2 ECU

Chevrolet Aveo 4R ECU 1.2 8V

20. For Fiat without CAN

Use:

For Fiat, for Citroen, for Peugeot diesel without CAN 2-socket ECU

For Alfa, for Lancia, for Fiat 1.9 Jtd 2.4 Jtd 5-socket ECU

IAW49F for Fiat Bravo 1.6 16V

IAW 4AF Fiat Seicento, Panda 1.1 8V

For Lancia Kappa 2.0i 16V Turbo 0 261 203 792

For Lancia Kappa 2.0i 20V 0 261 203 670

For Lancia Kappa 2.4i 16V 0 261 203

For Lancia Kappa 3.0i 24V 0 261 203 482
