Description
KINGBOLEN BM310 Car Battery Tester and Alternator Tester 12V, Automotive Battery Analyzer For Battery Health Test, Startup test, Charging test
KINGBOLEN BM310 battery tester can quickly detect the car battery condition and charge level with the corresp-onding LED to display.
Suitable for battery cars, motorcycles 12V batteries such as cars, golf C-arts, and family cars (except for 24V batteries).
Simple operation, The internal security chip ens-ures stable operation, high temperature resistance and low temperature resistance.
Have you encountered these problems?
1. Battery life remain ?
2. How to check the battery health ?
2. How is my battery charging ?
4. How to check my battery ?
5. Is it the time to change battery ?
6. What is the condition of my battery ?
Why choose KINGBOLEN BM310 Battery Tester?
* No leak, no heat, safe operation
* Operated without interruption, full protection, Reverse protection.
* Quick and accurate display of battery test results (Only 3 seconds)
* It can be detected directly in the car without removing the battery.
* It shows the health condition of battery.
* Signal testing through low frequencies does not require an extennal charging.
* Directly check if the car’s charging voltage is normal.
* Detect the staring voltage if the car
* Detext teh overload status of the car battery.
KINGBOLEN BM310 for all 12V charging system
The car battery tester is for all 12V charging system, including regular flooded, AGM flat plate, AGM spiral and GEL batteries for vehicles, forklifts, hybrid cars, SUVs, Pickups, Boats, RVs, Motorcycles, travel Trailers.
KINGBOLEN BM310 with Reverse Protection Function
The reverse protection function prevents burnout caused by misoperation between the (+)battery post and (-)cable terminal. Pure copper wire and clip make excellent conductivity and high sensitivity. No-slip design makes you are able to use it flexibly even wearing gloves.

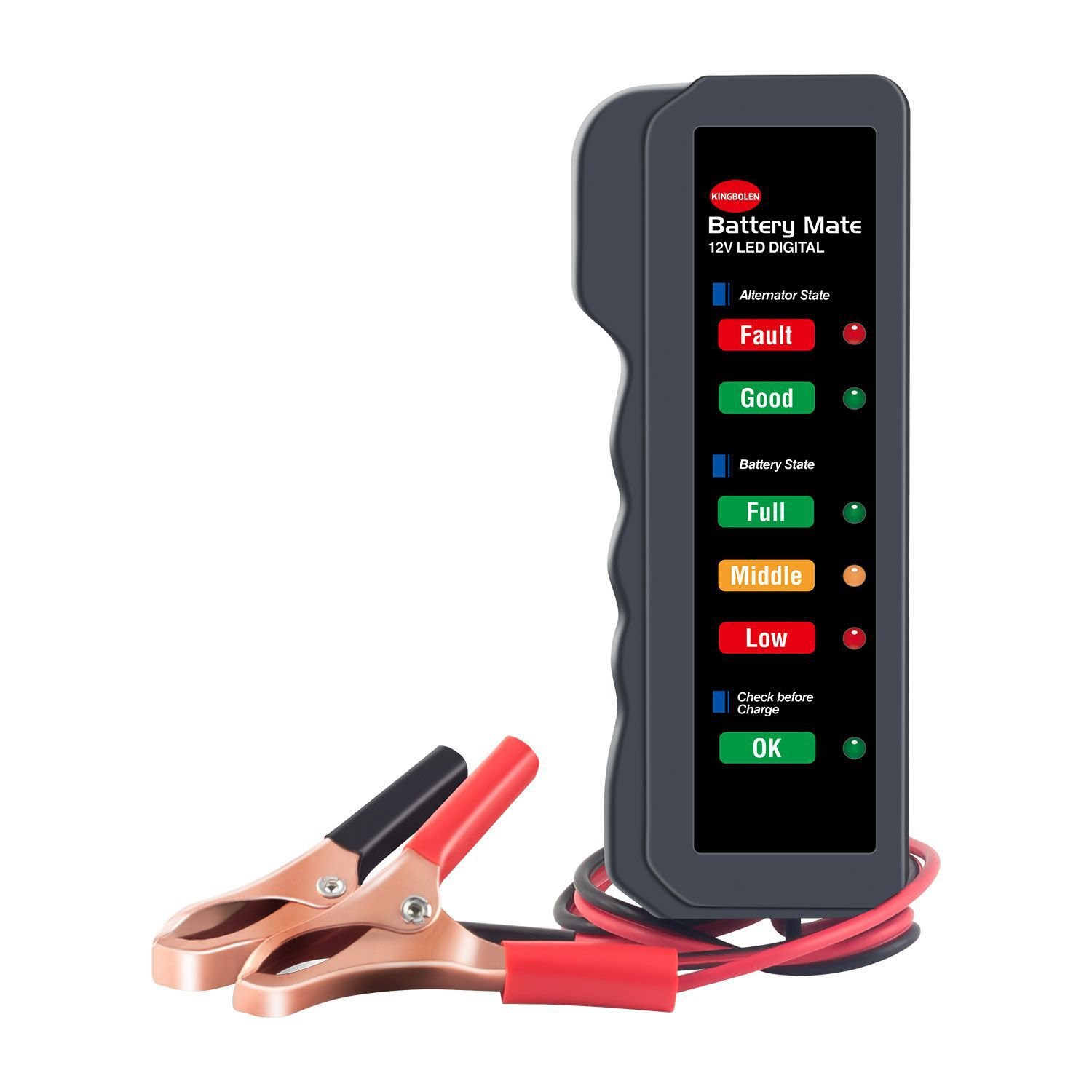

KINGBOLEN BM310 with 6 LED Indicators
The 12V battery analyzer is perfect for home usage and commercial usage. Six LED lights show the status of battery and alternator, green means good/full, orange means middle, red means low. Intuitive, simple and clear. No need to know the voltage, we directly tell you the quality of the battery and alternato
Alternator state check:
First light (red): Fault
Second light (green): Good
Third light (green): Full
Battery state check:
First light (yellow): Middle
Second light (red): Low
Third light (green): OK
Different Led display to show Battery Date:
Display 1: All Led lights off; Testing results: none Charging Voltage, Dead Battery
Display 2: ”ON” led twinkling, other Led off; Testing results:4.6-11.2V Charging Voltage, Engine being hardly turned on, turn off all electrical equipment and charge battery immediately.
Display 3: ”ON” Led ON,”LOW” Led twinkling; Testing results:11.2-11.6V Charging Voltage, Low charged Battery, being charged immediately.
Display 4:”Low” led on, ”Middle” led twinkling; Testing results: 11.6-12.2V Charging Voltage, Middle charged Battery, better being charged sooner.
Display 5: “Middle” Led on; Testing results: 12.2V Charging Voltage, Middle charged Battery, better being charged.
Display 6: “Middle” Led on, ”Full” Led twinkling; Testing results: 12.2-13.1V Charging Voltage, Middle charged Battery, better being charged.
Display 7: “Full” Led on, ”Good” Led twinkling; Testing results: 13.1-14V Charging Voltage, Good battery, Full Charged
Display 8:”Good” Led on; Testing results: 14V Charging Voltage, Good battery, Full Charged.
Display 9:”Good” Led on, “Fault” Led twinkling; Testing results: 14-16V Charging Voltage, Battery may be damaged, Check the engine and tester.
Display 10:“Fault” Led on; Testing results: Above 16V Charging Voltage, fault Battery.
KINGBOLEN BM310 Battery tester Specification:
Test Method: Positive and negative test clips
Voltage Range: 4V-12V
Material: ABS industrial material
Product Size: 4.7 inch*1.9 inch*0.7 inch
Display: Three color LED light display
Weight: About 100g

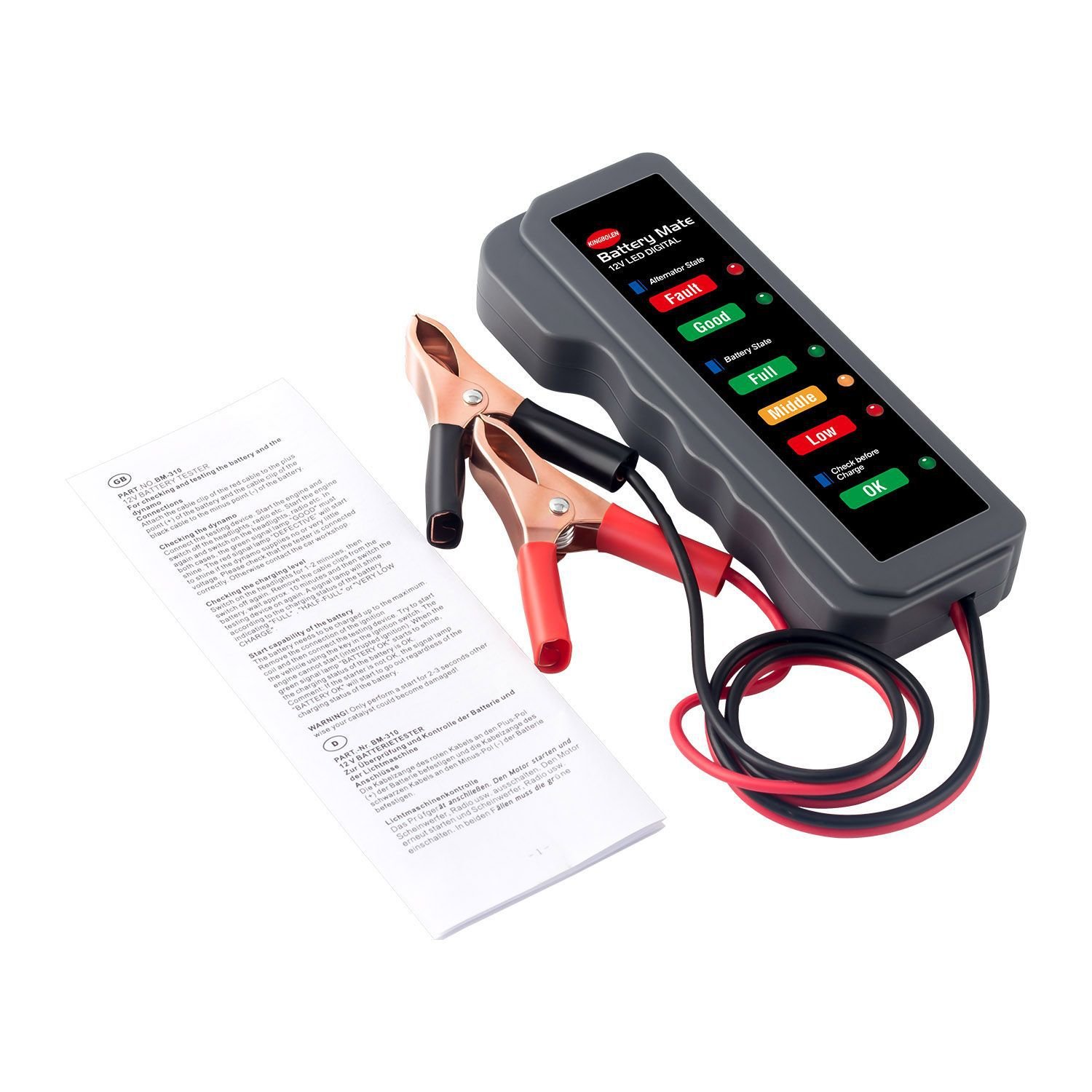

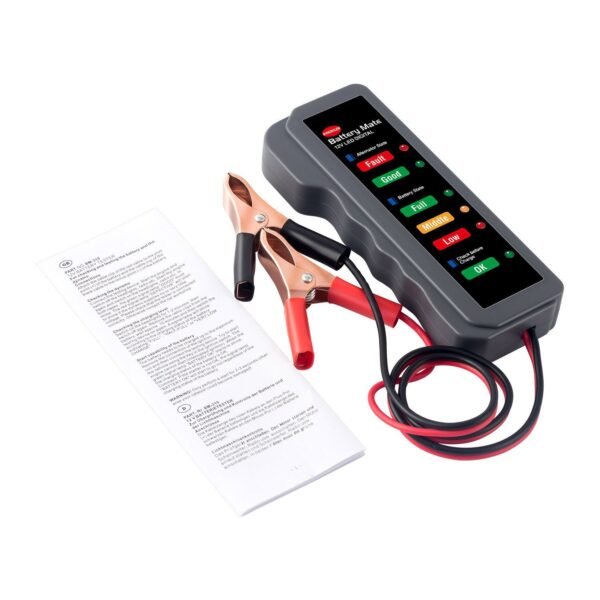

BM310 Packing List
1* BM310
1* Color Box
1* User Manual
1* Testing Clips
