Selling point：
1.Key Programming Scanner:
Professional K8 IMMO Tool helps you to Add/Delete a Key Fob, All Keys Lost, Key generation, Key learning, Key Matching, Remote learning, Read PIN/CS, Reset/Code/Backup/Clone IMMO ECU, Replace/Clone Module, Read/Delete IMMO Data, Read & Write EEPROM/MCU Chip, FLASH of ENG ECU/TCM ECU, Read/Write MC9S12 Encryption Chip,etc..
2.All Systems OBD2 Scan Tool:
KINGBOLEN K8-IMMO OBD2 scanner supports to read codes for full equipped systems, like Engine, Transmission, ABS, SRS, TPMS, BATTERY, CHASSIS system, Air Condition, Window, Lights etc… Comes with OBD 10 Models Diagnosis (Identify VIN information, I/M Readiness status test, View freeze frame, View data stream, O2 Sensor, EVAP system test, On-Board monitor test, Read&Clear DTCs, DTC code look up, Turn off MIL) for 150+ brand models.
3.Bi-Directional Control Test:
K8 Immo performs various active tests to locat problems by directly sending commands to ECUs and receiving status information if your car supports active test. Including Window, Headlamp, Rear Mirrors, Sunroof, Door, Solenoids, Wipers etc.. Helping you quickly find out bad parts and pinpoint faulty issues. K8-IMMO scanner is a good choice to save money and time when performing complex maintenance and repair.
4.ECU Coding:
ECU Coding allows you to refresh hidden functions to optimize vehicle performance, customize vehicles, match the replaced components with ECU. You can modify the pre-programmed options already existent in vehicles’ ECU to activate the hidden functions. (Note: Not for all cars, please check compatibility before order.)
5. 24+ Reset Services:
K8 IMMO diagnostic scan tool comes with 24+ maintenance functions, such as OIL, SAS, IMMO, D-P-F, EPB, BMS, TPMS, INJEC, ABS Bleeding, Throttle Matching, GEARBOX LEARN, AdBlue Rest etc.. Supporting Autoauth,which allows you to unlock the protected FCA vehicle SGW module on Chrysler, Dodge, Jeep, Fiat vehicles, etc.. (Only provide AutoAuth login portal, need to buy FCA account by yourself.)
6.2 Years Free Update:
KINGBOLEN K8-IMMO Scanner Tool supports Auto VIN, Remote Diagnostic, Diagnostic Feedback, 4-in-1 Data Stream Record and Playback, Battery Voltage Monitor, Car Health Report, Email & QR Code share, 25 working languages, and more on the way. IMMO & RESET functions may vary by cars, please contact us to check compatibility
Anti-theft key programming Tool:
1. Supports all key lost , add new key , Read pin code, key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
All Key lost supports many cars : For Peugeot , For Citroen , For Land Rover , For Jaguar , For Chrysler , For Jeep , For Dodge , For Ford , For Lincoln , For Mercury , For GM , For Toyota , For Honda , For BMW , For AUDI , For VW etc
( the all key lost function is for some cars , not for all cars in those brand , pls give the detailed car model to the seller to check if need first )
2. Anti-theft modules replacement: For BMW, For Mercedes-Benz, For VW, For Audi, For Honda, For Nissan, For Hyundai, For Kia, For BYD, For Changan, For Wuling Baojun, For GAC, For SAIC Maxus, For Great Wall Motor, For Chery Car, FOR Dongfeng Fengxing, For JAC Passenger Car, etc
3. Anti-theft password reading: For Peugeot, For Citroen, For GM, For Nissan, For Hyundai, For Kia, For Chery Cars, For Dongfeng Fengxing, For JAC Passenger Cars, etc.
4. Key Matching: For Ford, For GM, For Mercedes-Benz, For BMW, For VW, For Audi, For Porsche, For Peugeot , For Citroen, FOr Land Rover, For Jaguar, For Honda, For Toyota, For Nissan, For Hyundai, For Kia, For BYD, For Changan Automobile, For Wuling Baojun, For Great Wall Motors, For Chery Cars, For JAC Passenger Cars, etc.
5.Support car key chip reading/writing, EEPROM chip reading/writing, MCU chip reading/writing, EEPROM and FLASH reading/writing of engine ECU and gearbox ECU and more and keep increasing
KINGBOLEN K8 IMMO supports Anti-theft Function , it is more powerful than other similar tools :
— Anti-theft Data Synchronization for Replaced Second-hand ABS Module of 2014MY Focus
–Support replacement or cloning of For VW/ For Audi MQB platform engine ECU (no need for the original car engine ECU data, it can be read directly from the key)
— Support replacement or cloning of For VW/ For Audi MQB platform gearbox ECU
— Support replacement of For Audi (0AW/0B5) fifth-generation gearbox ECU
— Support reading/writing and cloning of For VW fourth-generation UDS engine ECU
— Support the cloning in BENCH mode without disassembly for more than 170 types of Bosch engine ECUs, more than 10 types of Siemens engine ECUs, and 18 types of gearbox ECUs (covering various European, American and Asian models, and continuing to increase)
— Support the erasing function for For Mercedes-Benz engine, gearbox, EIS, and For BMW gearbox.
— Support the matching function and password calculation function for all models of For Chery sedan and For JAC passenger cars up to 2022
The Core key programming Function of KINGBOLEN K8 IMMO:
1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3. Supports ECU replacement for all lost without disassembly for VW/ for AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).
4. Supports ECU replacement for the fourth-generation of for VW/ for AUDI engine;
5. Supports ECU replacement for the fifth-generation of for VW/ for AUDI Bosch and Siemens engines.
6. Supports the all lost and replacement for the fourth generation of for AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports for BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports for BMW CAS4/CAS4+ module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for Mercedes-Benz key within 1 minute.

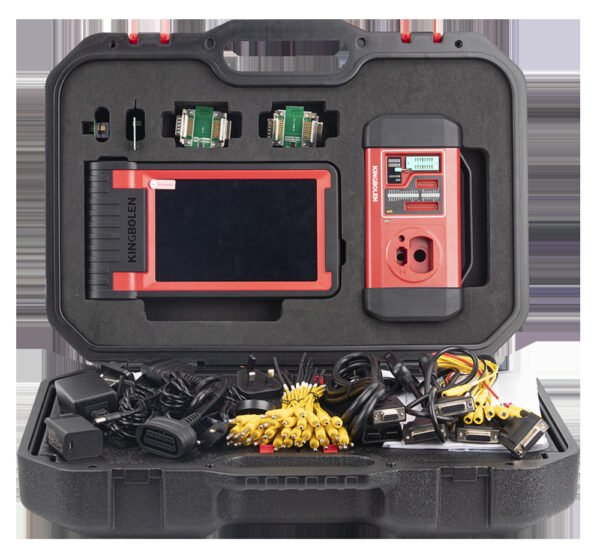

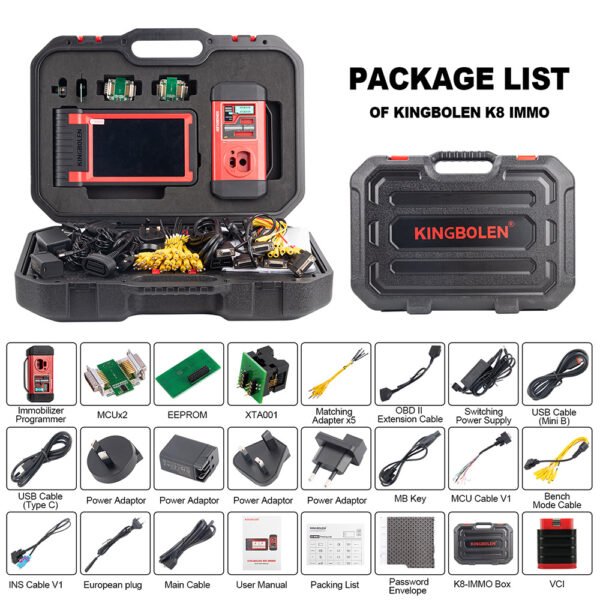

Why does KINGBOLEN K8 IMMO is with X-prog 3 in the package ?
Because to key programming function , some functions need works with X-prog 3 , then it can work . here is the detailed function of X-prog 3 :
1. Car key slot ——— Place the car key to perform the key matching function
2. DB26 ——— Connect to various anti-theft wiring harnesses, such as the data collection line for the fourth generation of instrument keys, etc.
3. For Mercedes-Benz key infrared slot ——— Place the for Mercedes-Benz infrared key to perform the key matching function
4. Car key chip hole ——— Place the key chip to perform key matching
5. Status indicator ——— Power indicator
6. DIY slot ——— Connect the anti-theft ECU pin through the cable to read and write data
7. Locker Install chip burning socket ——— Complete EEPROM or MCU data read and write operations
8. DC12V power supply ——— Connect DC12 power supply
9. DB15 ——— Connect the main wiring
KINGBOLEN K8 IMMO Supports FCA/SGW AutoAuth :
Supports 2017 and later For Chrysler / For Dodge / For Alfa Romeo / For Jeep / For Fiat vehicles .
Note : This Function need have the account in FCA Website first .
KINGBOLEN K8 IMMO Supports All System Diagnosis Function
The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :
1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more…
2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more…
3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more…
4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.
It supports the detailed Function :
–read fault codes: read and decode the DTCs to identify where the fault location is;
–clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
–Graph live data stream: view the dynamic data stream to determine vehicle condition
With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:
For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.
For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.
KINGBOLEN K8 IMMO supports ECU CODING :
Why does the car not work normally after replacing ECUs/ modules?
When an ECU/module is damaged, you have to replace a new one. After replacing the ECU/module, you have to follow the strict procedures of the manufacturer to match, learn, code, or even program it before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.
What can KINGBOLEN K8 IMMO Scanner do?
Featuring ECU/Module replacement functions, LAUNCH X431 PRO V Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track.
ECU Coding: Customize Your Car in Minutes
* Same as other LAUNCH X431 High-end OE-level scan tool , LAUNCH X431 PRO V has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed.
* Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.
* Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start-Stop function, etc.
* Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.
* Reprogram the adaptive data for certain components after repairs or replacements.
* ECU Online Coding is available for BMW, VW, Porsche, Renault, etc.
Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.
KINGBOLEN K8 IMMO Bi-directional Control (Active Test):
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , KINGBOLEN K8 IMMO have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
KINGBOLEN K8 IMMO Supports 24 Reset Function
( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list ）
1> Oil Reset Service
This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.
2> Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.
3> Steering Angle Calibration
This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.
4> ABS Bleeding
This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.
5> Gear Learning
This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC ‘tooth not learned’ is present.
6> IMMo Service
This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.
7> Injector Coding
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.
8> Battery Maintenance System Reset
This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
9> Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
10> Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.
11> Gearbox Matching
This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.
12> Sunroof Initialization
This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.
13> Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.
14> Seats Calibration
This function is applied to match the seats with memory function that arereplaced and repaired.
15> Tyre Reset
This function is used to set the size parameters of the modified or replacedtire.
16> Coolant Bleed
Use this function to activate the electronic water pump before venting thecooling system.
17> AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.
18> NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.
19> Windows Calibration
This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.
20> Language Change
This function is used to change system language of vehicle center console.
21> AF Reset
This function is applied to set or learn airlfuel rate parameters.
22> Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.
23> StoplStart Reset
This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).
24> TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.
The Other Function of KINGBOLEN K8 IMMO :
1. Remote Diagnosis
Remote diagnosis can realize real-time communication between equipment and equipment or between equipment and computer, complete vehicle remote diagnosis, and make it a reality for repair technicians to diagnose vehicles thousands of miles away.
2. Information Center
The information center integrates maintenance information, general information and equipment information, and is an information query center.
Equipment information includes product manuals, FAQs, and more. The product manuals are provided in 9 languages. Switch the corresponding language to view the manuals in the corresponding language.
Maintenance information includes operation skills, DTC help, vehicle maintenance technical manuals and anti-theft database.
3. Diagnostic Feedback
When users encounter abnormal models and functions under special circumstances during use, they can provide opinions to Launch through diagnostic feedback, and special technical personnel will track and deal with the problems in time.
4. Diagnostic Records
During every diagnostic process, a vehicle diagnostic record is automatically generated, which is easy to view and compare at any time and help locate faults.
5. Testable Models Checking
You can query the supported brands, models, systems, and functions online at any time.
KINGBOLEN K8 IMMO Supports Car List :
For IMMO Function :
Europen Cars :
For Audi, For Benz, For BMW, For Citroen, For GM, For Land Rover, For Mazda, For Opel, For Peugeot, For Porsche, For Renault, For MG (SAIC), For Seat, For Skoda, For Sprinter, For Suzuki, For Ford, For Volvo, For VW
China Cars :
For GWM, For Changhe, For Brilliance, For Chery, For FAW Tianjin, For ZX Auto
America Cars :
For Aston Martin, For Fiat (Brazil), For Chrysler, For Ferrari, For Fiat, For Maserati
Asia Cars :
For BAIC, For Changan, For BYD, For Foton, For Haima, For Honda, For Hyundai, For Kia, For Maxus, For Mitsubishi, For Nissan, For Perodua, For Proton, For Subaru, For Toyota, For Zotye
For Diagnostic Function :
European Cars :
For Martin Aston, For BENZ/MAYBACH, For BMW/MINI/HCBMW/ROLLSROYCE, For CITROEN/FUKANG, For Ferrari, For Fiat/Abbas/Lancia/Romeo/NanjingFiat, For GAz, For IZH, For Land Rover/Jaguar, For Martha Lahti, For OPEL/GMSA/VAUXHALL, For PAZ, For PEUGEOT/DFPEUGEOT, For Porsche, For RENAULT, For DACIA, For Saab, For Skoda, For Seaz, For Seat, For Smart, For Transporter&V-Class, For UAZ, For VAZ, For Volvo, For VW/BINGLEY/BUGATTI, For ZAZ
China Cars :
For Beijing, For Chang’an, For ChangCheng, For Changhe, For Xiaokang, For DR, For ECUAID, For BYD, For Foton, For HaFei, For Haima, For Brilliance, For Jiangling, For Iveco, For JAC, For Gonow, For Xiamen Golden, For Kowloon, For Lifan, For SGMW, For SAIC Chase, For MVM, For Chery, For SAIC&MG, For SGM/CHCHEVROLET/CHBUICK/CHCADLLAC, For GAC Chuan Qi, For Tianjin FAW, For ZhongShun, For ZOTYE, For Zhongxing
America Cars :
For Brazil Fiat, For GM, For CHRYSLER/DODGE/JEEP, For GM/BUICK/CADILLAC/CHEVROLET, For Ford/ChinaFord Lincoln/EuropeanFord, For vinfast
Asia Cars :
For Daewoo, For Daihatsu, For HONDA/ACURA/DFHONDA/GZHONDA, For Hyundai, For INDIAN MAHINDRA, For INDIAN MARUTI, For INDIAN TATA, For JPISUZU/TLISUZU, For Kia, For LUXGEN, For Mahindra, For MARUTI, For PERODUA(Perodua), For MAZDA/YQMAZDA, For Mitsubishi, For NISSAN/INFINITV/DFNISSAN, For Perodua, For Proton, For SAIP, For Ssangyong , For Subaru, For Suzuki, For TATA , For TOYOTA/LEXUS/TJTOYOTA
Australia Car :
For Holdon
KINGBOLEN K8 IMMO Parameter :
Processor: 1.8GHz 4-core
Operating: Android 10.0 system
Memory: 4GB
Storage: 64GB
Battery: 6300mAh,7.6V
Display: 8-inch, 1280*800
Camera: Rear 8MP
WIFl: 2.4GHz/5GHz (dual frequency)
Operating temperature: 0~50℃
KINGBOLEN K8 IMMO Packing List :
1pc * KINGBOLEN K8 IMMO 8INCH MAIN UNIT
1pc * X-prog 3 Main unit
1pc * VCI Bluetooth Diagnostic Connector
1pc * KINGBOLEN K8 IMMO Test Main cable
1pc * Power adapter 5V/5A with 1.2m cable ( US , EU & UK charger )
1pc * Password Envelope
1pc * OBDII Extension Cable
1pc * USB Cable ( mini B )
1pc * USB Cable ( Type C )
1pc * XTA001 Adapter
1pc * MCU1 Adapter
1pc * MCU2 Adapter
1pc * EEPROM
1pc * MB KEY
1pc * INS Cable V1
1pc * MCU Cable V1
1pc * Bench Mode Cable
5pc * Matching Adater A
6pc * Matching Adater B
7pc * Matching Adater C
8pc * Matching Adater D
6pc * Matching Adater E
There are no reviews yet.
