Highlights:
1. Full System Diagnosis + All OBD2 Test Modes: TheKINGBOLEN S6 scanner a cost-effective automotive scanner, which provide comprehensive OE level basic diagnosis for all available electronic systems , which can read/clear codes, data stream, read control module information for ECM, ABS, SRS, TCM, ESP systems, etc. And it also supports all OBDII 10 modes, such as read/clear codes, live data stream/freeze frame, I/M Readiness, and read Vehicle Information, etc. Support a maximum of 4 live data to be merged into a graphic for easier comparison and data records to better monitor vehicle performance and analyzes abnormal parameters.
2.Provides 28 Most Used Maintenance Functions:The KINGBOLEN S6 OBD2 Scanner is an ideal auto diagnostics scan tool, providing you with the advanced 28 most used maintenance functions, such as Brake Reset, Oil Light Reset, SAS Reset, Electric Throttle Relearn, TPMS Reset, DPF Regeneration, Injector Coding, etc. to do various daily automotive maintenance functions on certain systems, which can reduce repair and maintenance costs.
3. Intelligent Auto-VIN+ Wireless Connection: The KINGBOLEN S6 automotive scan tool has AUTO VIN SCAN function, it can automatically and quickly identify the year of manufacture, model, and VIN of most models, then enter the vehicle diagnostic menu. Then you can click ‘Health Report’ for a complete vehicle system scan, which will automatically generate a detailed vehicle health report after diagnosis. This car diagnostic scanner is with VCI Bluetooth connector that makes you freedom to diagnose
4. Advance Hardware:It is an evolutionary intelligent scanner for vehicle diagnosis based on the multitask-capable Android operating system and features a resolution of 1440*720 pixels 5.99-inch touchscreen and 32GB memory for storing more vehicle documents and customer data. This automotive diagnostic scanner can provide you with a more smooth and fast diagnosis.
5.Wide Coverage+ Multilingual: It will be able to perform full system diagnosis on 93 car brands compliant with OBD2 protocols, including most from 1996 US-based, 2000 EU-based, 2005 Asian-based, or newer OBD II & CAN domestic or import vehicles, and supports 15 languages, including English, Portuguese, French, Russian, Spanish, Japanese, Korean, Traditional Chinese, Hungarian, Polish, German, Italian, Greek, Arabic, Slovak. Default is English, you can change it via device setting.
6. Lifetime Free Update:Featuring an online upgrade, which provides lifetime free use and update of all system basic functions and diagnostic software that makes you update your diagnostic software to get the latest software version for extending more vehicle coverage on each model, and also can provide you the best service, functions and user experience. It also supports a Feedback function, one-Key Screenshot, Record & Playback of diagnostics data, and a built-in Google browser for searching about the definitions and descriptions of the DTCs.

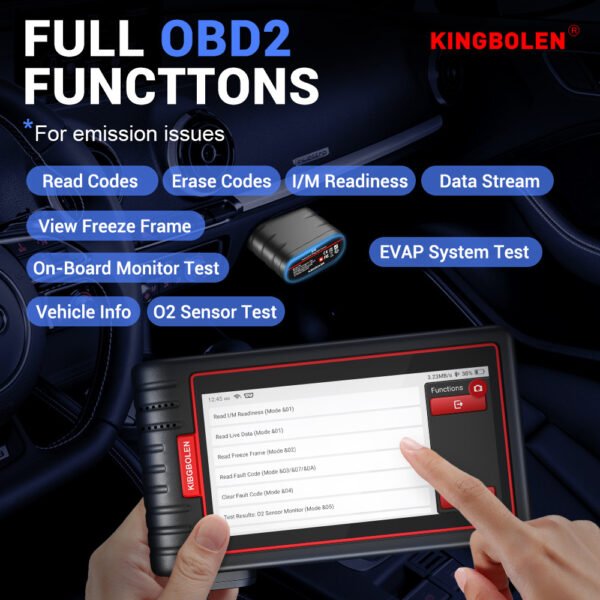

Ø Supports Full OBD2 Functions:
1.Read Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Clear Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitor
3.Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data
4.I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.(3 data streamdisplay modes available: figure/value/4 data stream in one graph)
6.View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test:Retrieves and displays test results for emission-related Powertrain components and systems.
9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Ø Support 28 Maintenance Functions:
1.Oil Reset: Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.
2.DPF Regeneration:It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.
3.Throttle Adaption: To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.
4.Brake-pad Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.
5. SASReset: It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.
6.Battery Matching: Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.
7.ABS Bleeding:When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
8.Gear Learning:Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
9.IMMO Service:To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
10.Injector Coding:After the ECU or injector is replaced, injector code of each cylinder must be
confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
11.TPMS Reset: When due to the tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced and tire pressure sensor is damaged. The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
12.Suspension Matching: When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.
13.AFS Reset:It is used to initialize the adaptive headlamp system.
14.Gearbox Matching:This function can complete the gearbox self learning to improve gear shifting quality
15.Sunroof Initialization:This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.
16. EGR Adaption:This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.
17.ODO Reset: ODO reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
18.Airbag Reset:This function resets the airbag data to clear the airbag collision fault indicator.
19.Transport Mode:In order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
20.A/F Reset:This function is applied to set or learn Air/Fuel ratio parameters.
21.Stop/Start Reset:This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).
22.NOx Sensor Reset:If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.
23.AdBlue Reset(Diesel Engine Exhaust Gas Filter):After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
24.Seat Calibration:This function is applied to match the seats with memory function that are replaced andrepaired
25.Coolant Bleeding:Use this function to activate the electronic water pump before venting the cooling system.
26.Tyre Reset:This function is used to set the size parameters of the modified or replaced tire.
27.Windows Calibration:This feature is designed to perform door window matching to recover ECU initial memory.
28. Language Change:This function is used to change the system language of the vehicle central control panel.
Note: Not universal for all vehicles. Available maintenance functions vary depending on the make, year, and model.
Support 15 + Languages
English,German,Spanish,French,ltalian,Japanese,Portuquese,Russian,Polish,Dutch,Croatian,Greek,Slovak,Romanian,Hungarian,Slovenian. All languages are free to use.
Support 90% of all car models.
For Amercian
for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM
For European
for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, , for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ
For Asian
Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan
For China Car :
For BAIC SENOVA , For BAIC WEIWANG, For BAIC , For BRILLIANCE , For BYD , For CHANGAN , For CHANGANFORD , For CHANGHE , For CHBUICK , For CHCADILLAC , For CHCHEVROLET , For CHERY , For CHSUZUKI , For DFCITROEN , For DFNISSAN , For DFPEUGEOT , For DFSK , For ECUAID , For FAW(TIANJIN) , For FOTON , For GONOW , For GWM , For HAFEI , For HAIMA , For HCBMW , For HONDA(GAC) , For JAC , For JINLONG , For JMC , For JOYLONG , For LIFAN , For LUXGEN , For LYNKCO , For MAXUS , For MG(SAIC) , For MITSUBISHI(GAC) , For NJFIAT , For POLARSUN , For QOROS , For SGMW , For TOYOTA(CHINA) , For XINKAI , For YQMAZDA , For ZOTYE , For ZX AUTO
Technical Detailed:
• Screen Size:5.99″
• Operation System: Android
• Battery Capacity:3.7V/3150mAh
• RAM:2GB
• Storage Capacity:32GB
• Resolution:720*1440 Pixel
• Working Temperature: -10℃ to 45℃ (14℉ to 113 ℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)
Packing List:
1x Host Computer
1x VCI Bluetooth Connerctor
1x Charging Cable
1x Multilingual Quick Start Manual
1x Carry Bag
