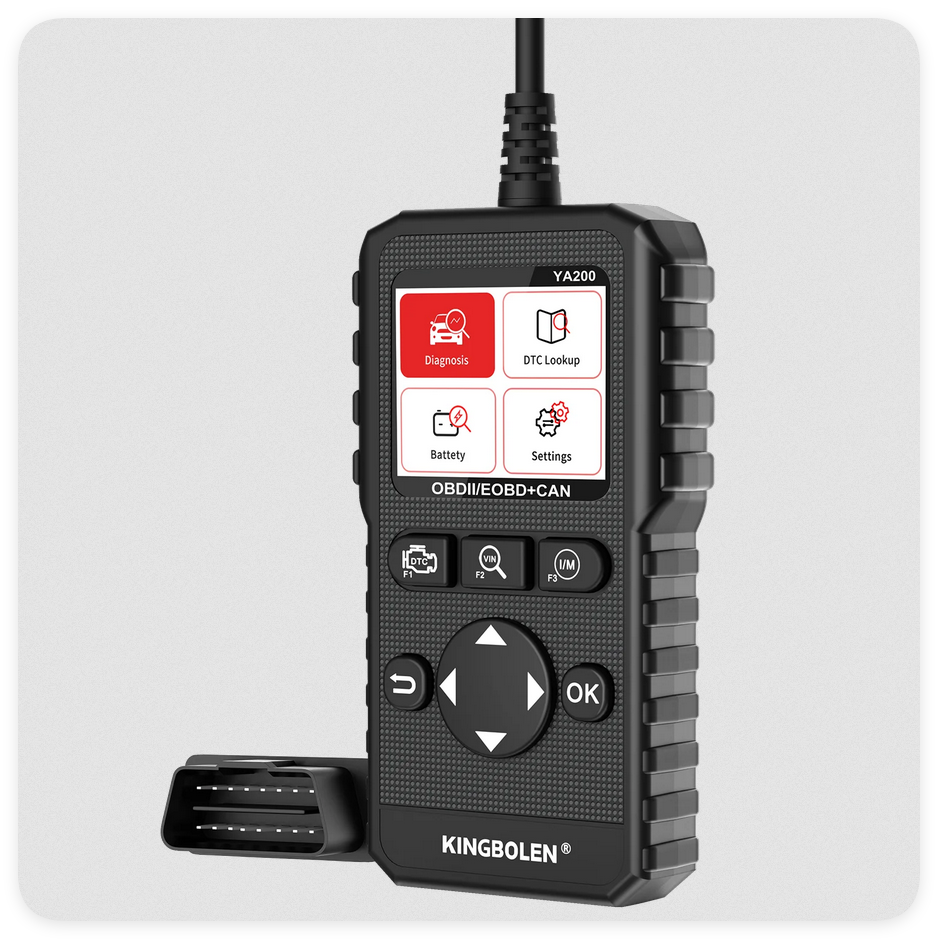

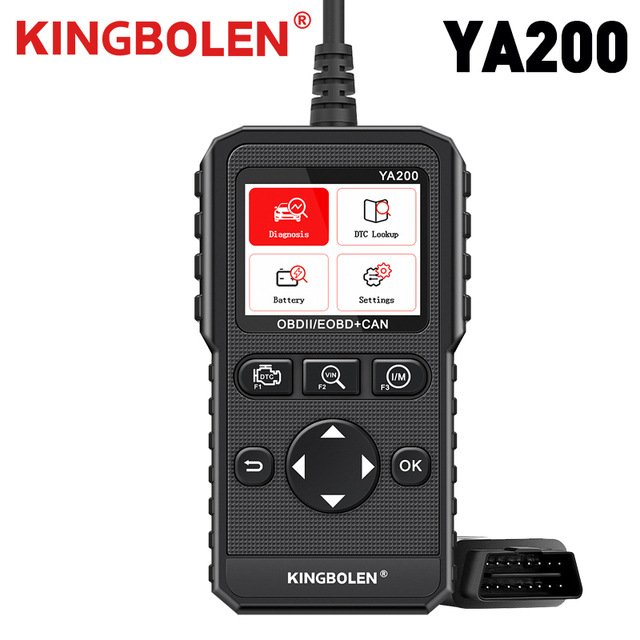

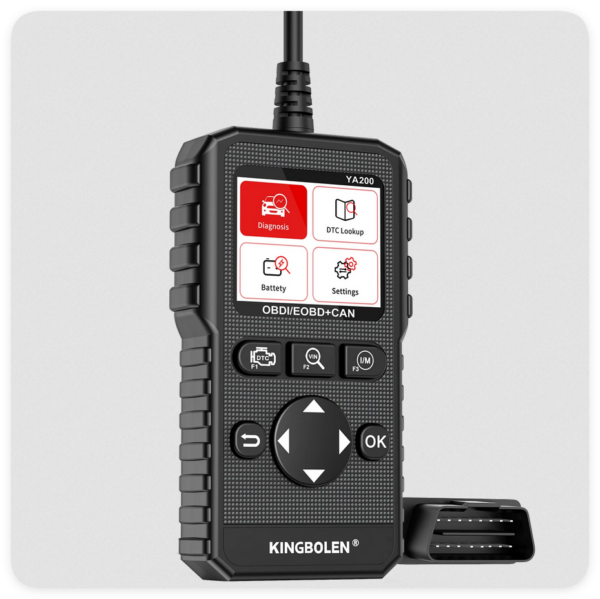

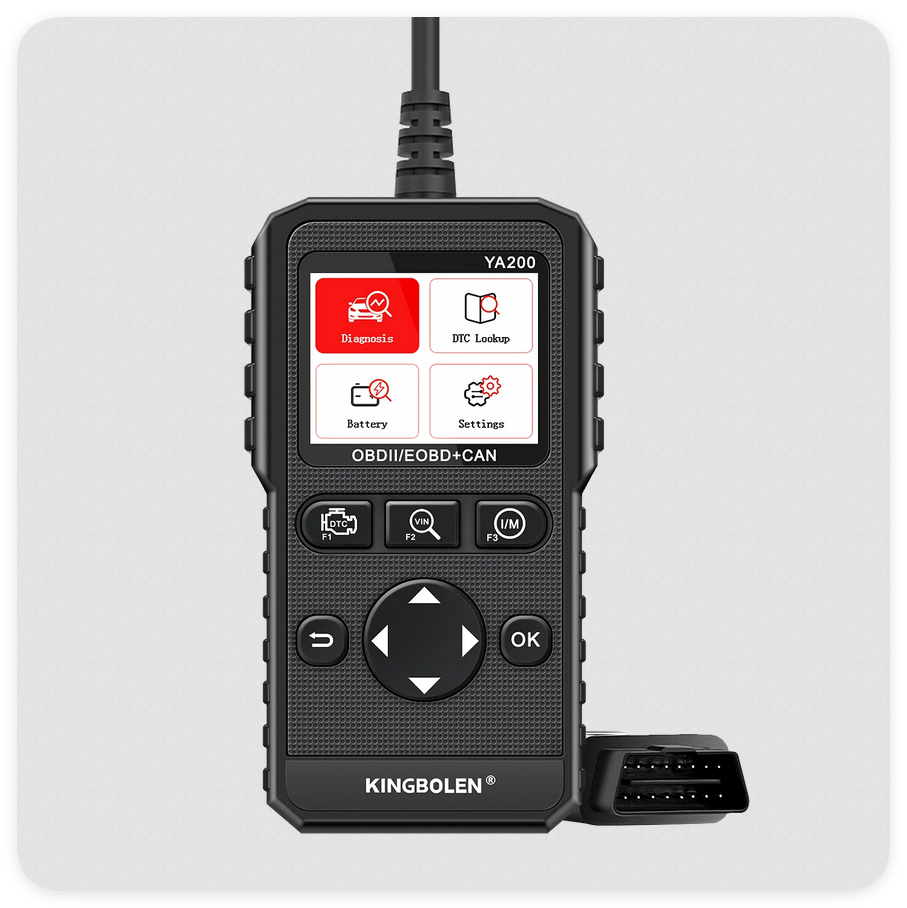

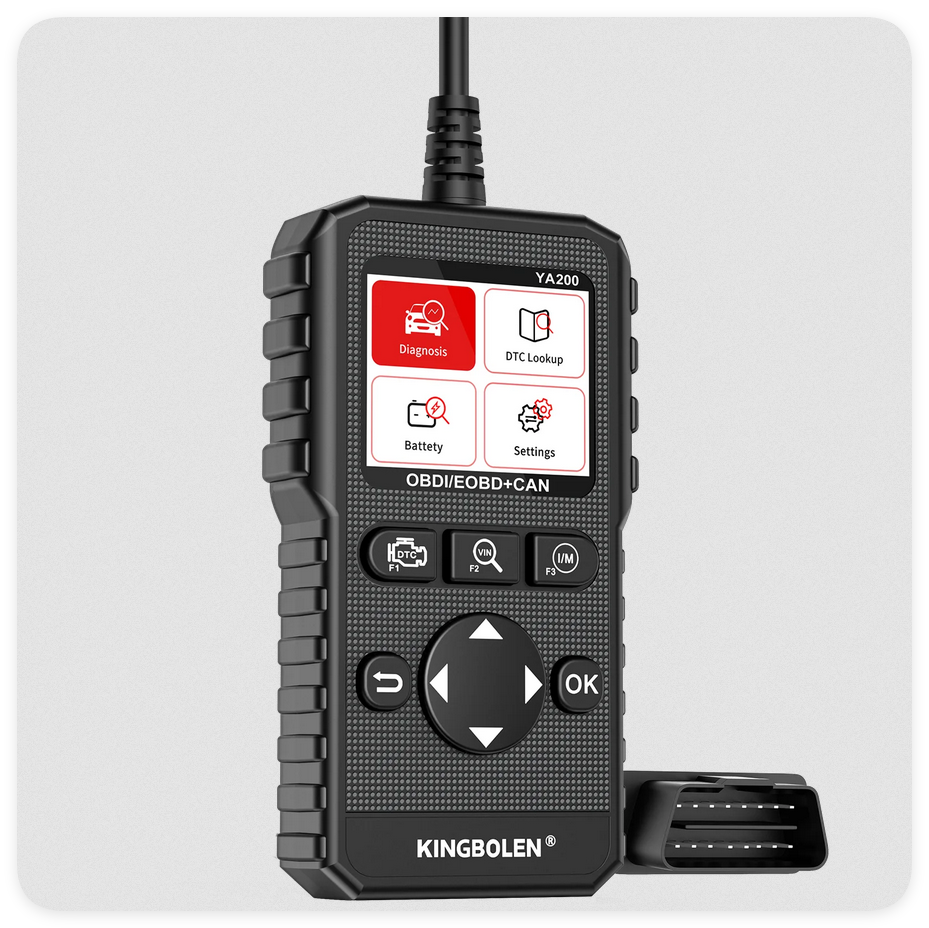

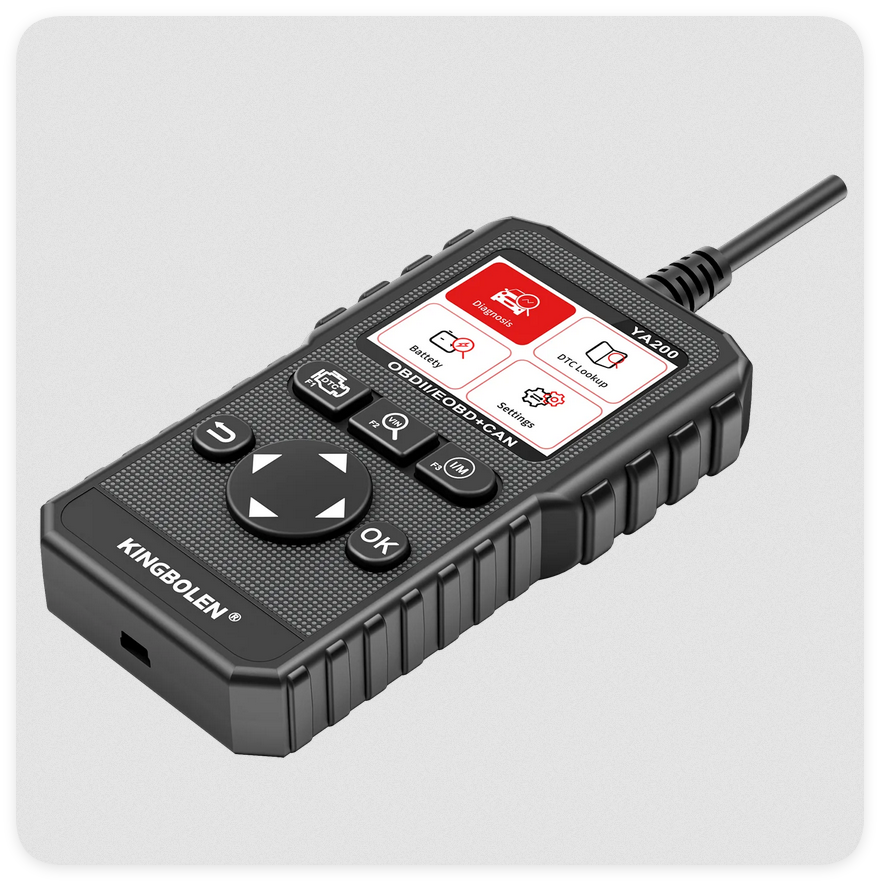

KINGBOLEN YA200 Enhanced Car obd2 Scanner Full OBDII Function For Check Engine, Read and Clear Fault Code, Mode 6, O2 Sensor Test, Battery Test, EOBD OBDII CAN Diagnostic Scan Tool for Most 1996 & Newer Cars
KINGBOLEN YA200 is a code reader with full OBD2 Functions: Read/Clear DTCs, I/M Readiness Check, Live Data Stream Viewing, Freeze Frame Data Viewing, O2 Sensor Test, On-board Monitor System Test, EVAP System Test, Vehicle Information Retrieval along with advanced DTC Lookup function.
TOP 10 Reason to take it home:
1.Support Full OBD2 Function: KINGBOLEN YA200 is a great OBD2 diagnostic tool for check engine light and turn off MIL. It supports full OBD2 function:Read/Erase Codes,View Live Data/Freeze Frame, Retrieve I/M readiness Monitor Status,EVAP Test,On-Board Monitoring,O2 Sensor Test and Vehicle Info. Meets 9 OBD2 protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM (DOES NOT support trucks, semi-trailers, dump trucks, tractors, hybrids, electric vehicles and other commercial vehicles)
2.Data Logging:If your vehicle model meets the OBD2 standard protocol but can’t access the OBD2 diagnosis function, you can turn on Data Logging function and then enter the OBD2 diagnosis function, and then connect the code scanner to PC with the data cable and send the document recording the data(Log) to KINGBOLEN mailbox. We will help you handle this issue. (If you turn on this function, the operation of this car scanner will become slow)
3.Built-in DTC Lookup:Looks up definitions of DTCs stored in scan tool and shows the possible causes of the DTC(Not every DTC with possible causes reason.
4.Voltage Test: It can display the voltage of OBD diagnostic socket and the status after evaluation. It mainly feeds back the current voltage condition of the diagnostic socket or the battery condition. If the voltage of the battery is lower than 12V, it is recommended to go to the professional tester to diagnose the current battery condition.
5.Screenshot: With the screenshot function, press the up and down keys for 3s-5s to take a screenshot.

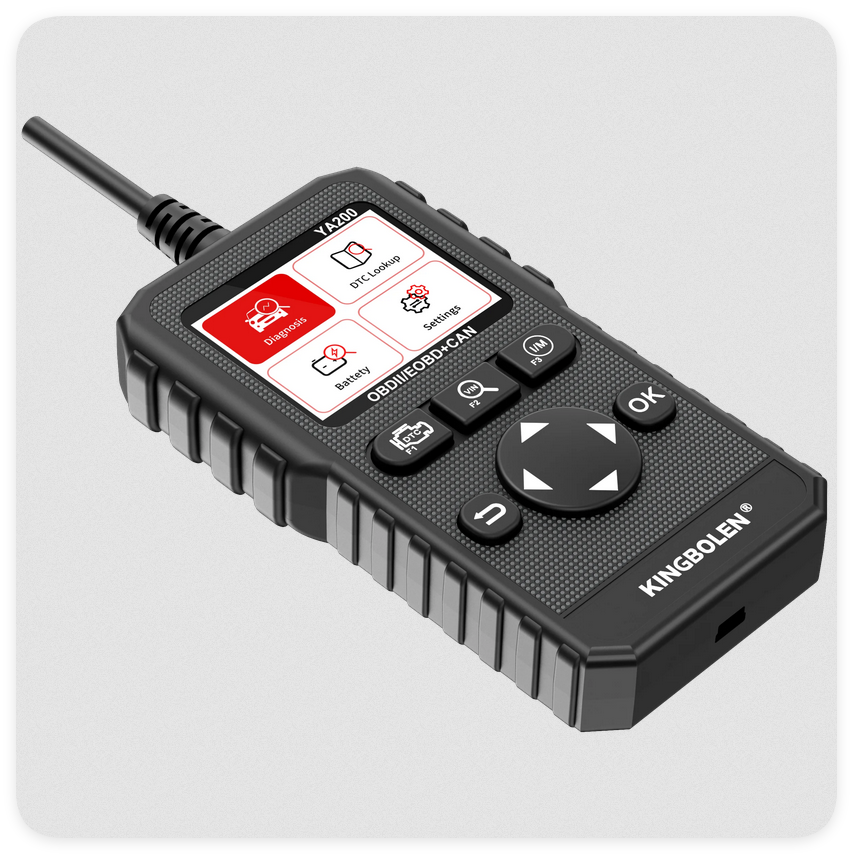

6.Thoughtful Design: Equipped with 128 x 64pixel display with 1.8 inches TFT color display. ENTER key/Back Key/UP SCROLL Key/Down SCROLL Key design to help you can more convenient to operate. Hand-held size makes you can take it everywhere. Just plug and play, no need to charge.
7.Monitoring Types: This OBD reader can serve as a misfire, fuel system, EGR, EVAP, oxygen, A/C and catalyst monitor.
8.Supports 11 languages: English,French,Russian,German,Italian,Spanish,Portuguese,Japanese,Traditional Chinese,Simplified Chinese,Polish.All languages are free to use.
9.Compatible with OBD II Vehicles: Works on most OBD2/EOBD compliant vehicles, like 1996 and newer US cars, 2000 and newer EU cars, and 2008 and newer Asian cars.
10.Lifetime Free Update
9 kinds of Languages supported
English, French, Russian, German, Italian, Spanish, Portuguese, Polish, Traditional Chinese
KINGBOLEN YA200 support Complete OBD2 Function
1. Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability
KINGBOLEN YA200 support Real-time Voltage Test
It can display the voltage of OBD diagnostic socket and the status after evaluation. It mainly feeds back the current voltage condition of the diagnostic socket or the battery condition.
* If the voltage of the battery is lower than 12V, it is recommended to go to the professional tester to diagnose the current battery condition.
One-click design makes diagnosis easier and faster
1. One-click I/M Readiness:
Just click a button to query I/M Readiness
2. One-click DTC
Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC (Not every DTC with possible causes reason)
3. One-click VIN
Displays the vehicle’s identification number.
KINGBOLEN YA200 support Screenshot Function
you can take screenshots during the use of the YA200 code scanner to record the diagnosis results at any time.
Just press the up and down keys for 3s-5s to take a screenshot, which can store up to 10 pictures.
KINGBOLEN YA200 support Lifetime Free Update
KINGBOLEN YA200 OBD2 comes with Lifetime Free Update, which can be upgraded simply by connecting to a PC with a USB cable.
KINGBOLEN YA200 Code Reader meets the following protocols
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
KINGBOLEN YA200 support 10,000 + car models
American (USA) car:
Compatible with Standard OBD2 Cars from 1996 to Now:
For Chrysler, for Ford, for GM, for Jeep…
European car:
Compatible with Standard OBD2 Cars from 2003 to Now:
For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar…
France Car after 2006:
for Citroen, for Fiat, for Renault, for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan..
Asian car
Compatible with Standard OBD2 Cars from 2007 to Now:
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota….
Chinese car:
Compatible with Standard OBD2 Cars from 2009 to Now:
for BYD, for Chery, for Geely, for Great Wall, for Karry…
Please note: KINGBOLEN YA200 is only for 12V 16PIN OBD2/EOBD Car engine diagnosis.
* Does not support Trucks, semi-trailers, dump trucks, tractors, hybrids, electric vehicles and other commercial vehicles.
Technical parameters of KINGBOLEN YA200
1. Display: 320 x 240 pixel display with TFT color screen.
2. Operating Temperature: -10°C to 40°C (14°F to 104°F).
3. Storage Temperature: -20°C to 70°C (-4°F to 158°F).
4. External Power: 9.0V to 16.0V power provided via vehicle battery.
5. Product Size: 137 × 79 × 22 mm (5.4″×3.1″×0.9″).

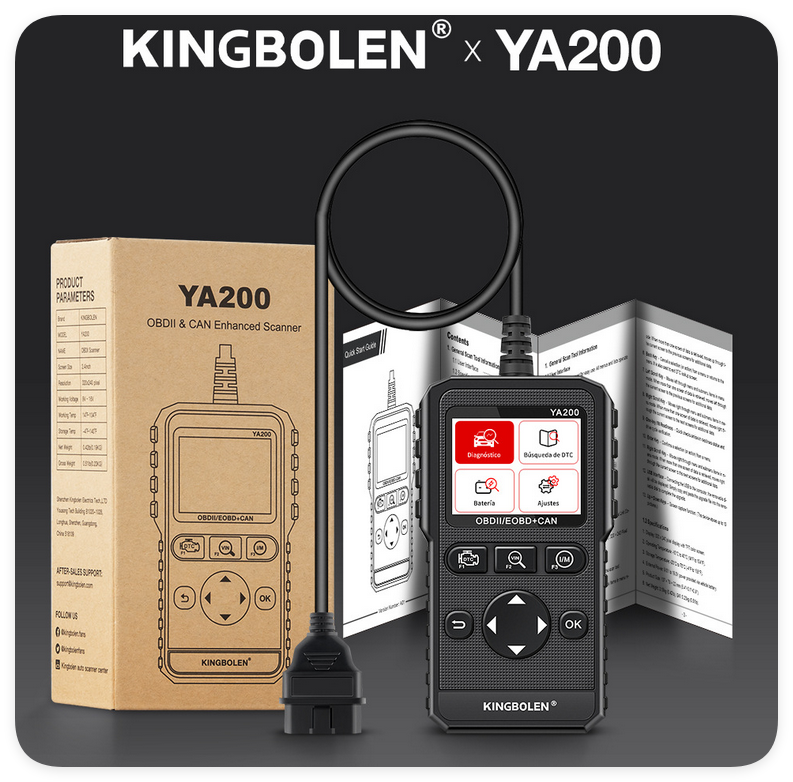

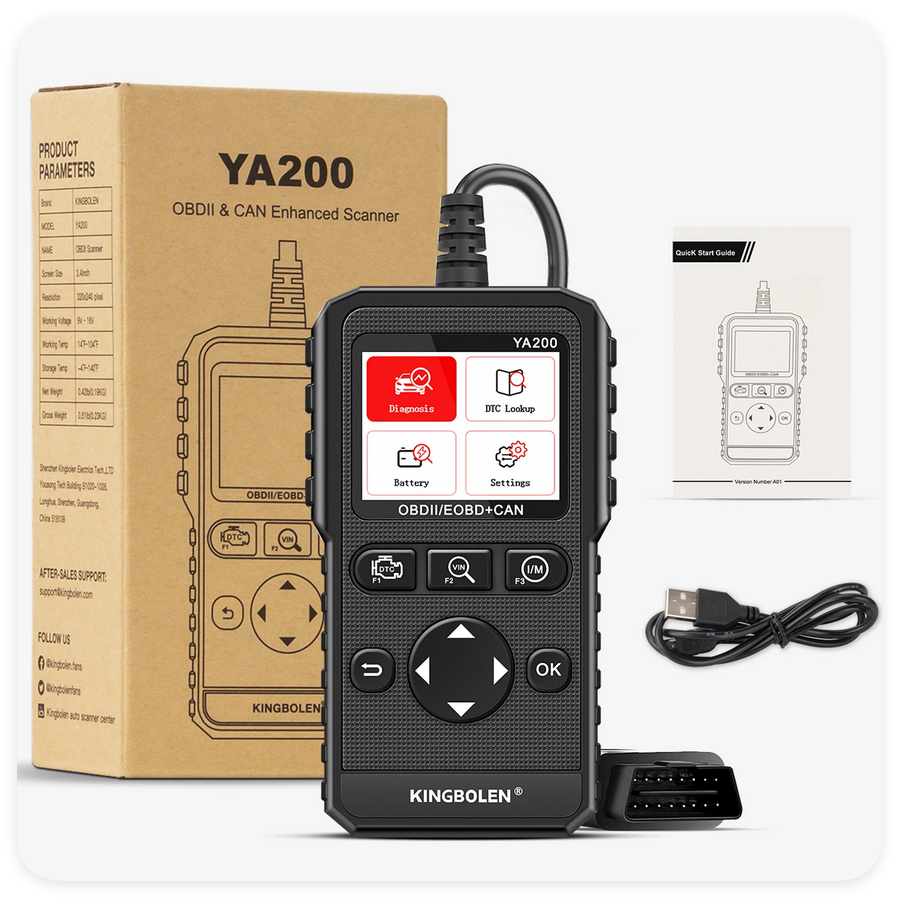

Packing List of KINGBOLEN YA200
1PC * KINGBOLEN YA200 Code Reader
1PC * USB Cable
1PC * User Manual
1PC * Carton box
