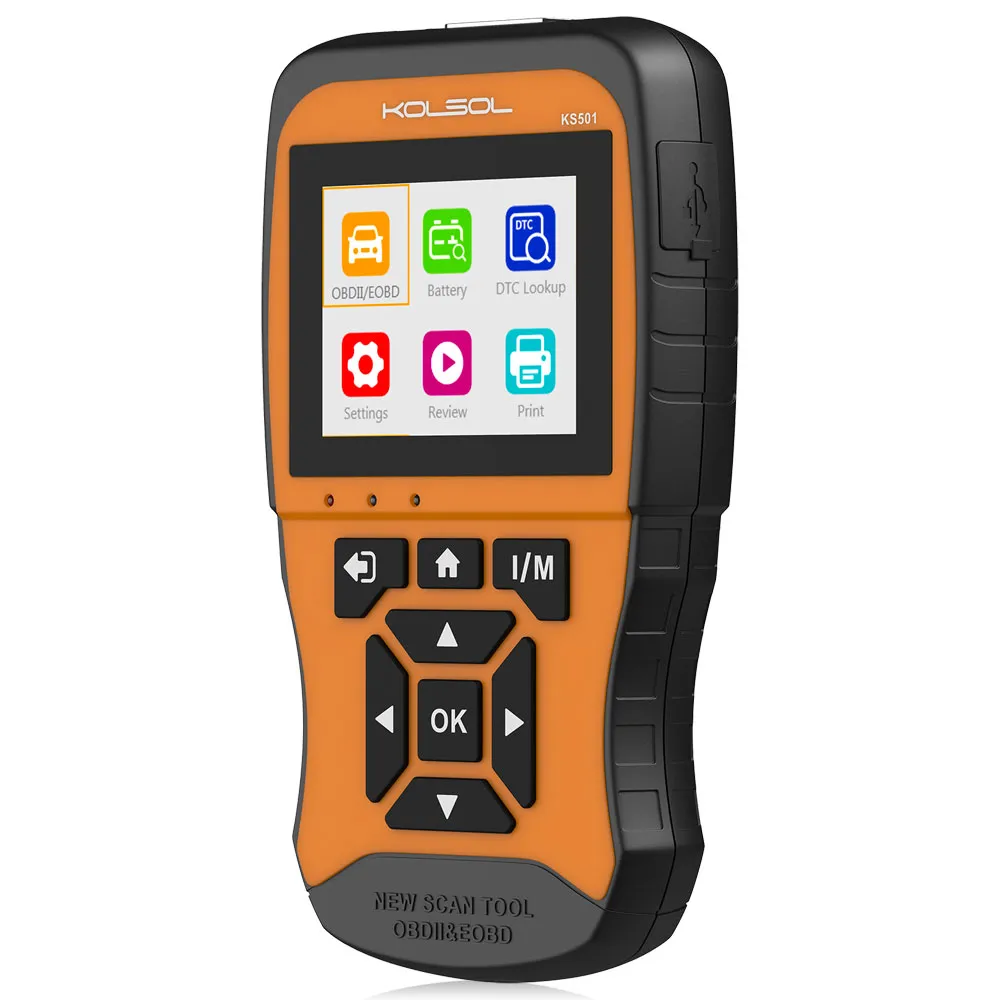

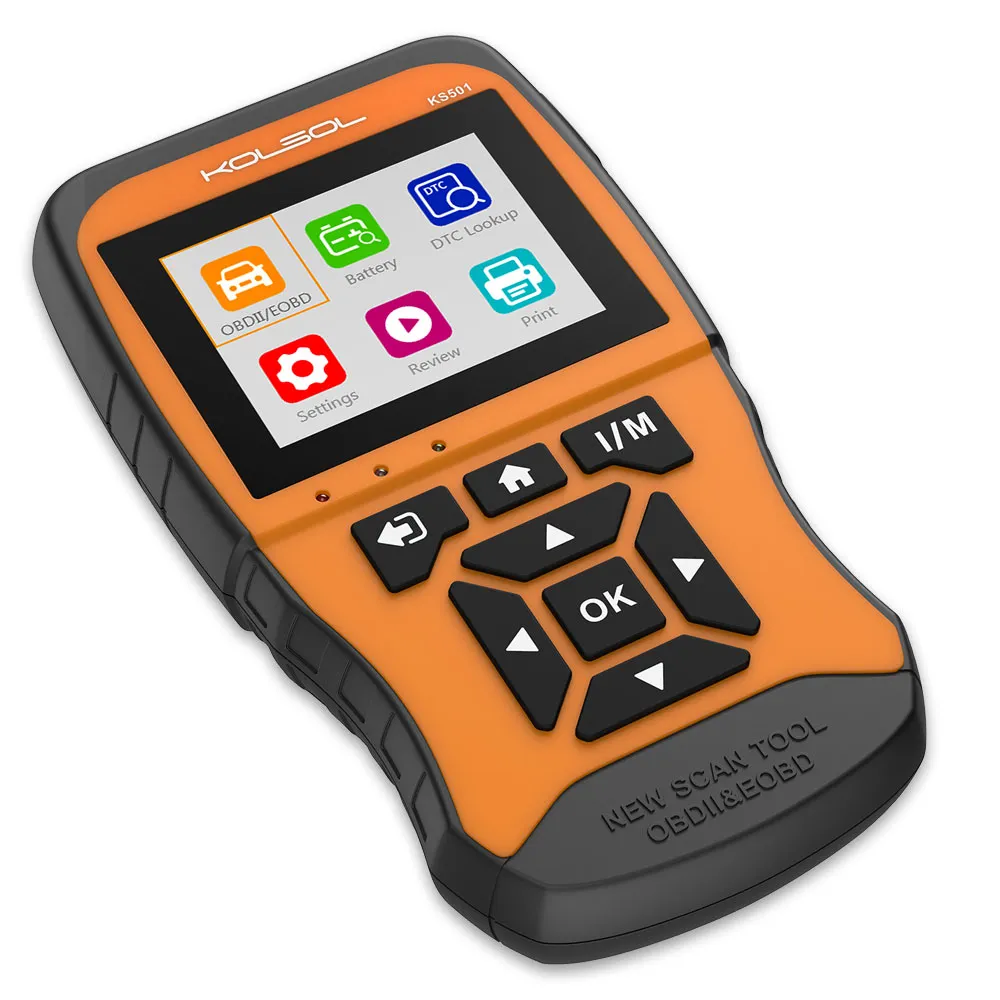

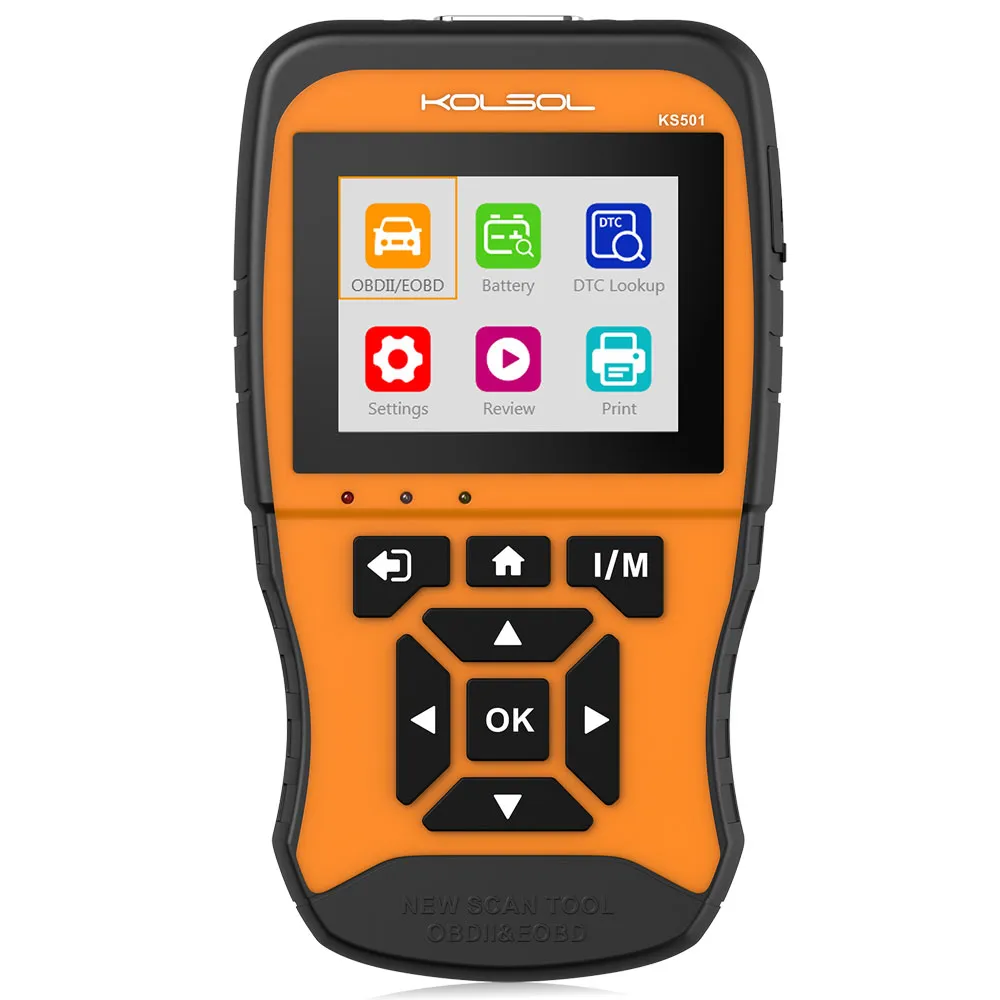

KOLSOL KS501 New Generation OBDII & EOBD Scan Tool for Universal Vehicles Automotive Scanner Diagnostic Tool
KOLSOL KS501is easy to carry, simple to operate, fast in diagnosis, large in memory, comprehensive in code base, powerful in performance and novel in design. It is a new generation OBDII diagnostic tool tailored for the owner.
KOLSOL KS501 Highlights:
1.Enhanced OBD2 Diagnosis: Fully covers OBD2 diagnosis modes, read/clear codes, live data, freeze frame, with O2 sensor, Mode 6, Mode 8, MIL status
2.Powerful Database: Exclusive support for 40,000 DTCs, leading the industry
3.Wide Vehicle Coverage:Works on almost all the gasoline cars with standard OBD2 protocols 16pin connector
4.One-Key I/M Readiness:Independent button for quickly enter into diagnostic function
5.Live Data Visualized Comparison:Greatly supports Four parameters comparison, record the live data for later review
6.2.8 inch TFT Color Screen, Clear UI: More visualized interface without reflection under sunlight
7.Maximum Chip Capacity, Fastest Diagnosis
8.Support Multi-languages:English, French, German, Spanish, Russian, Chinese,Italian, Polish.
KOLSOL KS501 Features:
1.Supports all OBD2 functions, get one device to turn offthe Check Engine Light
2.Works with almost all standard OBD2/EOBD protocols gasoline cars
3.18 functions listed out clearly instead of repeatedly entering the sub-menu
4.40,000 + database greatly supports DTC Query with clear code description
5.4 parameters live data comparison, and record it for later review
6.Retrieves generic, manufacturer specific, and pending codes
7.One-click I/M Readiness quick access to diagnosis
8.Fastest diagnosis speed with the maximum chip capacity
9. Lifetime upgrade and print data via PC
KOLSOL KS501 Functions:
OBD2 Diagnosis:
Do not worry about the Check Engine Light on, make car repair easier.
·Read and Clear Codes: read and clear engine codes, generic, manufacturer specific, and pending codes
·Live Data: read and record live sensor data, 4 parameters comparison supported
·Freeze Frame: a snapshot of the vehicle which shows engine conditions when the MIL on
·O2 Sensor: check the vehicle O2 sensor values
·Mode 6: advanced test results (like misfire counts) for on-board diagnostic system monitors
·Mode 8(Component test): allows initiating a leak test for the vehicle’s EVAP system
·I/M Readiness: check the operations of the Emission System on OBD2 compliant vehicles
·Battery Test: show battery voltage and comment battery status
·Smog Check: indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing
·MIL Status : MIL is essentially an emission warning light. If the light comes on, it means the OBD II system has detected an emissions-related problem
·Vehicle Info: check the make, years, VIN Code and other detail information of your vehicle
·Fuel Analysis: allow viewing the fuel economy of the vehicle
·Core Analysis: allow viewing the performance of the vehicle
·Engine Analysis: allow viewing the engine data of the vehicle
One-Click I/M Readiness Key
Provide quick access to emissions readiness status, complete vehicle exhaust test.
Live Data Display
FOUR parameters comparison, clearly show how they can affect each other and increase diagnostic efficiency
Review Data
Allow viewing of data from last test recorded by the scan tool
DTC Query
40,000 database available for DTC lookup online
Update & Print Data

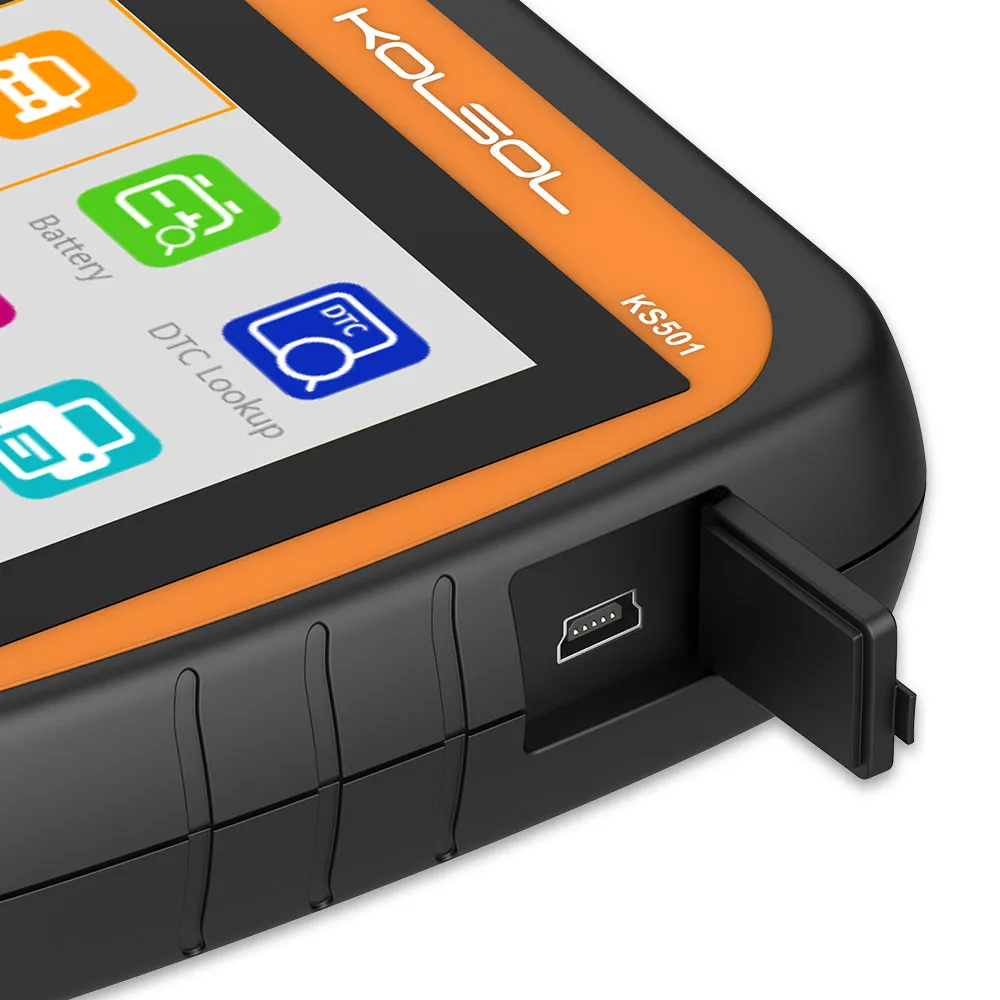

Update to the latest version and print the stored data by PC via USB cable
KOLSOL KS501 Vehicle Coverage:
| SupportedOBDII Vehicle | ||||
| For Acura | ForDaihatsu | ForIsuzu | ForMercedes | ForPorsche |
| ForSmart | ForAlfa Romeo | ForDaimler | ForJaguar | ForMercury |
| ForRegal | ForSubaru | ForAriel | ForDodge | ForJeep |
| ForMG | ForRenault | ForSuzuki | ForAston martin | ForFerrari |
| ForKai | ForMini | ForRolls-Royce | ForTesla | ForAudi |
| ForFiat | ForLamborghini | ForMitsubishi | ForRoush | ForToyota |
| ForBentley | ForFord | ForLancia | ForNissan | ForRover |
| ForTriumph | ForBMW | ForGeo | ForLand rover | ForOldsmobile |
| ForSaab | For TVR | ForBuick | ForGMC | ForLexus |
| ForOpel | ForSaleen | ForVauxhall | ForCadillac | ForHolden |
| ForLincoln | ForPagani | ForSaturn | ForVolkswagen | ForChevrolet |
| ForHonda | ForLotus | ForPanoz | ForSeat | ForVolvo |
| ForChrysler | ForHummer | ForMaserati | ForPeugeot | ForScion |
| ForYugo | ForCitroen | ForHyundai | ForMazda | ForPlymouth |
| ForShelby | ForDaewoo | ForInfiniti | ForMcLaren | ForPontiac |
| ForSkoda |
KOLSOL KS501 Supported Protocols:
SAE_J1850(PWM, VPW), ISO_9141-2, ISO_14230-4(KWP, KWP-5BPS), ISO_15765-4(CAN,CAN-B, CAN-C, CAN-D).
KOLSOL KS501 Troubleshooting:
| Problem | Possible Cause | Likely Solutions |
| Scan Tool doesn’t power up | 1.OBDII Cable connector is not securely connected . 2.Vehicle’s DLC pinsare bent or broken. 3.Vehicle’sbatteryisbad. |
1.VerifythattheScanTool’s OBDII Cable connector is securely connected to the vehicle’sDLC. 2.CheckiftheDLCpinsare bent or broken.If bent or broken,have a certified technicianrepairtheDLC. 3.Make sure the vehicle battery provides at least 8V. |
| Vehicle Linking Error | 1.Vehicle is not meet OBD standards. 2.Ignition is off. 3.Badconnection. |
1.Verifythatthevehicleis meet OBDII standards. 2.Verifythattheignitionis ON. 3.Resetthetoolbyturning theignitionoff,waiting10 seconds,then turning the ignition backon. |
| Scan Tool Freezes | Scan Tool or vehicle’s computer system is not responding. | Reset the Scan Tool by turning the ignition off, waiting 10 seconds,then turningtheignitionbackon. |
Software Update:
1. Download the applications in our website: www.kolsol.net or our distributors’ site.
2. Make sure that your computer is connected to the Internet.
3. Connect the scanner to computer with the USB cable supplied.
4. Run the update option in PC Suit software. Wait for the log in window to pop up.
5. In the Update window, select the items you want to install.
KOLSOL KS501 Specifications:
| Display Screen | TFT Color (320*240) |
| Operating Temperature | 0 to 60°C (32 to 140℉) |
| Storage Temperature | -20 to 70°C (-4to 158℉) |
| Power | 8Vto18V(powerprovidedbyvehiclebattery) |

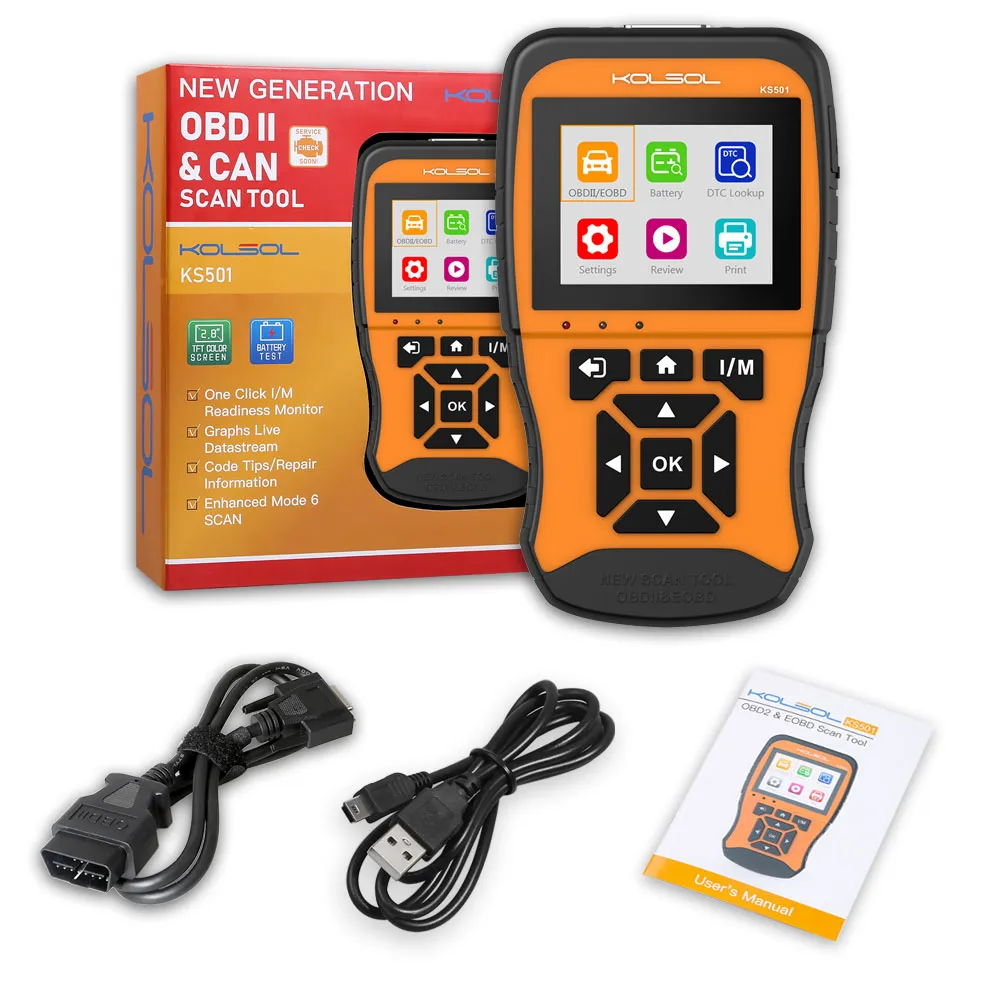

Package includes:
1pc x KOLSOL KS501
1pc x User’ s Manual
1pc x USB Cable
1pc x OBD Cable
