Tired of spending your money, time and energy on expensive mechanics for routine check-ups? Would you like to correctly self-diagnose your car battery? Workshop Automated Battery Tester, Automobile Battery Monitor Car Battery Tester Tool. The KW218 auto battery tester is exactly what you need! KONNWEI KW218 Auto Battery Tester ( Battery Analyzer ). It Can Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, Battery etc on car & motorcycle& Truck& Lawn mower & Steamship.
SOH – battery state of healthy SOC – battery charger state battery Resistance battery Voltage 30-220AH 100-2000CCA
Battery Test Systems and Solutions Battery Checker
KONNWEI KW218  car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking,capacity, battery health and charge status.  It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing. KW218 can test result s display in both text and praphing and  the real-time battery voltage showing in a waveform.
Cold Cranking Amps Measurement Range: Digital Vehicle Battery Tester
CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0℉(-18℃).
BCI: Battery Council international standard.
CA: Cranking Amps standard, effective starting current value at 0℃.
MCA: Marine Cranking Amps standard, effective starting current value at 0℃.
JIS: Japan Industrial Standard, displayed on the battery as combination of the numbers and letters, e.g. 55D23, 80D26.
DIN: German Auto Industry Committee Standard.
IEC: Internal Electron technical Commission Standard.
EN: European Automobile Industry Association Standard.
SAE: Society of Automotive Engineers Standard.
Â
Automotive Tester DATAÂ READINGS:
The KONNWEI KW218
12V car battery tester is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp, battery health and charge status.
6V 12V Lead Acid Car Battery Tester ACCURATE MEASUREMENTS: This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.

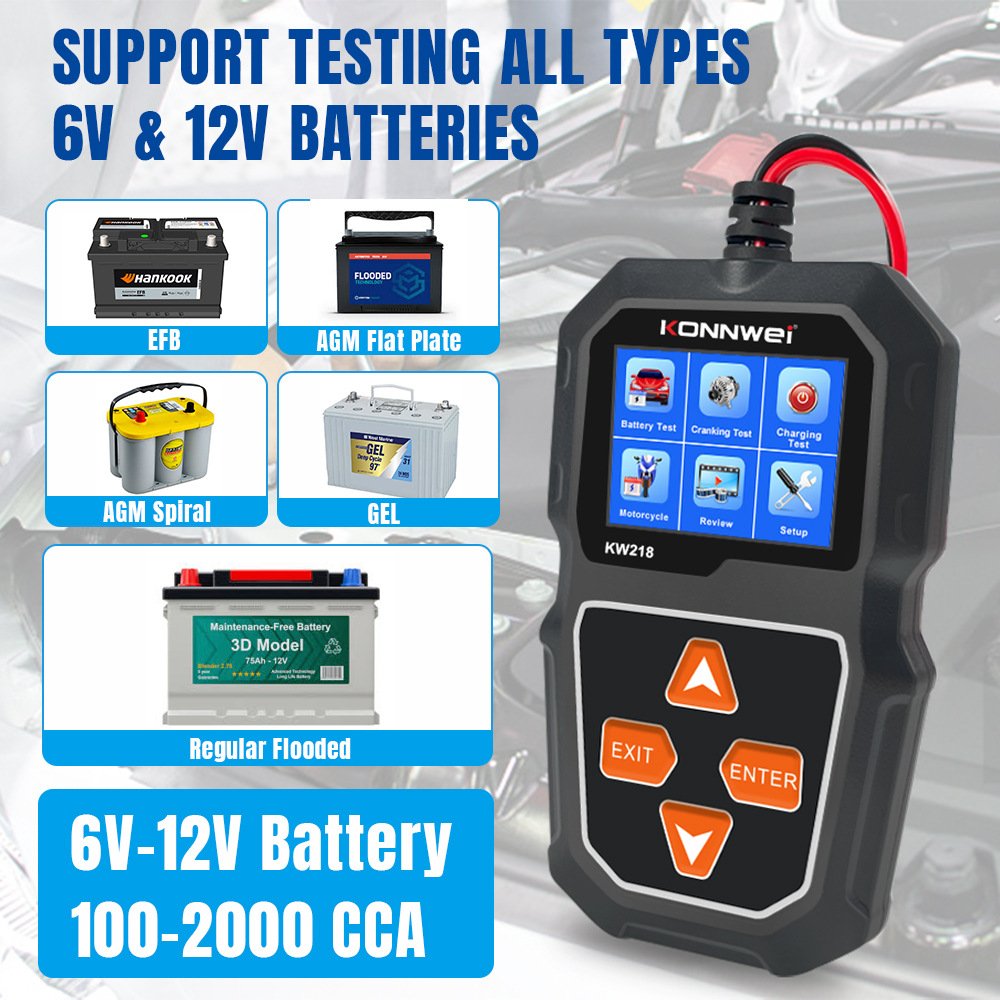

12V LED Automotive Battery Tester WIDELY COMPATIBLE: Beginner or expert, this car battery diagnostic tester can be used with a wide selection of 6V 12V 100-2000
CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.
Auto Battery Tester Multi-language EXTRA FEATURES: car battery tester displays test results in text and graphing, displaying the real-time battery voltage in a waveform. With an intelligent 2.4 inch colorful LCD Screen , reading access is practical and rapid!
KW218 battery tester Main Function:
lOut of Vehicle Test
lIn Vehicle Test
lCar battery test
lMotorcycle battery test
lCharging test
lCranking test
lReview
lwaveform
lLanguage
lSet up
Â
KW218 battery tester features:
1.System voltage: 6 Volts 12 Volts
2.Test Result: Good, Recharge or Replace
3.Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (mΩ)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data
10.Battery test, cranking test, charging test and other additional functions.
KW218 battery tester Measure Standard
1.Measure Standard
2.CCA:100-2000
3.BCI:100-2000
4.CA:100-2000
5.MCA:100-2000
6.JIS:26A17-24SH52
7.DIN:100-1400
8.IEC:100-1400
9.EN:100-2000
10.SAE:100-2000
11 .Display: 2.4 inch Colorful TFT LCD Screen
12.System Voltage:6 Volts 12 Volts
13.Input Voltage Range: 6V-16V
14.Power Requirements: No internal batteries required.
15.Power on when hooked up during testing.
16.Operating Temperature：0℃-50℃
17.Storage Temperature：-20℃-70℃
Â

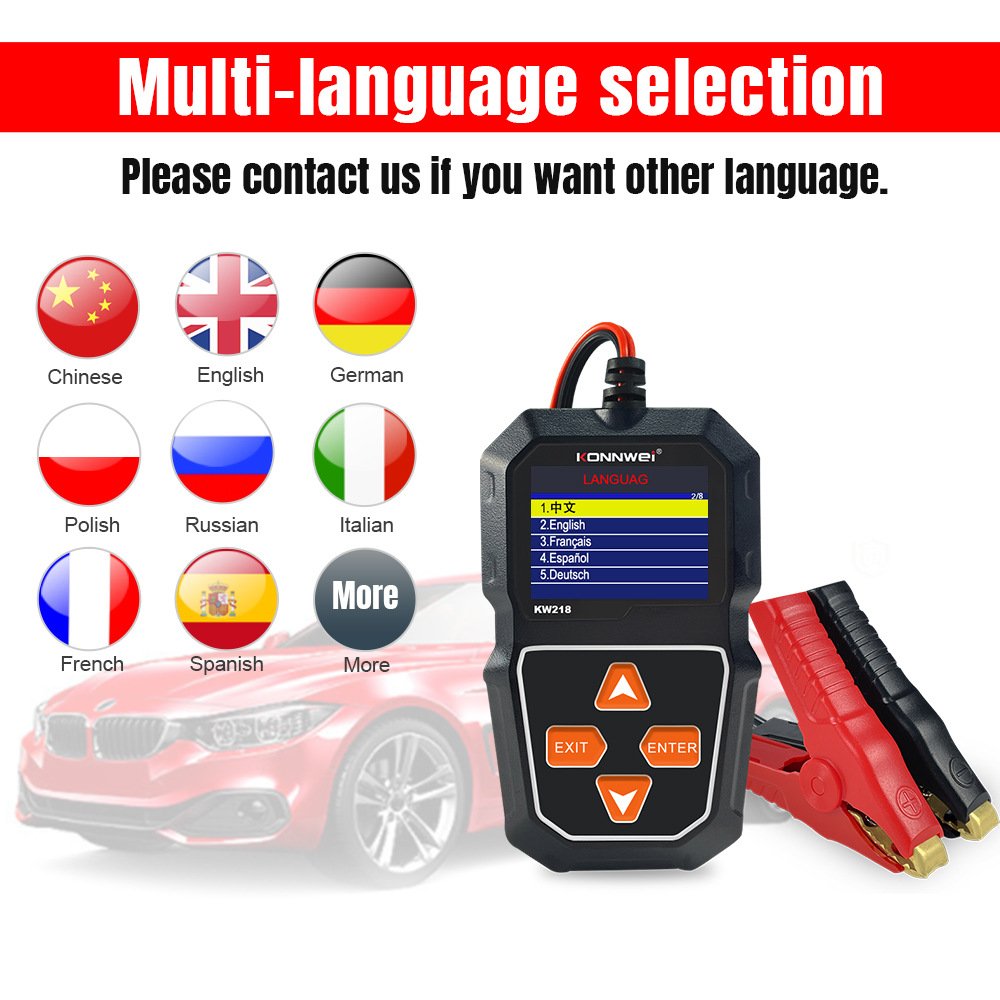

KW218 battery tester Support Languages:
Chinese，English, German, French, Russian, Spanish, Italian , polish, more language will be available such as Japanese , Korean, Dutch, Portuguese, Persian.
KW218 battery tester Package includes:
1* KONNWEI KW218
1* User’s Manual
1* colorful box
