KONNWEI KW310 OBD2 EOBD2 Code Reader Clear Fault Codes For Almost 12V OBDII Auto Car Diagnostic Scanner Tool PK LAUNCH CR3001

KONNWEI KW310 OBD2 EOBD2 Code Reader Clear Fault Codes For Almost 12V OBDII Auto Car Diagnostic Scanner Tool PK LAUNCH CR3001

The KONNWEI KW310 OBD II/EOBD Scanner supports all 10 OBD II test modes on all OBD II compliant vehicles to enable technicians to accurately diagnose even the thoughest problems. Sophisticated yet easy-to-use, this ergonomic scan tool makes your vehicle service experience much more pleasant!

Do you have these problems?

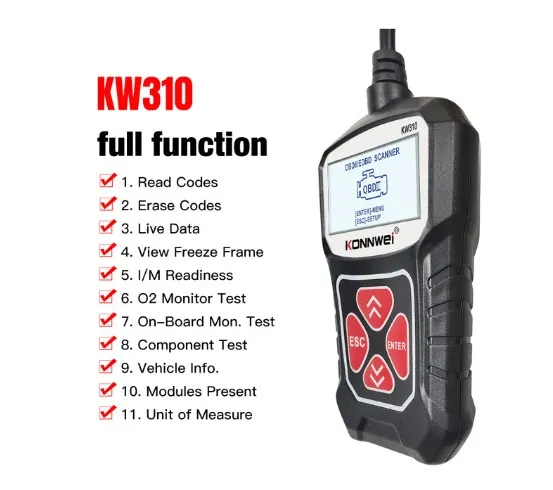

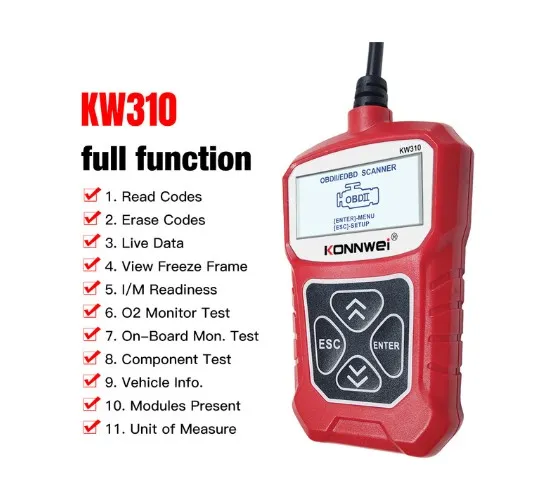

KW310 Basic Funtions:

1.Reading Codes Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.View Freeze Frame Data Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
6.Read Vehicle Information Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
7.Turn off engine warning light
8.Smoke emission Check
9.Engine EPC Check

KW310 Support car models:

American (USA) car:

Compatible with Standard OBD2 Cars from 1996 to Now: For Chrysler, for Ford, for GM, for Jeep

European car:

Compatible with Standard OBD2 Cars from 2003 to Now: For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar

France Car after 2006:
for Citroen, for Fiat, for Renault, for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan,

Asian car

Compatible with Standard OBD2 Cars from 2007 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota

Chinese car:
Compatible with Standard OBD2 Cars from 2009 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry

NOTE:

Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don’t have Special Functions,Like ABS Reset,Airbag Reset… Please Leave us message in below format, we will reply you within 8 hours. for example : xx, 2005, 2.0cc, Diesel

Warning:

Not Support Russian Cars VAZ,UAZ,LADA ;
Not works with trucks For Ssangyong Actyon , from 2009 to 2017 years. For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years,
Not Support Opel Corsa c 2004 1.3 CDTI Nor Support vw golf 4 2002
Not support Citroen C4/C5 .
Not support Chevrolet cars ,
Not support Renault Logon/ megane

KONNWEI KW310 Supports Protocols:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Support language:

English,Russian,Deutsch,Spanish,French,, Dutch,Portuguese.

How to use it ?

Please plug device into car’s 16 pin OBD port, the device will be powered on and follow the on-screen instruction to go!

Software Display

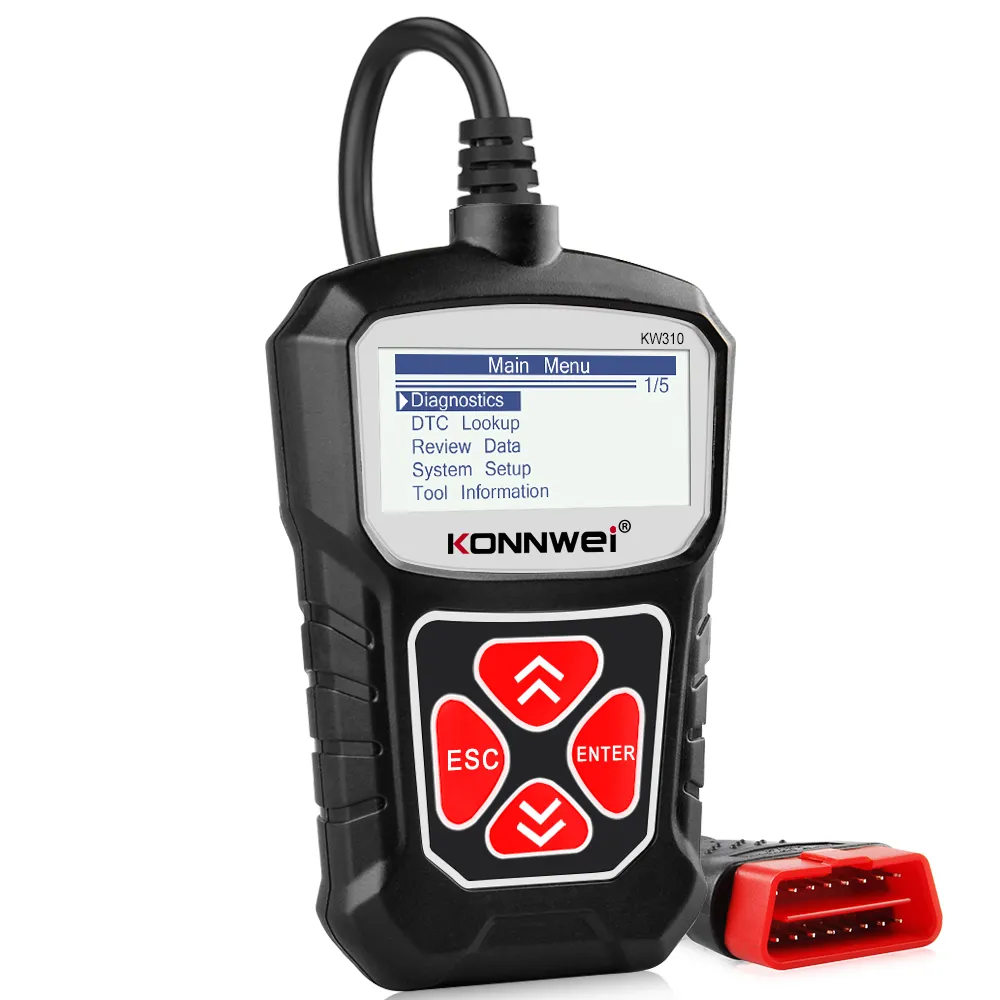

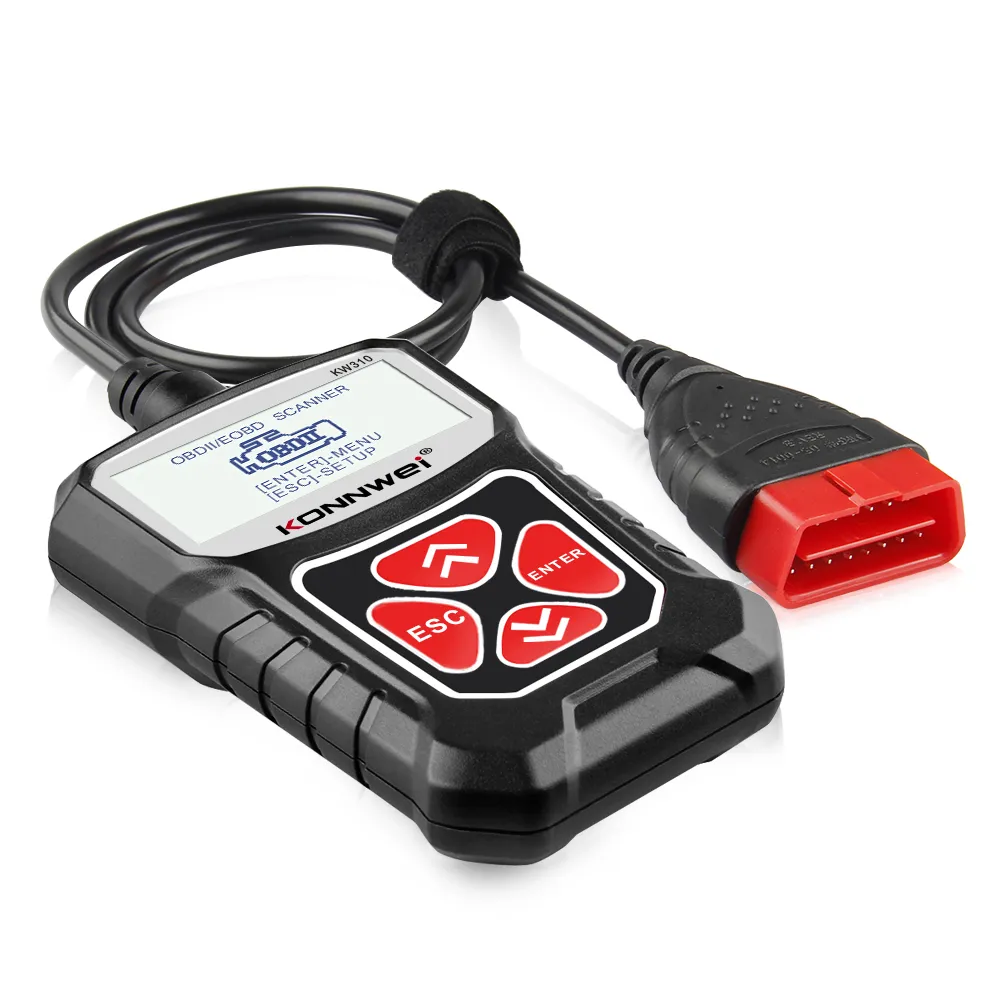

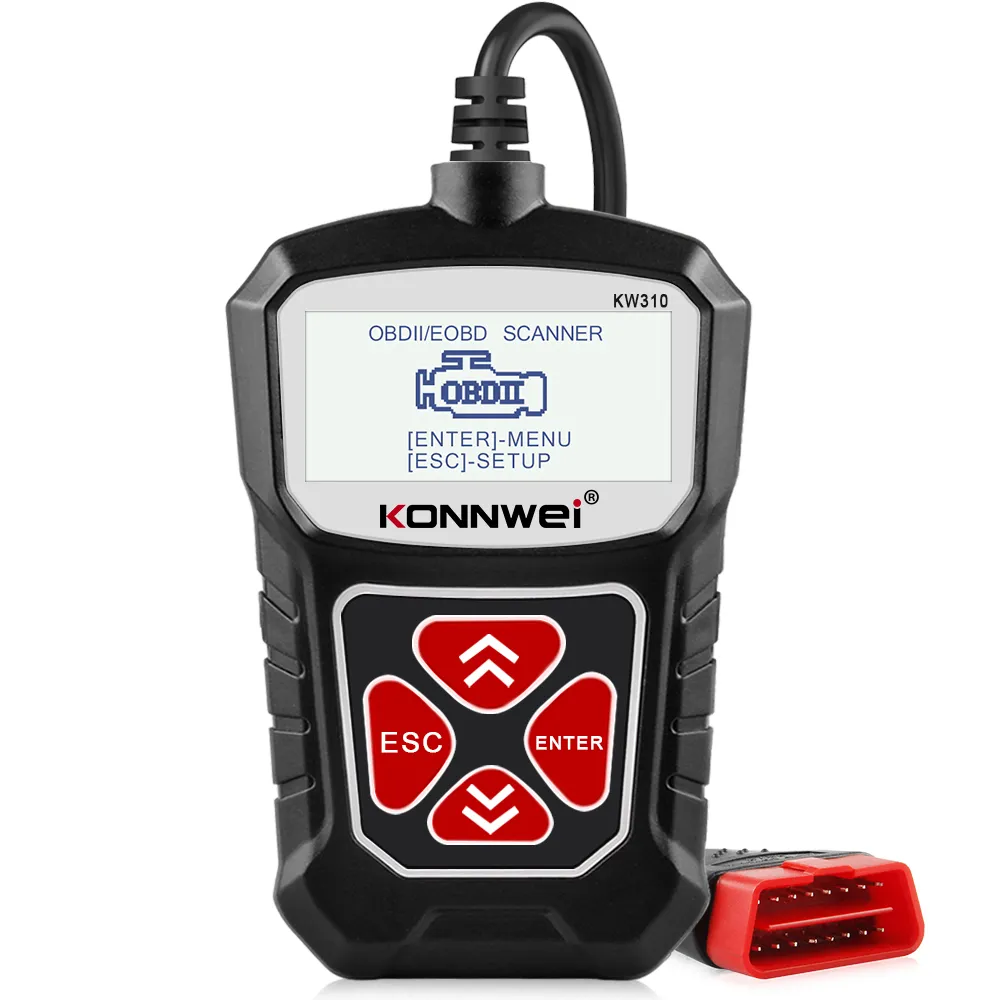

Item Pictures:

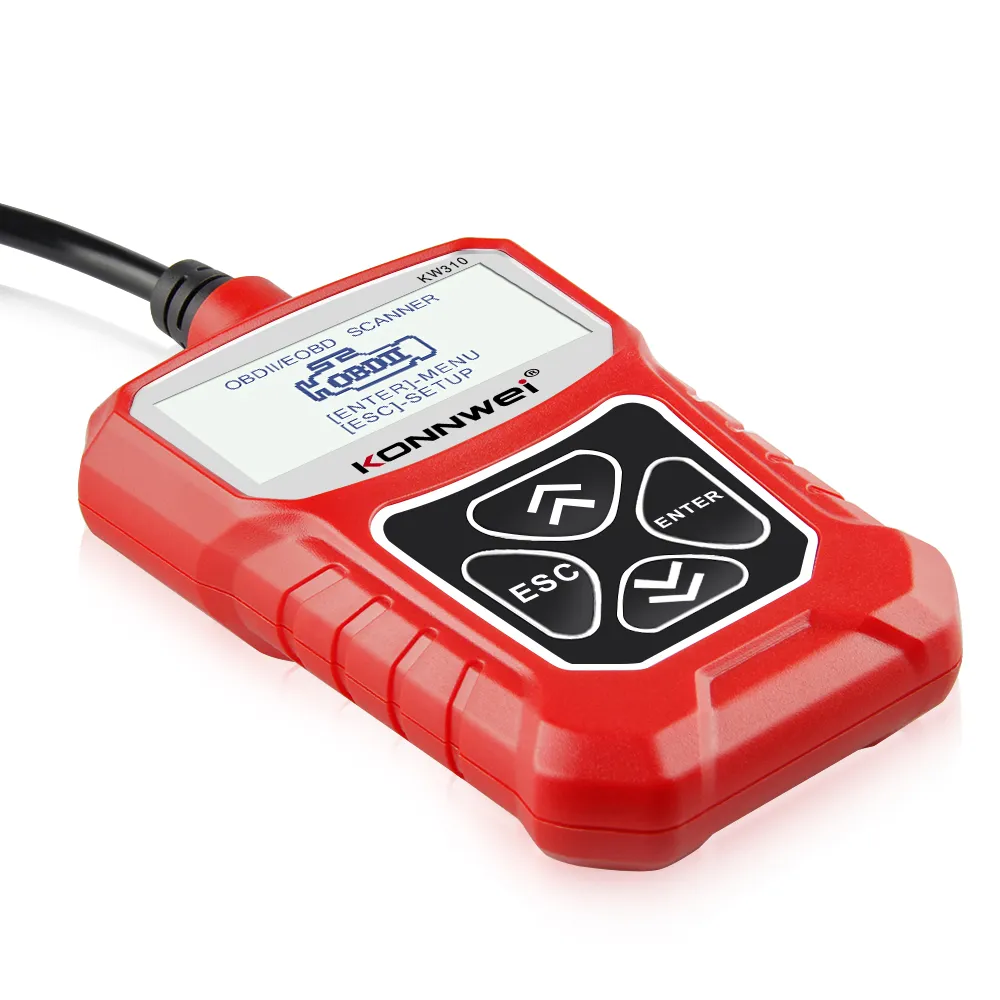

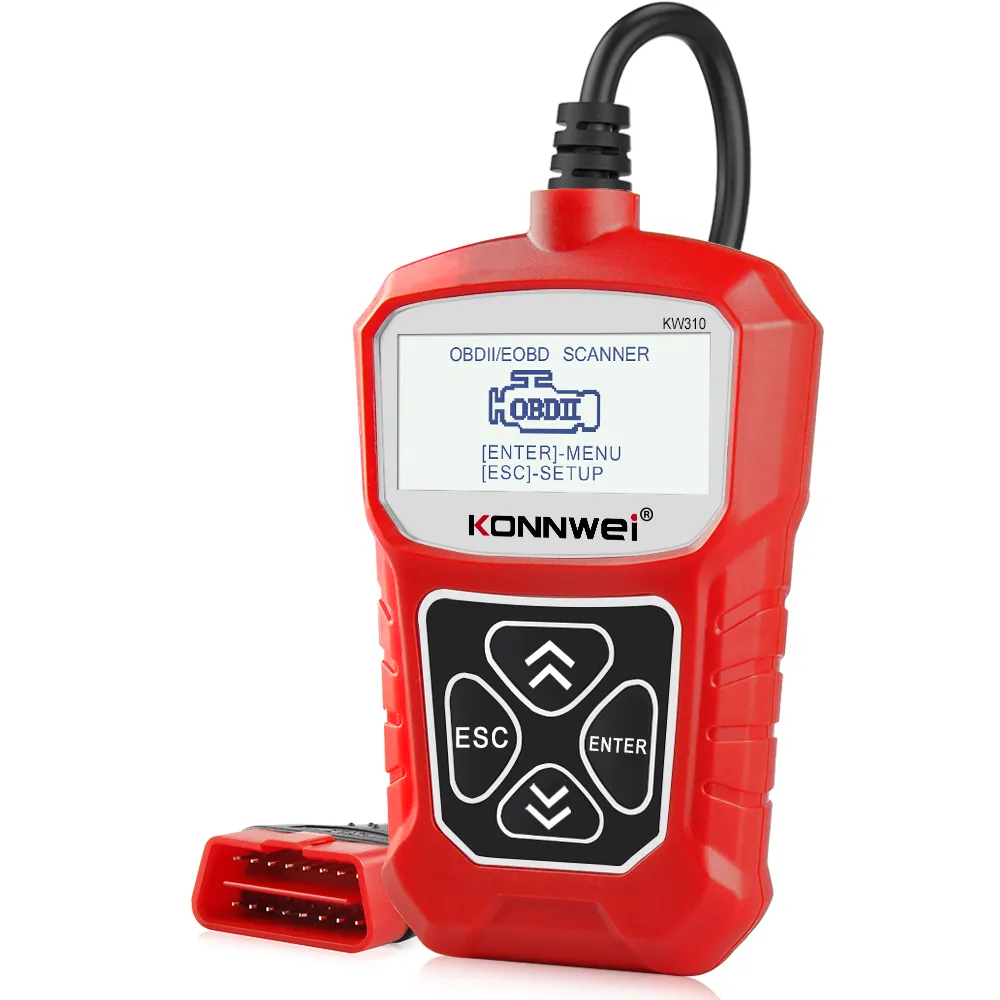

2 Colors Available

Comparison Between KW310,KW309,MS309 and VC309:

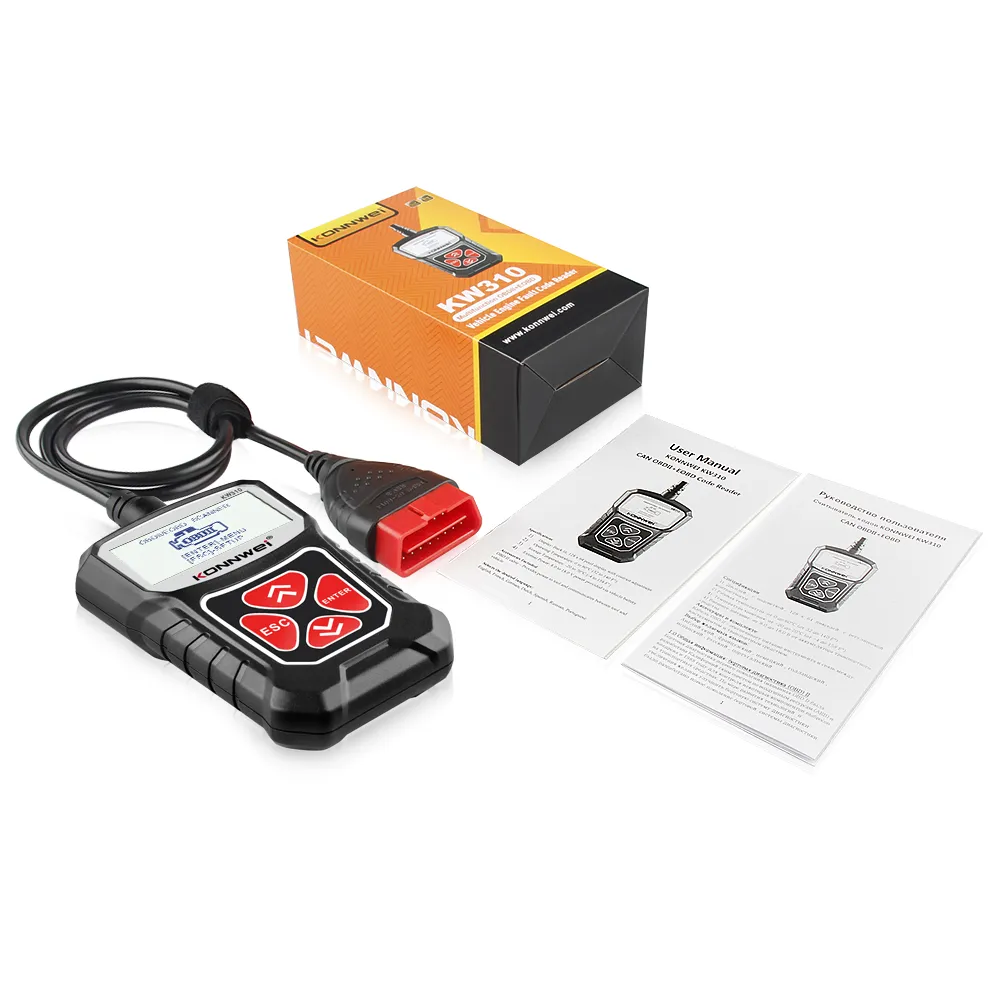

Package List:

*1 KW310 OBD2 scanner
*1 User manual
*1 Carton package
