KTAG V7.020 V2.25 Red PCB ECU Programmer Unlimited Number of Internet Connections

The current version number of KTAG is

• Software version 2.25
• Hardware version 7.020

New additions such as Toyota 76Fxxx, PSA17.4.4, Mercedes-Benz 276, Volkswagen 17.5.5-1766, Ford E83 and so on.

Must disconnect computer form interent!!!

Why does the KTAG wiring diagram only have text but no pictures when it is opened?

A: There are some words with different colors in the wiring diagram. Click with the mouse and the corresponding wiring diagram will appear (click on the place marked black box in the following figure and the wiring diagram manual will appear)

Top 8 reasons to get KTAG V7.020:

1.With latest Firmware version: V7.020, Software version: V2.25
2.Supported Multi-Languages: :English French Portuguese Spanish Italian Deutsch
3.Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx
4.Support both Car, Motorcyle and Truck ECU Programming
6.Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN
7. Add ECU Type: Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU,Toyota 76F, and so on, at least 100 more ECU Types added.
8. No tokens limitation

KTAG Has Unlimited Tokens, We Add a Renew Button

How to reset the tokens?
When the tokens use up, insert the USB into the computer and the red indicator flashes, then press the Reset button, wait until the indicator flashes off, unplug the USB cable and again insert the USB cable to the computer, now you have 30 tokens.

Question: When I open the Ktag master V7.020 diagram, it displays in words not pictures.
Answer: In the diagrams, there are some words in different colors, click it you will see the diagram. (Take the following picture for example, click the blue “Here” you can see the connection instructions)

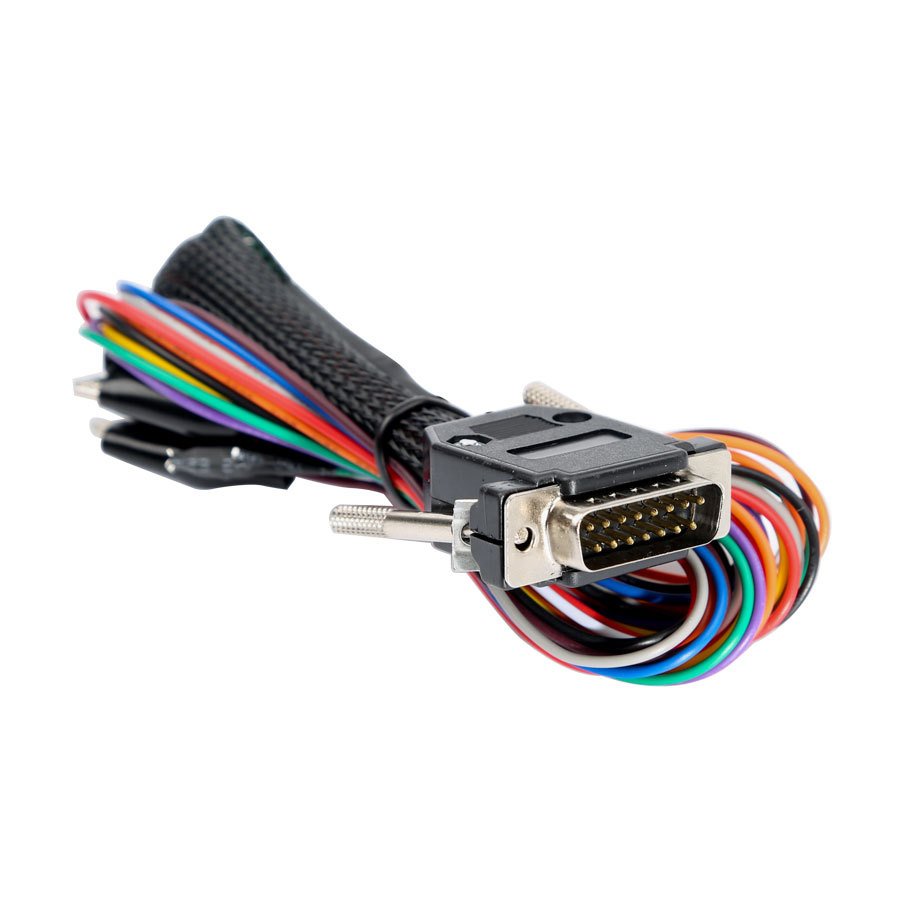

Cables From Left to Right:

1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H

V2.23 KTM100 KTAG Description:

The new KTM100 K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.
