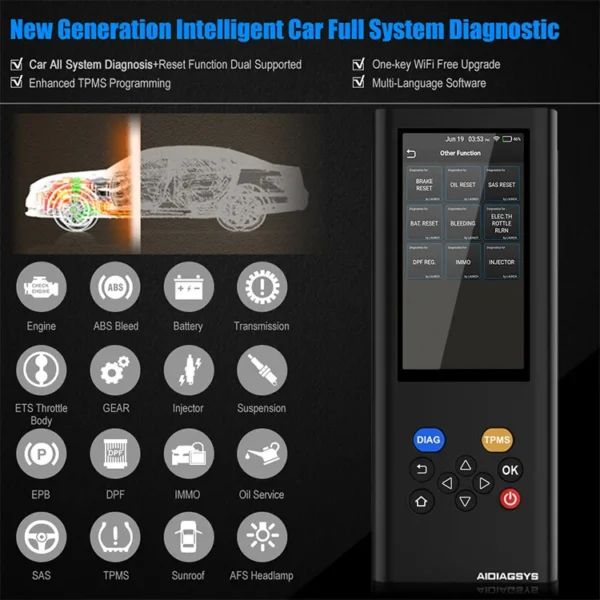

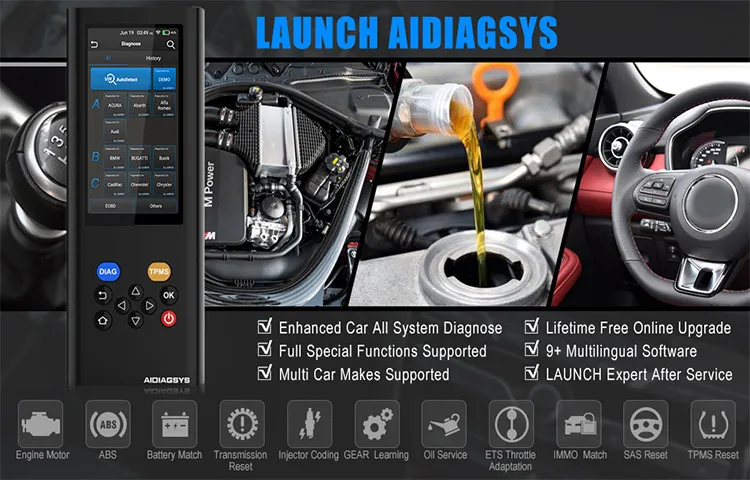

LAUNCH AIDIAGSYS OBD2 Scanner Automotive Scanner Full System Diagnosis EPB DPF TPMS Reset Engine Code Reader Car Diagnostic Tool

LAUNCH AIDIAGSYS OBD2 Scanner Automotive Scanner Full System Diagnosis EPB DPF TPMS Reset Engine Code Reader Car Diagnostic Tool

1.Supports car full system basic diagnostic & activate function(Version Information, Read DTCs ,Clear DTCs and Read Data Stream (supports 3 dispiay modes: Value, Graph and Merged).

2.Supports all 10 models of standard OBDlI/EOBD test

3. 8 Reset Function : including Oil Lamp Reset, Brake Pad Reset, TPMS Programming, Battery Matching, Injector Coding, Throttle Adaptation, DPF Reset, Steering Angle Reset,ABS Bleeding,and Anti-Theft Matching.

4. Multi-language :English, French, Spanish, Russian, Japanese, German, Italian, Portuguese. meet the needs of customers in various countries.

5.Update:One-Click update online via Wi-fi , One years free update

6. Print : Support print out diagnostic data report via email

7.Support multiple car models :covering over 60 prevailing models from Asia, America and Europe.

8. Features:5.0′ IPS touch screen and button dual operation model, meets majority of users needs

Launch AIDIAGSYS OBD 2 Scanner Supported Language:

English, French, Spanish, Russian, Japanese, German, Italian, Portuguese

Launch AIDIAGSYS Auto Scanner Functions:

Professional in ALL Systems Diagnosis:

1. Read all kinds of DTCs from vehicle’s control systems to locate problem areas and offer possible solutions;

2. Erase the codes easily after DTCs retrieving and certain repairs have been carried out;

3. Live data of each parameter item displayed in analog, text, waveform graph, digital, or full screen display modes;

4. Share and save diagnostic report and print it via email pdf fiel

ALL 10 Mode OBDII/EOBD Functions:

Mode 01—Request current powertrain diagnostic data.
Mode 02—Request freeze frame information.
Mode 03—Request emissions-related diagnostic code
Mode 04—Clear/reset emissions-related diagnostic information.
Mode 05—Request oxygen sensor monitoring test results.
Mode 06—Request on-board monitoring test results for specific monitored systems.
Mode 07—Request emission-related diagnostic trouble codes detected during current or last completed driving cycle
Mode 08—Request control of on-board system, test or component.
Mode 09—Request vehicle information.
Mode 0A—Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Launch AIDIAGSYS OBD2 Auto Scanner Reset Function:

1.Oil Lamp Reset Service :
allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB service:
it is important in the maintenance of electronic braking system’s safety and efficiency.
3.BAT battery service :
allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF service :
specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS service:
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

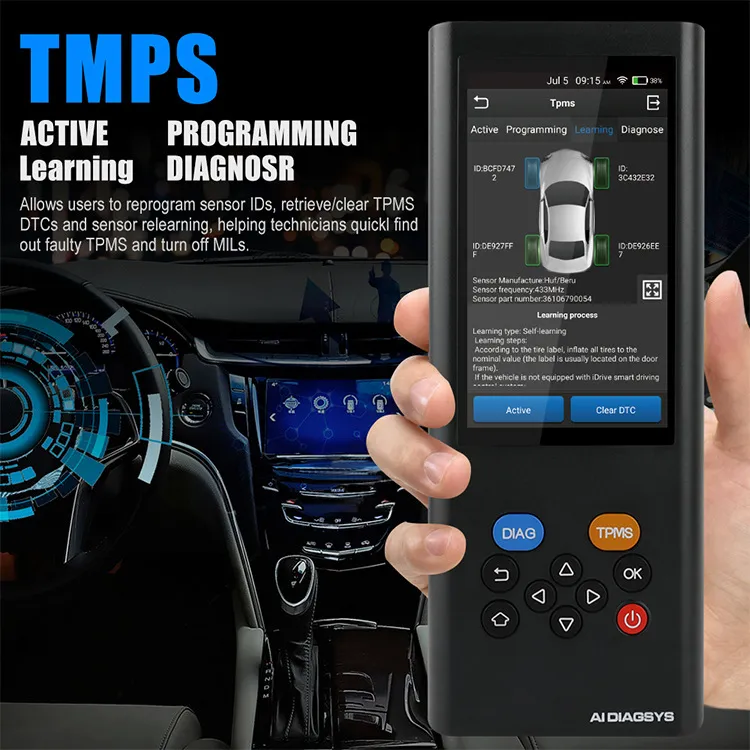

6.TPMS Reset & Programming :
makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors and programming sensor and ecu directly.
7.IMMO Key Programming:
the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding :
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system
9.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off

10.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

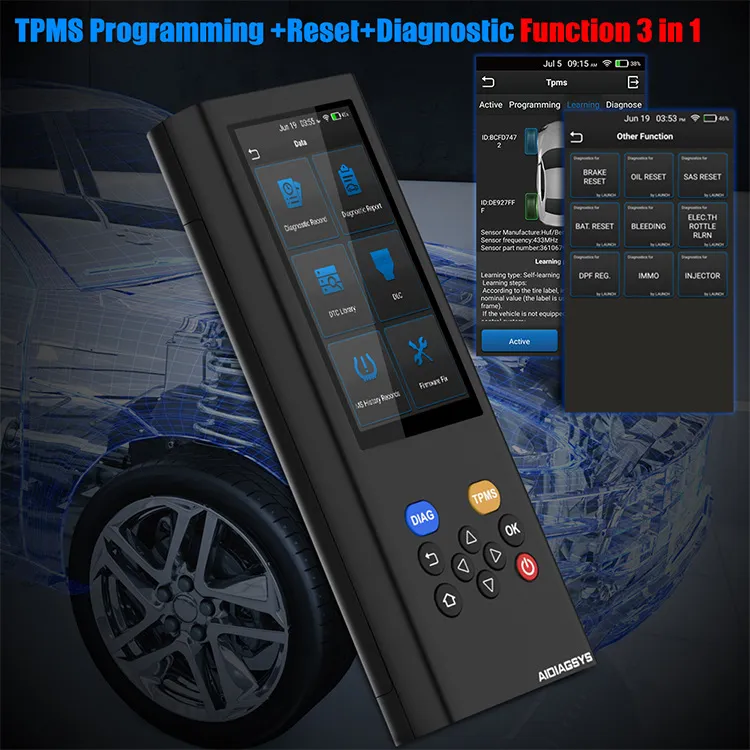

How to do programming for TPMS:

1.Activate TPMS Sensors

2.Programming Sensors

3.Learning new Sensors

4.Scan TPMS Sensor ID

5.Diagnose TPMS System

6.Copy Sensor ID

7.Input Sensor ID

Launch AIDIAGSYS OBD2 Scanner Supported Brands:

For Demo, for ACURA, for Alfa Romeo,
for Audi,for BMW, for BUGATTI,
for Chrysler,For Citroen,for DACIA,
for Daewoo, for Euroford, for Fiat,
for Ford, for Mitsubishi, for Nissan,
for Opel,for Peugeot, for Porsche ,
for Renault, for SAAB, for SAMSUNG,
for Seat, For Skoda, for Smart,
for Sprinter, for Subaru, for Suzuki,
for Tlisuzu, for SAAB, for SAMSUNG
for Toyota, for Vauxhall, for Volvo,
for VW, for USA GM, for Gmsa,
for Honda, for Hyundai, for Infiniti,
for Isuzu, for Jaguar, for Kia,
for Lancia, for Landrover, for Lexus,
for Lincoln, for Mazda, for Mercedes , for Mini…

Note:

These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, or check from official page http://qcar.x431.com/newqcar/

How to Update Launch AIDIAGSYS :

1. input mailbox activate machine and connect with wifi network before update work

2.If some new software or APK can be updated, a numeric indicator will display on the “Upgrade” module on the Job menu. In this case, you may use this option to keep it synchronized with the latest version.

3.Tap “Upgrade” on the Job menu to enter the update center. By default, all diagnostic software is selected.

4.To deselect certain software, tap “Unselect”, and then check the box next to vehicle model.

5.Tap “Update” to start downloading. It may take several minutes to finish it, please be patient to wait. To pause downloading, tap “Stop”. To resume it, tap “Continue”. If network connection failure occurs, tap “Retry” to try again.

6.Once download is finished, the software packages will be installed automatically.

If there is anything we can help, please kindly contact us.

Product Size&Detail:

Package List:

1 * Main Unit
1 * OBDII Diagnostic Cable
1 * DC 5V Charging Cable
1 * Padded Carry Box
