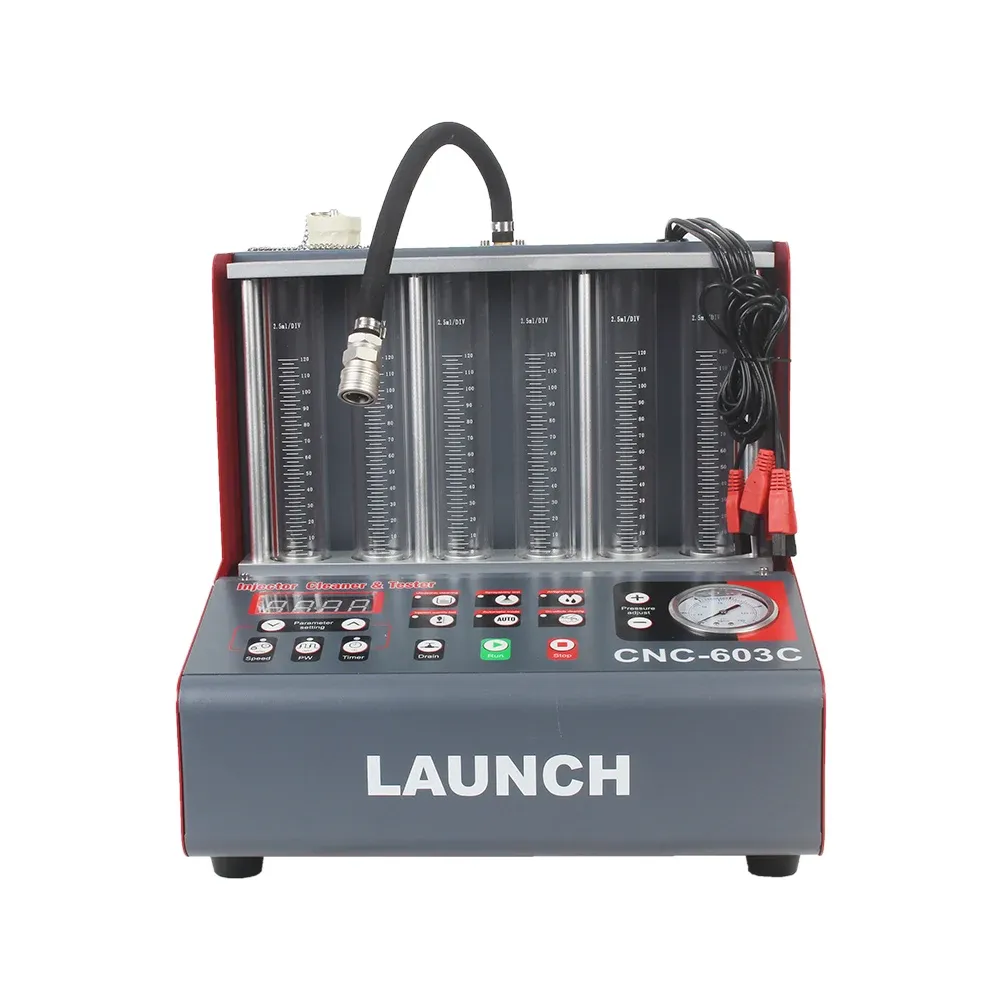

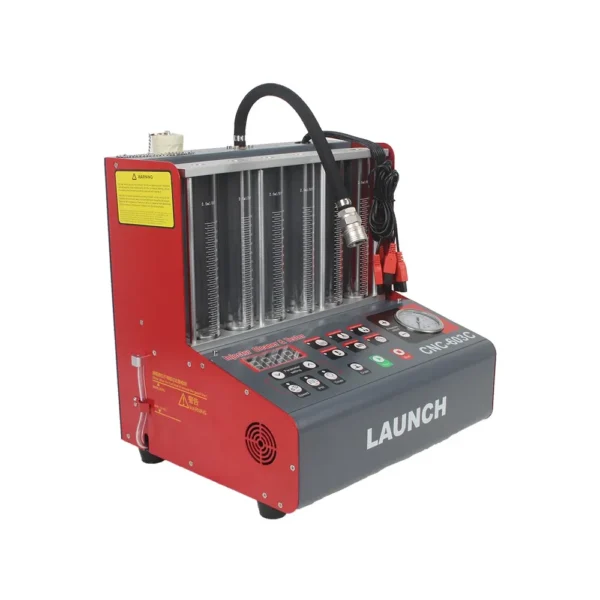

Launch CNC-603C CNC603C Ultrasonic Fuel Injector Tester & Cleaner 6 Cylinders English Panel For Gasonline Car

*Uniformity / Sprayability test: to detect the uniformity of the fuel injection quantity of each injector and monitor the spraystatus of injectors thoroughly and carefully by using the backlight, and to backflush injectors.

*Leakage test: to test the leakage and dribbling conditions of injectors under system pressure.

*Injecting flow test:to detect the amount of fuel injected normally by injectors in 15 seconds.

*Auto. test: under specific working conditions and parameters, the precise simulation of test of injectors under various working conditions

*Ultrasonic cleaning: to perform ultrasonic cleaning on multiple injectors at the same time, removing carbon deposits on injectors completely.

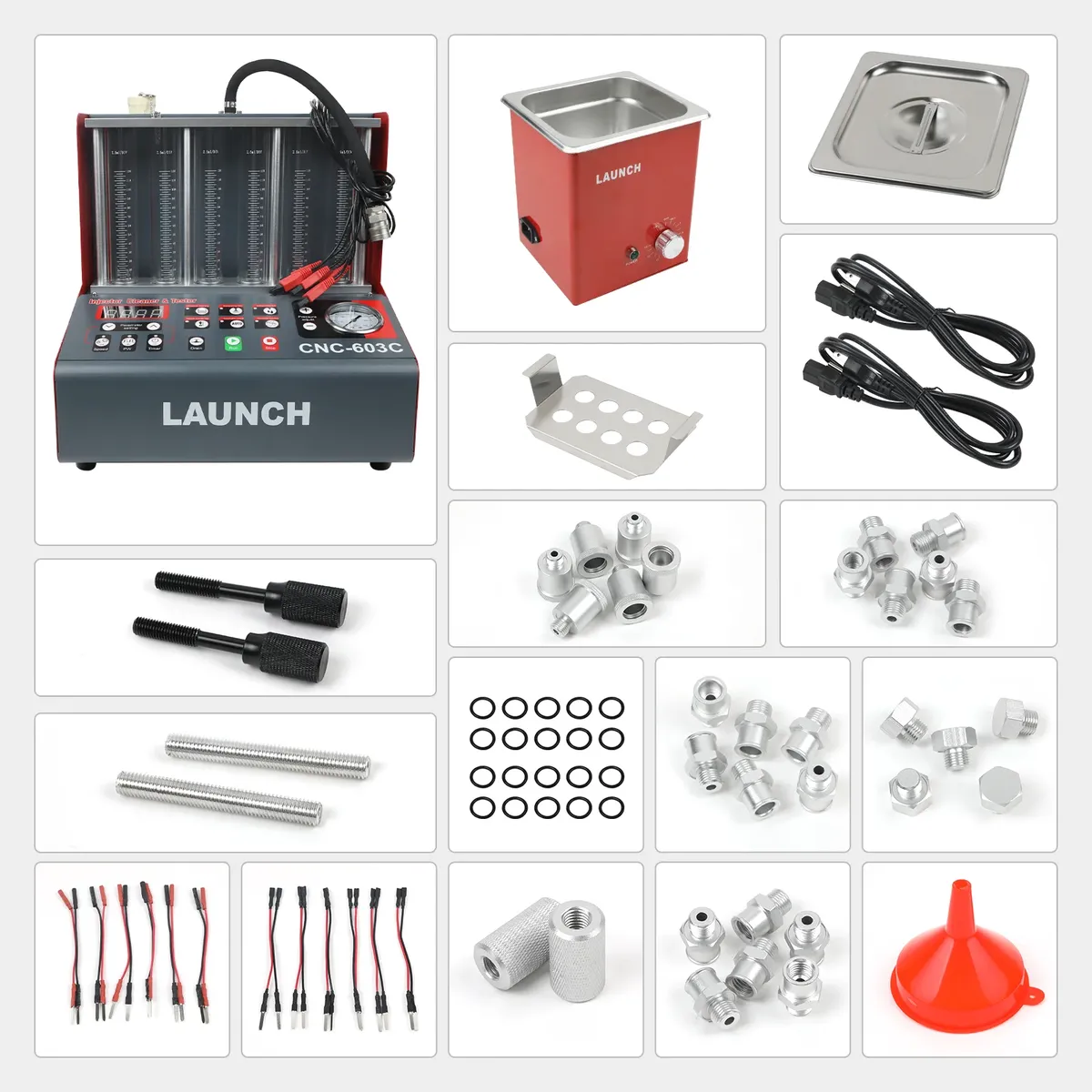

*On-Vehicle Cleaning: Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.

*Version information: to check the software version information of the current device.

*Adopting ultrasonic cleaning technology, CNC-603A Injector Cleaner & Tester presents a strong cleaning ability;

*The product also adopts fuel pressure adjustment and control technology by microcomputer, which can ensure stable fuel pressure and wide adjustable range. It is applicable to vehicles equipped with a variety of gasoline injection systems. Meanwhile, the automation of injectors’ cleaning and testing processes can be realized.

*Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically and the parameters of the main status can be monitored in real time.

*Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology. Start or [stop] fuel drainage via the [Drain] button on the control panel in running or stop state
1.Cleaning and Testing Sequences

It is recommended to carry out the complete cleaning and testing procedures in the following order.

*Ultrasonic cleaning;
*Uniformity / Sprayability test;
*Leakage test;
*Injecting flow test;
*Auto. test. Select the corresponding parameter according to different test items and set it. See “V. Operation Processes” for details.

2. Cleanup after Operation

After the end of cleaning and testing, a cleanup should be done, which includes:

*Press [Drain] button on the control panel to drain test solution to a fuel container.

*Switch off the power switch and unplug the power plug.

*Take out the ultrasonic cleaning pool and pouring out all cleaning fluid completely shown in Figure 4.2, and wipe the ultrasonic cleaning unit with a soft dry cloth.

*Wipe the table top of the machine with a soft dry cloth.

*To avoid volatilization, all the test solution in the fuel tank should be discharged. If it can be used again, store it in a safe place. If it is dirty and cannot be used any more, dispose it according to relevant regulations.

Power: AC110V-127V,50Hz/60Hz 3Amax
AC220V-230V,50Hz/60Hz 1.5Amax
Mechanical Power: 300W
Ultrasonic Cleaning Power: 100W
Speed Range for Simulation Test: 10~9990rpm
(step: 10rpm)
Environment Temperature: 0°C~+45°C
Relative Humidity: <85%
Strength of External Magnetic Field: <400A/m
Open fires is strictly prohibited within 2m.
Timing Range: 1~9999s
Pulse Width Range: 0.5~25ms (step: 0.1ms)
Operating Volume: 3000ml
