What can you get from NT301 Plus?
1. Turns off check Engine Light ( MIL ), clears codes and resets monitors.
2. With Internet access, you will always have the latest bug fixes free of charge.
3. Feature the unique patented One-click I/M Readiness key for quick State Emissions readiness.
4. Multilingual – English, Spanish, German, Italian, French, Portuguese, Russian, Dutch, Japanese.

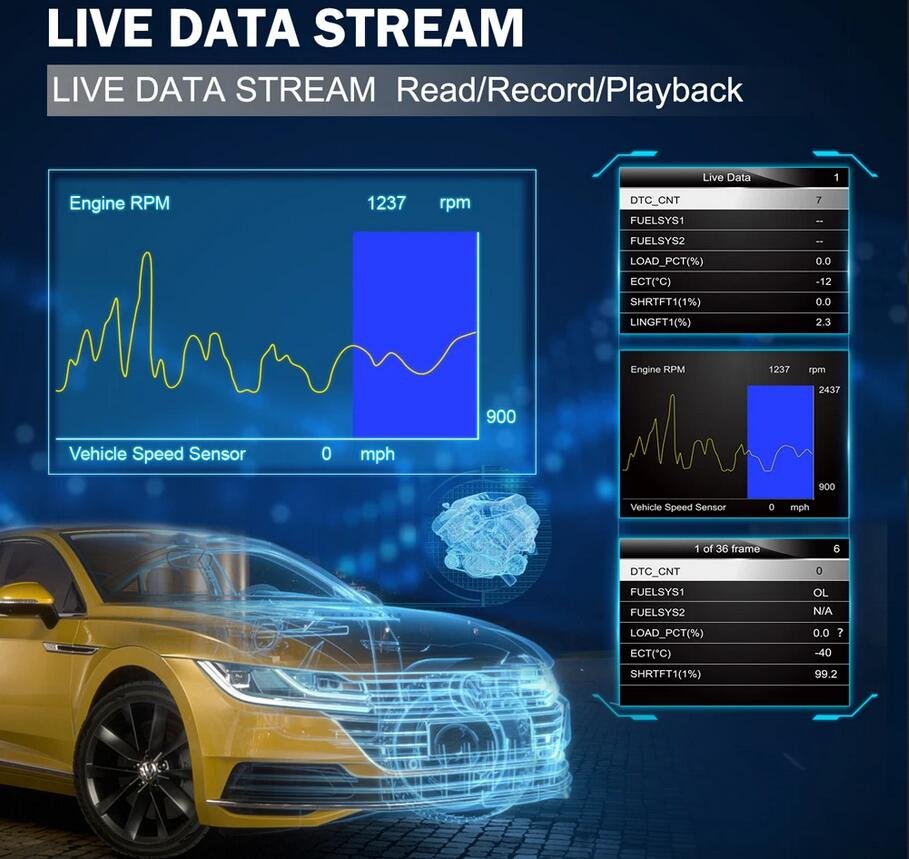

5. NT301 Plus keeps records of test results including live sensor data and freeze data for off-vehicle review.
6. Red-Yellow-Green LEDs and built-in speaker provide both visual and audible tone for readiness verification.

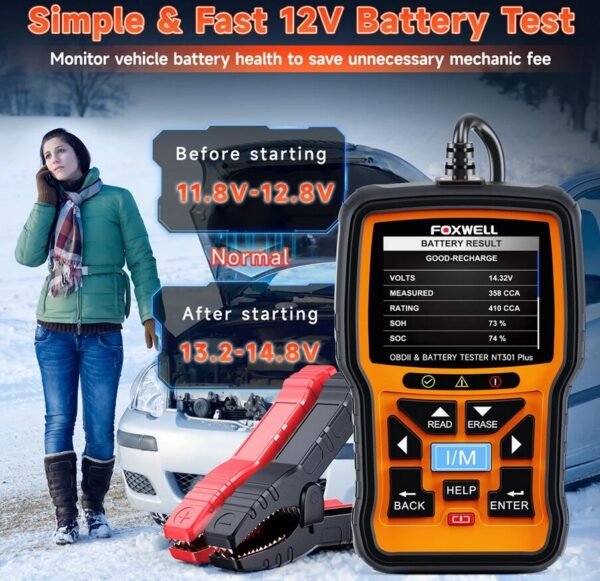

7. Provides quick and accurate testing of most types of 12V batteries, including regular flooded, AGM flat plate, AGM spiral and gel.
8. After the car problems have been solved, Foxwell NT301 car code reader can erase these trouble codes and turn off check engine light.
This diagnostic reader requests the vehicle’s VIN number, calibration ID(s) which identifies software version in vehicle control module(s), calibration verification numbers (CVN(S)) and in-use performance tracking on model year 2000 and newer OBDII compliant vehicles.
TIPS: Works on all OBDII/EOBD compliant car, light-duty trucks, SUVs, minivans and hybrid sold worldwide.
Supported Protocols:
J1895-41.6, J1850-10.4, ISO9141, KWP2000 ( ISO 14230 ), and CAN ( Control Area Network ISO 11898 )
Replace Your Bad Battery In Time:
Standard Description Testing Range
CCA Cold Cranking Amps, as specified by SAE. The most common rating for cranking batteries at 0°F (-18°C). 100-1100
CA Cranking Amps standard. The effective starting current value at 0°C (32°F). 100-1100
MCA Marine Cranking Amps standard. The effective starting current value at 0°C (32°F). 100-1100
JIS Japanese Industry Standard, shown on a battery as a combination of numbers and letters. 26A17–245H52
DIN Deutsche Industrie-Norm. 100-1100
IEC International Electro technical Commission. 100-1100
EN Europa-Norm 100-1100
SAE Society of Automotive Engineers 100-1100
Test Results — Interpretation:
GOOD BATTERY — The battery is in good condition.
GOOD-RECHARGE — The battery is in good condition but low current. Fully charge the battery and return it to service.
CHARGE & RETEST — Fully charge the battery and retest. Failure to fully charge the battery before testing may result in inaccurate results. If you still get CHARGE & RETEST message after you fully charge the battery, replace it.
REPLACE BATTERY — The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test before replacing it.
BAD CELL-REPLACE — The battery may be damaged such as broken cell or short circuit. Replace the battery and retest.
FOXWELL NT301 Plus Diagnostic Tool Support Languages:
(1) English, français, Español, Deutsche and italiano
(2) English, Português, Magyar, Nederlands, svenska
(3) English, русский
FOXWELL NT301 Plus Diagnostic Tool Support Car List:
1. America Car List: (include Brazil)
Need standard obd2 , and release from 2001 years to now
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep
2. Europe Car List:
Need standard obd2 , and release from 2004 years to now
Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar
3. Asia Car List: (include Australia)
Japanese car Need standard obd2 , and release from 2006 years to now
Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda
Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota
4. Chinese Car List
Chinese car Need standard obd2 , and release from 2011 years to now
Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry
NOTE:
for Ssangyong Actyon, Kyron, Rexton, from 2011-2017 years.
for Ssangyong Korando, from 2013-2017 years
for Renault cars from 2016-2018 years.
Does not support for Renault / Dacia Logan , Clio.
Does not support for LADA, UAZ, VAZ
No Car OBD2 Scanner can work for all cars, If the device does not fit for your car, please try to test on another newly car.
Package Including:
1 x FOXWELL NT301 Diagnostic-Tool
1 x English User Manual
1 x USB cable
1 x Battery Cable
