Launch Creader 319 OBD2 Scanner Car Code Reader OBDII OBD 2 Scan Tool Check Engine Fault Code Read CR319 CR3001 Creader 3001

LAUNCH CReader 319 DIY OBDII Scanner for Engine

CReader 319 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.

Supported Language

English ,French ,Russian ,Spanish ,German, Italian ,Portuguese

How to change languages?

Main Memu –Tool Setup — Languages

Update & Warranty

Lifetime Free Update & 1 Year Warranty

All Modes of OBDII Functions for Repair Work

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

$01 – Request Current Powertrain Diagnostic Data

$02 – Request Powertrain Freeze Frame Data

$03 – Request Emission-Related Diagnostic Trouble Codes

$04 – Clear/Reset Emission-Related Diagnostic Information

$05 – Request Oxygen Sensor Monitoring Test Results

$06 – Request On-Board Monitoring Test Results for Specific Monitored Systems

$07 – Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle

$08 – Request Control of On-Board System Test or Component

$09 – Request Vehicle Information

$0A – Request Emission-Related Diagnostic Trouble Codes with Permanent Status

Car Coverage

The Car Must Support OBD2 Protocol !!!

(Note: CR319 only Support 12V Gasoline& Diesel, Does not support 24V Truck )

American Car :
Need Standard OBD2 Protocols from 2000 to now
for Chrysler , for Ford, for GM, For Jeep …

European Car :
Need Standard OBD2 Protocols from 2003 to now
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar…

Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota…

Chinese Car:
Need Standard OBD2 Protocols from 2009 to now

NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol.

Support OBD2 protocols car:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

How to use it?

1.Plug into the car OBD2 16pin port
2. Start the engine (ignition), the tachometer will point around 0.7

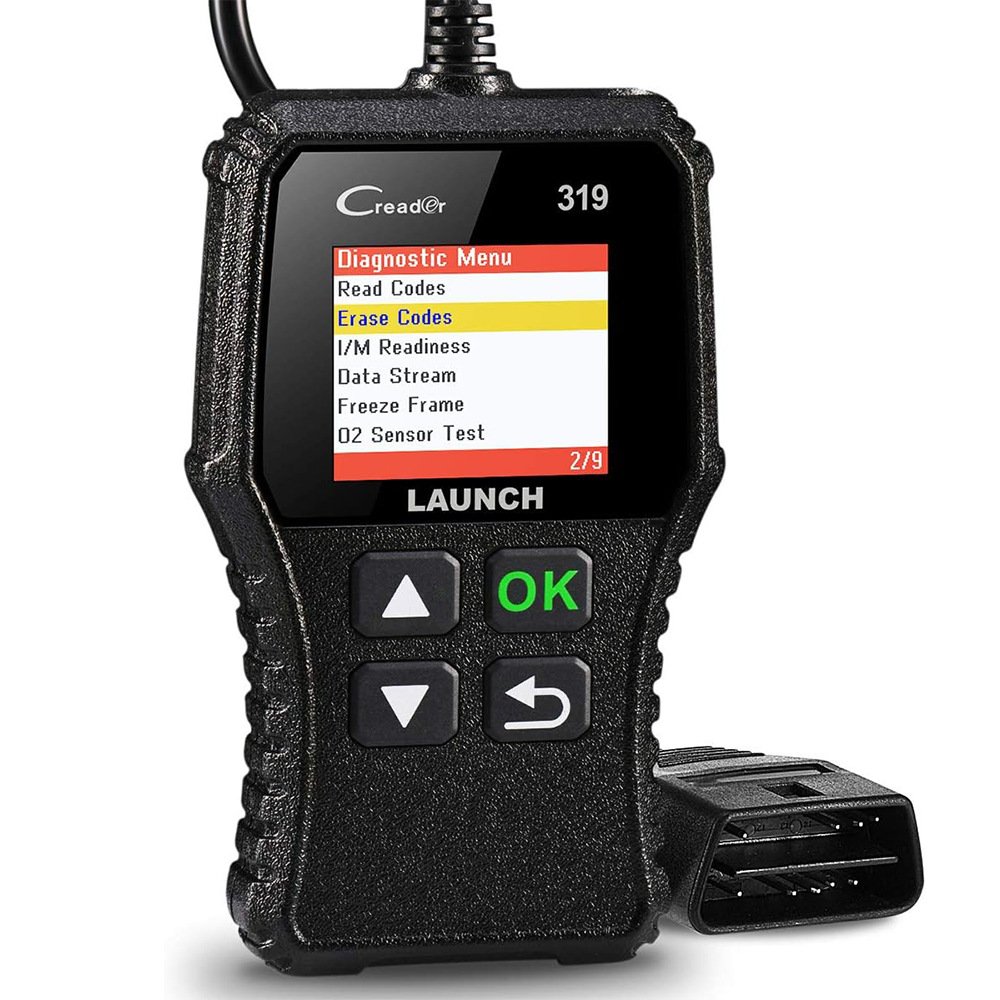

3. Chose the diagnostic menu as you want

If you have any question, pls kindly contact us.

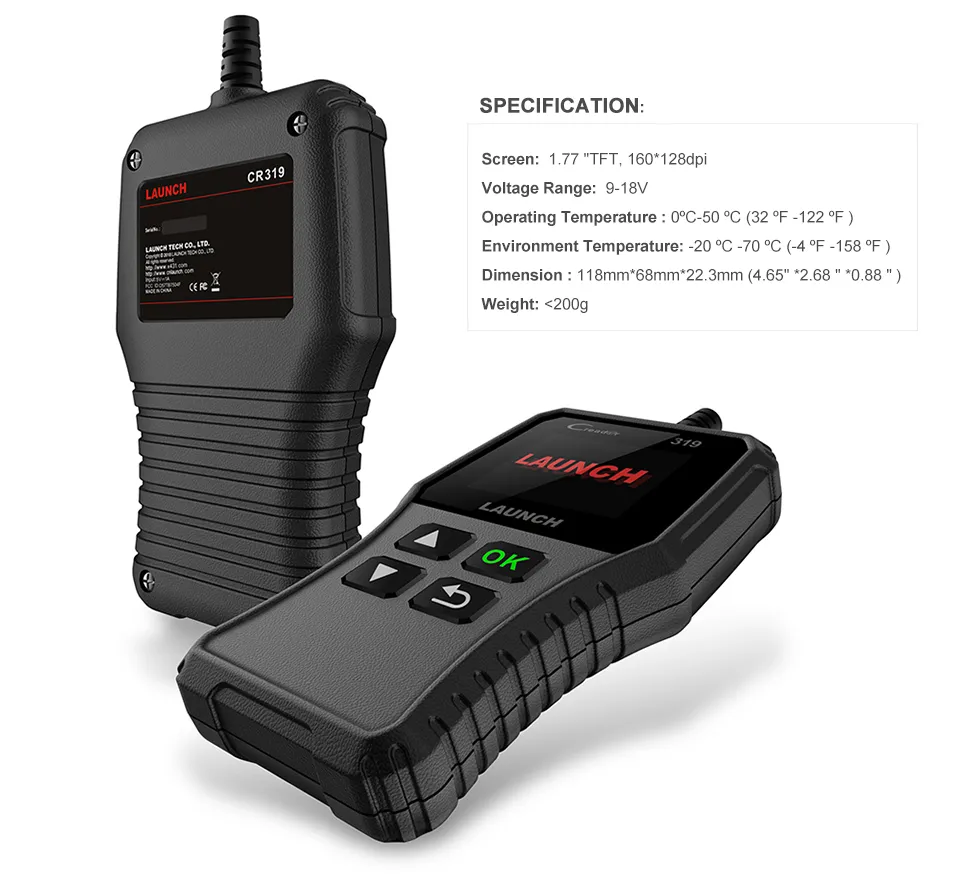

Specifications:

Screen: 1.77 ” TFT, 160*128dpi

Voltage Range: 9-18V

Operating Temperature :0°C -50 °C (32 ℉ -122 ℉ )

Environment Temperature:-20 °C -70 °C (-4 ℉ -158 ℉ )

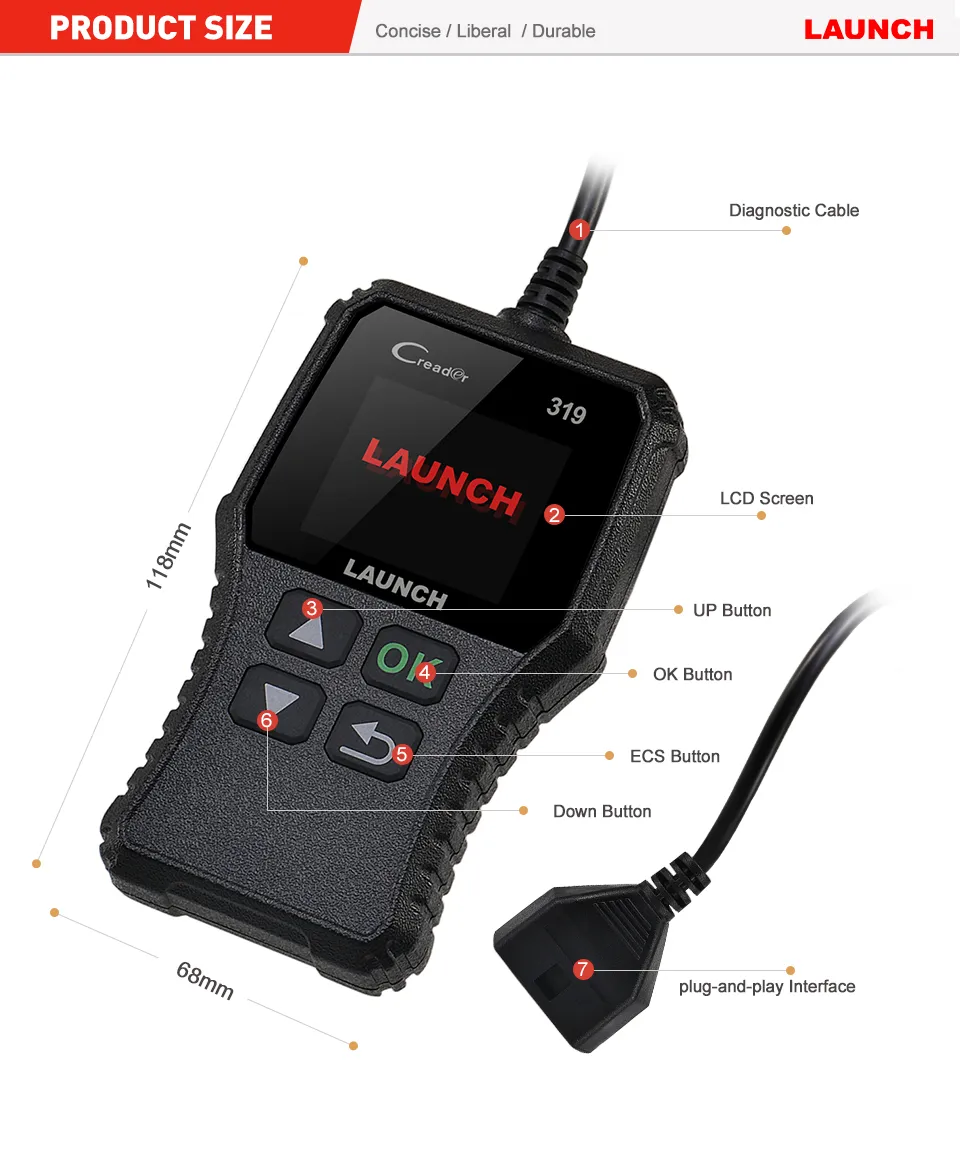

Dimension :118mm*68mm*22.3mm(4.65″ *2.68 ” *0.88 ” )

Weight: <200g
