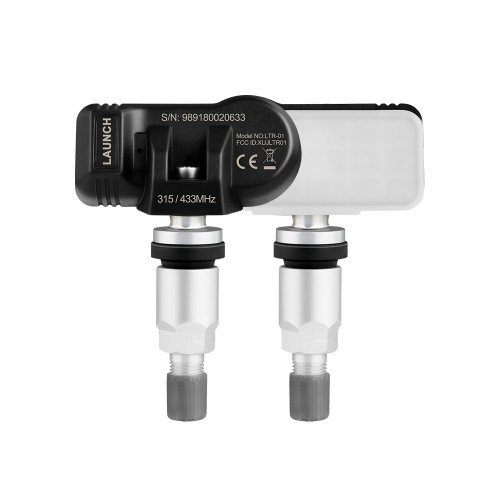

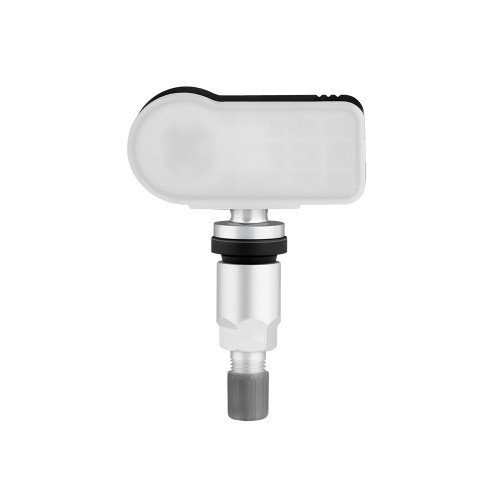

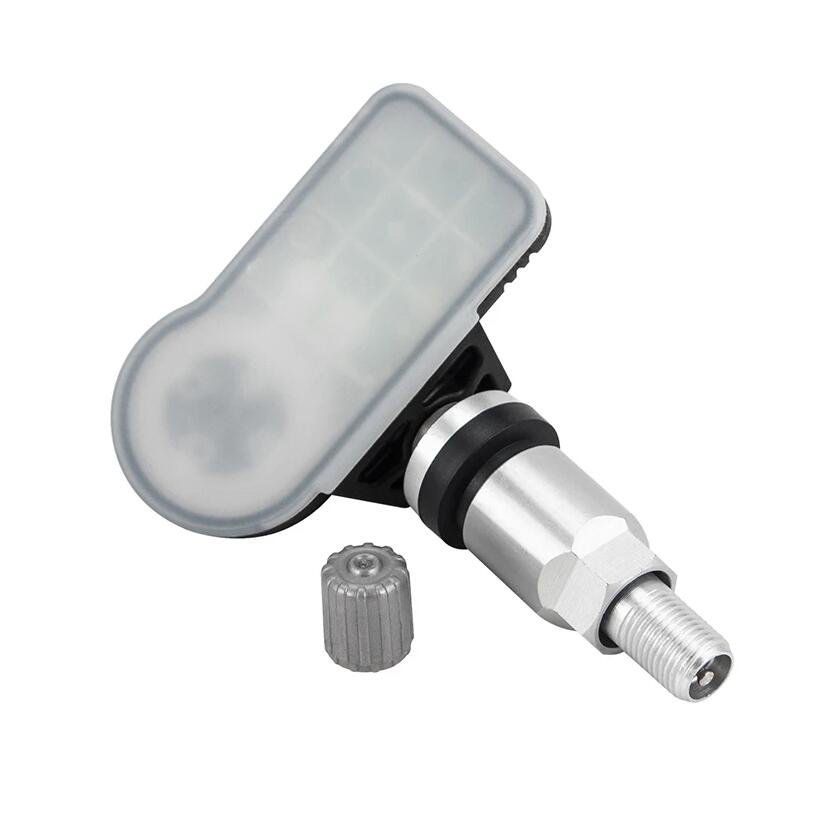

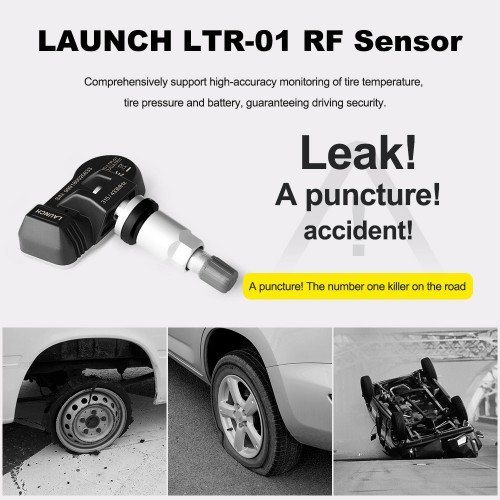

LAUNCH LTR-01 RF Sensor 315MHz & 433MHz Tire Pressure TPMS Programming Tool Tire Programmable Sensor Tire Repair Tool-Rubber Valve

Highlights

1. 315MHz and 433MHz frequencies in 1 sensor.
2. Provides 98% vehicle coverage, the best TPMS solution for any repair shop or tire shop.

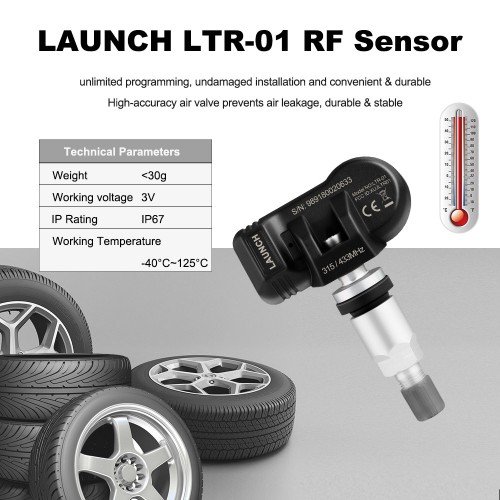

3. Using the world’s leading automotive-grade chip, the pressure value of LTR-01 can be accurate to 0.1 BAR.
4. High-precision air valve can effectively prevent air leakage and ensure durability and stability.
5. Replace the original tire pressure sensor, copy the original tire pressure sensor data, and can be programmed infinitely.
6. Compatible with Launch X-431 TSGUN WAND

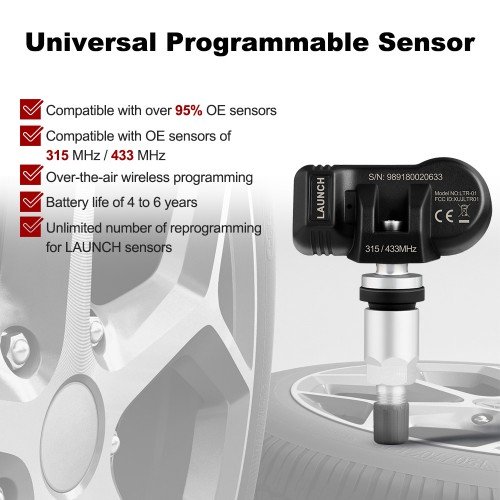

Features

1. Compatible with more than 95% of OE sensors
2. Compatible with 315MHz/433MHz OE sensors
3. Over-the-air programming
4. Battery life 4 to 6 years
5. Unlimited reprogramming of LAUNCH sensors

2 In 1 Feature

Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency with no relearn required. The MX-Sensor is 100% cloneable with the original sensor ID and put in the same position.

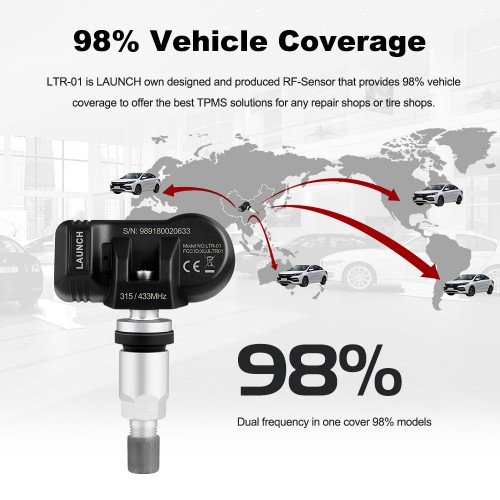

Over 98% COVERAGE:

Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.

EASY TO USE

The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.

How to install it ?

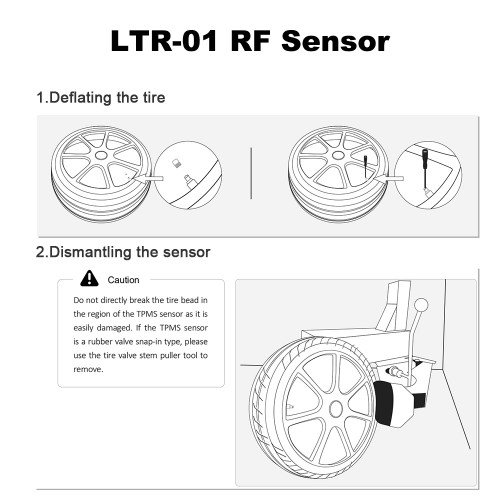

Step 1: Loose the tire

Remove the valve cap and core and deflate the tire.

Step 2: Dismount the tire

Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.

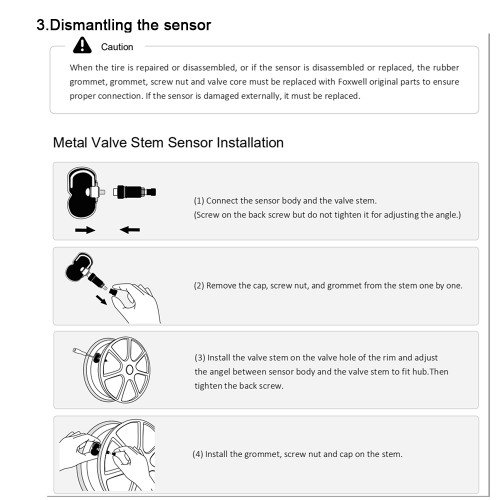

Step 3: Dismount the sensor

With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.

Step 4: Mount sensor and valve

Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.

Step 5: Mount the tire:

Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

Notice

1. The TPMS sensor assemblies are replacement or maintenance parts for vehicles that have a factory installed TPMS.

2. Make sure to program the sensor by AUTEL sensor programming tools for your specific vehicle make, model and year before installation.

3. Do not install programmed TPMS sensor in damaged wheels

4. In order to guarantee optimal function, the sensor may only be installed with original valves and accessories provided by LAUNCH.

5. Upon completion of installation, test the vehicle TPMS systems using procedures described in the original manufacturer’ s user guide to confirm proper installation.

6. Each time a tire is serviced or dismounted, or if the sensor is removed or replaced, it is mandatory to replace the rubber grommet, washer, nut and valve core with our parts to ensure proper sealing. It is mandatory to replace the sensor if it is extremely damaged.

Packing list

1pc X LAUNCH LTR-01 RF Sensor
