Launch X431 TSGUN TPMS Handheld Tire Pressure Monitor Terminator Activator Programming Tool

LAUNCH X431 TSGUN TPMS Tire pressure Diagnostic Tools, Active 315MHz & 433MHz sensors , Read & Write Sensor ID , TPMS Programming and Learning , Support work with x431 V/V+/X431 PRO3/X431 PRO3S /PAD V / PAD VIII, ect

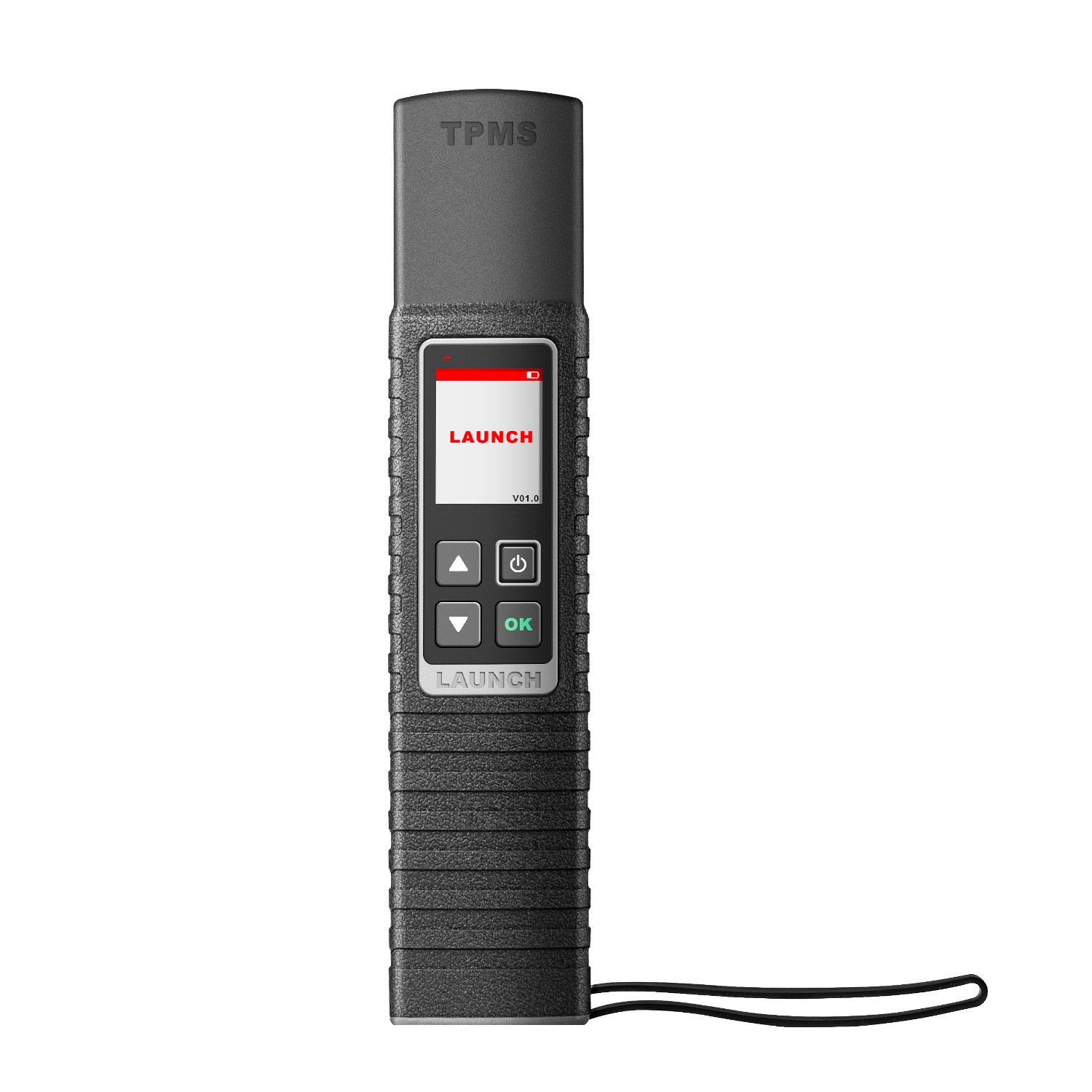

X-431 TSGUN is a professional TPMS diagnostic tool that integrates TPMS sensor activation, reading, learning and programming. It can activate and read tire pressure sensor information through high or low radio frequency

The X-431 TSGUN tire pressure gun is portable, powerful and easy to operate. It needs to work with LAUNCH intelligent diagnostic tool to perform the tire pressure activation, programming, diagnosis and learning functions.

Reasons to Choose LAUNCH TSGUN TPMS Wand

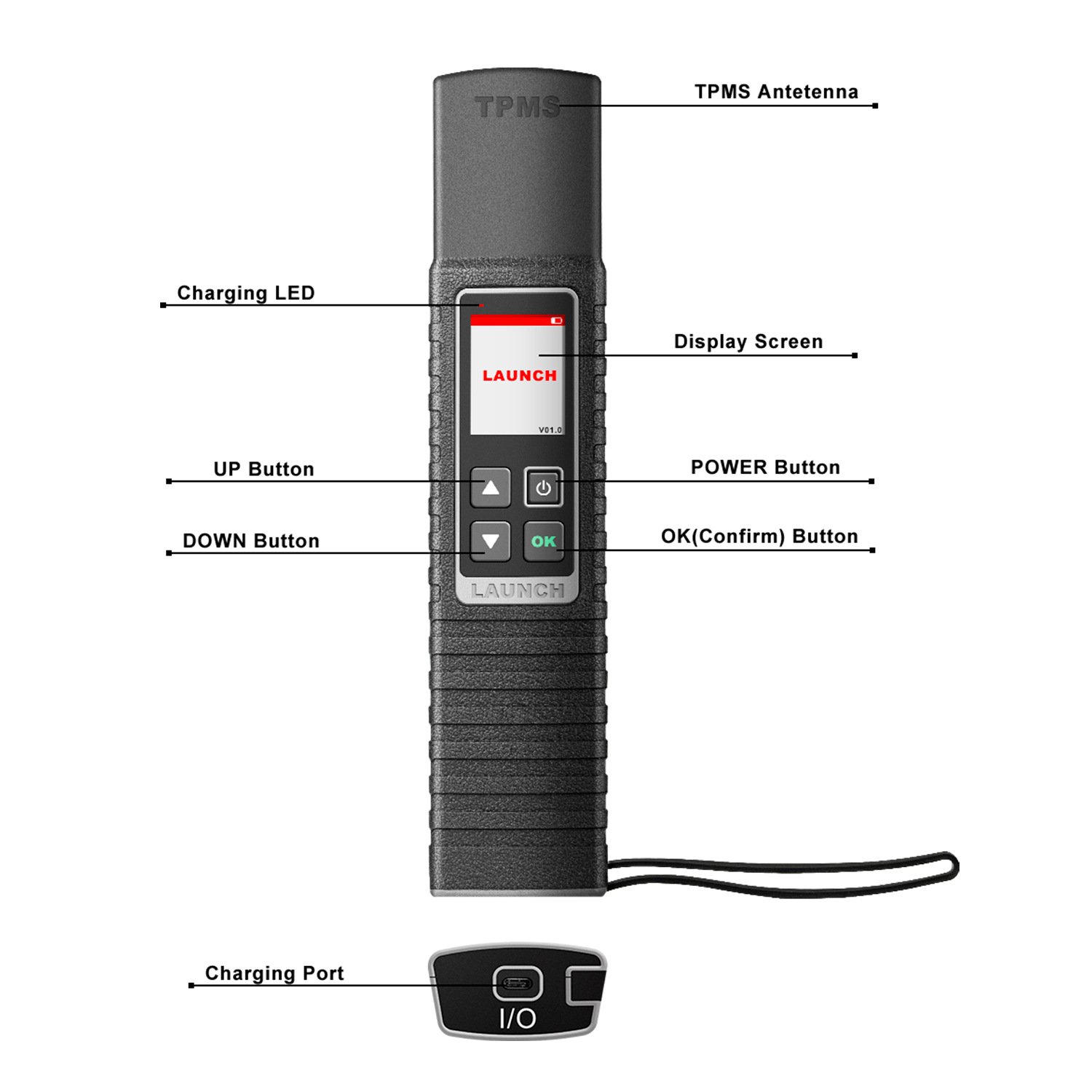

1. 1.77 inch color screen

2. Instantly read tire pressure, tire temperature and battery status

3. Diagnose tire pressure fault, including read DTC, clear DTC, etc.

4. Activate and match all 315MHz or 433MHz sensors

5. Read, copy and write the sensor ID quickly

6. Reprogram LAUNCH sensors with unlimited times

7. Built-in tire pressure learning instruction makes operation more easy

8. Cover 98% global vehicles with tire pressure system

9. Compatible modules： X431 V/V+/PRO3S/PRO3S+/PAD V/PAD II/PAD VII,ect

10. Support Language : English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional

Compatible product list:

X431 TSGUN can work with anyone of the following diagnostic tools of Launch family.

X431 Serial : X431 V ,X431 V+, ect

Pro Series: X431 PRO/ X431 PRO3/ X431 PRO5/X431 PRO3S+

PAD Series: X431 PAD III / X431 PAD V

….

More products will be covered to support this feature.

Launch X-431 TSGUN Function

1. Activate Sensor

This fuction allow users to activate TPMS sensor to view sensor date such as sensor ID, Tire pressure, tire frequency, tire temperature and battery condition.

*Notes: The tool will do TPMS test in a sequence of FL (Front Left), FR (Front Right), RR (Rear Right), LR (Rear Left) and SPACE, if the vehicle has the option for the space.Or, you can use Up and down button to move the desired wheel for testing.

2. Program Sensor

This fuction allow users to program the sensor date to the Launch-sensor and replace faulty sensor with low battery life or one that is not functioning.

There are 3 options available for programming Launch-sensor: Auto Create, Manual Create and Copy by Activation.

automatic
When the original sensor ID cannot be obtained, this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.

Manual
The original sensor ID can be obtained, and this function can be used to manually enter the ID or create it at will.

Copy by activation
By first activating the original sensor data, and then copying the activated sensor data into the LAUNCH sensor. Before using this method, the original sensor data must be activated.

3. TPMS Relearn

This fuction is used to write the newly programmed sensor IDs into the vehicle’s ECU for Sensor recognition.

Relearn operation applies only when the newly programmed sensor IDs are difference from the original sensor IDs stored in the vehicle’s ECU.

There are 3 ways available for Relearn: Static Learing, Self -Learning and Relearn by OBD.

Static learning
Static learning needs to put the vehicle in “learning mode”, and then follow the learning steps prompted on the screen.

self-study
For some vehicles, the learning function can be completed by driving the vehicle self-learning.

OBD re-learning
This function allows the diagnostic equipment to directly write the sensor ID to the TPMS module.
To perform the OBD re-learning function, first use the tire pressure tool to activate all four tire sensors. Then use the diagnostic equipment and its attached diagnostic connector, and follow the on-screen instructions to complete the re-learning operation.

Compatiable Vehicle List:

For ABARTH, for ACURA, for ALFA ROMEO, for ASTON-MARTIN, for AUDI, for ALPINA, for BAIC, for BAOJUN, for BENTLEY,for BMW, for BORGWARD, for BUGATTI,for BUICK, for BYD, for CADILLAC, for CHANGAN, for CHERY, for CHEVROLET, for CHRYSLER, for CITROEN, for CMC, for DACIA, for DAEWOO, for DFM, for DODGE, for FAW, for FERRARI, for GEELY, for GMC, for GREAT WALL, for HAVAL, for HAIMA, for HOLDEN, for HONDA, for HSV, for HUMMER, for HYUNDAI, for
INFINITI, for ISUZU, for JAC, for JAGUAR, for JEEP, for KIA, for LADA , for LAM BORGH-INI, for LANCIA, for LANDROVER, for LEXUS, for LIFAN, for LINCOLN, for LOTUS, for LUXGEN, for MAHINDRA, for MAN, for MASERATI, for MAYBACH, for MAXUS, for MAZDA, for MCLAREN, for MERCEDES, for MG, for MINI, for MITSUBISHI, for NISSAN , for OPEL, for PAGANI, for PEUGEOT,
For PORSCHE, for QOROS, for RENAULT,for ROLLSROYCE, for SAAB, for SCION, for SEAT, for SKODA, for SMART, for SSANGYONG, for SUBARU, for SUZUKI, for SGMW, for TESLA, for SMART, for SSANGYONG, for SUBARU, TOYOTA, for TRAUM, for VAUXHALL, for VOLKSWA-GEN , for VOLVO, for ZOTYE,for FIAT, for FORD, for FOTON, for CHRYSLER, for GMC, for DFM, for CADILLAC, for CHERY, for CHEVROLET, for DODGE, for FAW, for FERRARI, for JAC, for JAGURE

Specification

Model ：X-431 TSGUN
Screen: 1.77 inch
Resolution : 168*128 Pixel
Battery : 3000 mAh

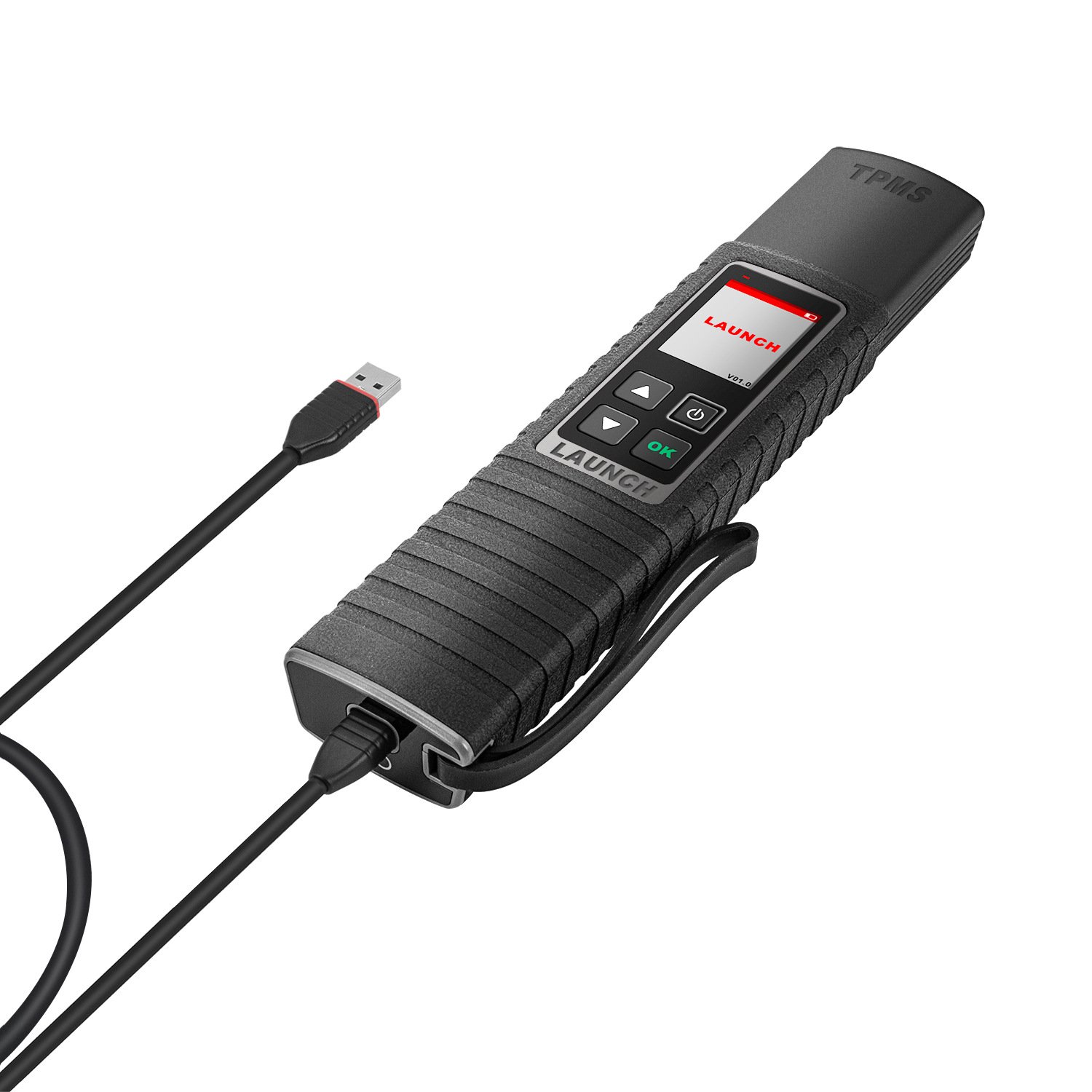

DC Input Voltage : 5V
Working Current : ≤1A
Working Temperature : -10℃～50℃
Storage Temperature : -20℃～60℃
Size: 252*54*30 m
