LAUNCH X431 IMMO Elite Key Program Tool

Launch X431 IMMO Elite Highlights:

1. It integrates professional anti-theft matching, anti-theft programming, full-model system-wide diagnosis of basic functions and special functions. One machine with multiple functions and high performance cost ratio.
2. Added Active Test (Bi-directional Control)
3. All-round anti-theft matching, fast and accurate reading of anti-theft data
4. Read PIN code, Delete anti-theft, Delete key, Matching key, Module replacement and Module cloning
6.Covering the anti-theft matching function of many models in Asia, Europe, and America, more brands continue to be launched, up to 60+ brands
7. Support the full-model system-wide diagnosis of basic functions (read version information, read DTCs, clear DTCs, read data streams) for global 110+ brands
8. Support 39 special functions such as service lamp reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, ect…
9. Support the VIN intelligent identification function to quickly enter diagnosis
10. Fast and accurate diagnosis
11.FCA “Auto Auth” Access: AutoAuth for FCA SGW which makes X431 works with Chrysler, Dodge, Jeep, Alfa Romeo and Fiat after 2017. (Need to buy)
12. Android 10.0 open system, 8′ inch TouchScreen, adopts a 2.0Ghz 4-core high-efficiency processor,4GB RAM + 64GB ROM large storage
13. Professional key programming equipped with X PROG 3 key programmer for 99% Immo coverage,which is greatly improves your work efficiency up to 200%, and win you more business! Programming Function such as Read PIN (All Key Lost), Key Learning;Key matching, IMMO ECU Reset/Coding, Relearn The Key, Add New Key for backup.Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO ECU Clone, IMMO Data Backup, Key Programming, Key Learning/Key Matching, EEPROM Read & Write, etc. IMMO ECU Reset/ Adaption, IMMO ECU Refresh/ Coding;
14. One-Click Free Update Online for 2 Years. After expired, it will cost $400/year

24 Language Supports
Italian, English, Chinese Simplified, Chinese Traditional, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian, Serbian, Finnish, Swedish, Czech

Anti-theft advantages
–Support replacement or cloning of VW/Audi MQB platform engine ECU (no need for the original car engine ECU data, it can be read directly from the key)
— Support replacement or cloning of VW/Audi MQB platform gearbox ECU
— Support replacement of Audi (0AW/0B5) fifth-generation gearbox ECU
— Support reading/writing and cloning of VW fourth-generation UDS engine ECU
— Support the cloning in BENCH mode without disassembly for more than 170 types of Bosch engine ECUs, more than 10 types of Siemens engine ECUs, and 18 types of gearbox ECUs (covering various European, American and Asian models, and continuing to increase)
— Support the erasing function for Mercedes-Benz engine, gearbox, EIS, and BMW gearbox.
— Support the matching function and password calculation function for all models of Chery sedan and JAC passenger cars up to 2022

Anti-theft password reading
Support the anti-theft password reading function for models such as for BMW, for Mercedes-Benz, for Volkswagen, for Audi, for Peugeot, for Citroen, for GM, for Nissan, for Hyundai, for Kia, for Chery, for Dongfeng Fengxing, and for JAC passenger cars.

Anti-theft Programming
Support car key chip reading/writing, EEPROM chip reading/writing, MCU chip reading/writing, EEPROM and FLASH reading/writing of engine ECU and gearbox ECU.

Anti-theft Matching
Support 60+ brands of independent anti-theft matching software for American, European, and Asian models. Support further in-depth development and coverage of anti-theft software for various models. Support more password reading, key adding, all keys losing and anti-theft related module replacement functions. Menus are optimized, the operation process is more convenient, and more brands continue to be launched.

Anti-theft module replacement
Support the anti-theft module replacement functionfor models such as for BMW, for Mercedes-Benz, for Volkswagen, for Audi, for Porsche, for Honda, for Nissan, for Hyundai, for Kia, for BYD, for Changan Automobile, for Wuling Baojun, for GAC Trumpchi, for SAIC Maxus, for Great Wall Motor , for Chery, for Dongfeng, for Fengxing, and for JAC passenger cars.

Key matching
support the key matching function for models such as for Ford, for GM, for Mercedes-Benz, for BMW, for Volkswagen, for Audi, for Porsche, for Peugeot, for Citroen, for Land Rover, for Jaguar, for Honda, for Toyota, for Nissan, for Hyundai, for Kia, for Great Wall Motor, for Chery, for Changan Automobile, for JAC Passenger Cars, for Wuling, for Baojun and for BYD.

Core Functions:

1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).
4. Supports ECU replacement for the fourth-generation of VW/AUDI engine;
5. Supports ECU replacement for the fifth-generation of VW/AUDI Bosch and Siemens engines.
6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports the BMW CAS4/CAS4+ module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.

LAUNCH X431 IMMO Elite Supports CANFD and DIOP protocol now , it supports For GM after 2020 !

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

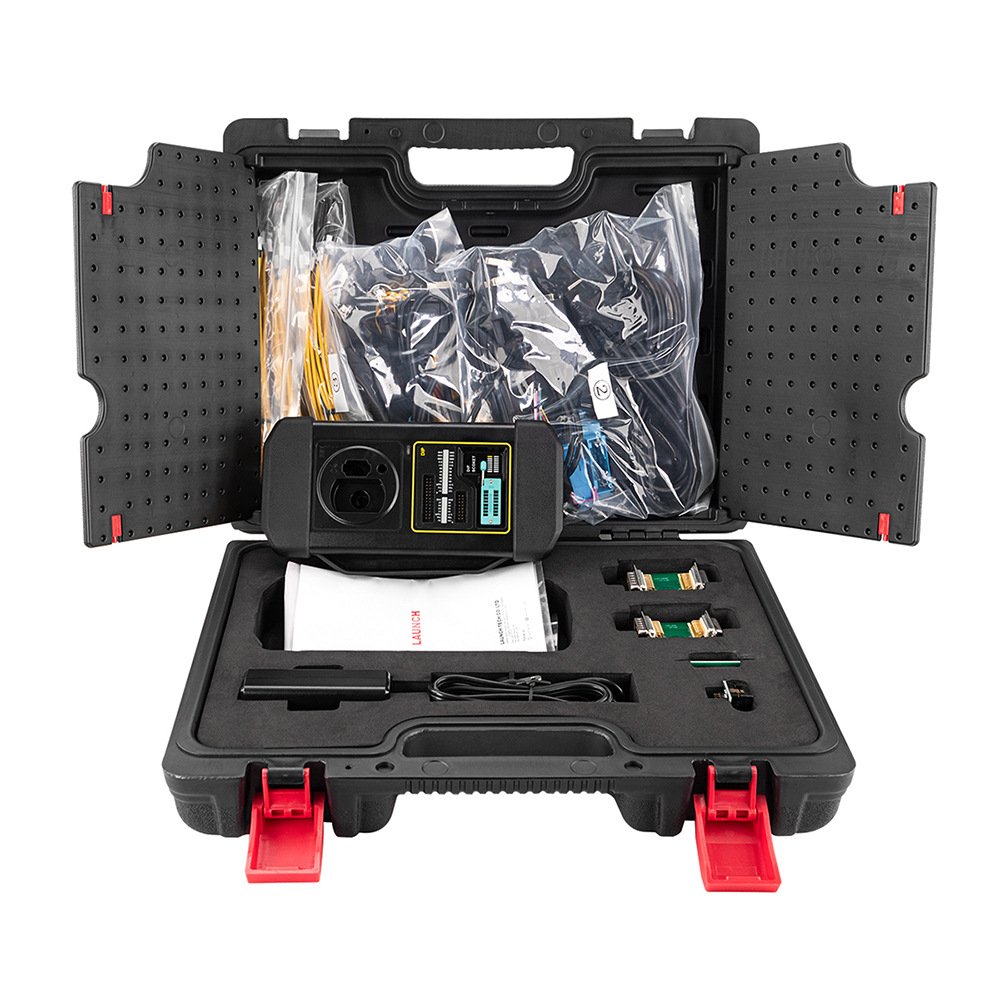

X-PROG3 Details & Functions:

1. Car key slot
Place the car key to perform the key matching function
2.DB26
Connect to various anti-theft wiring harnesses, such as the data collection line for the fourth generation of instrument keys, etc.
3. Mercedes-Benz key infrared slot
Place the Mercedes-Benz infrared key to perform the key matching function
4. Car key chip hole
Place the key chip to perform key matching
5. Status indicator
Power indicator
6.DIY slot
Connect the anti-theft ECU pin through the cable to read and write data
7. Locker Install chip burning socket
Complete EEPROM or MCU data read and write operations
8.DC12V power supply
Connect DC12 power supply
9.DB15
Connect the main wiring

How to Connect IMMO with X-PROG 3

1. DBSCar VII connect the Cable well first.
2. DBSCar VII connect the Tablet PC with USB Cable well.
3. DBSCar VII Connect X-prog 3 with the extend cable ( the cable with the port to connect the power ) well first
4.If has MCU-V3 board, pls plug to PROG3
5.Connect Power cable，pls be mind the power cable need connect X-PROG 3 well ( use the cable in Step 3, if you connect MCU-V3 board , just connect MCU-V3 board directly ) , then connect the Bench model Cable connect to X-prog 3 or MCU-V3
6.Use the exchange cable to connect Bench Model cable with the IMMO Model of the car

OE- Level Full System Diagnosis

As an OE level automotive diagnostic tool, LAUNCH X431 IMMO Elite can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, etc…

Brief introduction of its capabilities in full systems diagnostic as follows:

1. For Engine System:help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.
4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.
5. To diagnose Brake System: if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
6. To diagnose Emission System: if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
7. To diagnose Fuel system: if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
8. To diagnose Transmission: if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
9. To diagnose Wiper System: if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
10. To diagnose Light System: if you see rapid signal blinking or dimming lights. And many more ….

Active Test (Bi-directional Control)

Put out the commands to ECUs,read the ecu data and monitor the operation of actuators.Through active tests,also called actuator tests,this bi-directional can precisely locate the car problems,letting you quickly know whether a specific system,component,or subsystem is functioning properly or not. For example, If a fuel pump is not working and leads to ignition failure, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off via the x431 immo elite, you can quickly determine whether it’s a wiring, relay, or pump issue without removing any parts.(Note: Functions are not all available and vary by vehicle!!!)

39+ Reset Service Supports
6 Newly Added Reset Functions: ECU Reset, FRM Match, Clutch Match, Gateway Module Data Calibration, Rain Light Sensor, Turbo Match.(The reset function is still growing in the future).

1. Oil Reset Service
2. Electronic Parking Brake Reset
3. Steering Angle Calibration
4. ABS Bleeding
5. Gear Learning
6. IMMo Service
7. Injector Coding
8. Battery Maintenance System Reset
9. Diesel Particulate Filter (DPF) Regeneration
10.Electronic Throttle Position Reset
11.Gearbox Matching
12. AFS (Adaptive Front-lighting System) Reset
13. Sunroof Initialization
14. Suspension Calibration
15. EGR Adaption
16. Seats Calibration
17. Tyre Reset
18. Coolant Bleed
19. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
20. NOx Sensor Reset
21. Ac System Initialization
22. High Voltage Battery Detection
23. Windows Calibration
24. Language Change
25. AF Reset
26. Transport Mode
27. StoplStart Reset
28. Intelligent Cruise Control System Reset
29. Engine Power Balance Monitoring
30. Gas Particulate Filter (GPF) Regeneration
31. Motor Angle Calibration
32. Automatic air conditioning initialization software Reset Service ( RESET ACINI )
33. Electronic water pump starts Reset ( RESET COOLANT )
34. RESET ECU
35. RESET FRM
36. RESET CLUTCH
37. RESET GATE
38. RESET TURBO
39. RESET RLSENSOR
(Note: the special functions that can be performed may vary by car model.)

Remote Diagnose

This option aims to help repair shops or technicians
launch instant messaging and remote diagnosis, making the repair job getting fixed faster.

Intelligent Diagnose

This module allows you to use the VIN information of the currently identified vehicle to access its data (including vehicle information, historical diagnostic records) from the cloud server to perform quick test, eliminating guesswork and step-by-step manual menu selection.

Diagnostic History

This function provides a quick access to the tested
vehicles and users can choose to view the test report or resume from the last operation, without starting from scratch

Launch X431 IMMO Elite vs IMMO Plus vs  X431 V+ vs X431 Pad VII

LAUNCH X431 IMMO PRO Supports Car List:

For IMMO Function:

Europen Cars:
For Audi, For Benz, For BMW, For Citroen, For GM, For Land Rover, For Mazda, For Opel, For Peugeot, For Porsche, For Renault, For MG (SAIC), For Seat, For Skoda, For Sprinter, For Suzuki, For Ford, For Volvo, For VW

China Cars:
For GWM, For Changhe, For Brilliance, For Chery, For FAW Tianjin, For ZX Auto

America Cars:
For Aston Martin, For Fiat (Brazil), For Chrysler, For Ferrari, For Fiat, For Maserati

Asia Cars:
For BAIC, For Changan, For BYD, For Foton, For Haima, For Honda, For Hyundai, For Kia, For Maxus, For Mitsubishi, For Nissan, For Perodua, For Proton, For Subaru, For Toyota, For Zotye

For Diagnostic Function:

European Cars:
For Martin Aston, For BENZ/MAYBACH, For BMW/MINI/HCBMW/ROLLSROYCE, For CITROEN/FUKANG, For Ferrari, For Fiat/Abbas/Lancia/Romeo/NanjingFiat, For GAz, For IZH, For Land Rover/Jaguar, For Martha Lahti, For OPEL/GMSA/VAUXHALL, For PAZ, For PEUGEOT/DFPEUGEOT, For Porsche, For RENAULT, For DACIA, For Saab, For Skoda, For Seaz, For Seat, For Smart, For Transporter&V-Class, For UAZ, For VAZ, For Volvo, For VW/BINGLEY/BUGATTI, For ZAZ

China Cars:
For Beijing, For Chang’an, For ChangCheng, For Changhe, For Xiaokang, For DR, For ECUAID, For BYD, For Foton, For HaFei, For Haima, For Brilliance, For Jiangling, For Iveco, For JAC, For Gonow, For Xiamen Golden, For Kowloon, For Lifan, For SGMW, For SAIC Chase, For MVM, For Chery, For SAIC&MG, For SGM/CHCHEVROLET/CHBUICK/CHCADLLAC, For GAC Chuan Qi, For Tianjin FAW, For ZhongShun, For ZOTYE, For Zhongxing

America Cars:
For Brazil Fiat, For GM, For CHRYSLER/DODGE/JEEP, For GM/BUICK/CADILLAC/CHEVROLET, For Ford/ChinaFord Lincoln/EuropeanFord, For vinfast

Asia Cars:
For Daewoo, For Daihatsu, For HONDA/ACURA/DFHONDA/GZHONDA, For Hyundai, For INDIAN MAHINDRA, For INDIAN MARUTI, For INDIAN TATA, For JPISUZU/TLISUZU, For Kia, For LUXGEN, For Mahindra, For MARUTI, For PERODUA(Perodua), For MAZDA/YQMAZDA, For Mitsubishi, For NISSAN/INFINITV/DFNISSAN, For Perodua, For Proton, For SAIP, For Ssangyong , For Subaru, For Suzuki, For TATA , For TOYOTA/LEXUS/TJTOYOTA

Australia Car:
For Holdon

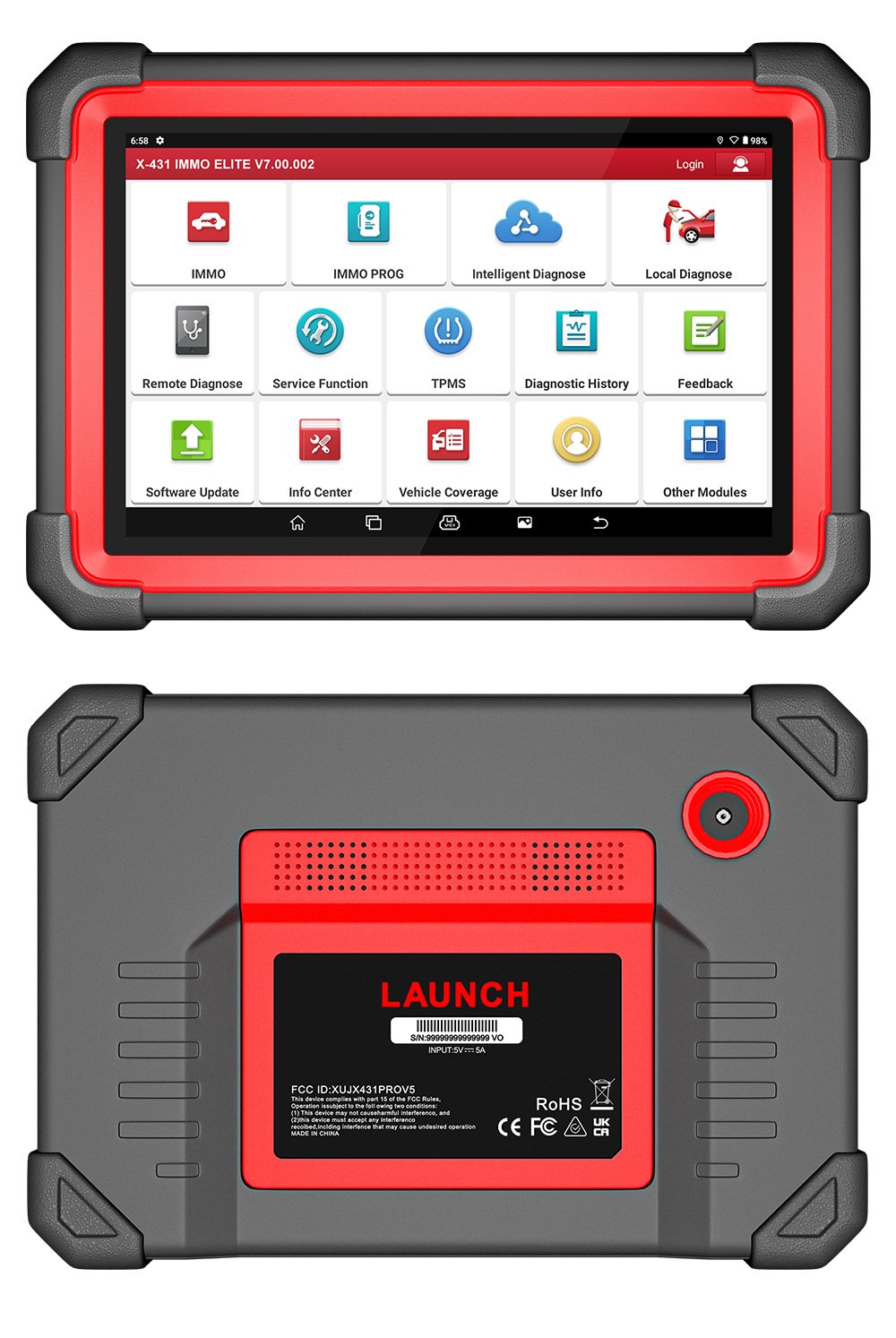

Technical Parameters:

Processor : 2.0GHz 4-core
Operating system: Android 10.0
Memory: 4GB
Storage: 64GB
Battery: 47880mWh(7.6V,6300mAh)
Display: 8-inch, 1280*800
Camera: Rear 8MP
WIFI: 2.4GHz/5GHz (dual frequency)
Interface: TYPE A *1 &TYPE C*1
Operating temperature: 0~50℃
Size: 234*166*39.5(mm)

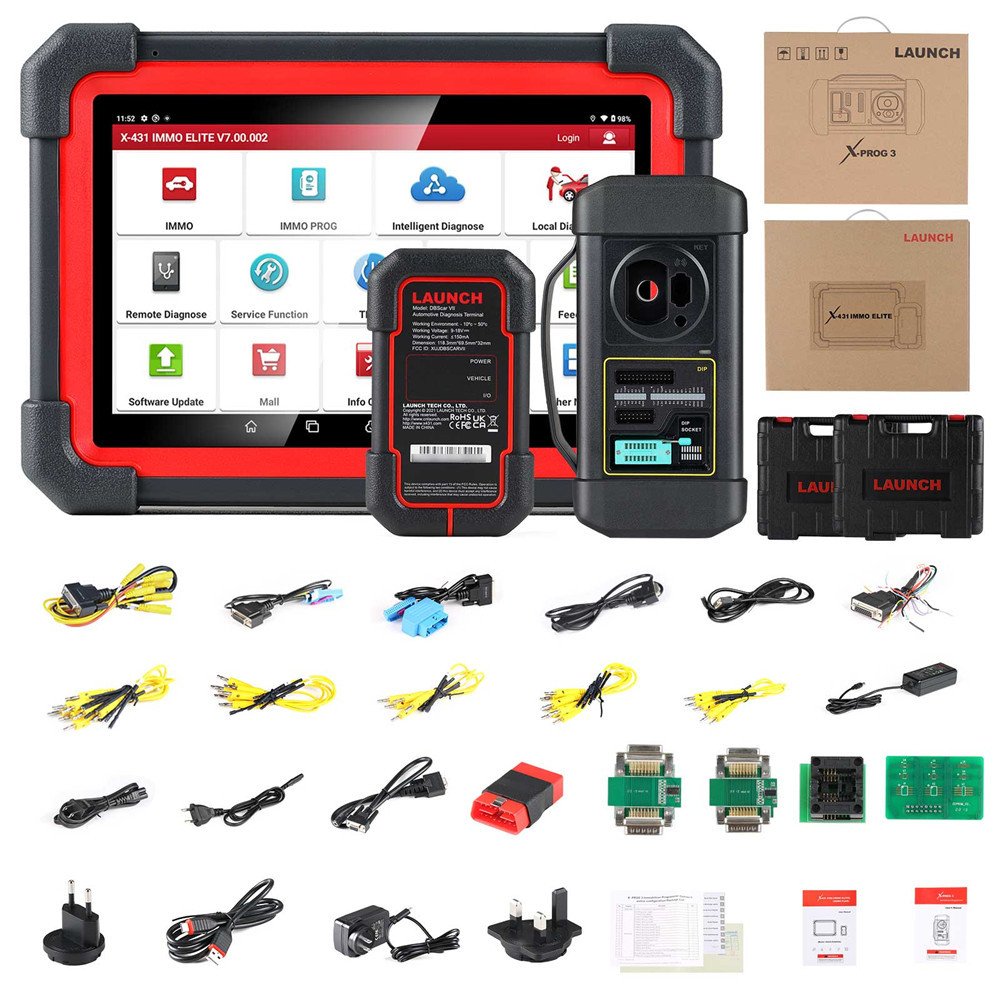

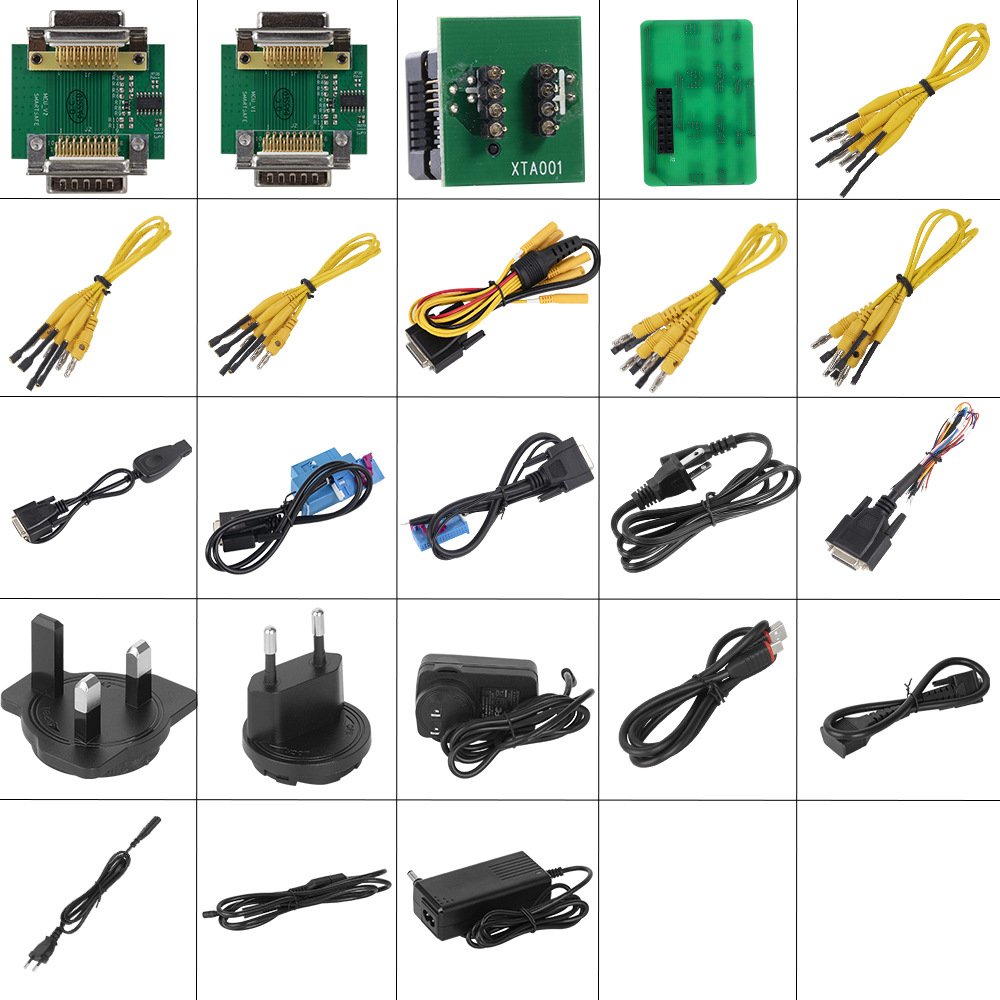

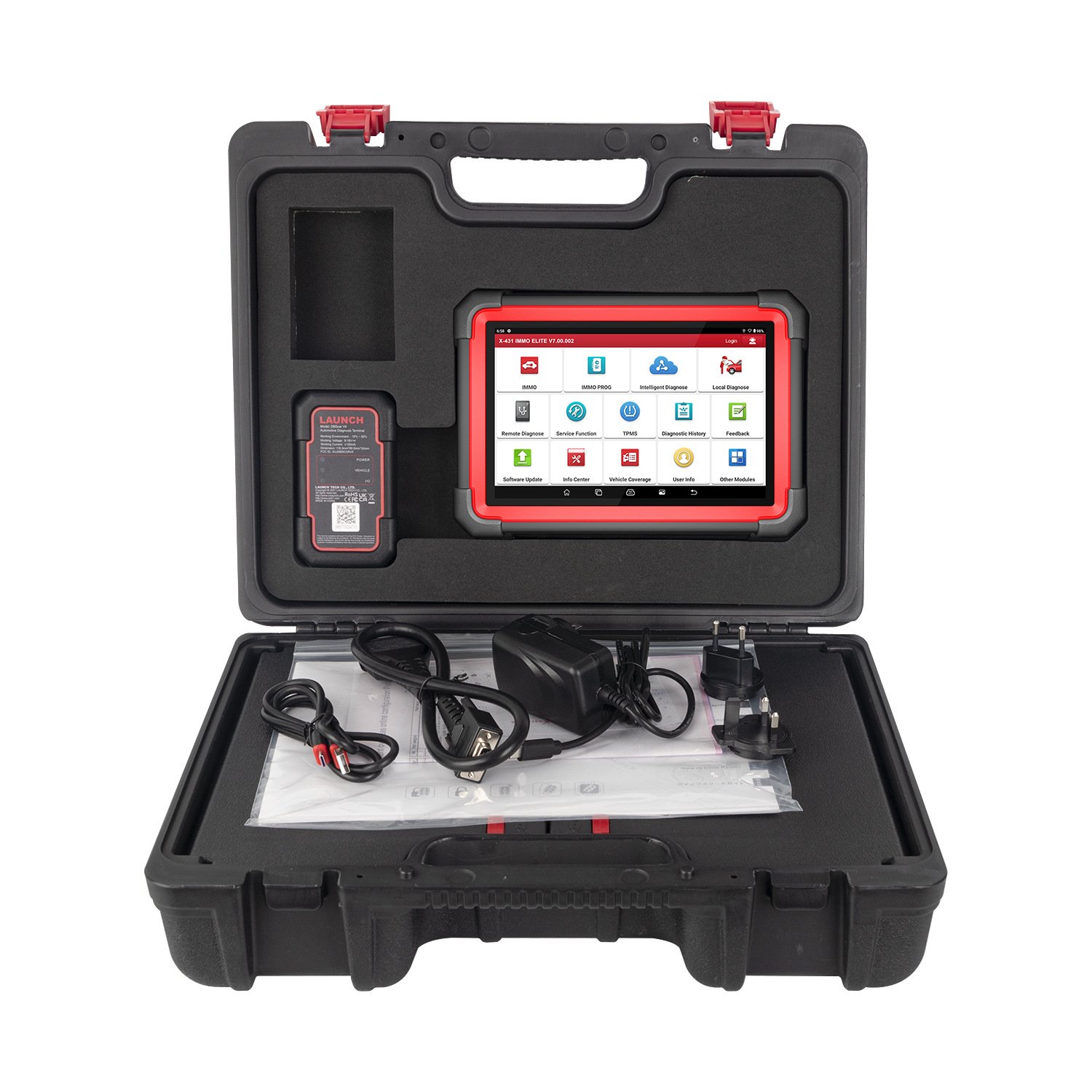

Package List:

1 set x LAUNCH X431 IMMO ELITE
VCI Connector
Diagnostic Cable
Password Envelope
X-PROG 3 Programmer Kit
Power Adaptor
Type-A to Type-C USB Cable
Battery Clamps Cable
Cigarette,Lighter Cable
OBD I Adaptor Box
Non-16pin Adaptor Cable Kit
