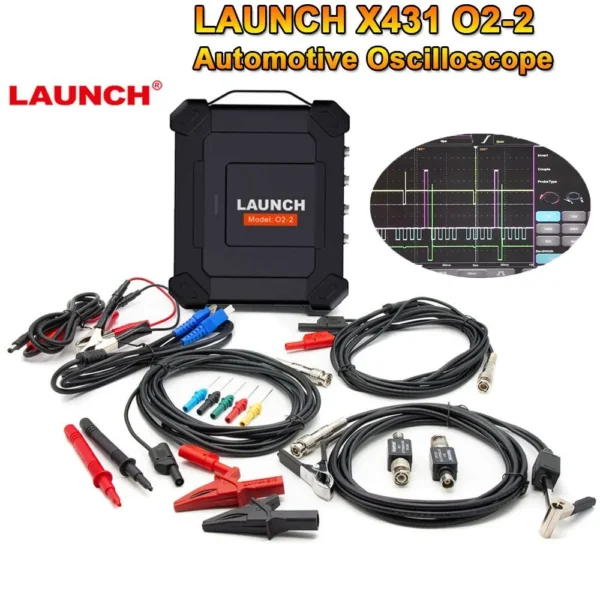

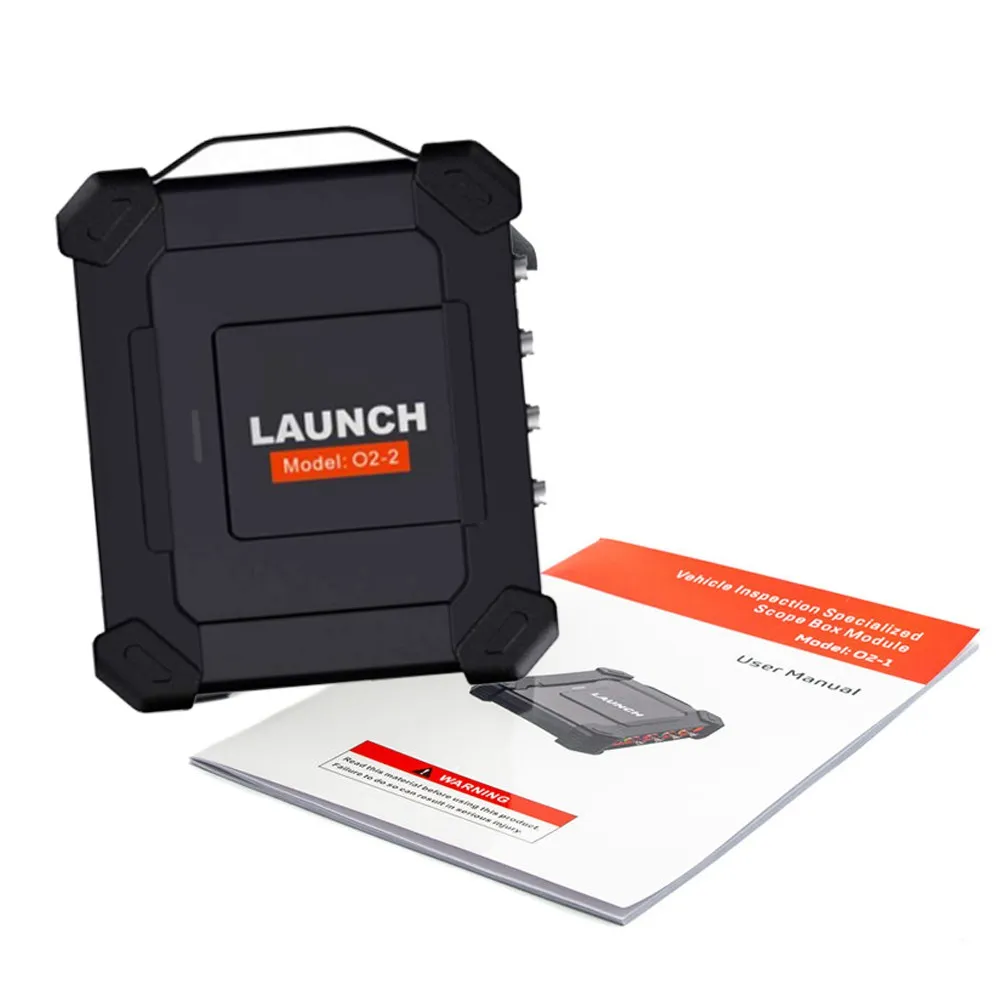

LAUNCH X431 O2-2 Scope Box Oscilloscope (4 Channels) Compatible With The X-431 PAD VII, PAD V, PAD III

LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels)analyze data Solving Complex Electrical Faults for launch PAD V /PAD VII

Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.

Features

1.Features the ability to record and playback high-resolution waveform data for future analysis.

2.One key enable function allows users to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.

3.Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

4.Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.

5.Use the zoom in/out feature to review precise details.

6.Customizable personal system settings that can be saved as configuration files for viewing.

7.The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

8.Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

9.Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.

Specifications

Number of channels: 4

Broadband: 100 MHz

Rise time: 3.5 ns (typical)

Accuracy: ±3%

Input impedance: 1M ±1.5%

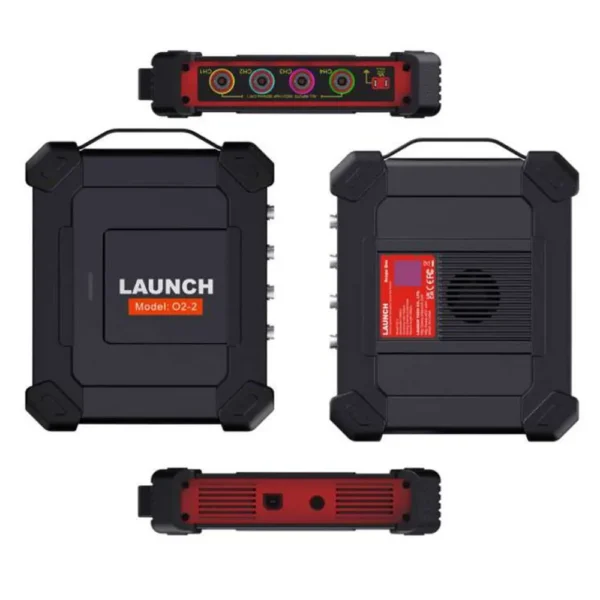

Input Type: Single-ended BNC connector

Input Coupling: DC, AC

Overload protection: ±200V on single input

Time Base Ranges:

1ns~1ks (1 channel)

1ns~1ks (2 channels)

1ns~1ks (4 channels)

Vertical resolution: 8 bit

Buffer memory: 10M (for 4 channels)

Power interface: USB port, DC input port

Data exchange via USB

Shooting mode: normal, auto and single SEQ

Advanced Triggers: Edge, Pulse Width

Advantages

Features the ability to record and playback high-resolution waveform data for future analysis

One key enable feature allows users to capture a particular waveform making the process 70% more efficient compared to other oscilloscopes

Access 23 variants of automatic measurements displayed on one screen for easy change

Ability to enter names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency

With zoom in/out function to review precise details

Customizable system settings that can be saved as configuration files for viewing

Auto-calibration feature allows optimization of the oscilloscope signal path for maximum measurement accuracy

Augments waveform math operations such as addition, subtraction, multiplication, and FFT function for high-level waveform analysis

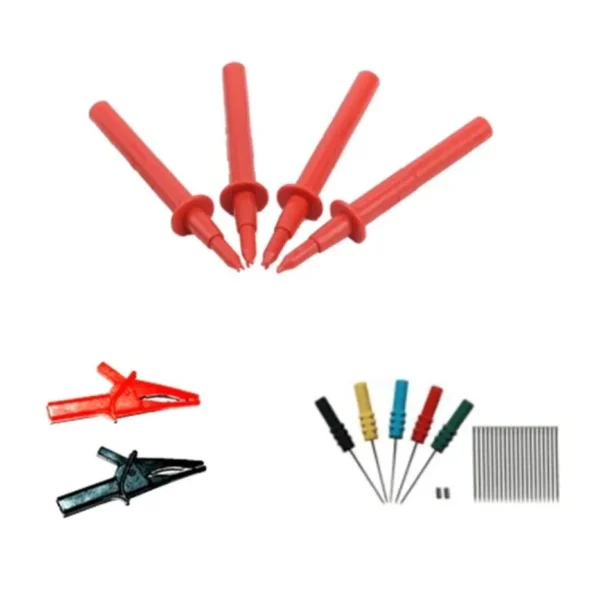

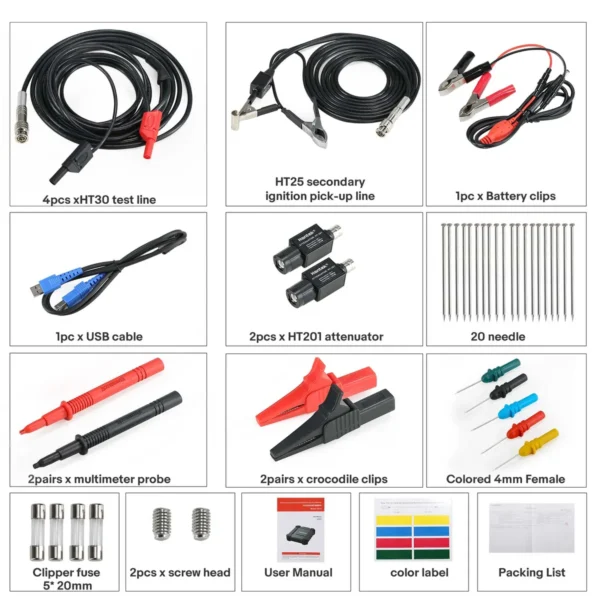

Accessories

Attenuator 20: 1

BNC test leads: 4mm

Cable for alligator clips

Crocodile clips

Secondary ignition start

multimeter probes

Back Probe Pin Set

USB Cable

Package:

1 *LAUNCH X431 O2-1 Scopebox
