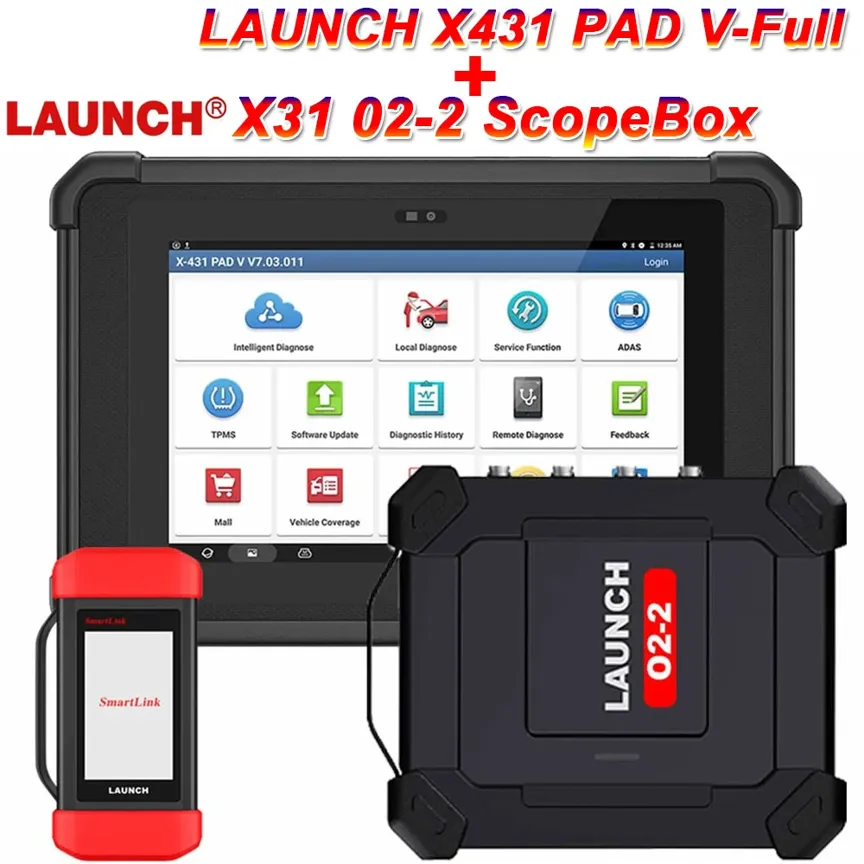

LAUNCH X431 PAD V & O2-2 Oscilloscope Scopebox J2534 CAN FD Online ECU Programming Coding Car Diagnostic Tool Auto OBD 2 Scanner

LAUNCH X431 PAD V & O2-2 Oscilloscope Scopebox J2534 CAN FD Online ECU Programming Coding Car Diagnostic Tool Auto OBD 2 Scanner

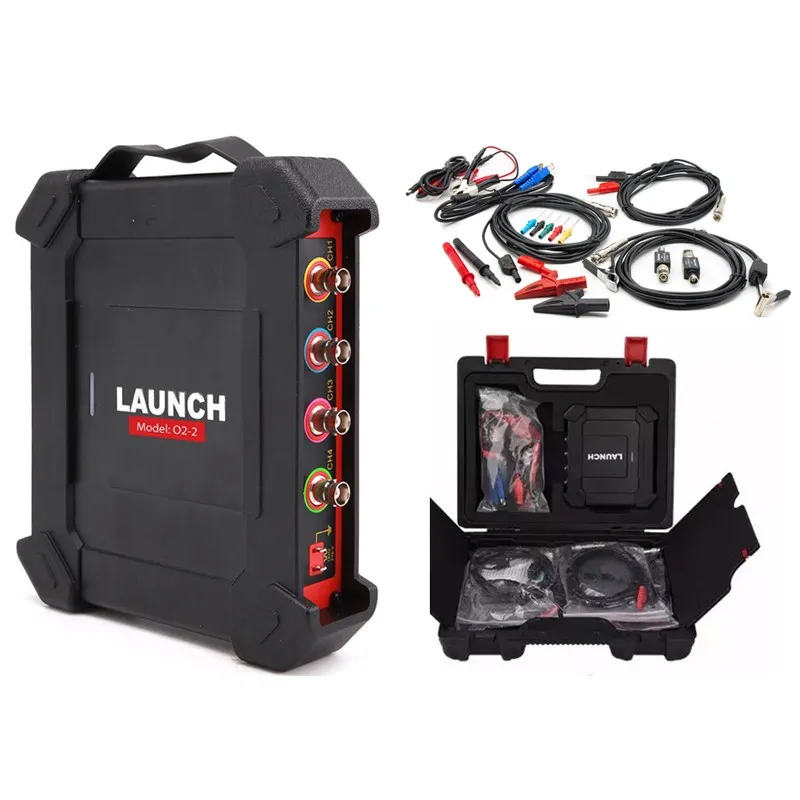

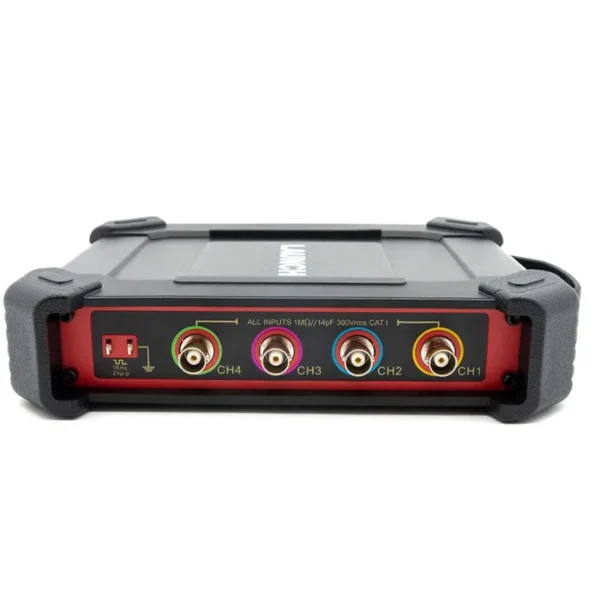

LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels)analyze data Solving Complex Electrical Faults for launch PAD V /PAD VII

Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.

Features

1.Features the ability to record and playback high-resolution waveform data for future analysis.

2.One key enable function allows users to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.

3.Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

4.Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.

5.Use the zoom in/out feature to review precise details.

6.Customizable personal system settings that can be saved as configuration files for viewing.

7.The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

8.Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

9.Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.

Specifications

Number of channels: 4

Broadband: 100 MHz

Rise time: 3.5 ns (typical)

Accuracy: ±3%

Input impedance: 1M ±1.5%

Input Type: Single-ended BNC connector

Input Coupling: DC, AC

Overload protection: ±200V on single input

Time Base Ranges:

1ns~1ks (1 channel)

1ns~1ks (2 channels)

1ns~1ks (4 channels)

Vertical resolution: 8 bit

Buffer memory: 10M (for 4 channels)

Power interface: USB port, DC input port

Data exchange via USB

Shooting mode: normal, auto and single SEQ

Advanced Triggers: Edge, Pulse Width

Advantages

Features the ability to record and playback high-resolution waveform data for future analysis

One key enable feature allows users to capture a particular waveform making the process 70% more efficient compared to other oscilloscopes

Access 23 variants of automatic measurements displayed on one screen for easy change

Ability to enter names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency

With zoom in/out function to review precise details

Customizable system settings that can be saved as configuration files for viewing

Auto-calibration feature allows optimization of the oscilloscope signal path for maximum measurement accuracy

Augments waveform math operations such as addition, subtraction, multiplication, and FFT function for high-level waveform analysis

Accessories

Attenuator 20: 1

BNC test leads: 4mm

Cable for alligator clips

Crocodile clips

Secondary ignition start

multimeter probes

Back Probe Pin Set

USB Cable

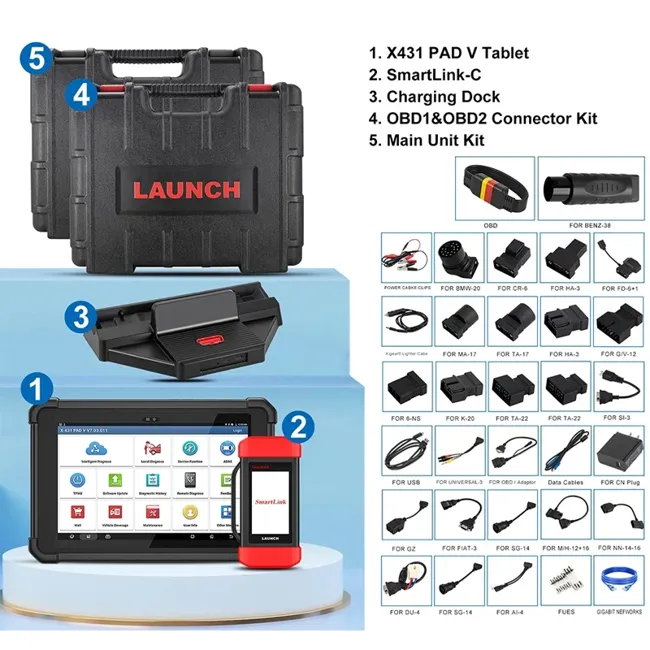

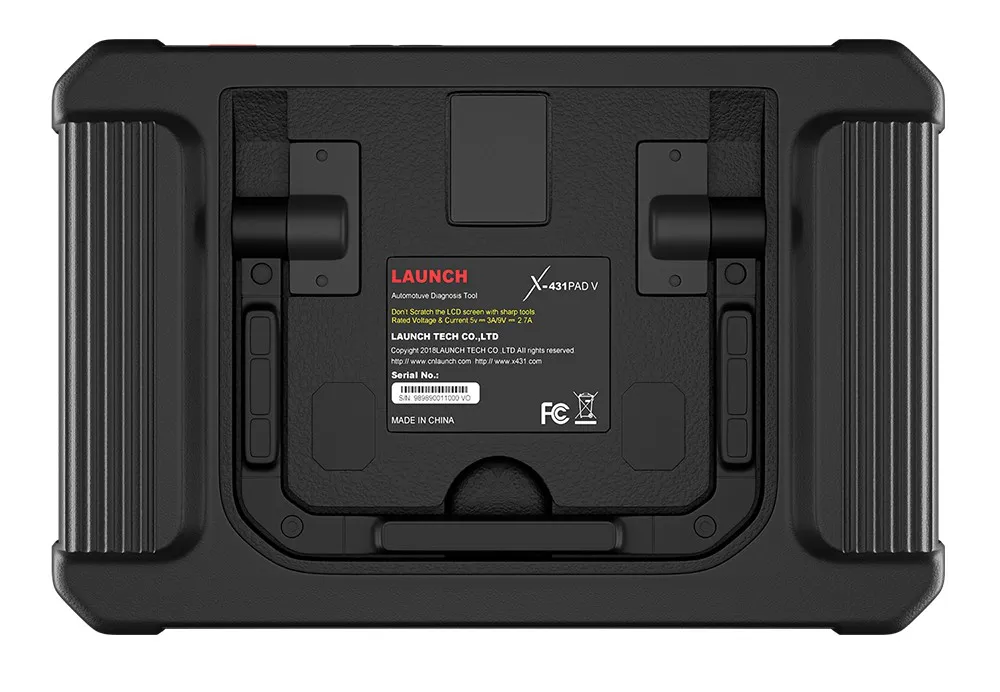

LAUNCH X431 PAD V – The Latest All-in-One High-End Professional Car Diagnostic Tool

Please Note:

We have two colors of LAUNCH X431 PAD V, which will be sent randomly, If you require, please leave us a message

Top Reason to Choose LAUNCH X431 PAD V

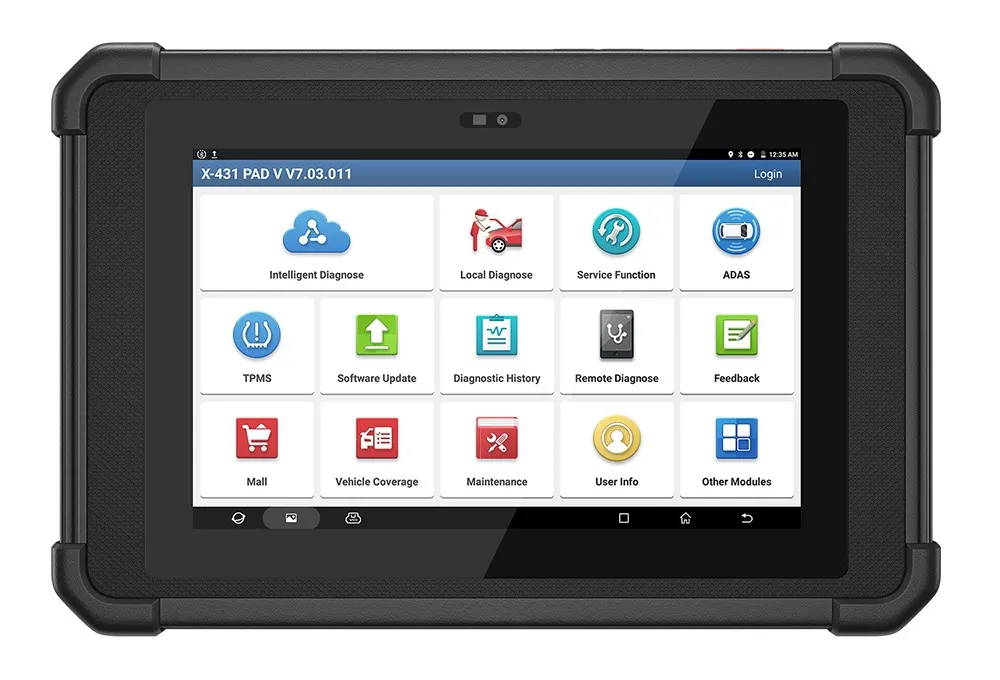

1. High configuration hardware: 10.1 inch Touchscreen, sun readable screen, protection grade IP65, more waterproof, more resistant to falling, and the vehicle can work normally after rolling

2. Support 5G Wi-Fi Diagnosis , 4GB RAM + 128GB ROM (can up to 256GB)

3. 2 Years Free Update
besides, you can use all functions as normal after 2 years free update,it will not be locked

4. Online ECU Programming + Online Coding + J2354 Programming

5. OE-Level Full System Diagnosis + 50 More Reset Service

6. Support support Topological Graph + J2534/RP1210/D-PDU / CAN FD DolP New Protocols

7. Full Bi-Directiona Control / Active Test + ECU Coding + Guide Function

8. FCA AutoAuth Access + SCN Online Coding

9. 24 Language Support , No language barrier

10. Auto VIN Scan + Remote Diagnostic +Diagnostic Feedback +Maintenance records, ect

11. 5 Years Warranty + Free Tech Supports

12. Extended module: Compatible with Oscillograph, X-PROG 3, TSGUN Wand, RF-Sensor, BST360 Battery Test, VSP600 Videoscope, ADAS, 24V Heavy Duty software , Wi-Fi printer, New energy vehicle, Multimeter, Ignition analysis etc.and more …

What situation needs to perform programming ?

1. Programming new ECUs: Replace new ECU(Determine if programming or coding is required based on fault code prompts). It can read and back up the original ECU data of the vehicle. (Note: The newly purchased spare part numbers need to be equal to the original ones.)

2. Reprogramming second-hand ECUs: Clear second-hand ECU data for reprogramming(if the second-hand has the anti-theft data, it needs to be used with LAUNCH X-PROG3 to clear anti-theft data first, and then match it with the original anti-theft data before reprogramming.).

3.Update the ECU: Some of the ECU has BUGs so it will cause some faults that are difficult to repair. ( For BMW 2889 DME intake valve, carbon deposition, and some of F serious machine oil lamps can’t be zero.)

4. Fixing lost data of ECU: When the software in the ECU corrupts the program due to battery or grounding issues(the Hardware is normal), re-programming can rectify it back to normal operation.

5. Reprogramming on failed programming ECU: If the programming fails but the hardware didn’t damage, the LAUNCH X431 PAD V can reprogram the module in Manual Mode which is compatible with VW/Audi/Ben/BMW. And it supports Programming Backup/Restoration that is applied to match anti-theft data for Mercedes-Benz engine modules and transmission modules, which requires purchasing X-431 PROG3 additionally (If the programming fails, ECU will not communicate and you will not be able to access the system ).

Please Note: Programming is no IP Limited except Spain and Portugal.Vehicle Programming Benefits

1.For Great Wall : support Great Wall, Haval (ECM/AT #), WEY, Oula

2.for Volkswagen Audi advantages: online programming (support for programming and resurrection), firmware upgrade for fuel quality defects, online parametric configuration, part number upgrade, support for manual programming ( more online codes, more online parametric configurations, more online matching and calibration)

3. for Benz advantages : manual control unit programming; clone.

4. for BMW advantages: the code setting data is up to March 22, and it supports modification. Brush hiding has function help, and brush hiding has expert mode.

5. for Mercedes Benz advantages : 13 years ago, it had initialization startup (programming, code setting, anti-theft, initialization). After 13 models, the engine module and transmission module can be cloned.

6. for Ford advantages: Since 2018, all models and functions of FORD original factory have been online.

Basic function:After 18 years, X-431 is offline

Special function:After 18 years, X-431 will be online

The original manufacturers of Chrysler and FIAT have gradually put all models and functions online since 2018. X-431 all functions online
