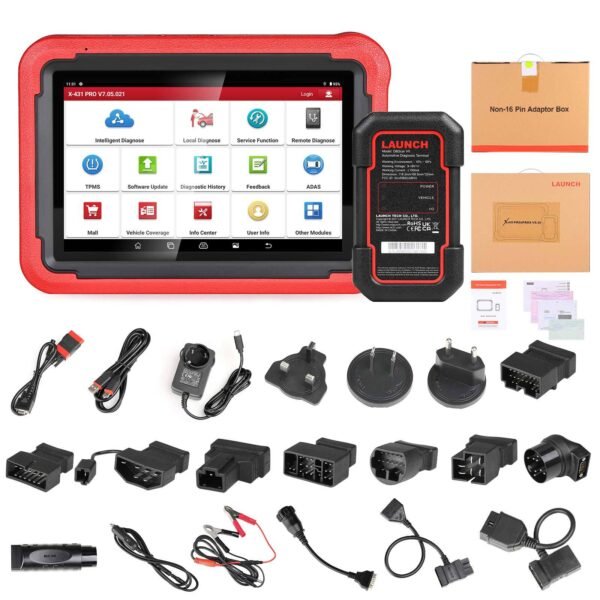

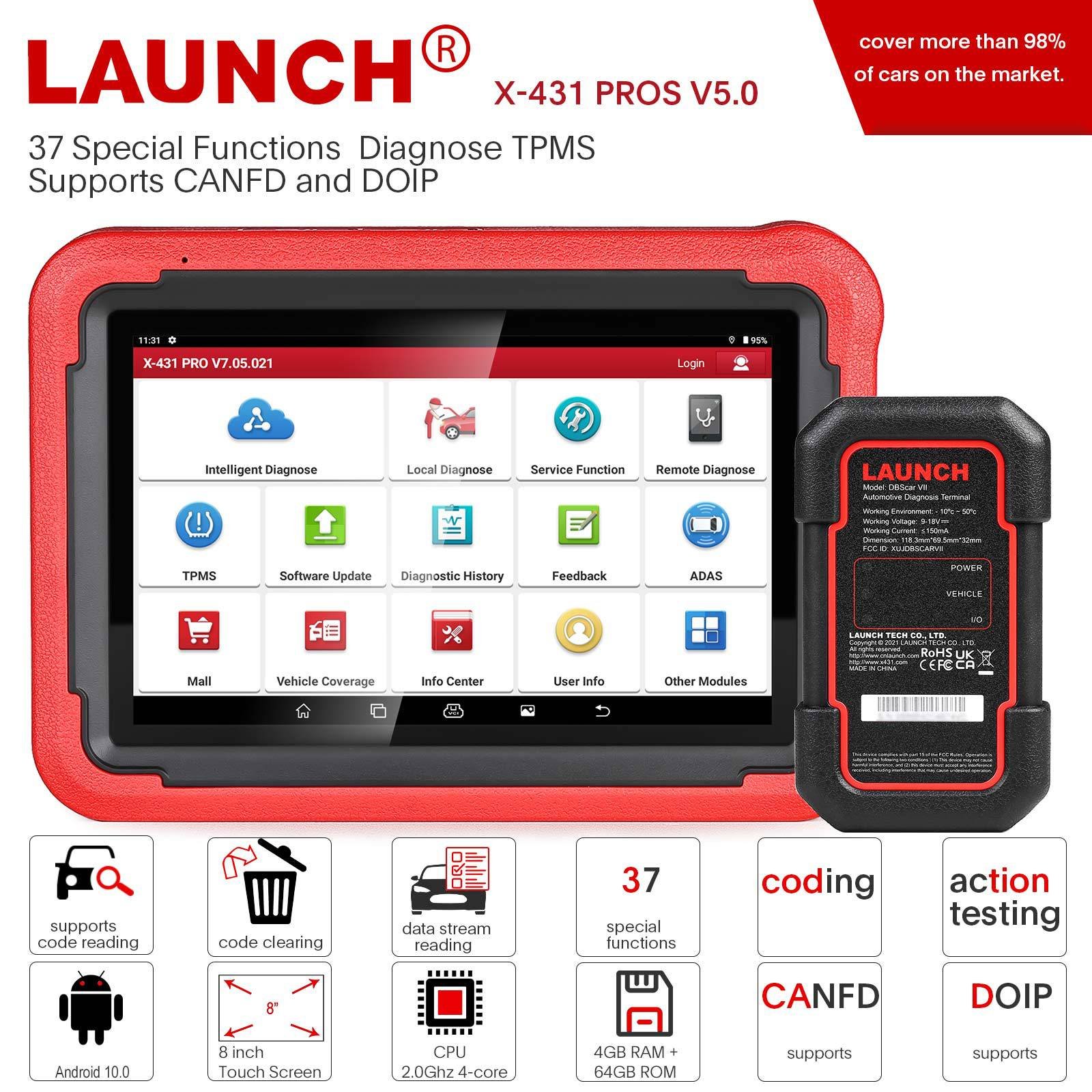

Launch X431 PROS V5.0 Automobile Detection and Diagnosis Instrument 8 inch Global Edition

Product Introduction:

Launch X-431 PROS V5.0 is a new generation of 8-inch automotive intelligent diagnostic tool with high configuration and super performance. The tablet is developed based on the Android 10.0 system, using a 2.0Ghz 4-core efficient processor, 4GB RAM + 64GB ROM large storage, and equipped with a high-end battery to make diagnosis faster, more stable and longer-lasting. Launch X-431 PROS V5.0 can cover more than 98% of cars on the market.  It supports fault diagnosis for all models and systems, and supports code reading, code clearing, data stream reading, special functions, action testing, coding, matching, and powerful diagnostic functions.

Product Features:

The host has a higher version system, larger storage, and longer battery life, making diagnosis faster, more stable, and more durable.

Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DOIP

Wide car model coverage, strong diagnostic function, supports full system diagnosis of all car models

Support reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.

Supports tire pressure activation, programming, learning and detection functions with a tire pressure gun

Support IMMO programming and other functions with X-PROG 3

Support Volkswagen Audi and other guidance functions (optional)

Multiple expansion modules support: endoscope, BST-360, oscilloscope, sensor, wifi printer

Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.

Support VIN code intelligent identification function to quickly enter diagnosis

Product Functions:

Intelligent Diagnose

LAUNCH has accumulated automotive diagnostic technology for more than 20 years, and was the first to propose intelligent diagnosis technology. Through “intelligent diagnose”, it can quickly read the vehicle VIN code, quickly enter the diagnosis, and review historical diagnosis records.

Local Diagnose

Support the diagnosis of the whole system of 110+ brand models in the world Basic function diagnosis, support reading version information, reading code, clearing code, reading data stream, action test, code setting, matching, etc., can read and record data stream, etc., to help rapid positioning the fault.

37 Special Functions

Supports common special functions for most models, such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, ABS exhaust, battery matching, gear information learning, injector coding, DPF regeneration, IMMO, 37 special functions such as matching and IMMO programming.

TPMS

Supports tire pressure activation, programming, learning, detection and other functions with a LAUNCH X-431 TSGUN TPMS WAND (additional purchase is required).

ADAS Calibration

It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (optional), which can realize the calibration of LDW, ACC, RCW, AVM, BSD, NVS and other ADAS systems.

Remote Diagnose

“Remote diagnose” can realize real-time communication between equipment and equipment or equipment and computer, complete vehicle remote diagnosis, and make it a reality for repair technicians to diagnose vehicles thousands of miles away.

Toolbox

It can be used with endoscopes, battery detection, oscilloscopes, sensors, IMMO programmer and other expansion modules to make the diagnostic function more powerful.

Software Upgrade

Supports one-click online upgrade of client software, vehicle model software, and connector firmware. The new smart selection upgrade function can automatically filter out commonly used software based on user software usage for users to quickly upgrade.

Info Center

The information center integrates maintenance materials, general information and equipment information, and is an information query center.

The maintenance information includes operation skills, fault code help, vehicle maintenance technical manual and IMMO database;

General information provides various types of car maintenance videos and information website online query;

Device information includes product manuals and answers to frequently asked questions.

Feedback

When users encounter vehicle models and functional abnormalities under special circumstances during use, they can provide their opinions to Launch through “feedback”, and specialized technicians will track and handle the problem in a timely manner.

Diagnostic History

For each diagnosis, vehicle diagnosis records are automatically generated for easy viewing and comparison at any time to help locate faults.

Vehicle Coverage

Supported brands, models, systems and functions can be checked online at any time.

Mall

Supports online purchase of software, functions and some hardware outside the configuration, software renewal, etc., and more functions are coming online.

Specifications of the tablet:

Specifications of the DBScar VII VCI connector:
