Function:
1. A/C relearn
2. INTELLIGENT CRUISE CONTROL
3. ENGINE POWER BALANCE MOONITORIN
4. MOTOR ANGLE CALIBRATION
5. HIGH VOLTAGE BATTERY DIAGNOSTICS
6. GPF Regeneration
7.RESET ECU
8. RESET FRM
9. RESET CLUTCH
10. RESET TURBO
Why LAUNCH X431 V is the first choice for millions of auto mechanics ?
1. OE-Level Professional Car Full System Diagnosis
2. Full Bi-Directional Control ( Active Test ) + ECU Coding
3. Support 31 More Reset Service , Keep increasing
4. Guide Functions for VW Audi
5. FCA SGW AutoAuth Access
6. 2 Years Free Update. After that, you can still use it, it will not be locked.
7. 24 Language Free Choose, No language barrier
8. Support Auto VIN Scan + Intelligent diagnostics + Remote Diagnostics + Diagnostic Feedback
9. Added Anti-Theft IMMO Service
10. Added Tesla _EV vehicles: Model – 3, Model – S and Model- X ( Buy in MALL)
11. Compatible with X-PROG 3, TSGUN, BST360, VSP600, ADAS, WIFI Printer etc.
12. 5 Years Warranty for any Quality Problems and Lifetime Free Tech Support
13. Adopts Android 9.0 System, 2.0 GHz Quad Core processor, which runs faster and more stable.
Users can install any Software application,like youtube, Tiktok,Facebook, instagram.Twitter，Also has photo, video and multimedia functions, ect…
and more functions …
Launch X431 V Supported 24 kinds of Languages:
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional…
ECU Coding
sed to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements. You can use our x431 v pro to stimulate all the possibilities of the vehicles
After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module’s information.
Recode Changed Modules/ Optimize Vehicle Performance/ Re-Flash/ Hidden Functions/ Renew ECUs Coordination/ Reprogram/ Adaptive Data/ Improve Fuel Efficiency/ Reduce Power Loss/ Improve the Durability of Mechanical Parts
Active Test ( Bi-Directional Controls )
requests a module to perform a specific test and function. (Turn on and off actuators to determine whether there are problems with sensors and actuators)
Fuel Injector Balance, Fuel Pump Enable, Fuel Trim Enable, Fuel Injector Tests, Injecor Buzz Test, Injector Kill Tests, Injector Cut Out Test, A/C Compressor Clutch Relay On/Off
EVAP Tests: EVAP Purge Solenoid Valve, EVAP Vent Solenoid Valve, EVAP Purge/Seal, EVAP Service Bay Test
Turn Off ACC Lane Keeping Assist System (LKAS), Turn ON/OFF Front and Rear side ACM Solenoid,
Turning the fuel pump on and off, Oil Pressure Control Test
Inlet and Outlet Valve tests, High beam test,Interior lighting test
Key Programming
>>Add, Delete & Reprogram Keys, >>>Rewrite smart keys, All smart keys lost, Replace smart key ECU, Replace KNOB IGNITION; >>>>Reset Key: Relearn a key.
(Note: this key programming function is NOT universally compatible. please check compatibility with us if necessary. X431 V pro supports PIN Code reading for most cars before 2008, for vehicles after 2008, you need to have PINCode to do key programming)
Guide Functions
Teach step by step how to use the diagnostic cart
(Compatible with Volkswagen / Audi / Skoda / Seat): for various systems such as engine, gearbox, brake, airbag, instrument, air conditioner, and more.
OE-Level Full System Diagnostic, Faster and more effective
LAUNCH X431 V V4.0 can establish a data link to all systems and subsystems of the vehicle being serviced to:
Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions.
Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of sensors and components.
The following is a list of modern vehicle systems that this scan tool can get access to:
-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics … and more.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.
Auto VIN SCAN for Quick Diagnosis
Once this diagnostic tool and the given car are properly connected, this diagnostic tool LAUNCH X431 V 4.0 stars auto-detected process. With only one click, you can scan your car’s detailed version information, also all diagnostic trouble codes and live data stream of full electrical control units. If needed, you can only view the diagnostic information of the selected systems in the forms of checks.
please Note: AUTO VIN Scan is not applicable to all models, you can manually select the vehicle model for diagnosis (This feature is more precise: click “Local Diagnose” to select the vehicle software )
All in One Graphic Data Stream Analysis in Graph
Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of sensors and components.
31+ Kinds of Special Reset Service Functions, keep increasing
1> Oil Reset Service
This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for trouble shooting. After that, reset the driving mileage or driving time, so as to turn off the service lamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.
2> Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.
3> Steering Angle Calibration
This function enables you to reset the steering angle, after replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckie), performing four-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
4> ABS Bleeding
This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.
5> Gear Learning
This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC ‘tooth not learned’ is present.
6> IMMO Service
This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.
7> Injector Coding
This function enables you to write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.
8> Battery Maintenance System Reset
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
lt needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
9> Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
10> Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.
11> Gearbox Matching
This function enables you to complete the gearbox self-learning to improve gear shifting quality.
lt needs to be performed in the following cases:
When the gearbox is disassembled or repaired.
12> AFS (Adaptive Front-lighting System) Reset
This function enables you to initialize the adaptive headlamp system.
13> Sunroof Initialization
This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the caretc.
14> Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect.
15> EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
16> Seats Calibration
This function is applied to match the seats with memory function that arereplaced and repaired.
17> Tyre Reset
This function is used to set the size parameters of the modified or replacedtire.
18> Coolant Bleed
Use this function to activate the electronic water pump before venting thecooling system.
19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.
20> NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.
21> Ac System Initialization
AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.
22> High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status informationdetection.
23> Windows Calibration
This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.
24> Language Change
This function is used to change system language of vehicle center console.
25> AF Reset
This function is applied to set or learn airlfuel rate parameters.
26> Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.
27> StoplStart Reset
This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).
28> Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it isreplaced or repaired.
29> Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.
30> Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.
31> Motor Angle Calibration
This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.
( pls note different reset function supports different cars, also supports some cars, not for all cars, pls contact us check the detailed car list, you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D）
Vehicle Health Report Share and Print
Health Report Generate and Share — With Launch X431 V ,you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card, Also,You can customize your name, your address and other information on this report
More functions Supports
1. Diagnostic records and reports can be stored in the cloud without any concern of data missing.
2. Support the query of maintenance data and testable car models.
3. Support remote diagnosis. help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.
4. Abundant maintenance data are available, which helps repair professionals diagnose and repair vehicles efficiently, accurately and profitably
5. Support diagnostic feedback, lf you the scanner can not scan anycar system or functions does not support, you can submit diagnostic feedback, then send serial number to us, we will deal the case soon.
6. Support mall function , An online diagnostic software store. This module enables you to subscribe some extra software or service functions that are not integrated in the tool online.
LAUNCH X431 V V4.0 Compatible Models
(contact seller to get a link to purchase this model)
X431 ADAS Mobile/ PRO:
When the adaptive cruise control module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform “radar calibration” on your vehicle.
LAUNCH X431 TSGUN:
a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and pro-gramming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.
VSP 600-Videoscope:
helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with LAUNCH X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos.
X-PROG & X-PROG3 Immobilizer:
turn this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive k-ey pro-gramming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level antitheft systems; also to have completed IMMO & K-ey Pro-gramming (read & write 1200+ EEPROM and MCU chips, etc.) for VW/ Audi/ Skoda/ Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.
X431 PRINTER: Print out diagnostic data/ reports
O2-1 ScopeBox, Oscilloscope: to quickly acquire the circuit signal, and slowly display the waveform for better data analysis.
BTS360 Bluetooth Battery Tester
With LAUNCH BST360 automotive battery tester, we can check the overall health of the battery.works for all 6 volt and 12 volt lead-acid batteries include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with the test range (100-2000 CCA). Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers, and even golf carts.
LAUNCH X431 V 4.0 support Car List :
X-431 V supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis
American cars: For BUICK, For CADILLAC, For CHEVROLET, For CHRYSLER, For DODGE, For FIAT (BRAZIL), For FORD, For FORD (AUSTRALIA), For GM
Asian cars
For ACURA
For DAEWOO
For DAIHATSU
For HM
For HOLDEN (AUSTRALIA)
For HONDA
For HYUNDAI
For IKCO
For INFINITI
For ISUZU
For KIA
For LEXUS,
For LUXGEN
For MAHINDRA
For MAHINDRA (INDIAN)
For MARUTI
For MARUTI (INDIAN)
For MAZDA
For MITSUBISHI
For MVM
For NISSAN
For GTR (NISSAN, For PERODUA, For PERODUA (MALAYSIA,
For PROTON
For PROTON (MALAYSIA, For SAMSUNG, For SAIPA,
For SSANGYONG,
For SUBARU
For SUZUKI
For TATA
For TATA(INDIAN)
For TLISUZU
For TOYOTA
For UNITED PAKISTAN
For VINFAST
European car:
For ABARTH
For ALFA ROMEO
For AUDI
For BENTLEY
For BMW
For BUGATTI
For CITROEN
For DACIA
For DR
For EUROFORD
For FERRARI
For FIAT
For GAZ
For OPEL (SOUTHAFRICA)
For IVECO
For JAGUAR
For LAMBORGHINI
For LANCIA
For LANDROVE
For MASERATI
For MAYBACH
For MERCEDES
For MINI
For OPEL
For PEUGEOT
For PORSCHE
For RENAULT
For ROLLSROYCE
For ROVER
For SAAB
For SEAT
For SKODA
For SMART
For SPRINTER
For VAUXHALL
For VAZ
For VOLVO
For VW
For BORGWARD
For ASTON MARTINA

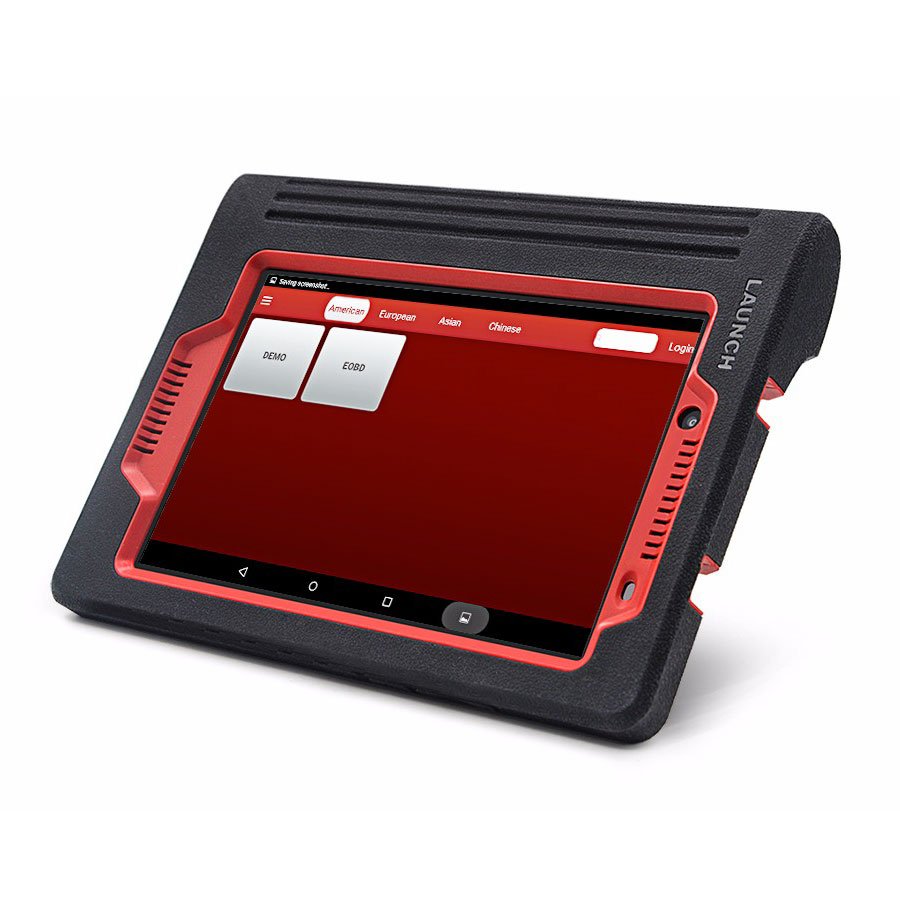

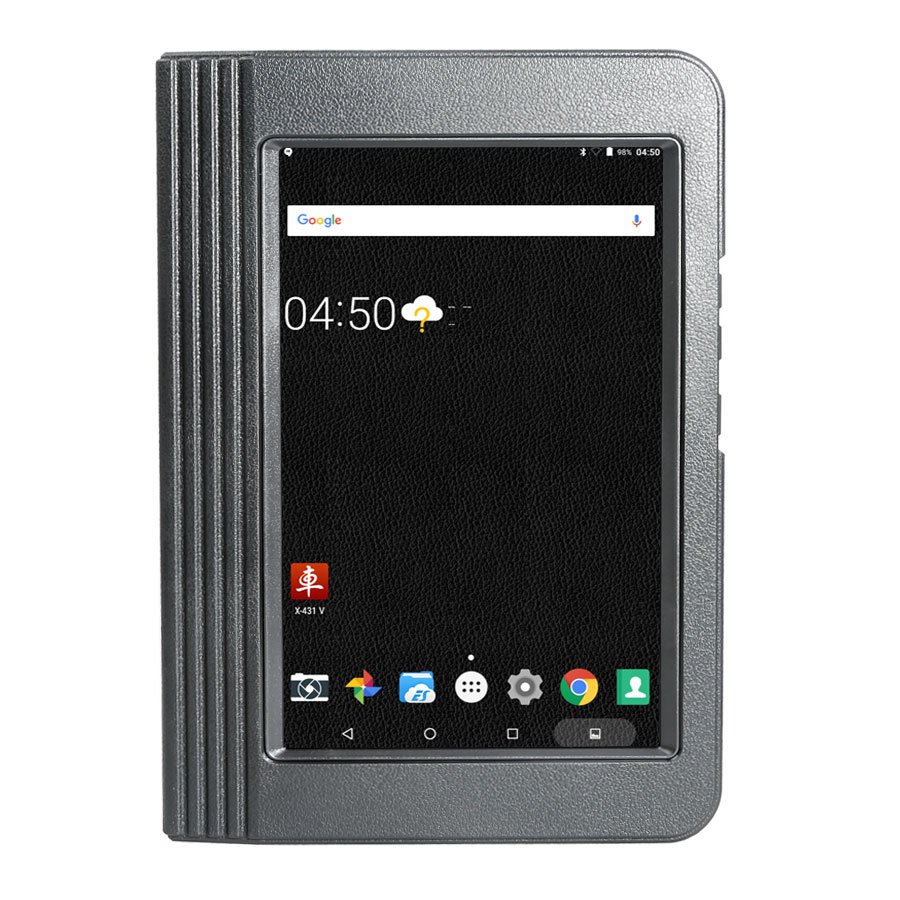

LAUNCH X431 V V4.0 Tablet Parameter
Operating System: Android 9.0
CPU: Quard Core 2.0GHz processor
Battery: 5000mh, rechargeable polymer lithium battery
Extension memory card: 32G（Can up to 128GB ）
Storage capacity: 3G
LCD: 8.0 inch
LCD resolution: 1280X800
Touch screen: 5 points capacitive touch screen
Cameras: 2 mega front + 5 Mega Rear
Wi-Fi/Bluetooth: Supported
Working temperature: -10 ~ 50

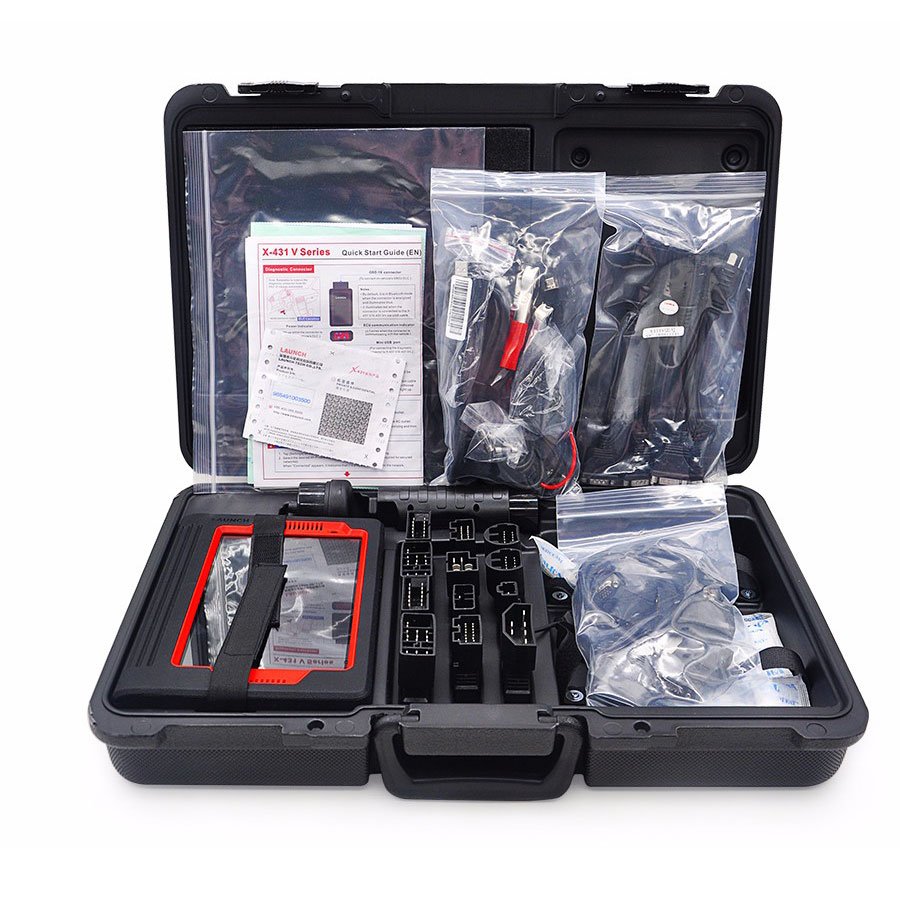

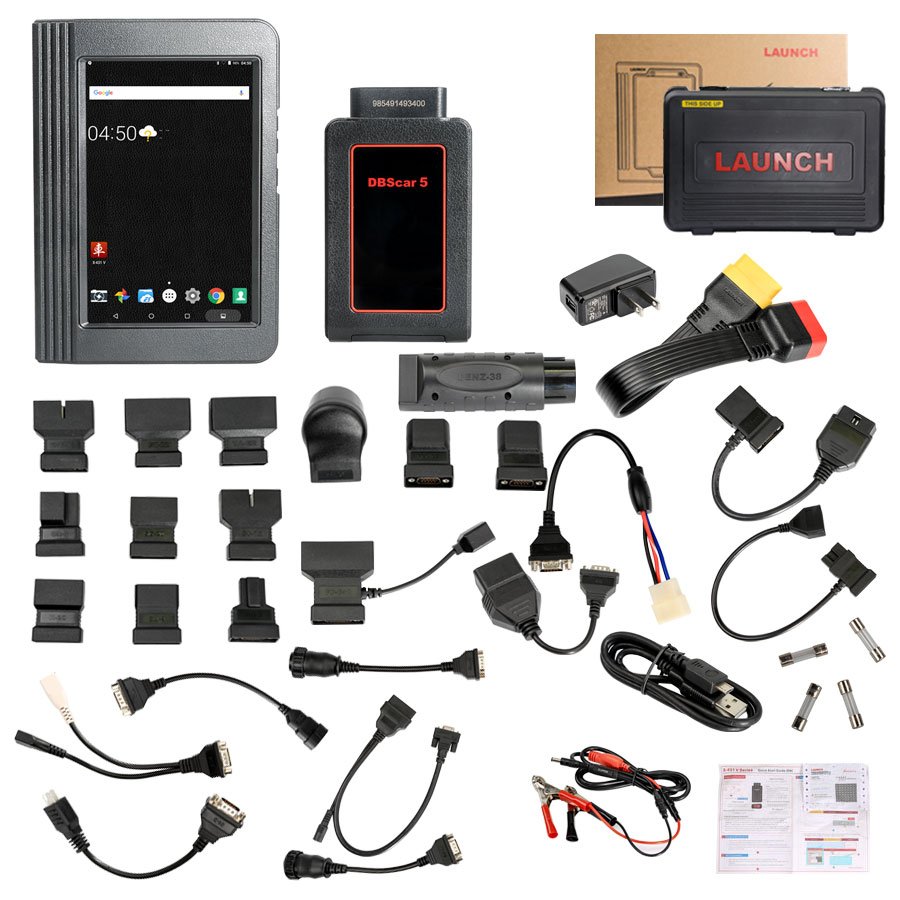

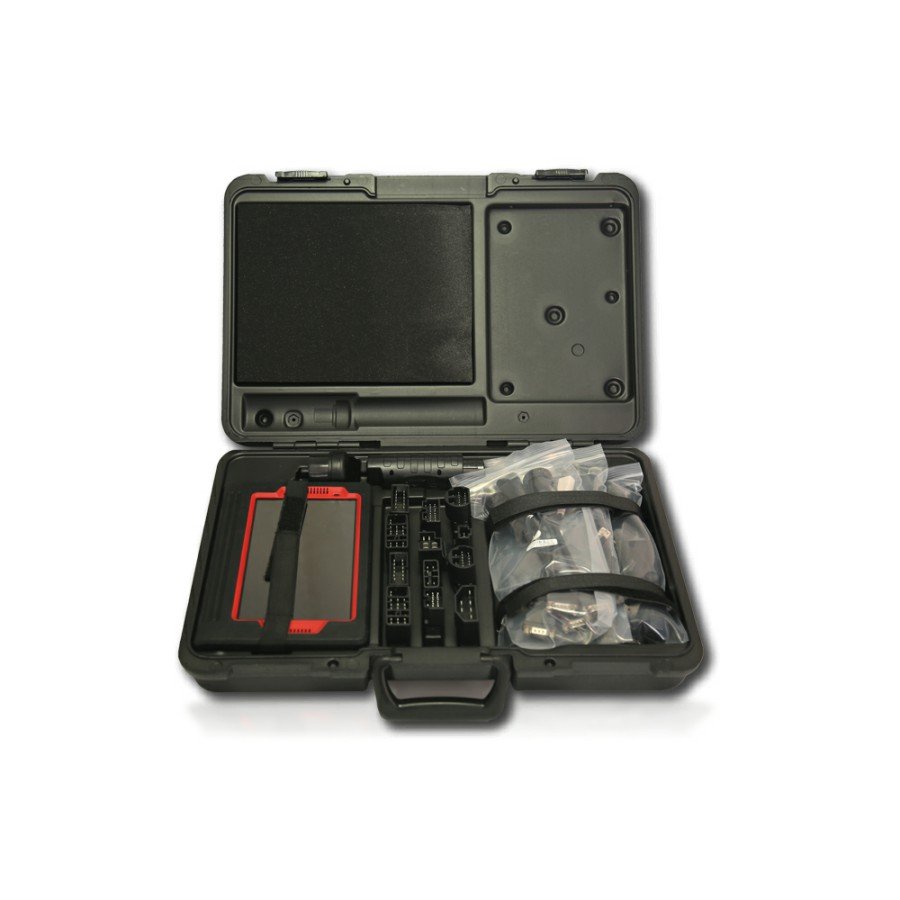

Launch X431 V Package List:

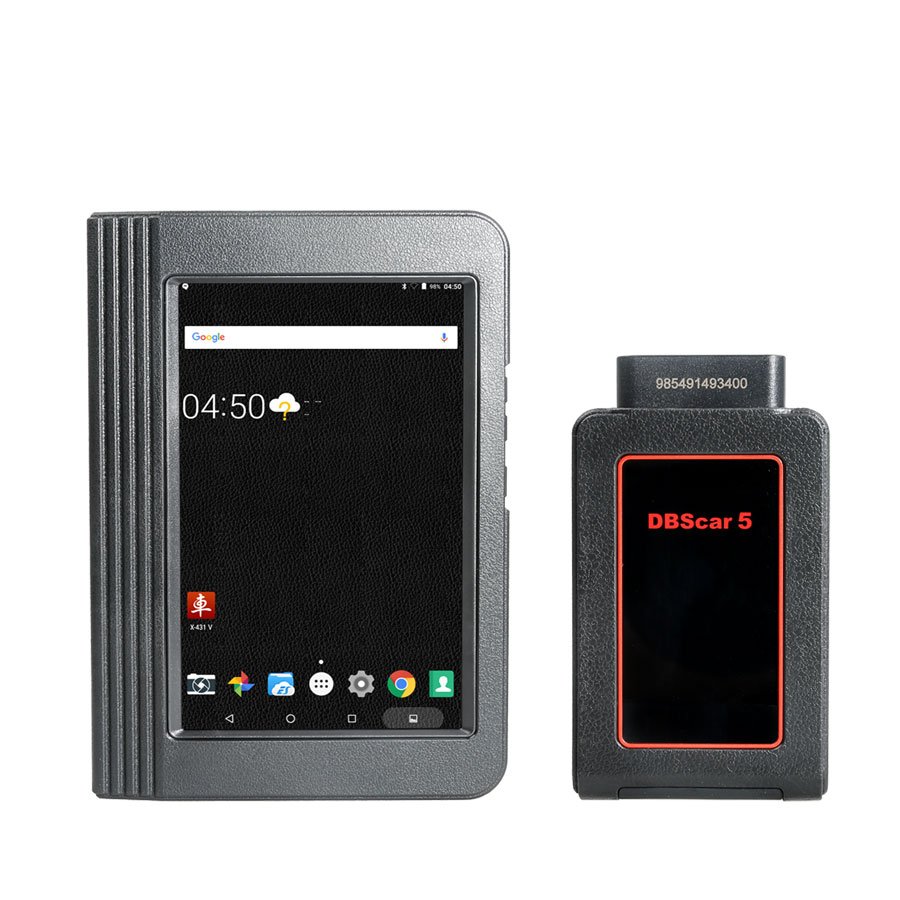

X-431 V 4.0 host

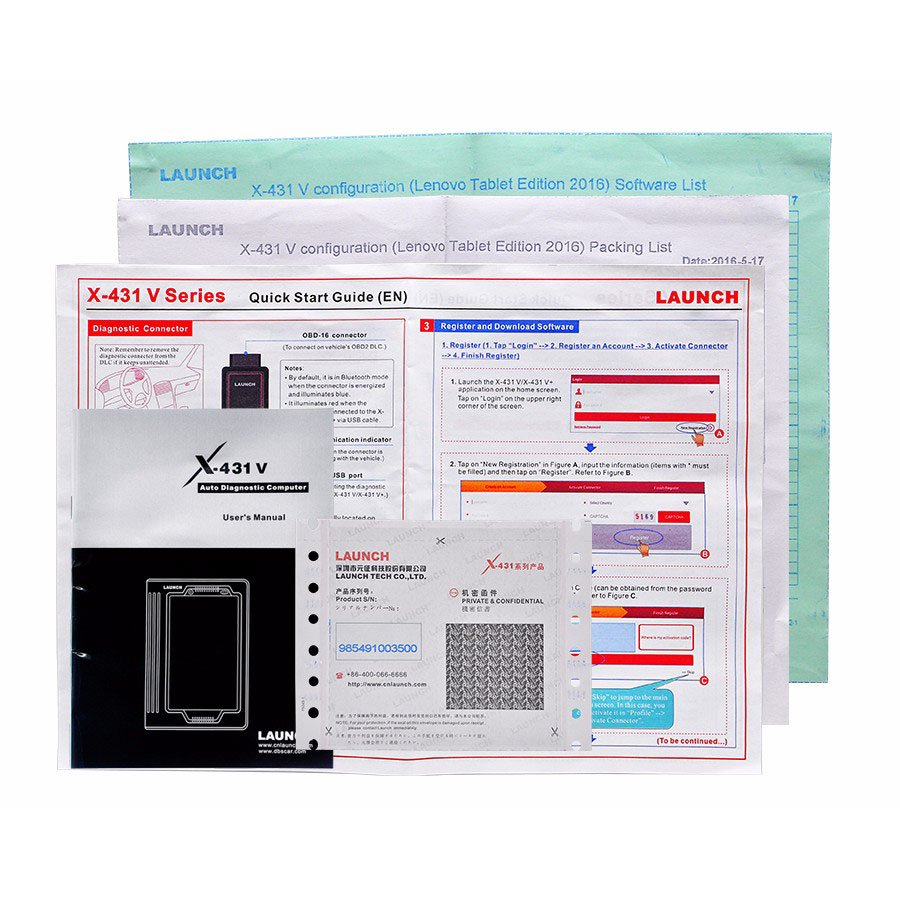

QUICK START GUIDE
Papal USER MANUAL
PIN envelope

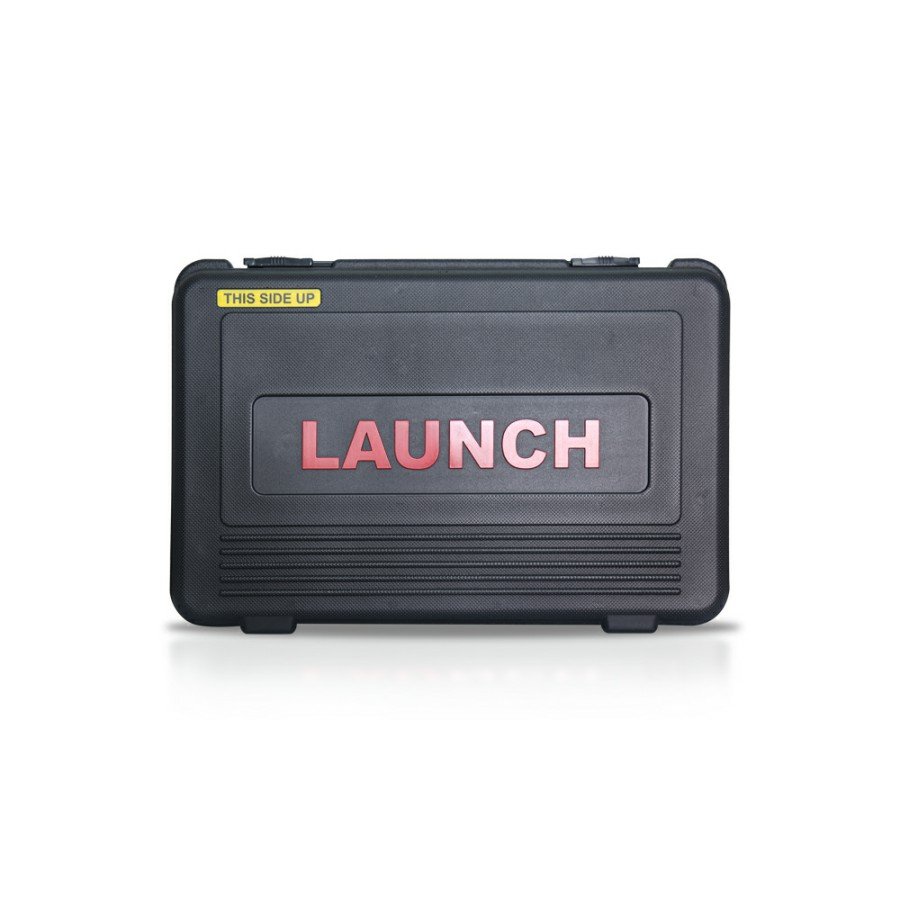

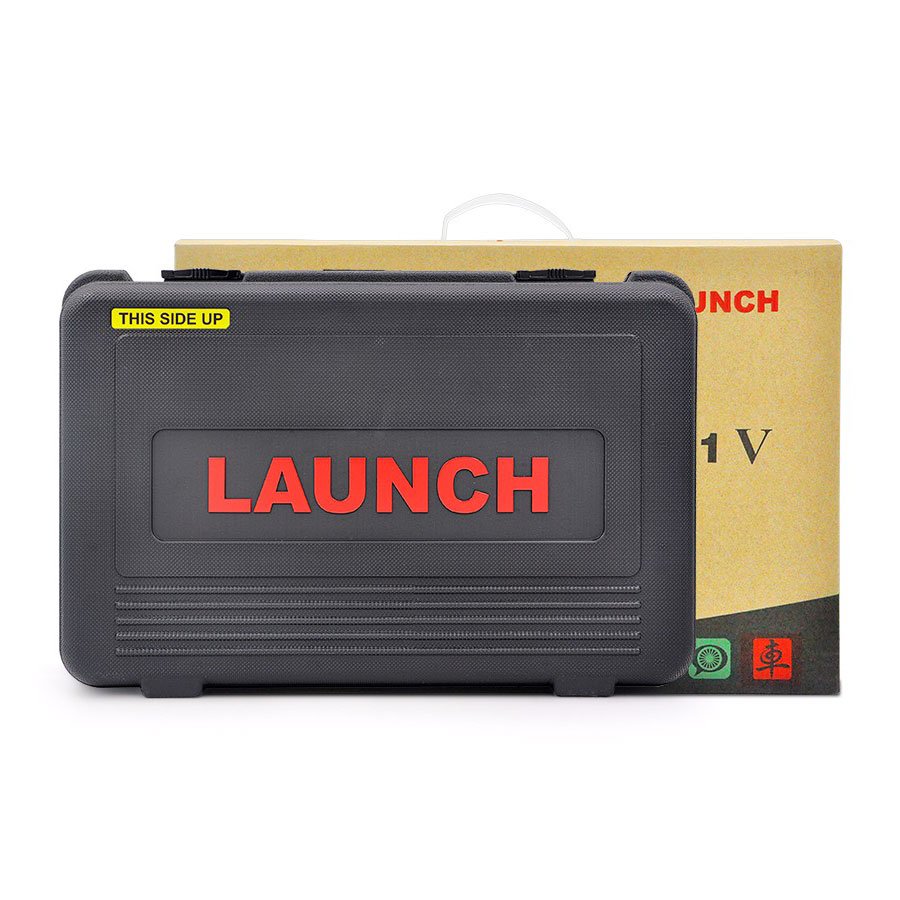

Storage Case
CLIPPER
FUSE,

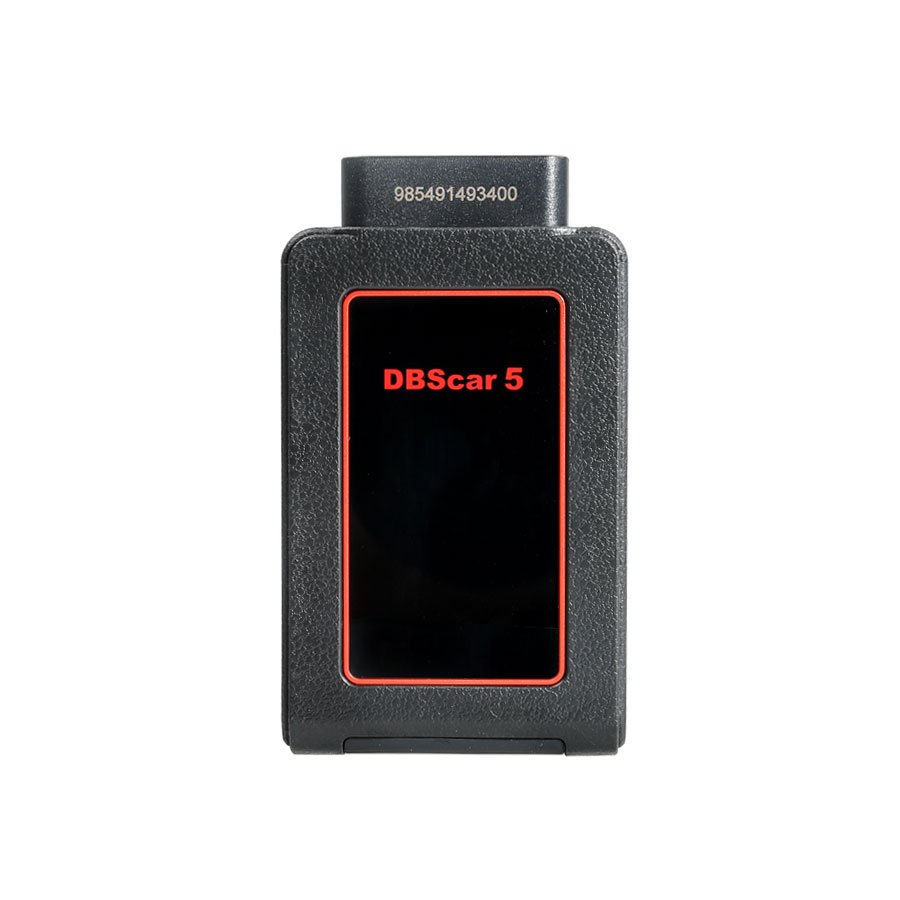

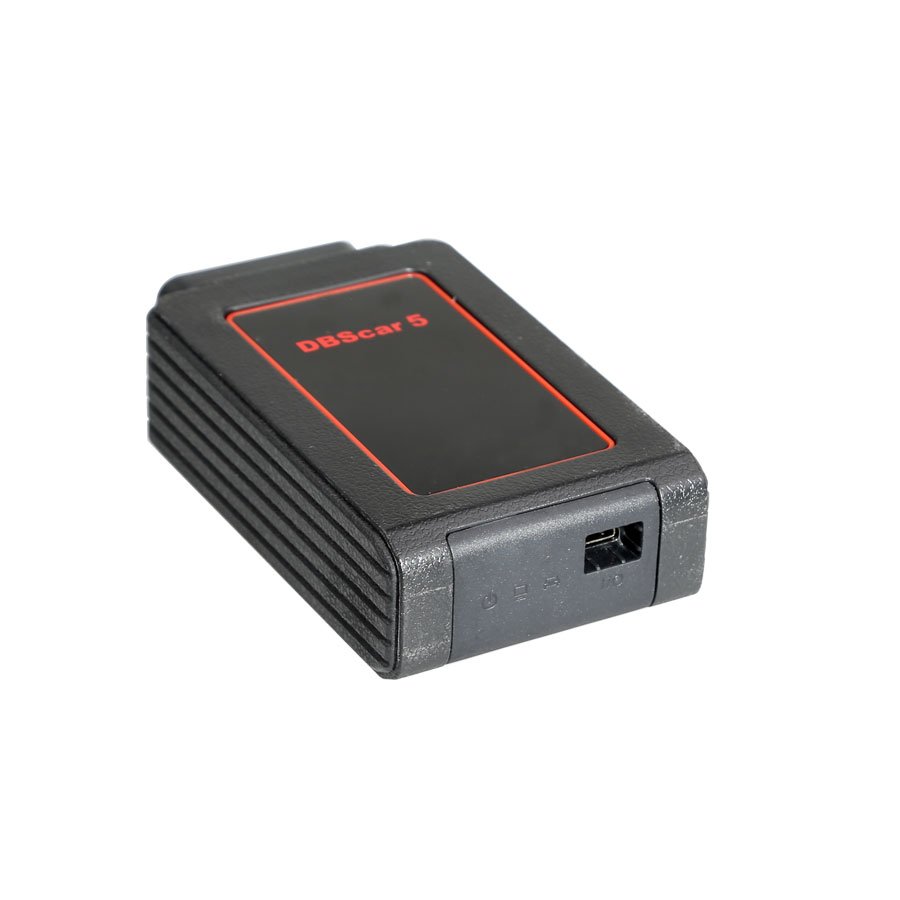

BLUETOOTH ADAPTER (DBScar-4/DS301)
SWITCHING ADAPTER
AIT I OBD16 Extension Cable
USB A to Micro cable
3 Adapter Plugs applicable for US, UK, EURO.

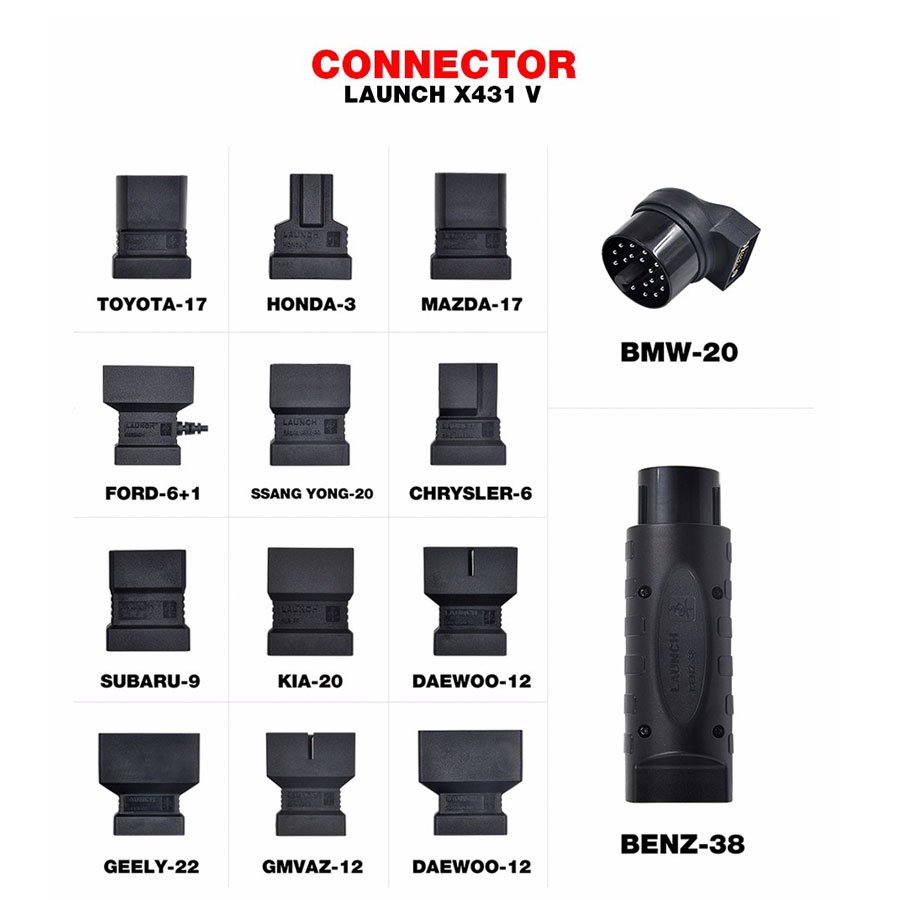

14 Connectors:
for TOYOTA-17,
for HONDA-3,
for MAZDA-17,
for FORD-6+1
for SSANG YONG-20
for CHRYSLER-6
for SUBARU-9
for KIA-20
for DAEWOO-12
for GEELY-22
for GMVAZ-12
for DAEWOO-12
for BMW-20
for BENZ-38

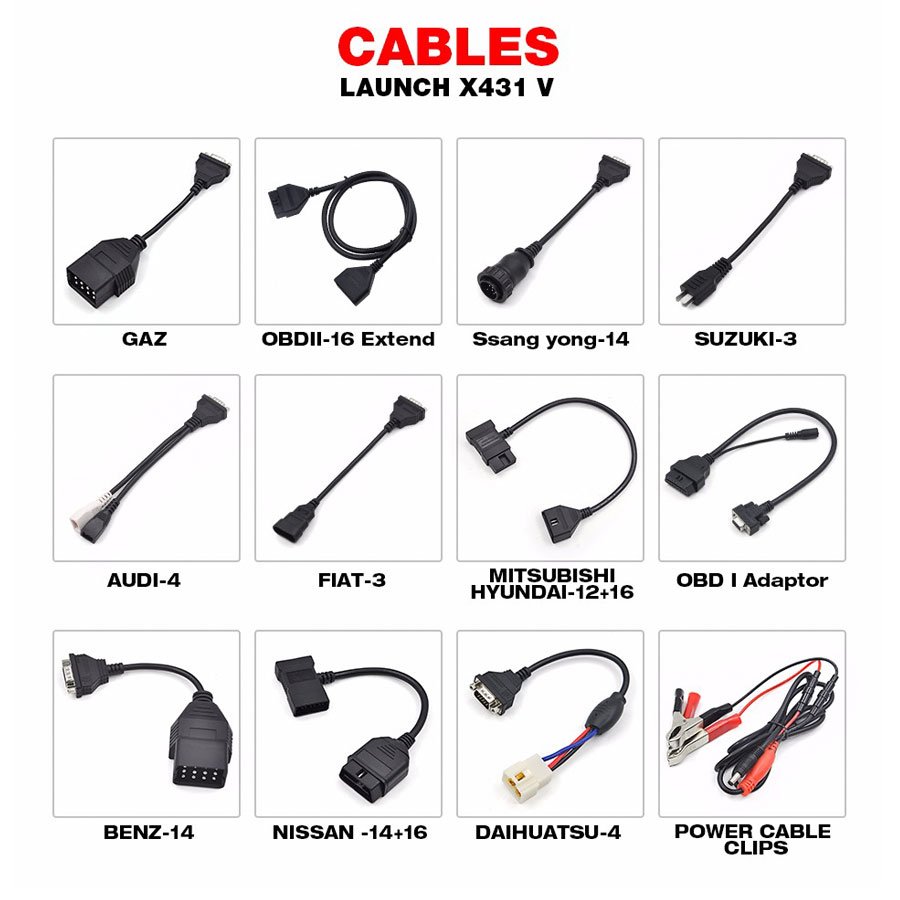

12 Cables:
For GAZ

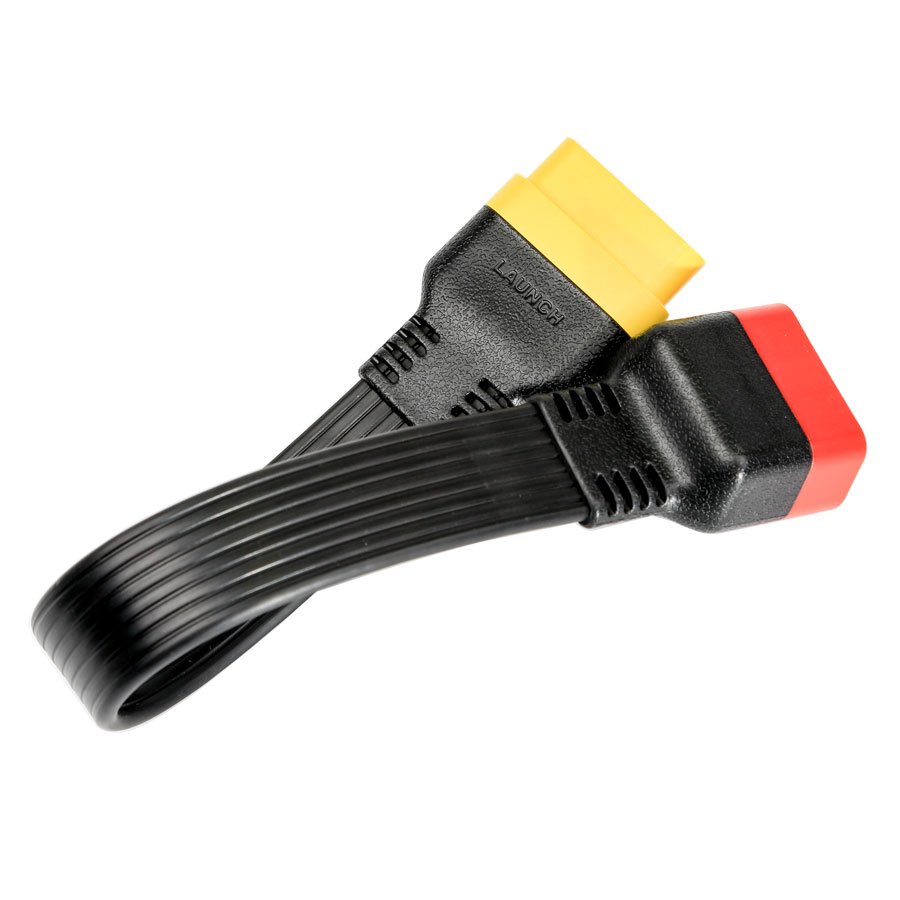

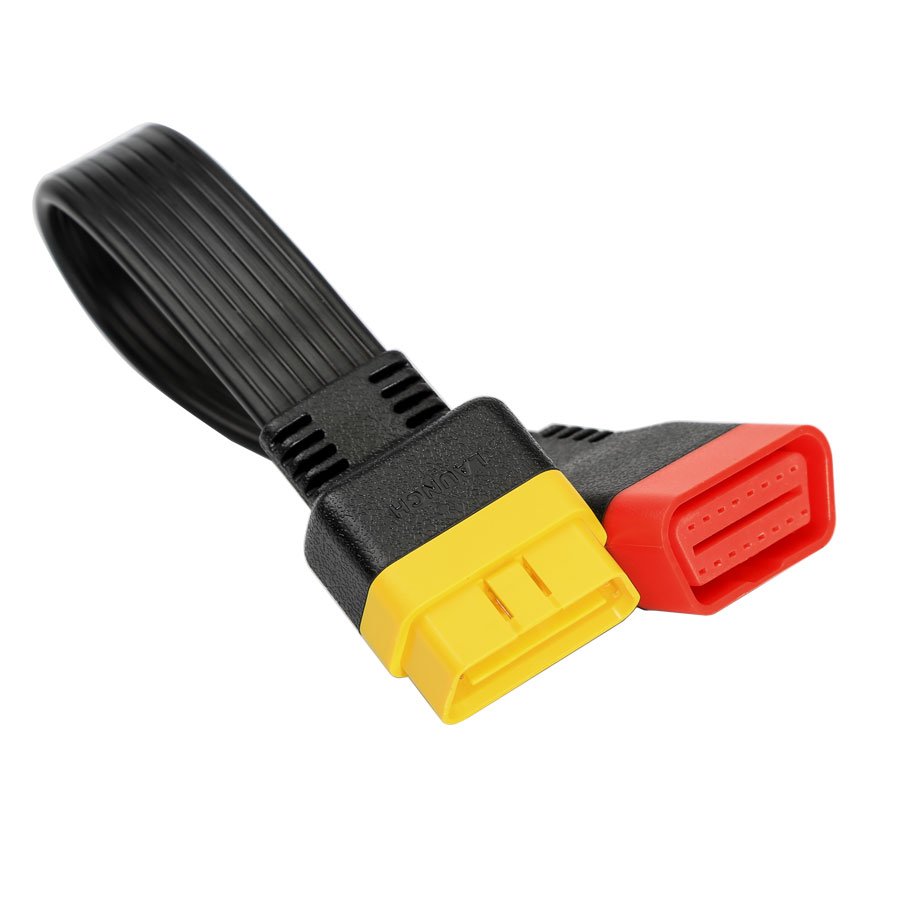

OBDII-16 EXTEND CABLE
for SSANG YONG-14
for SUZUKI-3
for AUDI-4
for FIAT-3
for MITSUBISHI HYUNDAI-12+16
for OBD1 ADAPTOR
for BENZ-14
for NISSAN-14+16
for DAIHUATSU-4
for POWER CABLE CLIPS.
Extra Gift in the package (brake fluid pen)
There are no reviews yet.
