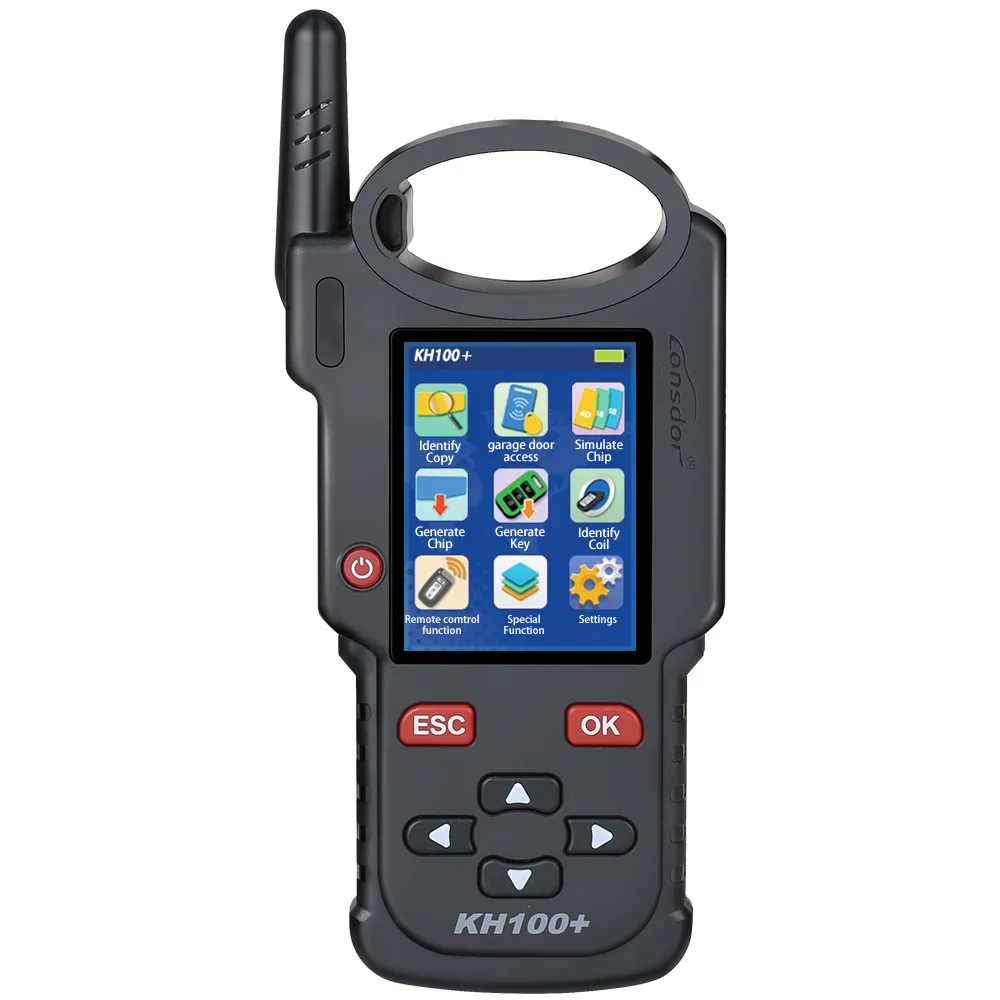

Lonsdor KH100+ Remote Key Programmer
Lonsdor KH100+ Highlights:
1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A(H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. 4-pack remotes & smart key involved
8. Handy chip holder integrated, 902MHZ supported
9. Toyota 8A Smart Key Direct copy to Add key (Latest Update)
10. With ExtraToyota AKL License , KH100+ will be able to work onLatest Toyota & Lexus All Key Lost and Add Key.
11. Ship from US/UK/EU Warehouse No Tax, Fast Delivery in 2-3 Days.
1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A(H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. 4-pack remotes & smart key involved
8. Handy chip holder integrated, 902MHZ supported
9. Toyota 8A Smart Key Direct copy to Add key (Latest Update)
10. With ExtraToyota AKL License , KH100+ will be able to work onLatest Toyota & Lexus All Key Lost and Add Key.
11. Ship from US/UK/EU Warehouse No Tax, Fast Delivery in 2-3 Days.

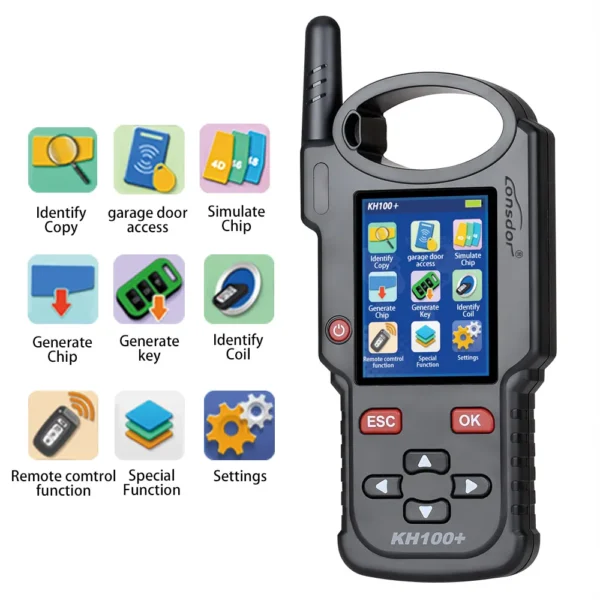

Lonsdor KH100+ Function List:
Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function
Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

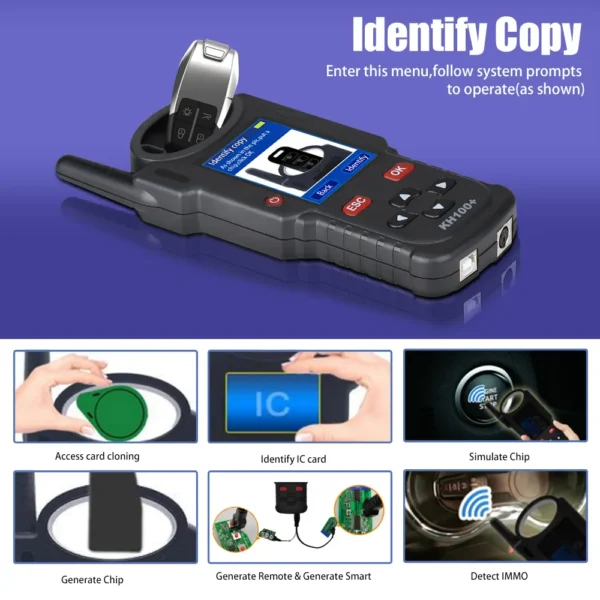

Identify/Copy/Generate Chip:
Multi-vendor chips supported
Especially Toyota 8A(H) chip Our predominance
Especially Toyota 8A(H) chip Our predominance
Simulate Chip:
Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)
Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)

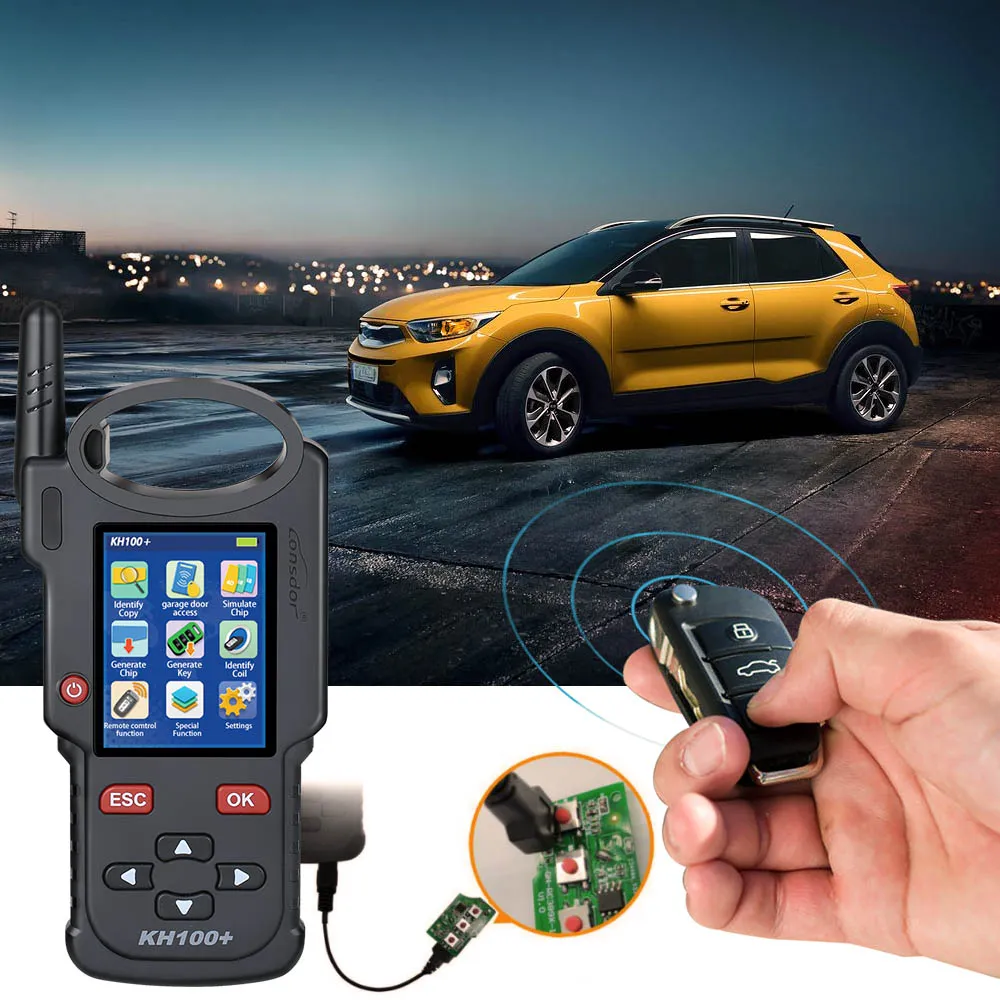

Generate Remote/Smart key:
Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram
Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram
Smart Key Generation Diagram
Dedicated Connector to Generate Remote Key:PS2-7Pin OD3.5
Access Control/Remote Frequency
One-click identify and copy IC/ID cards
Copy multi-vendor chops
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area
Detect Super Frequency
Detect multiple frequency brands with high accuracy
Detect multiple frequency brands with high accuracy
Identify Coil:
1) Search smart induction area Connect remote key with remote connector, Put KH100+’s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
2) Detect IMMO Connect remote key with remote connector, Put KH100+’s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.
2) Detect IMMO Connect remote key with remote connector, Put KH100+’s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.
Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency.
Enter this menu, put remote control at the device’s induction area to detect remote frequency.
Lonsdor KH100+ Special Function:
Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued…
1.Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote’s button once. When the light on KH100’s screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued…
1.Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote’s button once. When the light on KH100’s screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
2.FT Smart Key
For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.
3.Unlock Toyota Smart Key/DetectToyota Key Status
Put in the smart key, click OK to operate.
4.Charge Key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.
Lonsdor KH100+ Registration Guide:
Note: After booting the device, please connect to WIFI and enter the following process.
New User
1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
4) Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.
Registered User (who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.
In addition, users who have already registered Lonsdor’s product can directly choose [registered user] to activate account.
New User
1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
4) Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.
Registered User (who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.
In addition, users who have already registered Lonsdor’s product can directly choose [registered user] to activate account.
How to update Lonsdor KH100+:
Enter settings menu
Connect the device to network
Then choose [check for updates]
One-click for online update!
Enter settings menu
Connect the device to network
Then choose [check for updates]
One-click for online update!

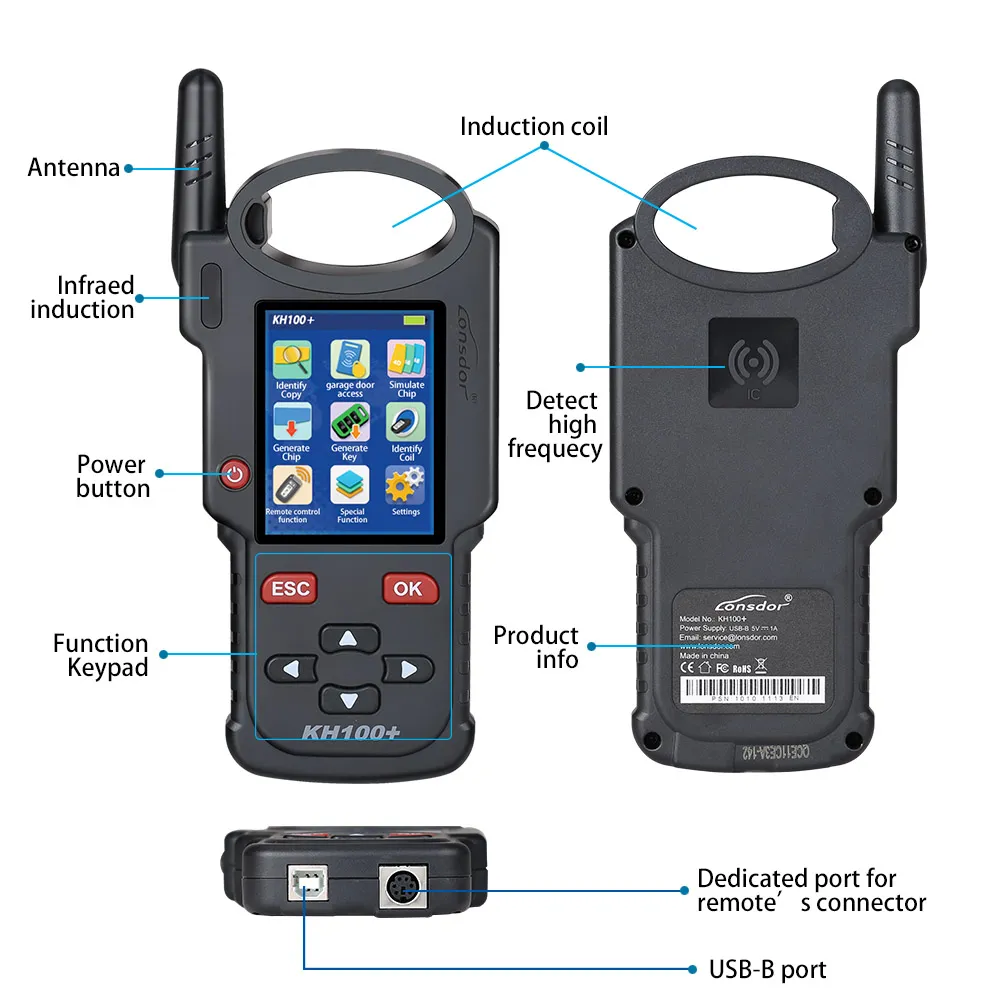

Lonsdor KH100+ Device Components:
| Name | Notes |
| Antenna | To induce simulated chip and detect ignition coil |
| Display screen | 2.8-inch color screen, resolution: 320X480 |
| Induction coil | To identify, copy, generate key chip or remote, etc. |
| Port 1 | USB-B port |
| Port 2 | Dedicated port for remote’s connector |
| Power button | In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down |
| Remote frequency detection | Put remote in this position to detect its frequency. |
| High-frequency detection | To identify and copy IC card. |
Lonsdor KH100+ Specifications:

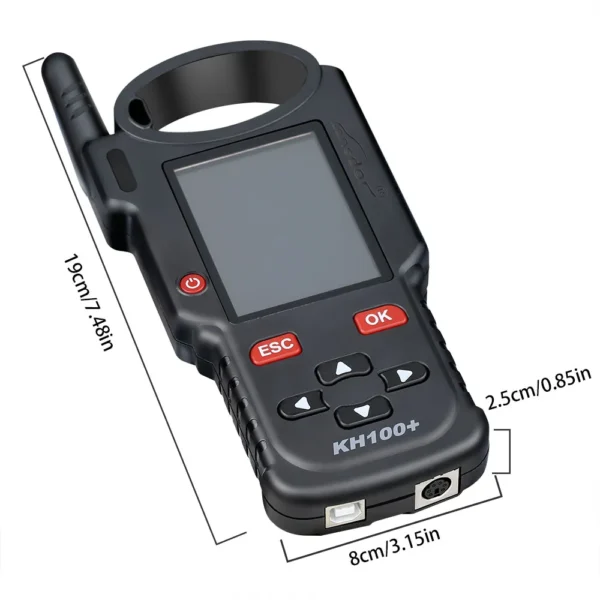

Size: 193mm*88mm*24mm
Screen size: 2.8 inch color screen
Resolution: 320*240
Battery: 3.7V 2000mA/H
Power: 5V 500MA
Work Temperature: -5~60°C
USB: USB-B/Charge-Data Transfer
Connector Port: PS2-7Pin OD3.5 7Pin,1.27 Spacing,The 2ND Pin:NC

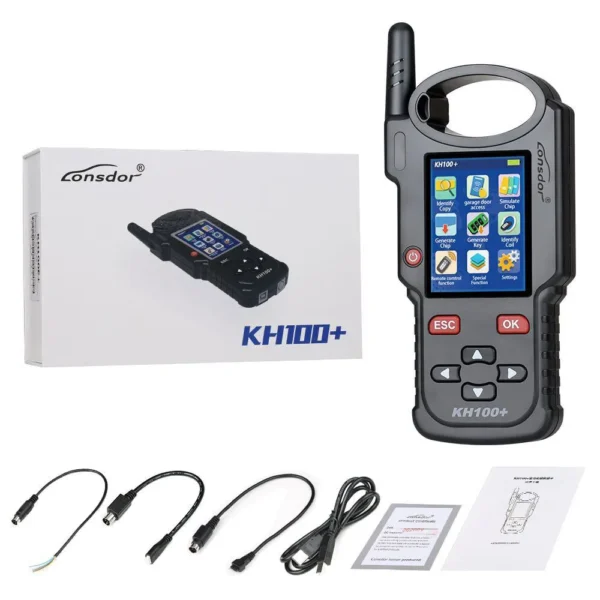

Package includes:
1pc xLonsdor KH100+ Hand-Held Remote Key Programmer
1pc xLonsdor KH100+ Hand-Held Remote Key Programmer
