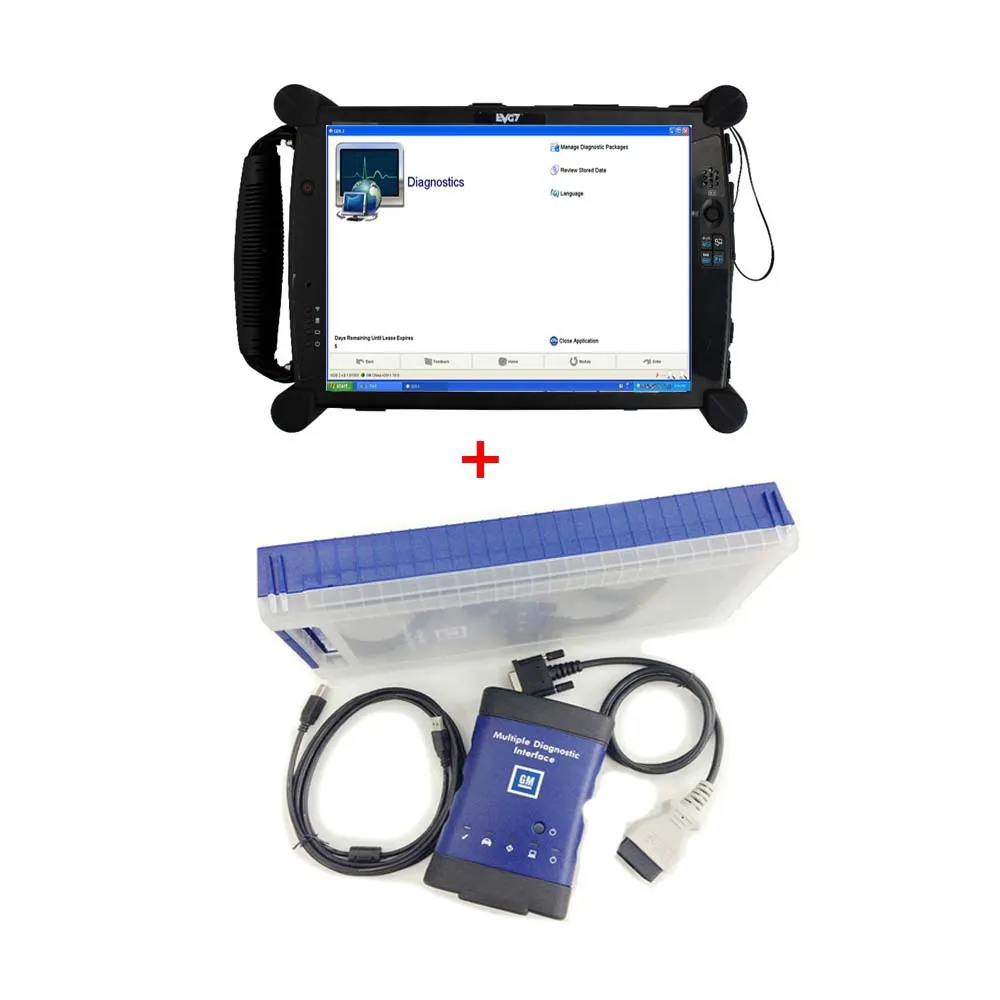

MDI for GM Diagnostic Tool Obd2 Scanner with WIFI Plus EVG7 Tablet PC V2023.11 Software

MDI for GM Diagnostic Tool Obd2 Scanner with WIFI Plus EVG7 Tablet PC V2023.11 Software

Highlights of MDI:

1.Multi-Languages :English, French, German,Italian.etc. Total 30 languages to choose

2.Cando cars from 1990-V2023 Year

3.GM MDI software will be pre-installed in the EVG7 Tablet PC, you can use it directly after you receive it
4.Support 2010-V2023 year new cars
5.Support WIFI

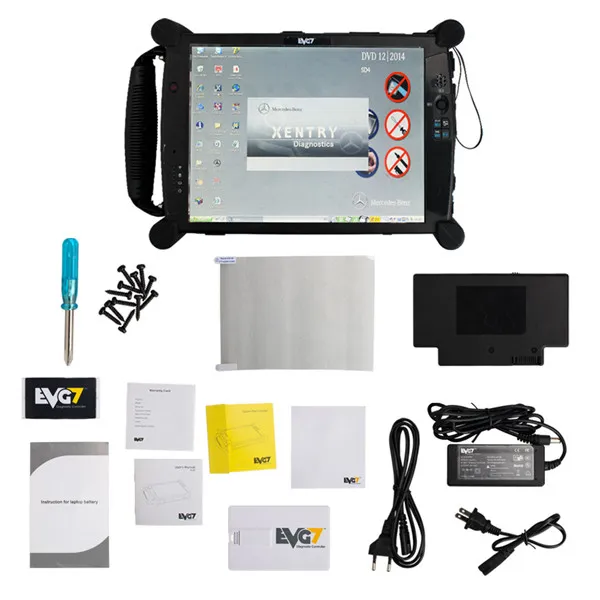

EVG7 DL46 Specification:

Condition: NEWMark: EVG7

Model: DL46

Processor: Intel Celeron 1037(Dual – 1.8Ghz/L3 2M)

DDR: The biggest support memory: 4GB

HDD: 500 GB SATA HDD.

LCD: 10.4 Inch The resolution of the 1024×768

Graphics:

touchscreen widescreen LED backlight

The core graphics Intel HD Graphics

Speakers: Built-in Speakers

Wireless: 802.11b/g/n

LAN: The built-in 10-100M card

Bluetooth: BT2.0 , 4.0

USB: USB3.0 / Mini USB / 2 x USB2.0

Card Reader: TF Card Reader

Other Interface:

VGA Voice Input / The Sound Output /

DC Power Jack / Parallel LPT Port I/O

VGA Output

Battery Type: 9 The core of lithium batteries 10.08V 6600 mAh

Power Adapter: 110V-240V The adaptive communication power supply

Battery Life: The specific time depending on the use environment

Specifications: 270x180x60 mm

weight: 1911g (with battery)

Certificates: CE / FCC / RoHS

Newest features for MDI:
1. With opel Global tis global diagnostic system
2. With GDS2 diagnostic system
3. Tech2win diagnostic software support adding latest software
4. support programming online
5. support cable communication
6. support original factory latest software
7. With European Chevetl Global tis, Supports European Chevet

GM MDI Description:
General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

MDI and GDS Background
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic

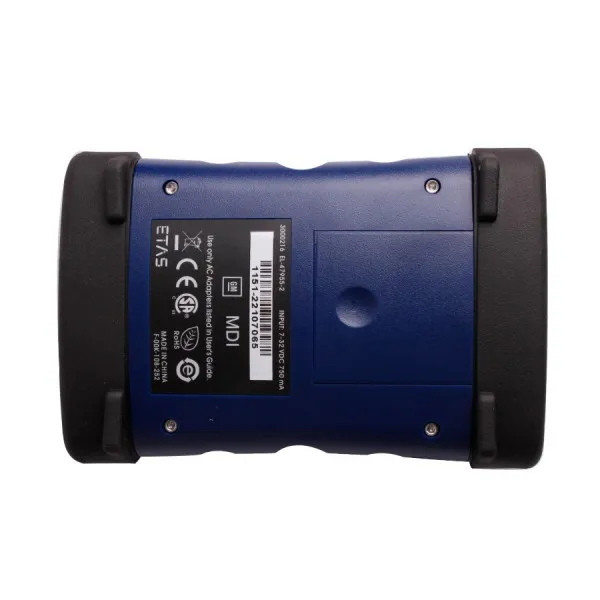

GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
Includes Flight Recorder Mode
New Diagnostic Application Software required for Global A Vehicles
Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.

What protocols does the MDI support?
For immediate use — At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
– UART
– Class 2
– KWP2000
– GMLAN (CAN)
The Future of the Tech 2
The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.
HOW WILL THE GM MDI BE USED?
The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.
When you test after 2010 year gm car, you can use gm gds2 software:

When you want to test after 2010 year GM car, you can use the GDS 2 software to test it,run fast and stable

When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:

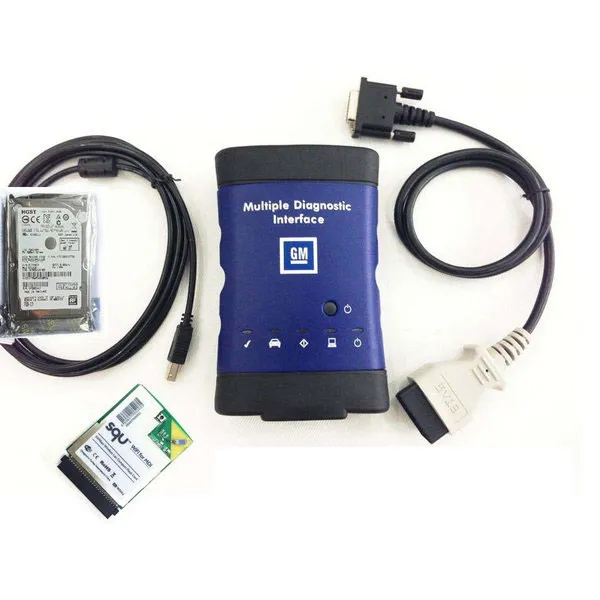

MDI Scan Tool Package List:

1pc x MDI Main unit
1pc x OBD2 Cable
1pc x USB Cable
1pc x AC Adapter
1pc x EVG7 Tablet PC
