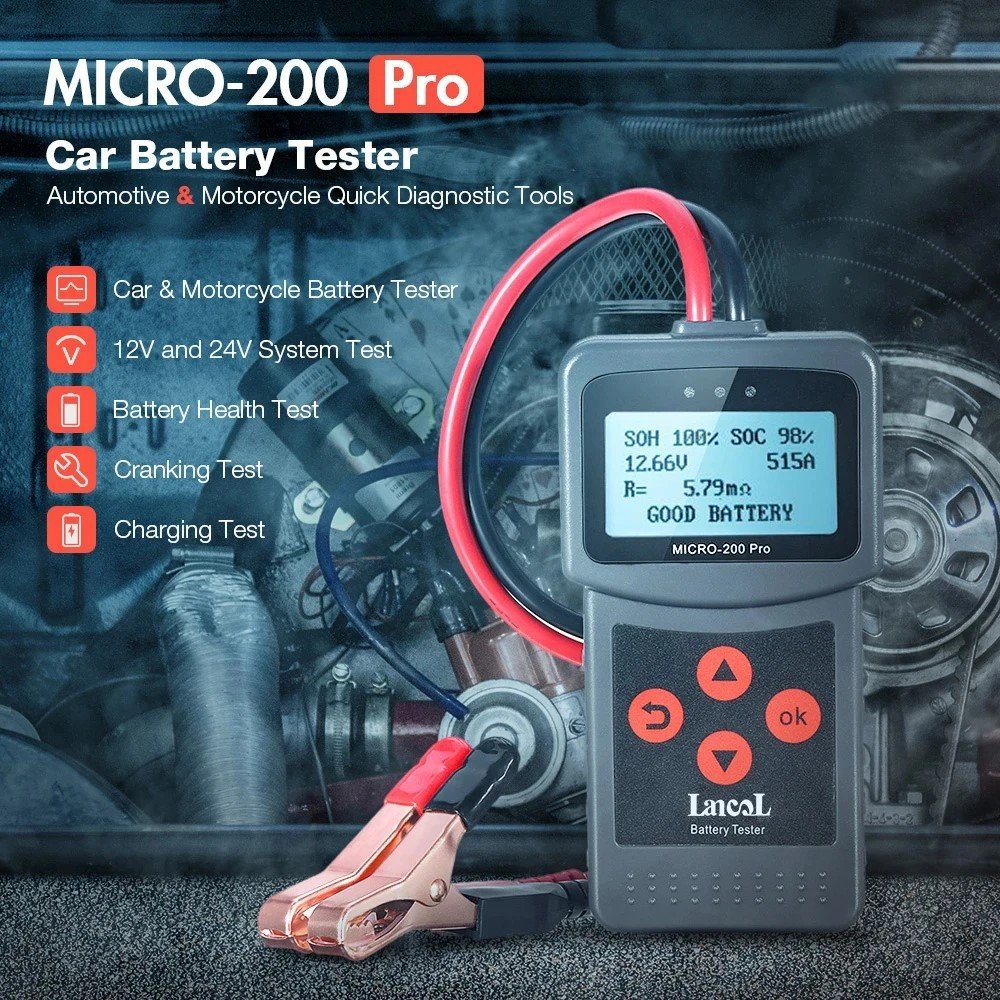

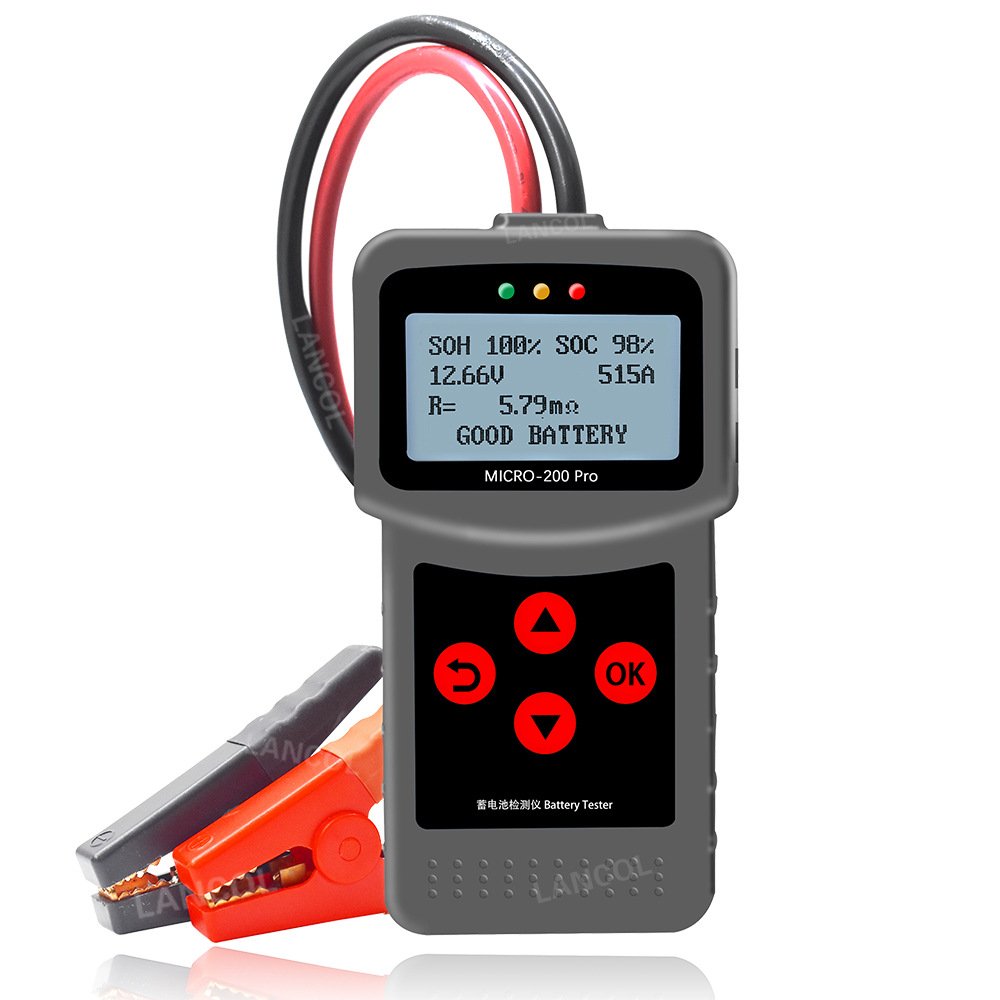

Micro-200 Pro Car Battery Tester 12V/24V Automobile and Motorcycle Battery Detector

Three language configurations are optional

• Asia Pacific Edition :Traditional Chinese, Japanese, Korean, Russian, English
• 2 Northern Europe: English, Dutch, Swiss, Finnish, Norwegian, Danish
• 3 Western European versions: English, French, German, Spanish, Italian, Polish

Functions:

• Battery Cranking Test, load test
• Battery Charging Test, Ripple Test
• Test results storage and review
• Print test results and battery report on PC
• Led Lighting Status: Good(Green) Weak(Yellow) Replace(Red)
• For testing 12 volt batteries.(Car.Motorcycle)
• For testing 12 and 24 volt charging systems (Car.Motorcycle.Truck)

Tips: Truck only could test the 24V system.not the 24v battery.

Check Battery Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Check Internal resistance value (m)

NOTE: For ensuring the accuracy of test results, please stop the engine more than one hour and turn off all electrical equipments in the car.

Features:

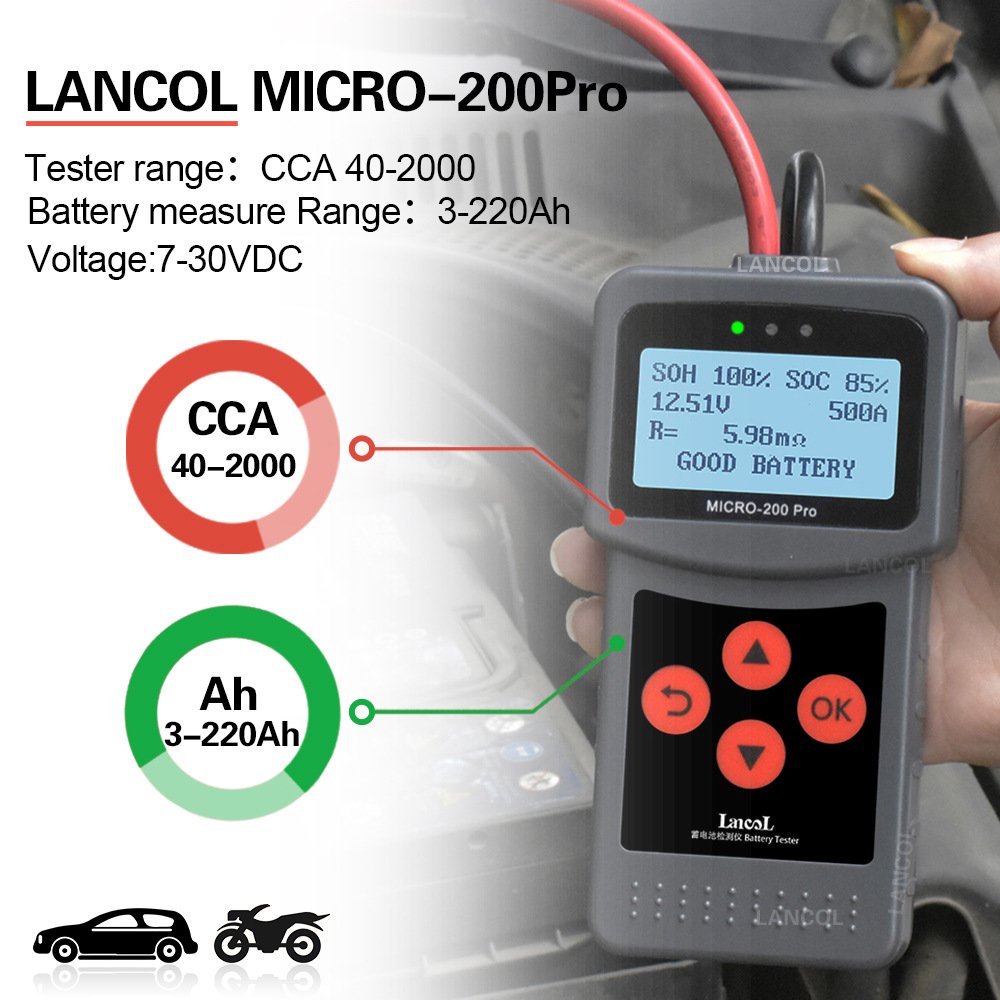

【A Must Tool For Car Owner】Professional battery tester applied for automobile. The measure range is 40-2000CCA . It covers all battery rating Standards such as CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB .Suitable for most types of 12V lead-acid batteries including Regular Floded,AGM,GEL and EFB etc.

【Accurate and Fast Test】With the bulit-in intelligent microprocessor which makes test fast and accurate, compared with the US Midtronics.the accuracy rate is as high as 99.5%,we could guarantee the accuracy and stability of the tester. At the same time, the test results can be displayed within two seconds.

【Battery Health Test】It adopts currently the world’s most advanced conductance measurement technology to measure the actual cold cranking amps capability of the battery,the State of Health,the State of Charge,the Internal Resistance and the Testing Conclusion (Good, Weak,Replace)

【Starter& Alternator Test】Micro200Pro not only a great battery load tester that tests batteries cranking & charging system but also can test alternator’s charging and starter’s cranking conditions.

【Safty and Protection】Deigned with polarity reverse connection protection.If the positive and negative poles are reversed,it won’t damage the device or affect the car or the battery.

【Support Multi-language】It provides 14 languages versions for different need ,including: English, Russian, Korean Japanese.French, Spanish, Italian, German.Finnish, Dutch, Norwegian, Swedish, Danish and Portuguese

【Compare with Micro-200 Tester】

【The difference of two typle of clips】

• Big clip has a large opening, which is suitable for all car battery .It can be easily clamped on the battery pile head.
• Small clip :the jaws are slightly smaller, but stronger and not easily damaged,suit for motor and some car battery.

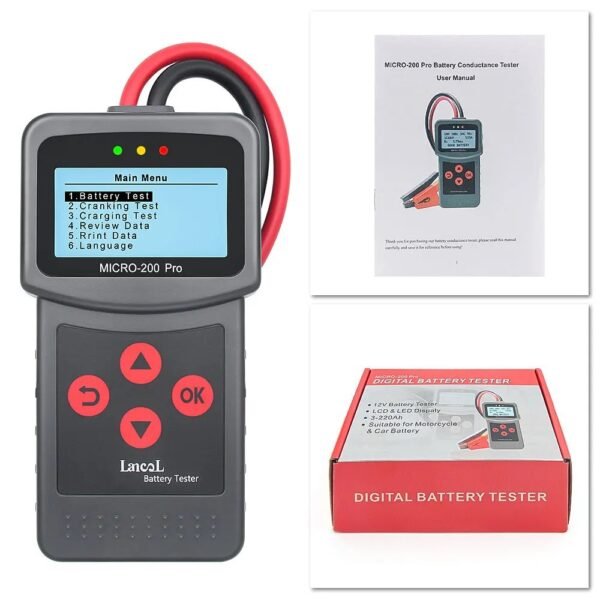

【Package List】

1* MICRO-200 Pro Battery Tester
1* USB cable
1* English User Manual
