Mongoose Pro For GM II Diagnosis and programming interface Supports GDS2 Global Vehicle Diagnostic

Mangoose Pro GM II Cable Supports GDS2 for Global A Vehicle Diagnostics

Mangoose Pro GM software version:V2016.6

Mangoose Pro GM offers a wide range of capabilities including:
* Diagnostics functions via GDS2
* Diagnostics functions via Tech2WIN
* All Module Flash Programming(customer need have online account which we unable to provide)
* Security system programming(customer need have online account which we unable to provide)

Mangoose Pro GM II Features include:
• Diagnostics for powertrain,chassis, body, anti-theft, and TPMS systems with TECH2WIN.
• Reprogramming for all modules with TIS2WEB.
• Tech2 diagnostics for a fraction of the cost
• Faster module flashing and communications
• Reliable and convenient

Emissions Reprogramming:
1996 to current

Body Control Reprogramming:

1996 to current

OEM Diagnostics:
1996 to current

Mangoose Pro GM II Reprogramming:
* Mangoose Pro GM supports module reprogramming using GM’s TIS2WEB software.(customer need have online account which we unable to provide)
* Technicians can use Mangoose for GM security systems.(customer need have online account which we unable to provide)

Mangoose Pro GM II Technical Specs:

Key Features:
* Support for GM TIS2WEB Programming software(customer need have online account which we unable to provide)
* USB Diagnostics tool for CAN, J1850VPW, and Single-Wire CAN vehicles
* Simple packaging with electronics contained inside the cable.
* Supports Windows XP, Vista & 7 (32 & 64bit)

Bus Protocols:

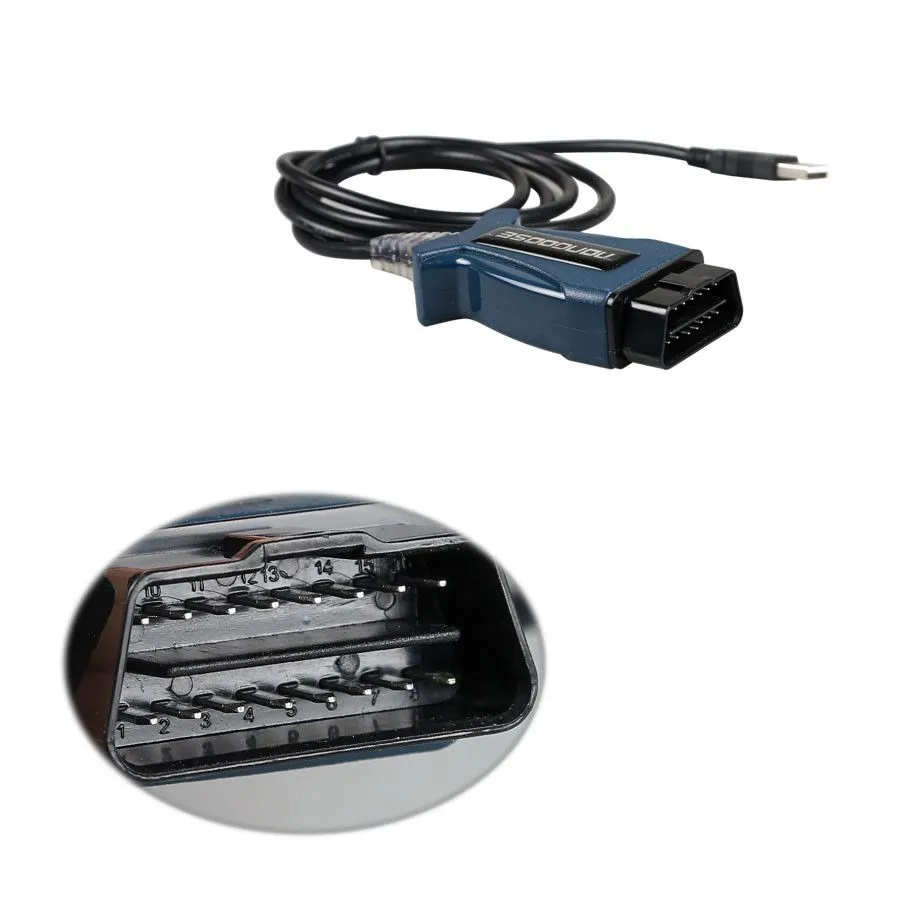

* CAN pins 3-11, 6-14, 12-13
* Single Wire CAN pin 1
* J1850VPW / GM Class 2
* ISO 9141 / KWP pins 3, 6, 7, 8, 9, 12, 13
* GM UART
* ISO22900 Compliant for GM’s Tech2WIN software

Other
* J2534 and J2534-1 compliant device driver
* Commercial Range (0 to +70 C)
* Dimensions: 3″ x 1.75″
* Operating Voltage: Bus-powered by USB
* Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device drivers

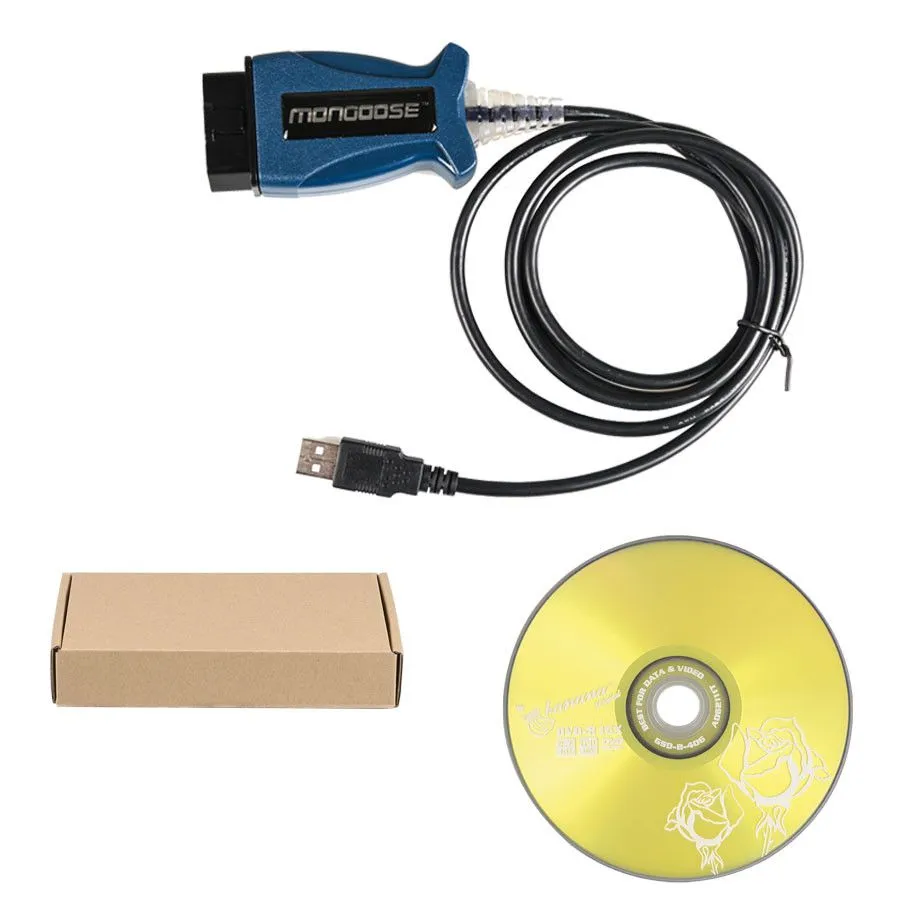

Package List:
1pc x Mangoose Pro GM II Cable
