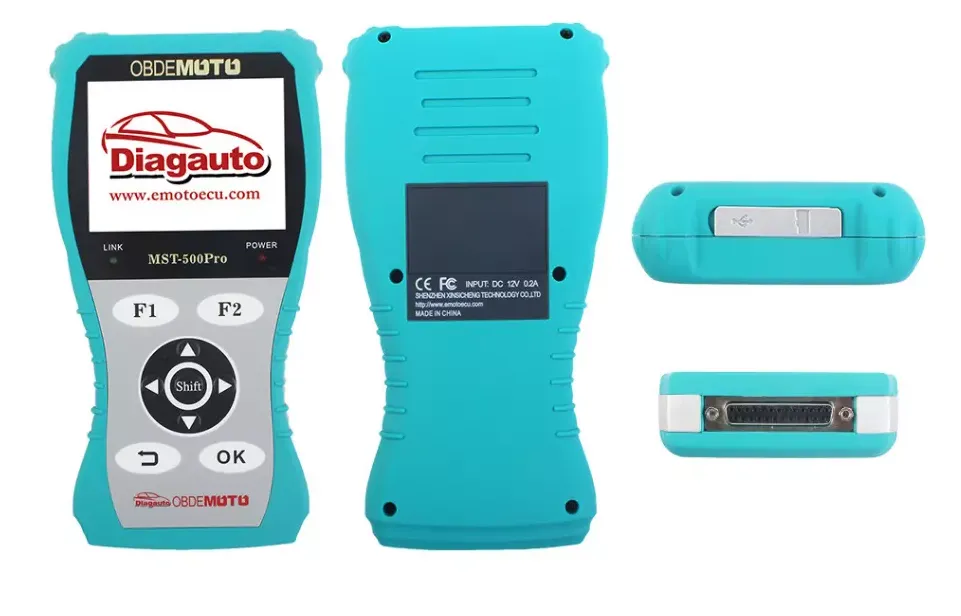

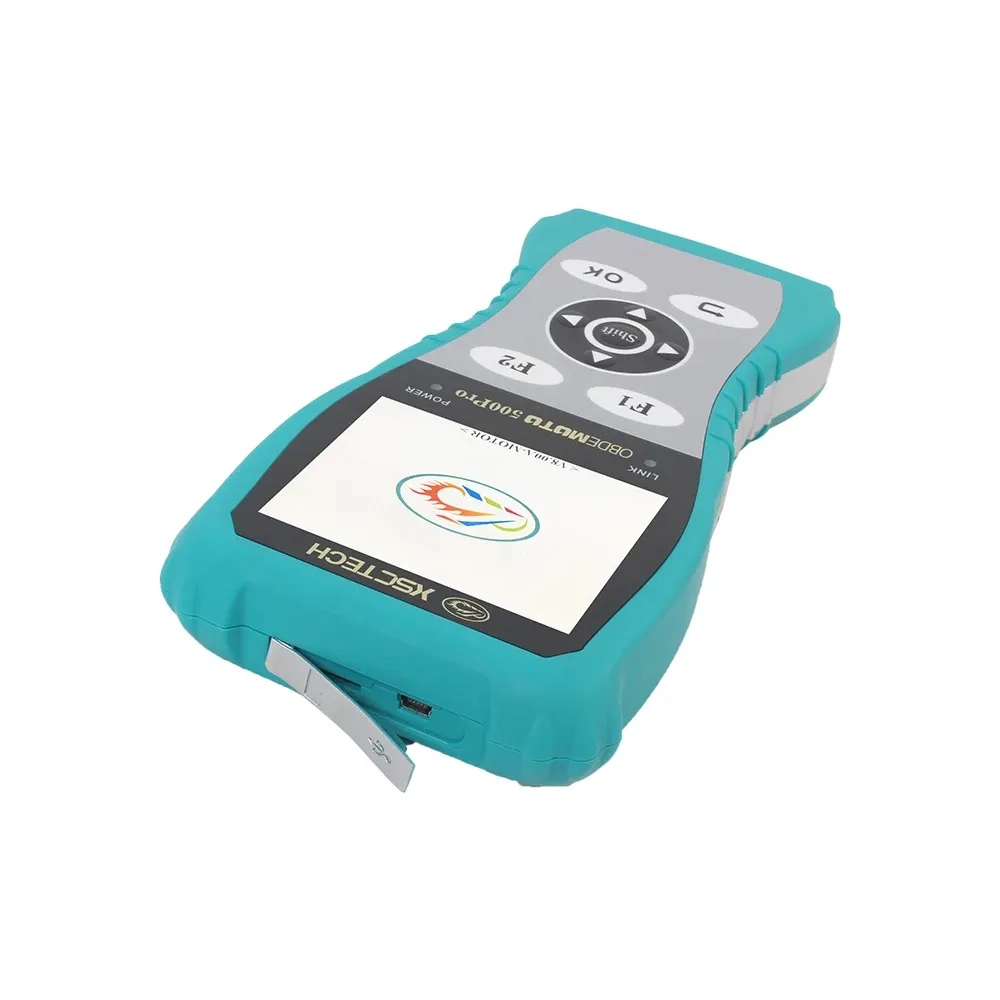

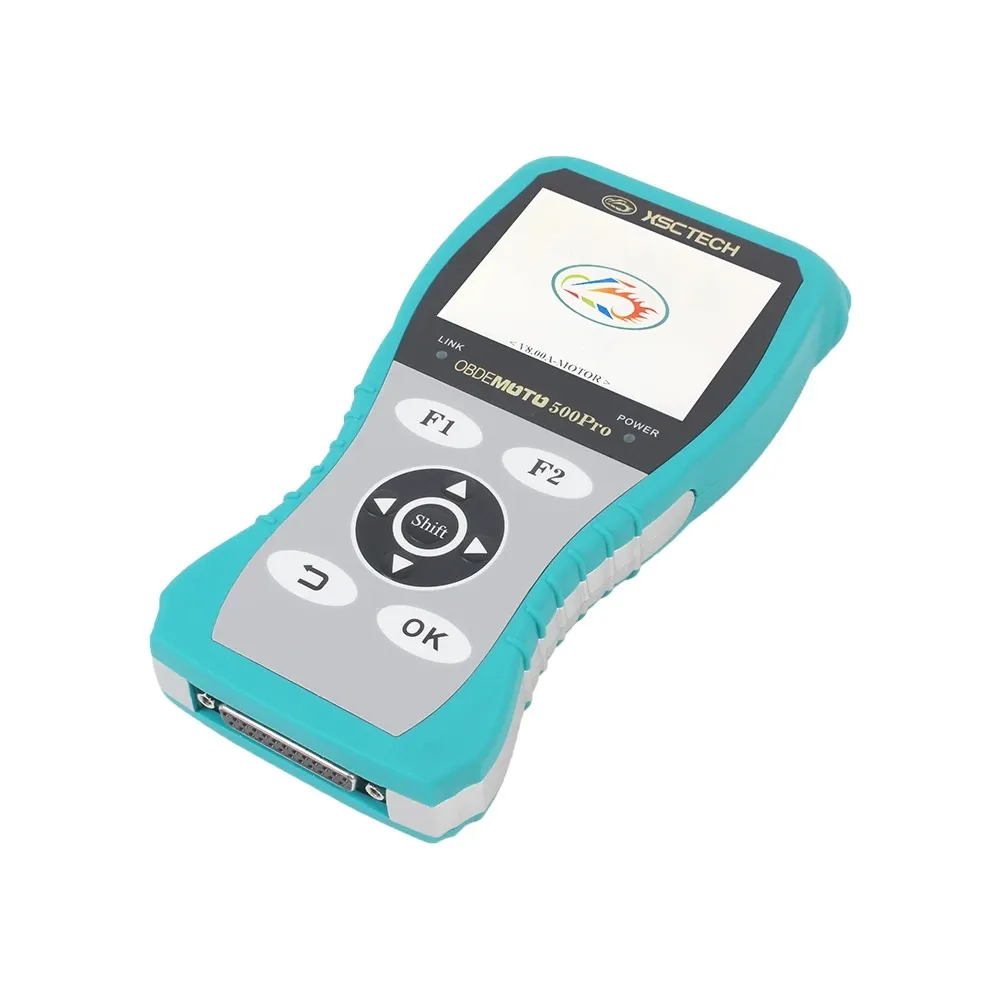

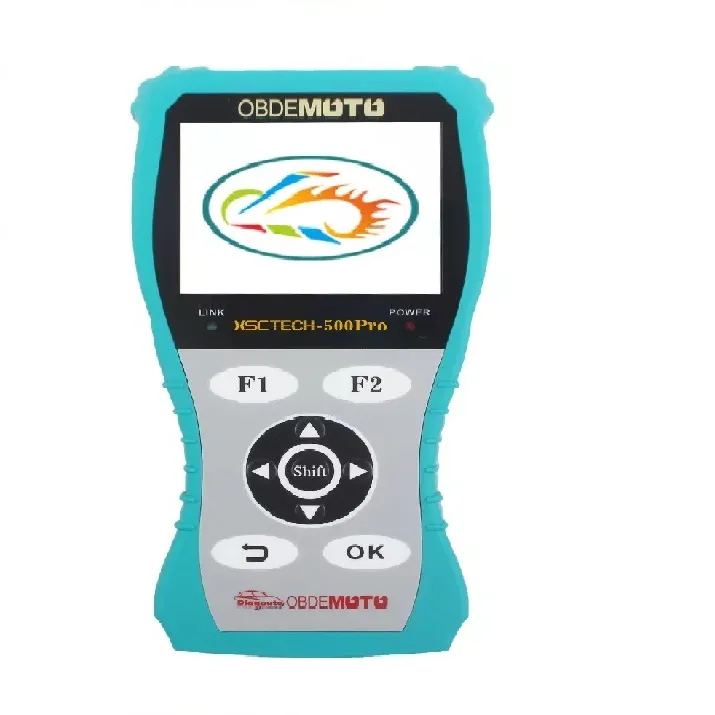

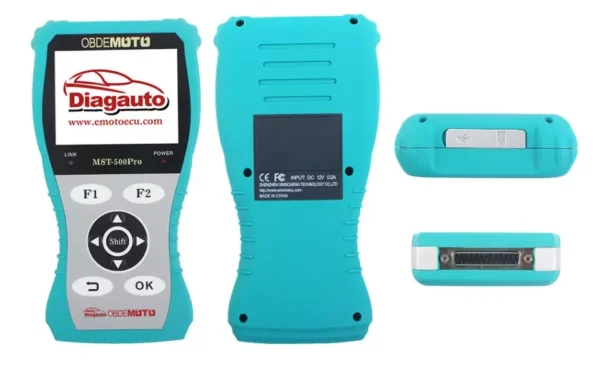

MST-500 PRO MST500 PRO Handheld Motorcycle Diagnostic Scanner MST-500 Plus motorbike Brand EFI Diagnostic Tool

MST-500 PRO MST500 PRO Handheld Motorcycle Diagnostic Scanner MST-500 Plus motorbike Brand EFI Diagnostic Tool

MST-500PRO Motorcycle Diagnostic Scanner is the latest released version in 2021.
As a new version diagnostic scanner, except for the new fashion design, the functions are also enhanced for a much better performance. It will always be the most trusted repair tool for technicians, engineers and repair workers, save their energy and time.

Work with the following brands:

HONDA, SYM, KYMCO, YAMAHA, VESPA, PIAGGION, SUZUKI, AEON, BENELLI, PGO, HARTFORD

*The manipulation of software update is very simple, please check the instruction.

Function:

1. Read System Information
2. Read Data Stream
3. Read DTCs
4. Clear DTCs
5. Freeze Data
6. CO Idle Speed Adjustment(only for part of models)
7. Actuator Test
8. Troubleshooting Guide
9. ABS System Test
10. ECU Programming
11. Smart Key Programming
12. Upgrade online

Specifications:

Power supply: DC 10-15V
Working Current: <200mA
Screen: 3.5 inch IPS display
Operating temperature:0-70°C
Storage Temperature: -10°C-55°C
Humidity: <90%
Ports: diagnostic port, COM port, USB port, Power port.(PC Version works only)
Upgrade port: USB Port (PC Version works only)
Communication port: COM port (PC Version works only)
Support Language: English

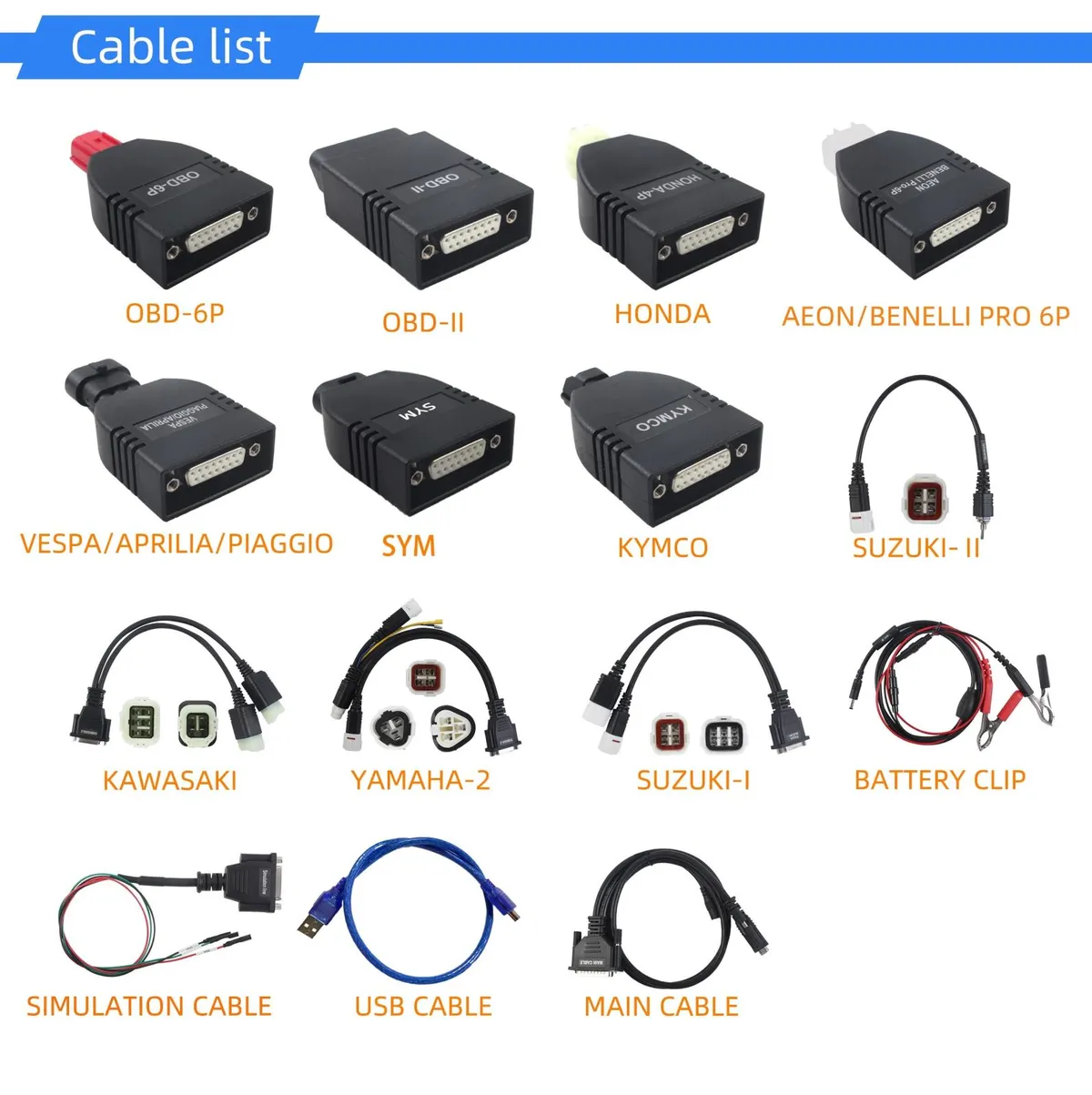

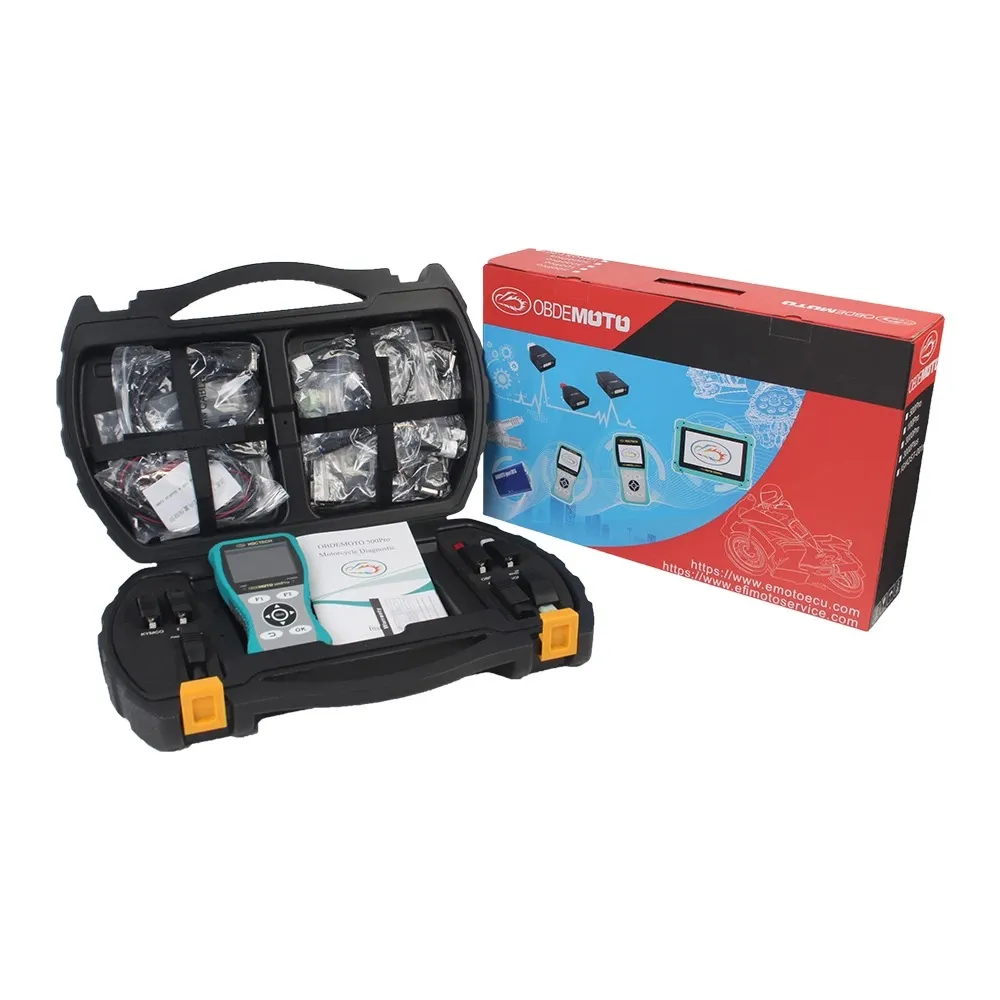

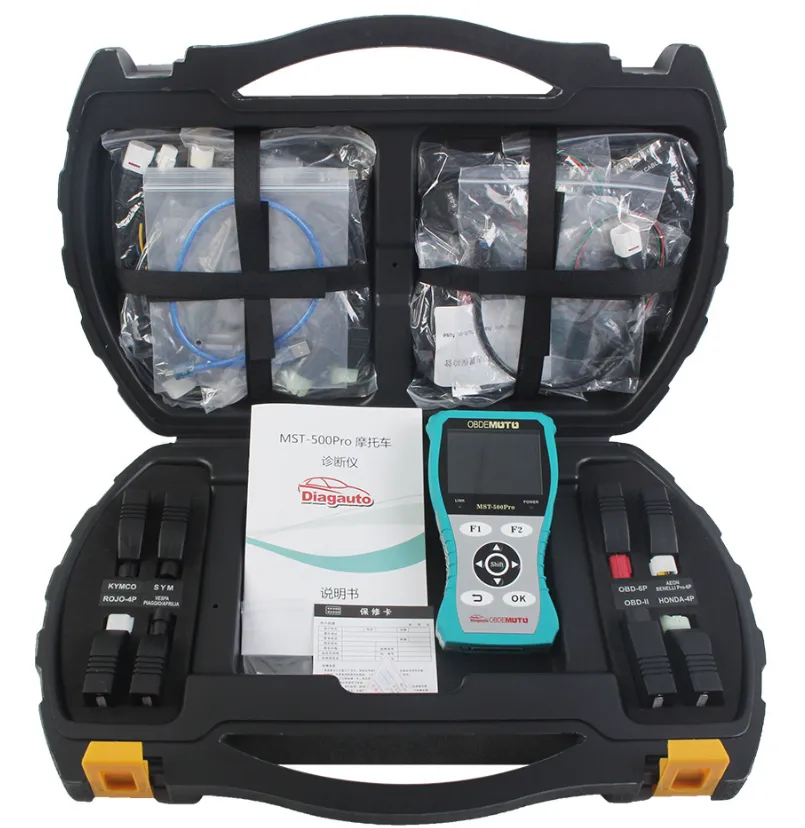

Packing List:
