MST-601 PRO MST601 PRO OBD2 Scanner Code Reader National Ⅳ Standard Motorcycle Diagnostic Scanner Supports All OBD2 Protocols Cars

MST-601 PRO MST601 PRO OBD2 Scanner Code Reader National Ⅳ Standard Motorcycle Diagnostic Scanner Supports All OBD2 Protocols Cars

Application:

1. Support all cars since 1996.

2. Support new motorcycles since 2019.

Function:

1. OBD2 Car & motorcycle: Reading code, Erasing fault code, Data flowing

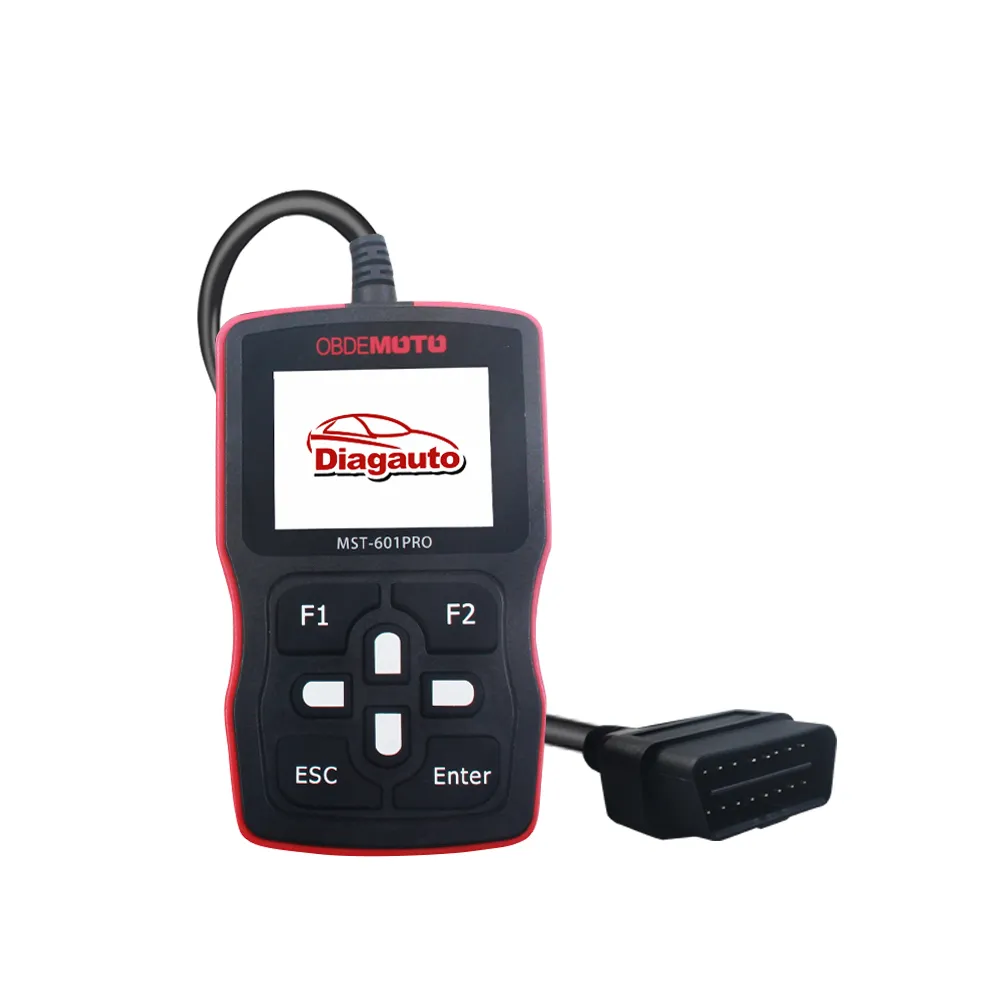

1.Appearance and Buttons Introduction

2 Keyboard Functions

▲▼Up/Down Arrow: Select test items;

◄ ►Left/Right Arrow: Turn over the screen;

Enter:Enter/Carry out ;

Esc:Return/Quit;

F1,F2:Function Key;

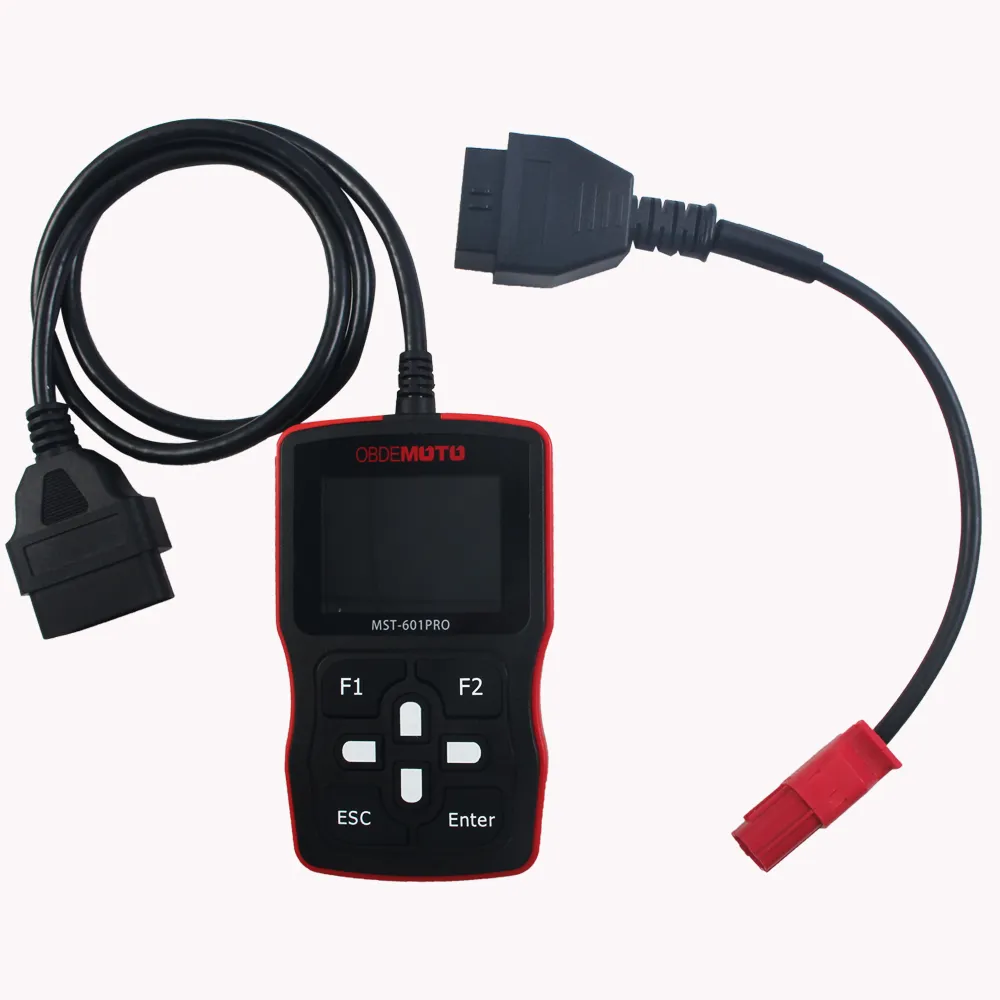

3 Connection with Vehicles

Diagnostic cable is properly connected with the diagnostic socket of the vehicle

4 Function Option

Vehicle KEY-ON, the scanner is power on, the following interface appears:

01.Vehicle diagnosis:Fault code reader,engine system diagnosis

02.System setting:Set key sound and display language types.

03.Version information:Display the local serial number, software version, hardware version, authorization information and so on.

5 Upgrade

Log on to the company’s official website http://www.emotoecu.com to view the detailed upgrade operation guidelines.

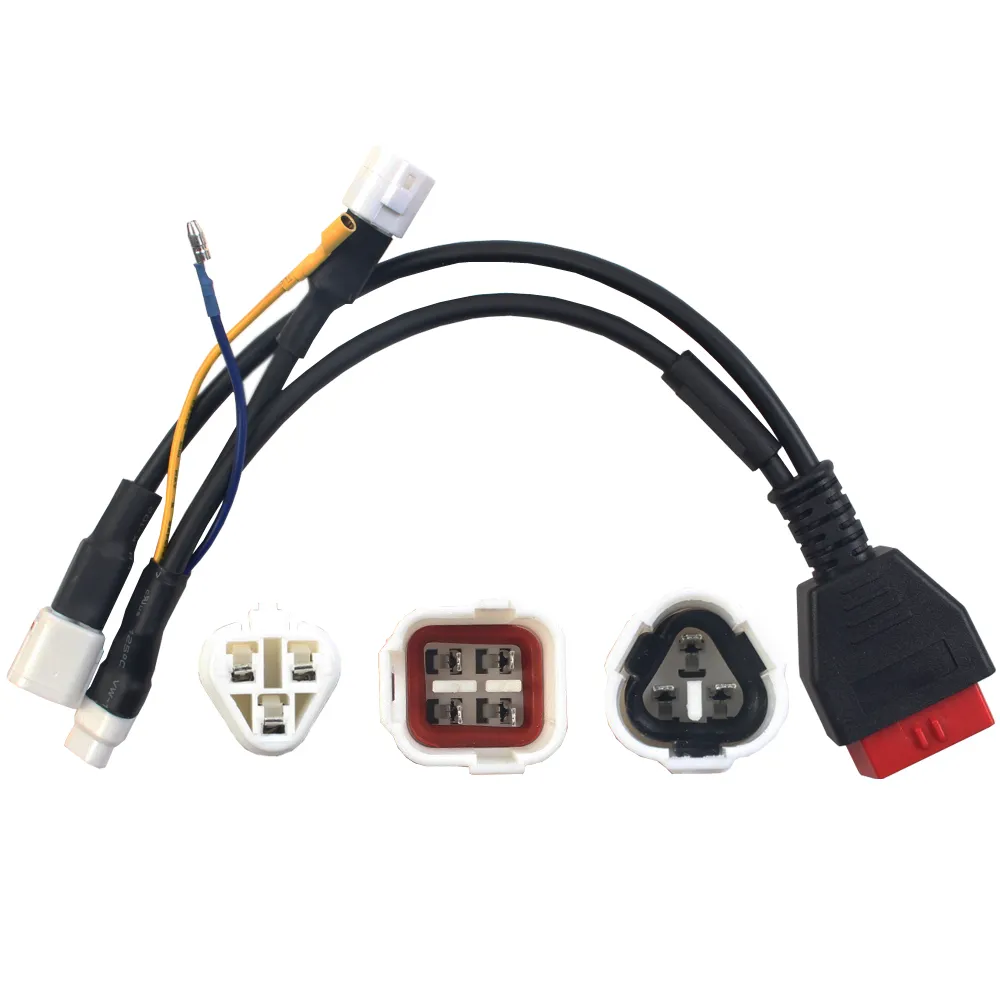

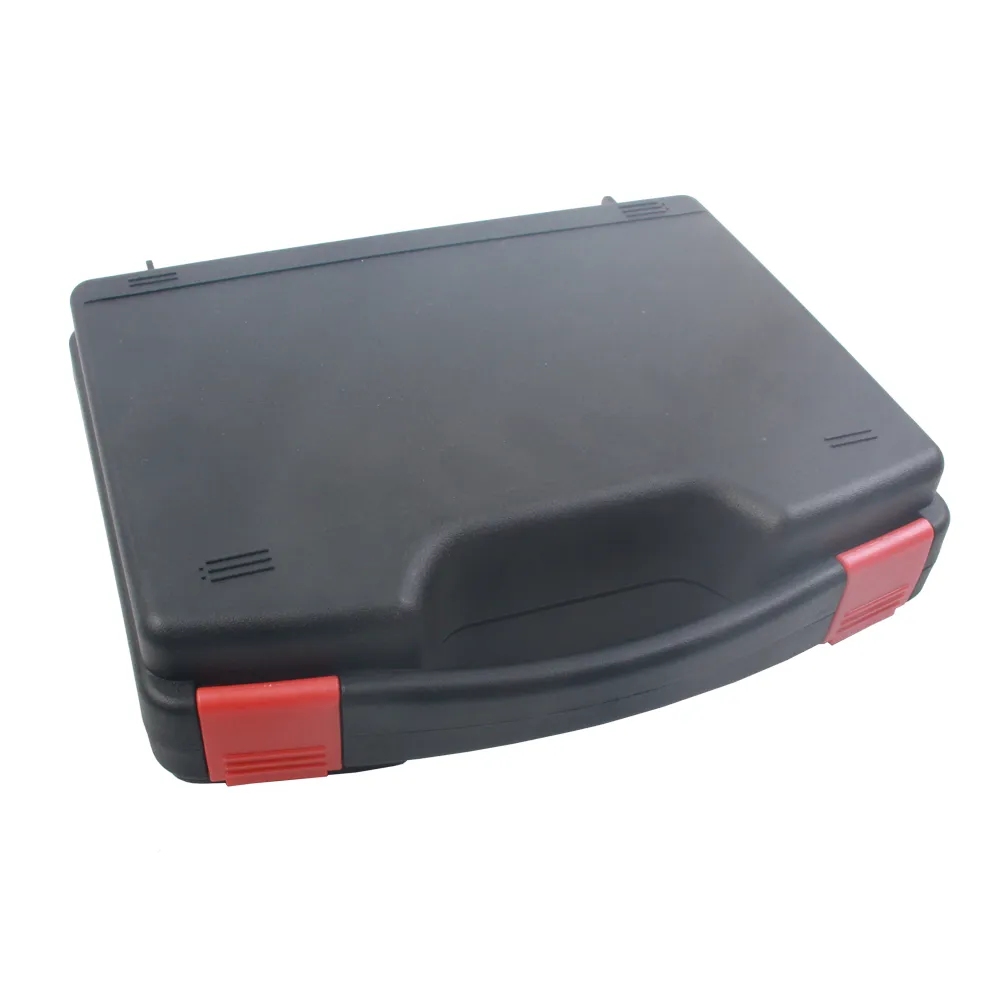

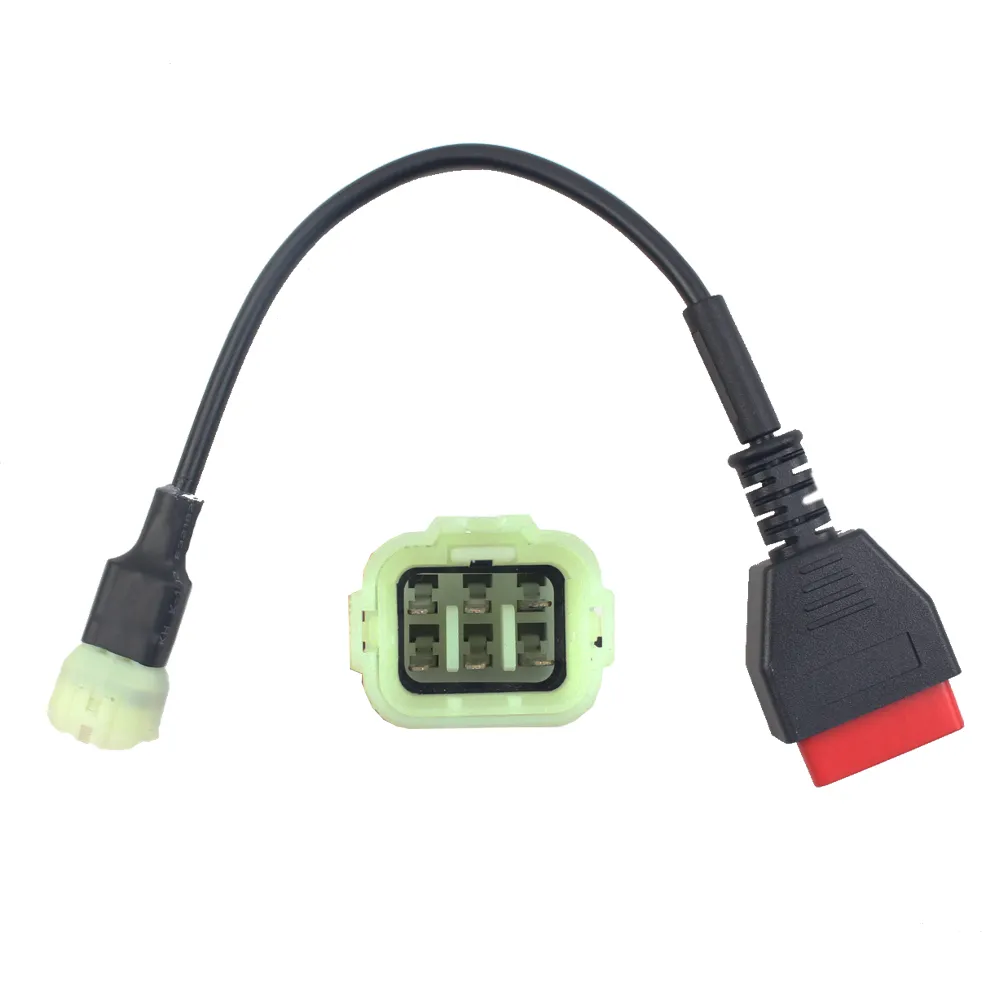

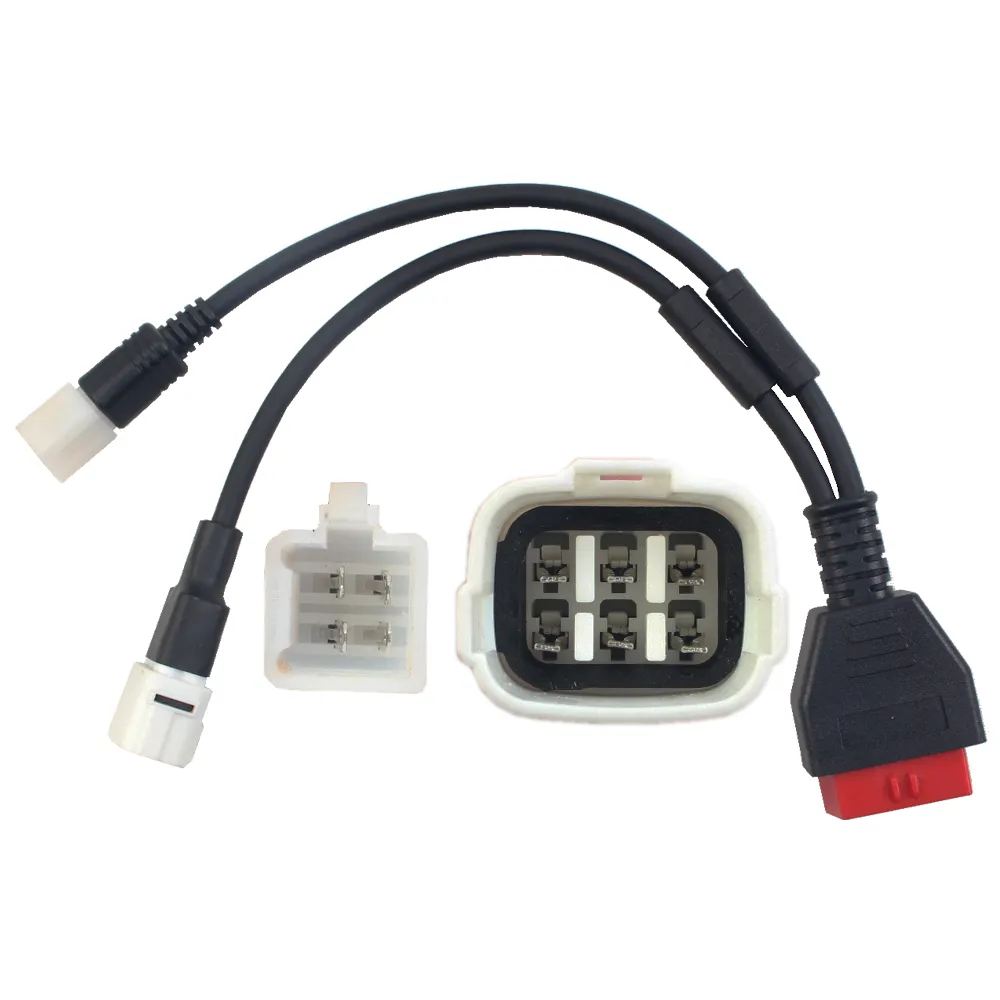

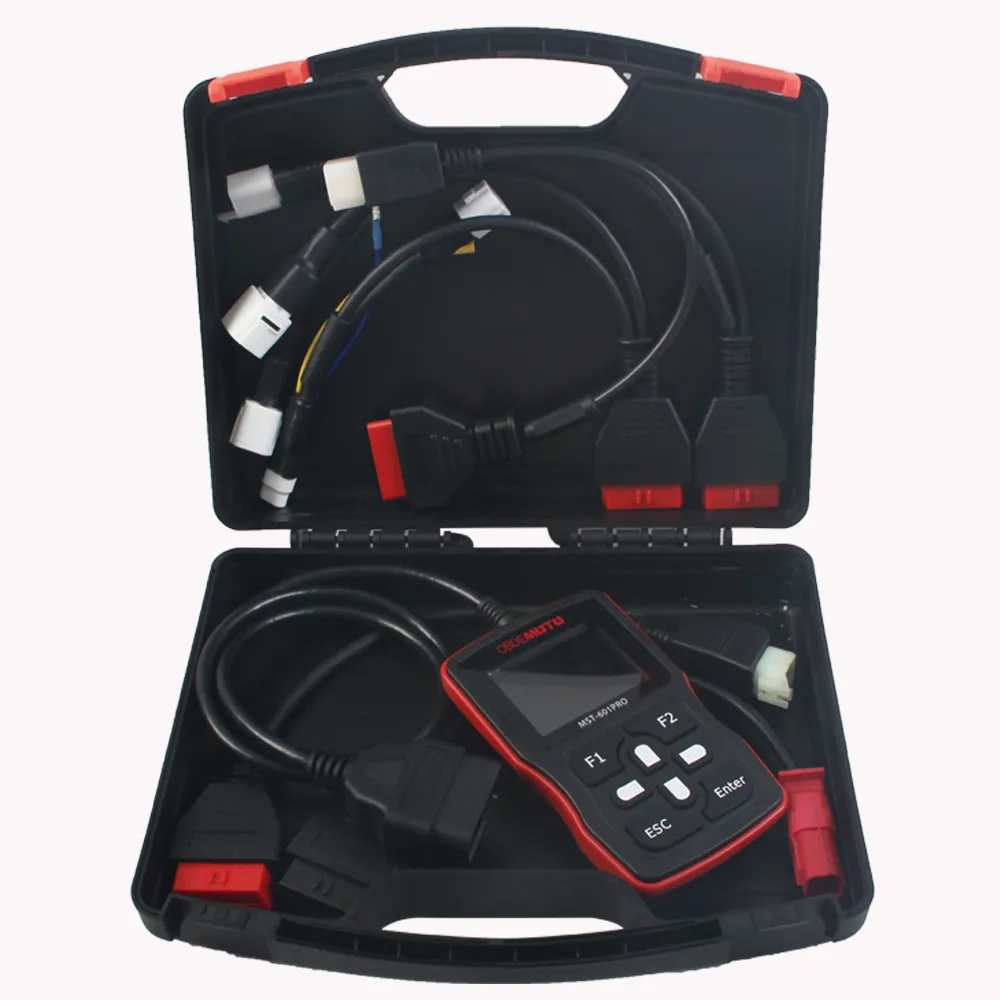

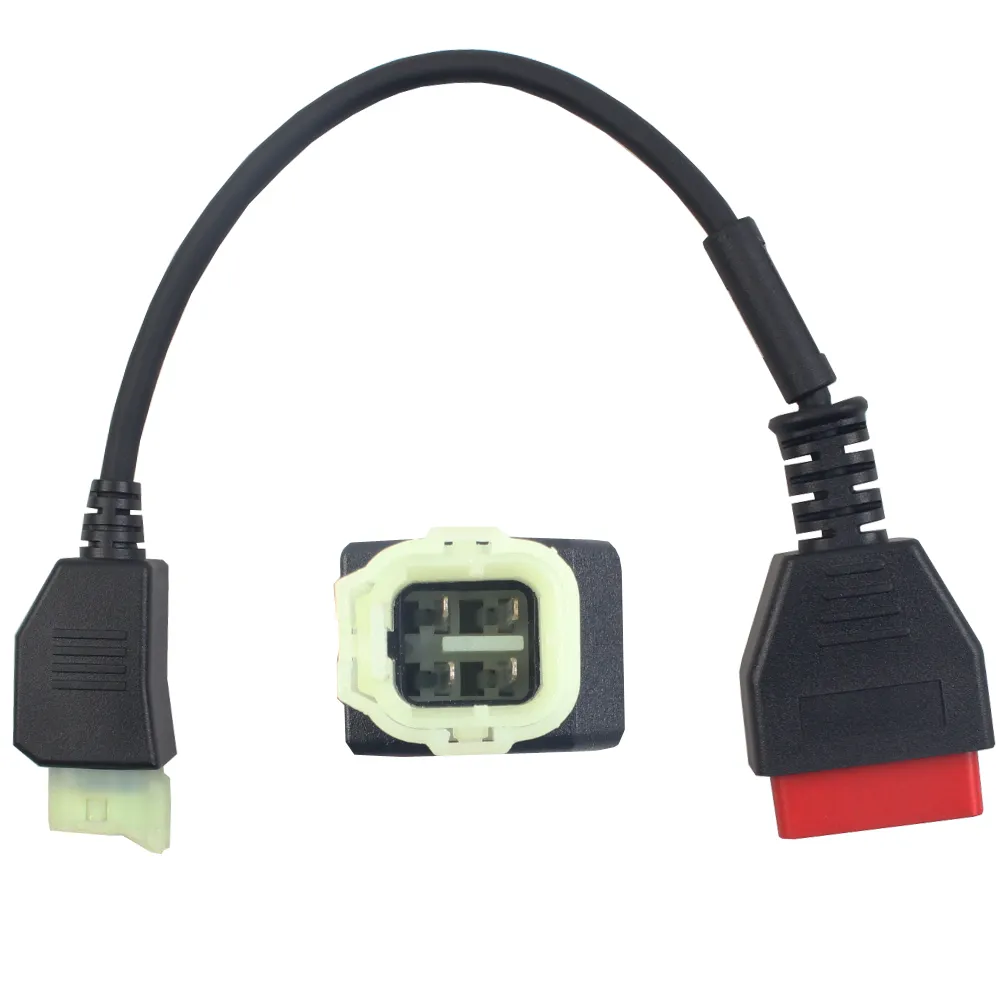

6 Image:
