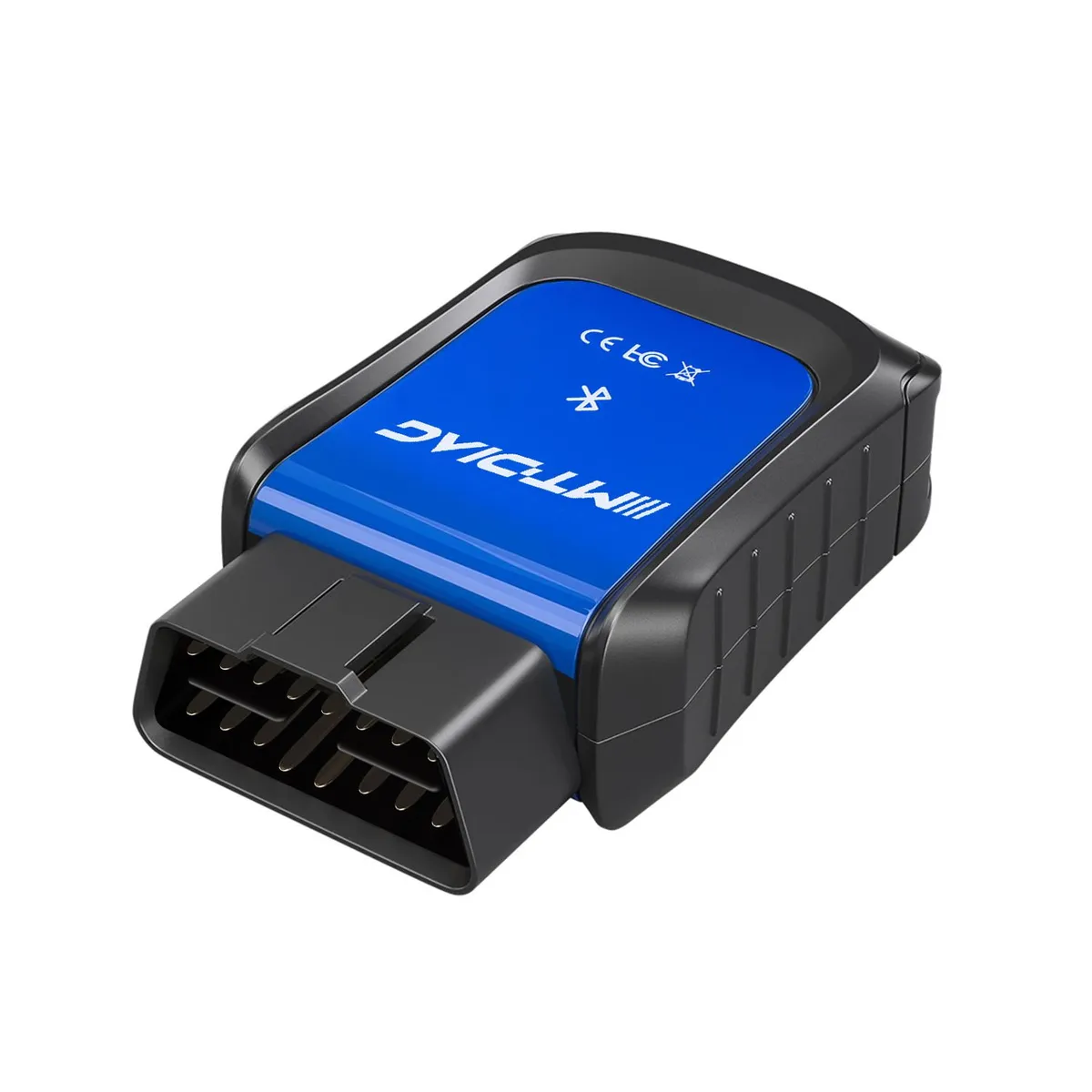

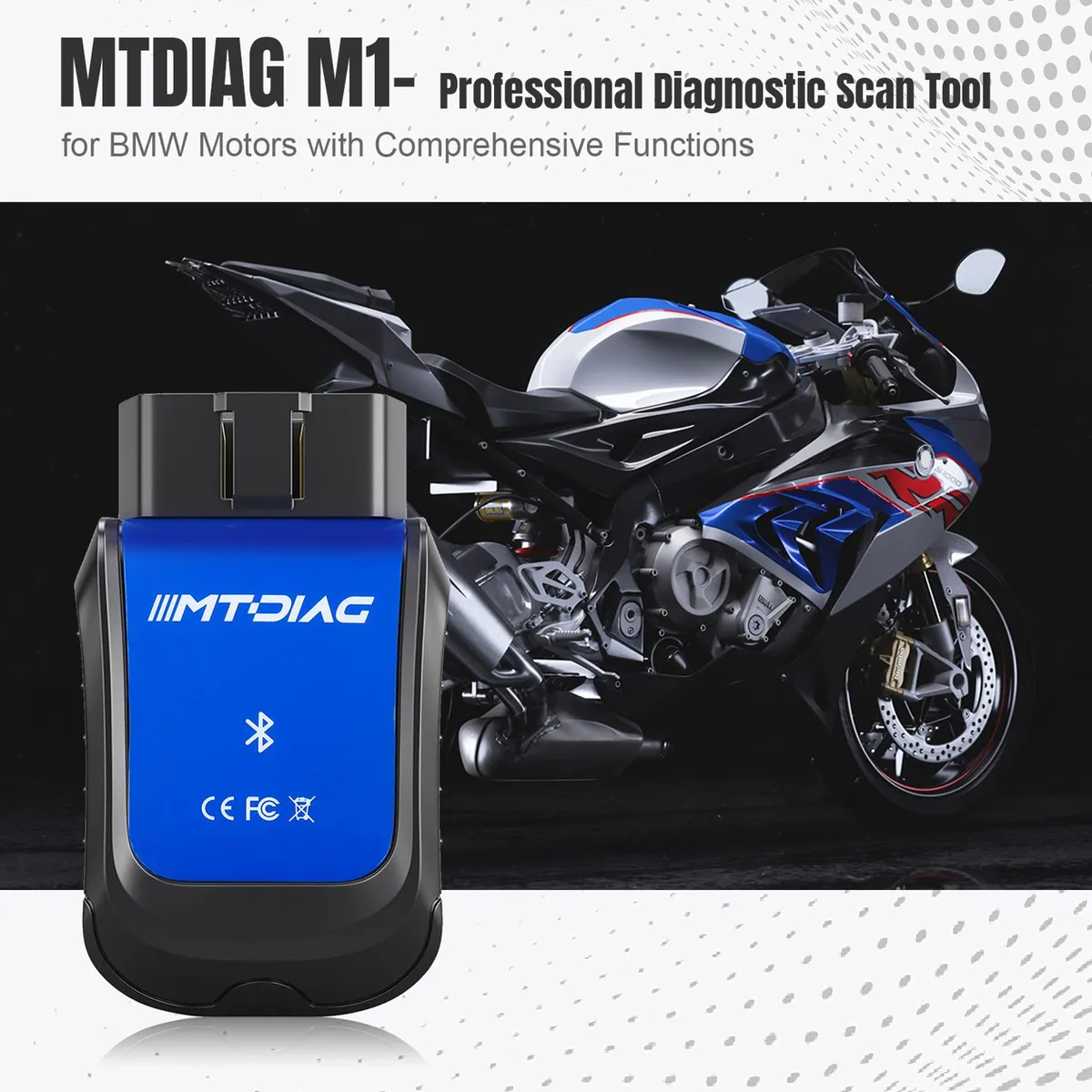

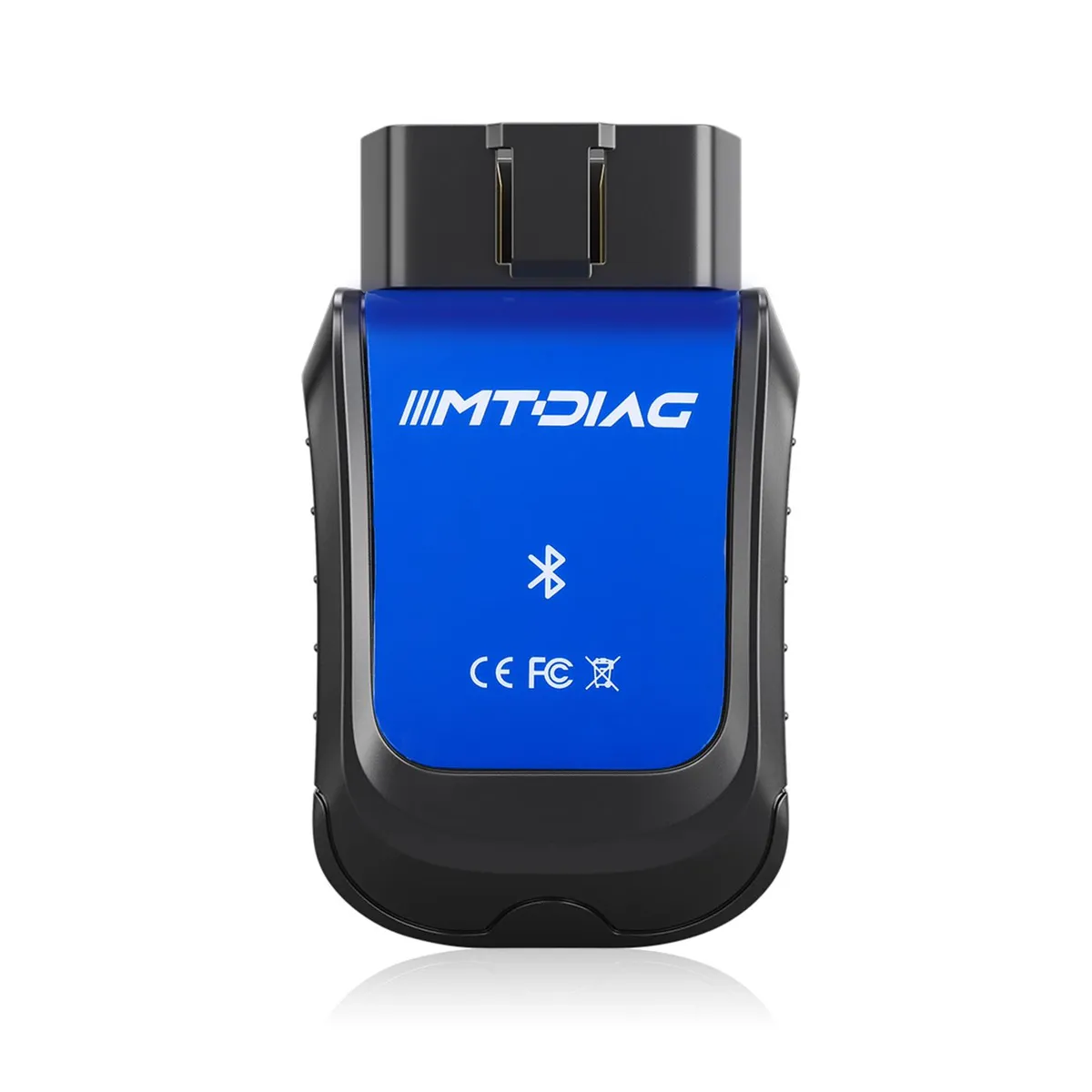

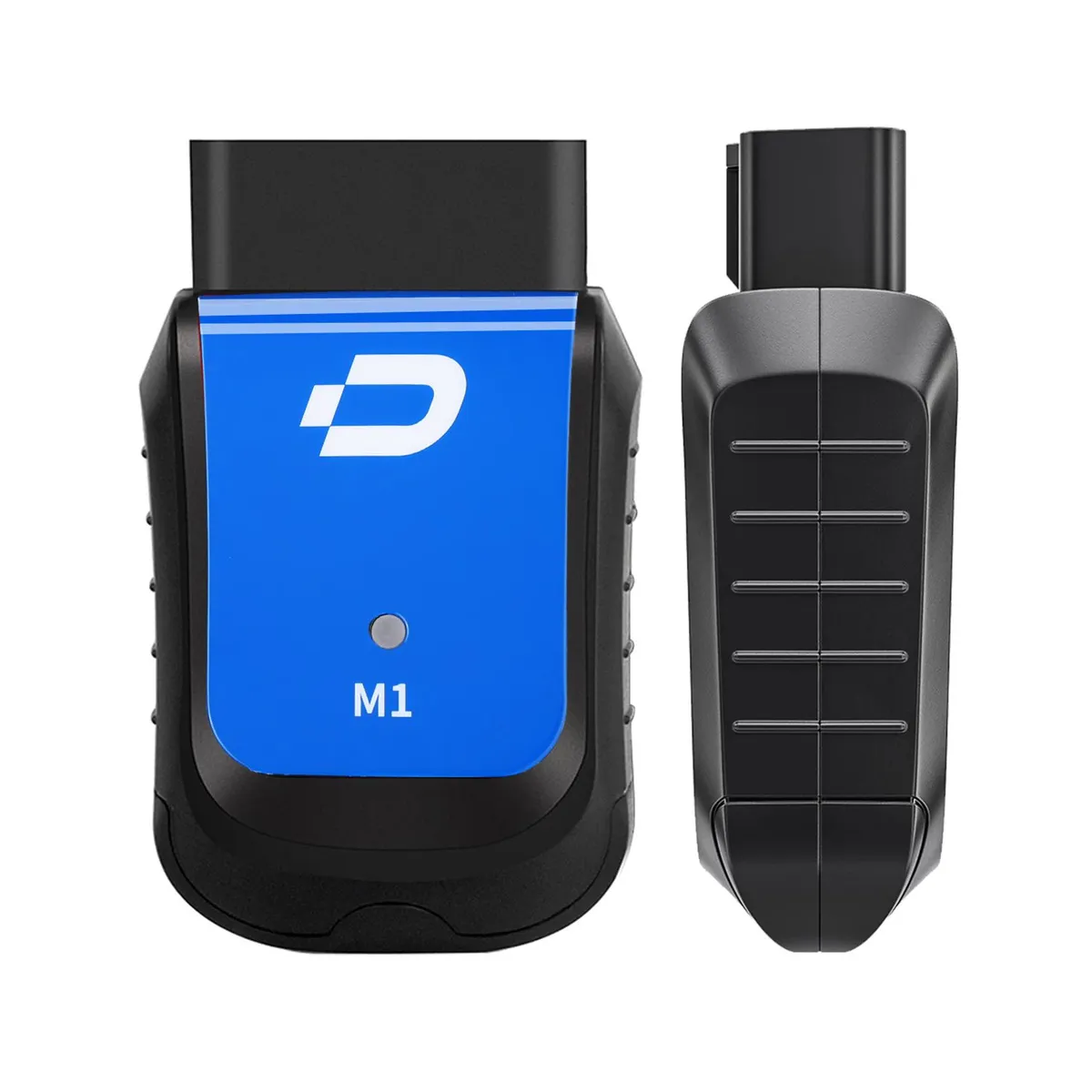

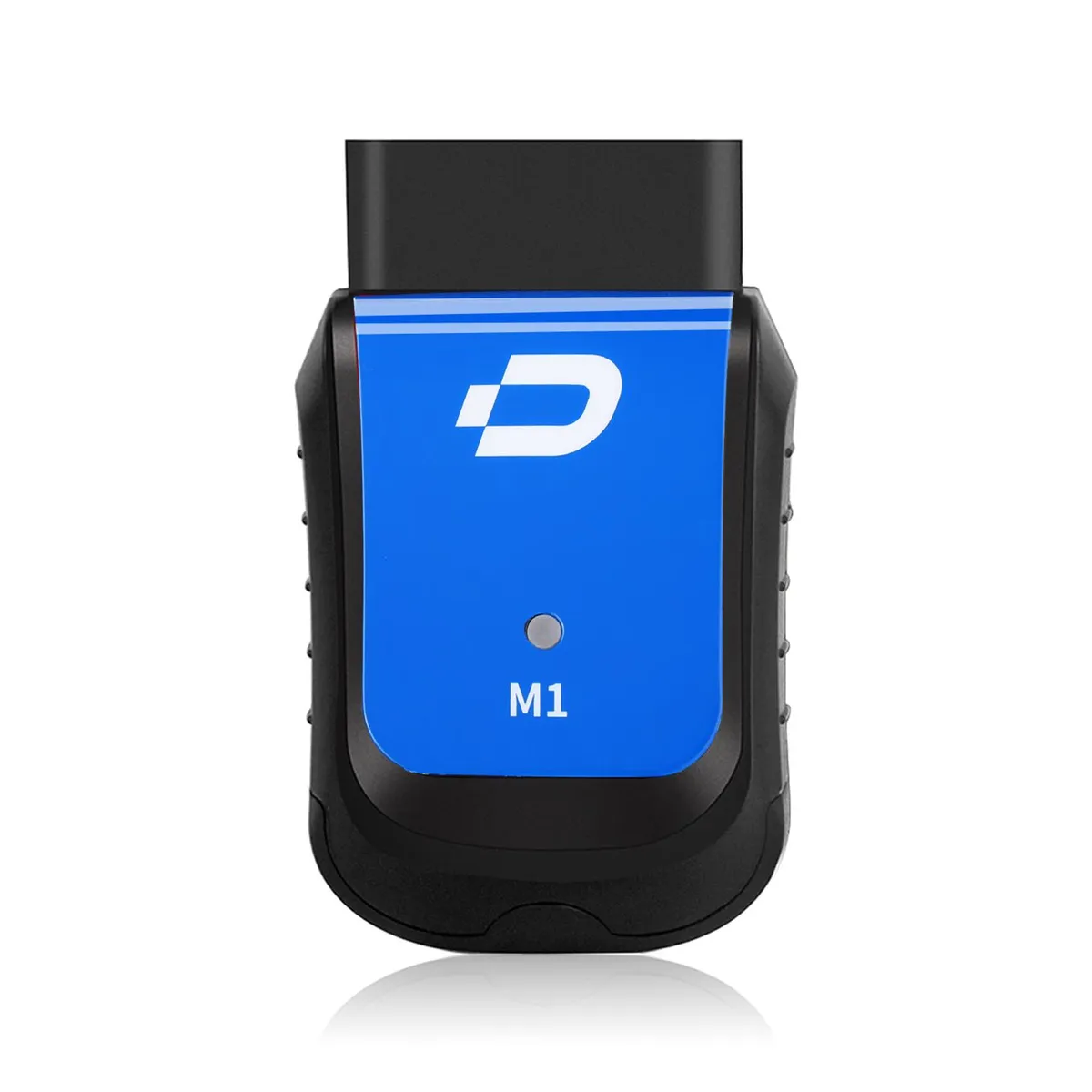

MTDIAG M1 Motor Diagnostic Scanner only for BMW Motorcycles with Oil Reset IMMO Key Service

MTDIAG M1 is a professional diagnostic scan tool for BMW motors, with comprehensive functions. It is aBMW motorcycle customized mobile diagnostic instrument which means that Android users need to use it with their Android phones and tablets to do diagnoses (App for Apple users is still in developing).

Convenient and fast to use, and easy-to-understand operation;

Covered BMW Motor all series: C, E, F, G, K, R, S;

Covered BMW Motor all diagnostic functions and service;

Functions of all system;

Common service functions: Oil reset, IMMO key, Calibrate ESA, Calibrate SAF, Calibrate headlight, Switch off transport mode, etc.

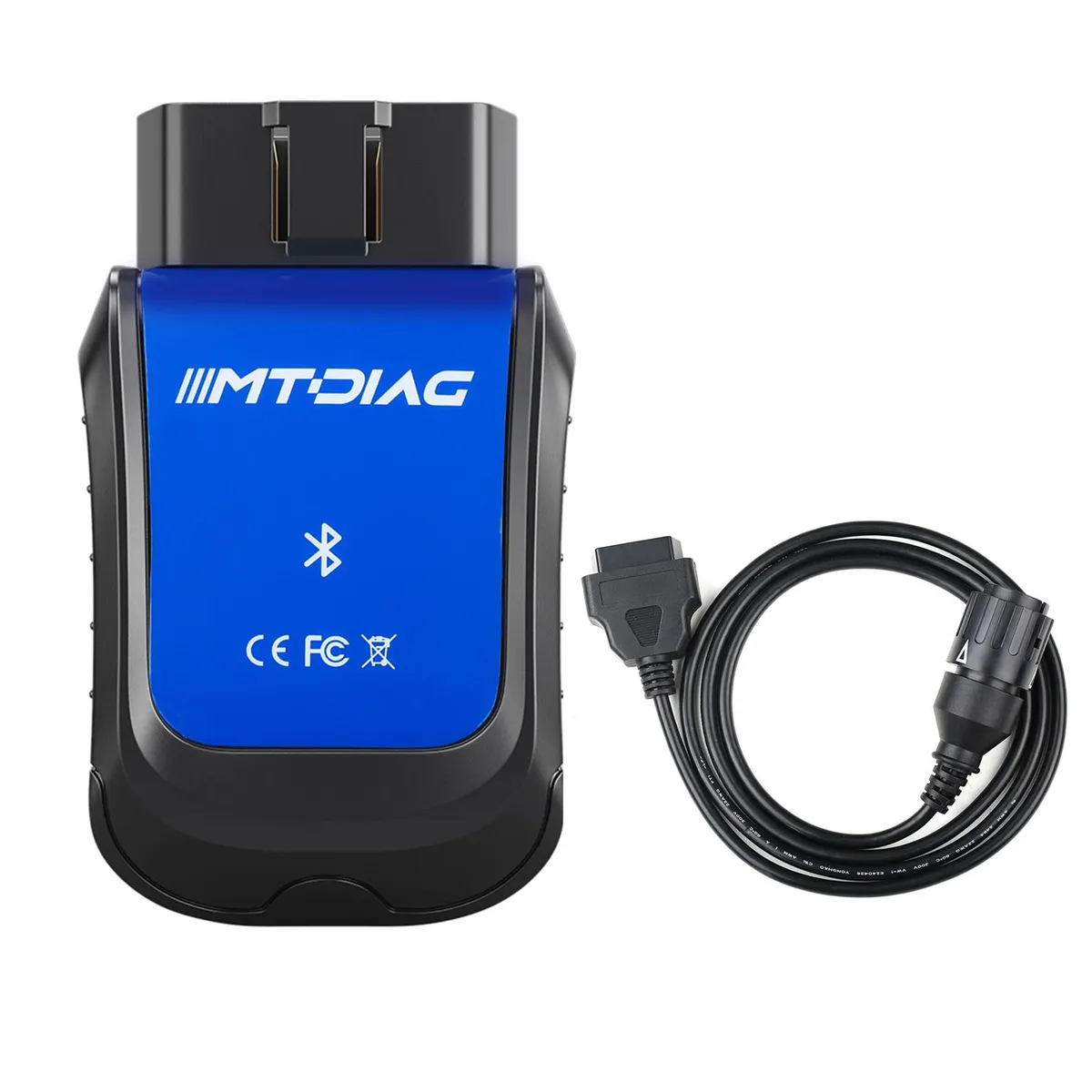

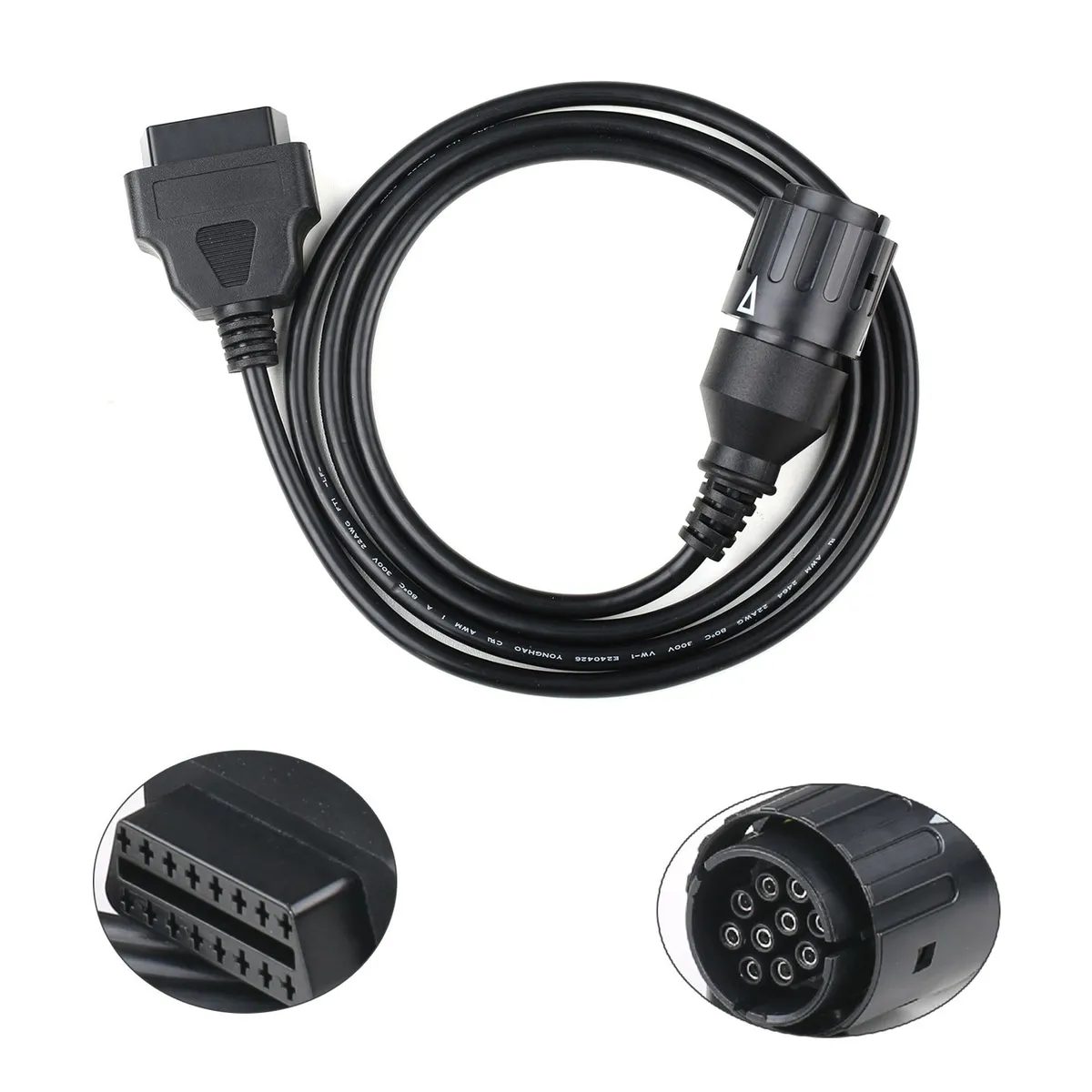

Support standard OBDII-16 and BMW 10 PIN connector
Lifelong free upgrade

System	Android system above version 4.4
Processor	ARM 32 – bit Cortex processor
Communications	Wireless
Input Voltage	DC 8-16v
Operating Temperature	-10 to 70°C (14- 158° F), Relative Humidity<90%
Storage Temperature	– 30 to 120°C (-22 – 248° F), Relative Humidity<90%
Dimension	150*94*40 mm
Unit Weight	GW: 0.166kg
Protocols	UDS, ISO 9141-2, K/L lines, SAE-J1850VPW, SAE-J1850 PWM, CAN ISO 11898 ISO15765-4, High speed, Middle speed, low speed and single wire CAN.

Package Includes:
1pc xMDDIAG M1
