New VAS 5054 Plus ODIS V5.2.6 Bluetooth With OKI Chip 5054A Plus Support UDS Protocol

New VAS 5054 Plus ODIS V5.2.6 Bluetooth with OKI Chip5054A PlusSupport UDS Protocol

VAS 5054 Plus Feature:
1. Bluetooth Version (Bluetooth Connection Password: 082145725), with OEM Bluetooth chip.
2. With OKI Chip, Support UDS Protocol
3. Software version:ODIS V5.2.6,

support Multi-languages: English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German

/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese

4. Supported Car Models:For VW, For AUDI,For SKODA, For SEAT For Bentley and For Lamborghini
Description:
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054 PLUS via Bluetooth or USB.
Access Via Bluetooth:After a connection to the VAS 5054 PLUS has been set up,
the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).
The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application
Access Via USB:You can also connect the VAS 5054A to the application PC by using the supplied USB cable.
Windows detects the VAS 5054 PLUS through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application.
Setup of the VAS 5054 PLUS is then complete and the device is ready for use by the diagnostic application.
ODISV4.23VAS 5054 Plus Protocols:
The vehicle protocols are handled directly in the VAS 5054 PLUS. This ensures fast response times and a reliable real-time behavior independently of the PC
operating system.
Every time a connection is established, the VAS 5054 PLUS software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
ODIS V4.23 VAS 5054 Plus Support Following Protocols:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
UDS Protocol
PWM Protocol
ODISV5.2.6Computer Windows System Requirements:
Windows System Language: American English
Win 7 professional version
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing

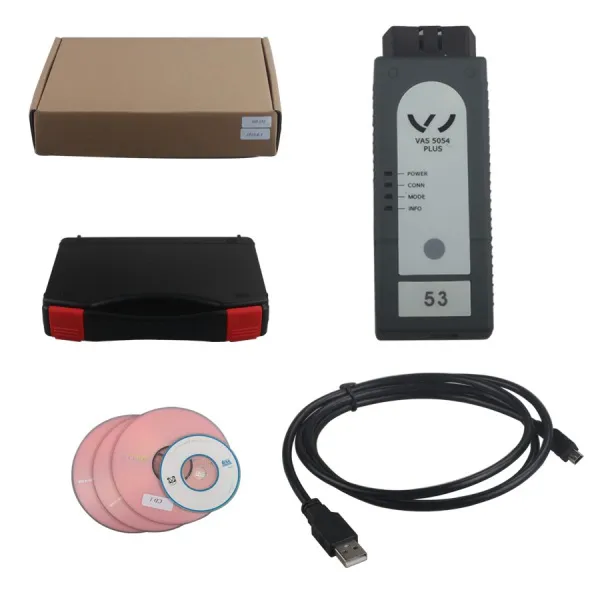

Packing list :
1pc x VAS 5054 PLUS Main Unit
1pc x USB Cable (3 meter)

1pc x ODIS V5.2.6 Software

FAQ:
Q:How to select language when use ODIS V5.2.6?
A:There are two ways to select language.One is automatically identified by system, if your system language is English,then your ODIS software language is also English
The other way is you select language when you install the software,but it must be the same in these two places.

VAS 5054 Plus Bluetooth(OEM) Version with OKI Chip PCB Board Display:
