Software version:V1.37, (software not support update, and you can not use software that is higher than this version,otherwise the device will be locked)
Language: English, Russia, Chinese
Operate System: Supports WINXP/WIN7/WIN8
Additional Supported Software:
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW

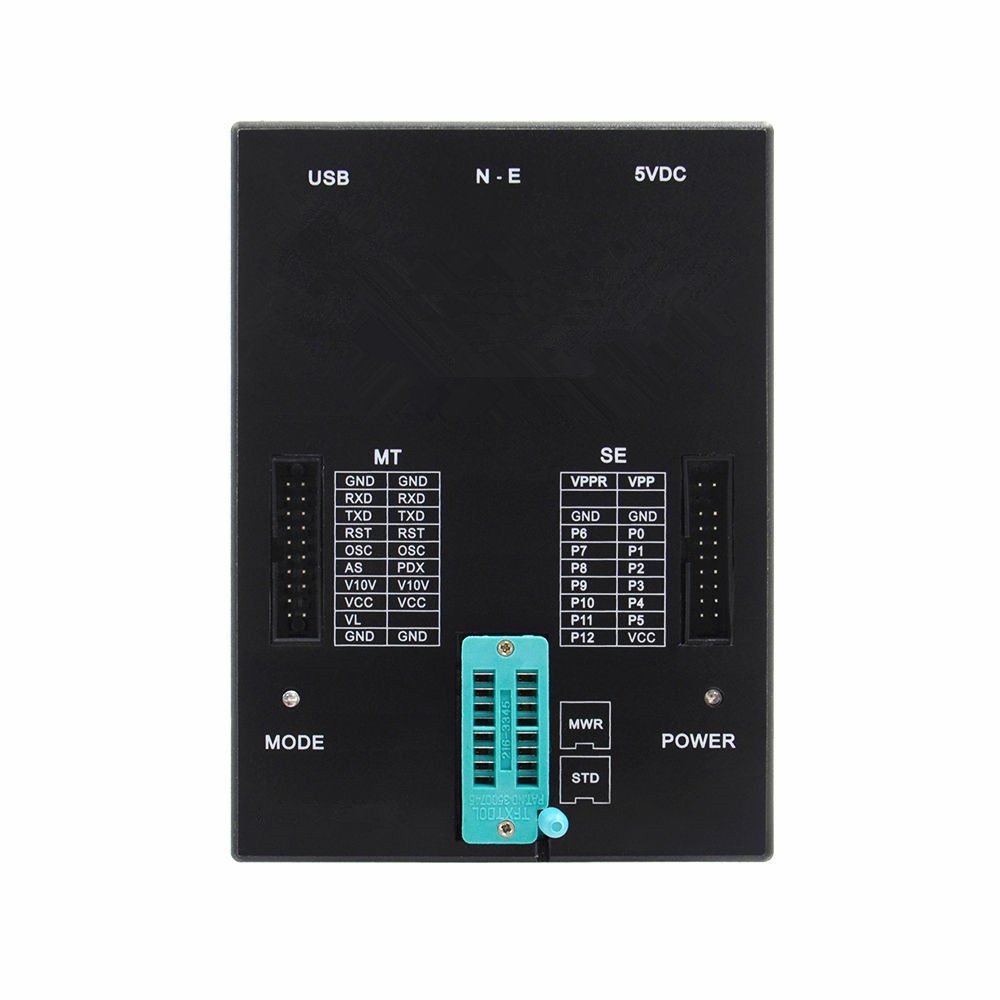

About Orange5 Technical:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0…5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
– Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm – Terminal program for work with COM ports.
Top 13 Reasons to Choose:
1.Supports any COM ports, incuding virtual ones from 1 to 20
2.Works with text (ASCII) and HEX mode
3.Creating a list of commands that allows editing and fast sending
4.Fine-tuning the exchange rate
5.Saving files including command and port settings.
6.Saving incoming data in binary files
7.File transfer via serial port.
8.Delay settings for bytes and blocks
9.”Echo” mode
10.Delay settings between incoming data
11.Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
12.Program doesn’t need to be installed
13.Supports Orange5 programmer in emulation mode.
Orange-5 Chip list v1.34 [November 2015]
Immo HPX 9V0
PCF
PCF7941 Reset
Alfa Romeo
BSI
147
Audi
BCM2
Ver.1 uPD70F3239
Ver.1 uPD70F3380
Ver.2 uPD70F3380
Ver.1 uPD70F3634
Dash
A2 VDO crypto 93C86
A3 UKNSI 93C56
A3 VDO ’97/99 93C66
A3 VDO crypto 93C86
A3 MM 912DG128
A4 UKNSI 0012-003 93C56
A4 UKNSI 0014-001 93C56
A4 UKNSI 0016-001 93C56
A4 UKNSI ’97/98 93C56
A4 VDO ’97/99 93C66
A4 VDO ’99/01 93C86
A4 MM 912DG128
A6 UKNSI 0012-001 93C56
A6 UKNSI 0014-001 93C56
A6 UKNSI 0016-001 93C56
A6 VDO ’97/99 93C66
A6 VDO ’99/01 93C86
A6 VDO crypto 93C86
A6 MM 912DG128
S3/S6 MM 912DG128
TT MM 912DG128
Immo
’94/97 4A0 953 234 93C46
Delphi 8D0 953 234 93C46
ECU
’00/04 ECU EDC15 24C04
A3 1.8T 0261204678 24C02
A4 1.8T 0261204778 24C02
A4 ’02 8E0 909 xxx 95040
ELV
MC68HC908GR16A[4L35K]
MC68HC908GR16A[0M76Z]
BMW
Dash
Dash with M35080
Immo
EWS-3 HC11EA9 clips [0D46J]
EWS-3 HC11EA9 wires [0D46J]
EWS-3 HC11EA9 adap [2D47J]
EWS-3+ HC11EA9 clip [0D46J]
EWS-3+ HC11EA9 adap [2D47J]
Chery
All Chery with 0L72A
All Chery with 0L59X
Chevrolet
Immo
Captiva MC9S08DZ60 [3M05C]
Chrysler
Immo
SKIM immobox 24C02
Ram uPD70F3626
Citroen
BSI
Berlingo 03/06 BSI v1 95160
Berlingo 03/06 BSI v2 95160
Berlingo 03/09 BSI v3 95160
C2 ’03/04 BSI 95160
C3 ’02/04 BSI v1 95160
C3 ’02/04 BSI v2 95160
C5 ’01/04 BSI 912DG128
C5 ’02/04 BSI 95160
C8 ’03/04 BSI 912DG128
Picasso ’03/04 BSI 95160
Xsara II ’01/03 BSI 95040
Immo
Berlingo Valeo 93C46
Jumper ’99/06 Delphi 93C56
Jumpy 705E6 [F82B]
Relay Delphi 93C56
ECU
Xsara ECU EDC15C2 95P08
DAF
Immo
MC68HC908AZ60 [2J74Y]
MC68HC08AZ32A [2L52H]
Dodge
Immo
SKIM immobox 24C02
Fiat
Automotive K/CAN
IMM 009.10
BSI
Albea 912DG128 [3K91D]
Panda ’02 BSI [1L40K]
Stilo 912DG128 [3K91D]
Stilo BSI [1K79X]
Strada BSI [1K79X]
Immo
IMM001.11 [1K59H]
IMM009.01 [1K59H]
IMM009.01 [0L72A]
IMM100.01 [1K59H]
IMM110.01 [1K59H]
Bravo 705E6 [G72G]
Bravo 705E6 Clips [G72G]
Bravo 08AZ32 [1H56A]
Cinquecento ’96 93C46
Coupe ’96 immobox BOSCH 93C46
Ducato Delphi 93C56
Marea 08AZ32 [1H56A]
Punto 93C46
Punto Delphi 93C66
Scudo 705E6 [F82B]
Palio ’09 [0L72A]
Seicento Delphi 93C56
ECU
Scudo ’01 JTD EDC15C2 95P08
Ford
BSI
Focus ’03- 9S12XEP768 [5M48H]
Dash
4M5T MC9S12H128[1K78X]
8VT4 MC9S12XHZ256[1M80F]
ECU
Focus ’00 ECU 77012
Gilera
ECU
Fouco 500 [ST10F269]
Great Wall
Immo
With 0L72A
Hyundai
ECU
Accent KEFICO ECU M95160
Elantra KEFICO ECU M95160
Honda
Immo
Acord ’06 Immo HIS-5 93C46
Legend ’07 Immo HIS-5 93C46
Valeo HC05B6 [0F10V]
Valeo HC05B8 [3D33J]
Valeo HC705B16 [0D28J]
KEIHIN 38770-MFJ-D04 93C66
Jeep
Immo
Grand Cherokee 08AZ32 0J66D
Grand Cherokee ’13 uPD70F3626
Grand Cherokee ’09 uPD70F3629
SKIM immobox 24C02
KIA
Immo
’99/01 Immobox 93C46
ECU
Cerato KEFICO ECU M95160
Lancia
Immo
Kappa immobox BOSCH 93C46
Mahindra
Automotive K/CAN
XYLO
Mazda
Immo
Lucas 19AS HC05B8 [3D33J]
SKLC
2 ’09- MC9S12XDT384
Demio ’09- MC9S12XDT384
ECU
6 ECU 93A66
Mercedes Benz
Immo
Sprinter 05X16 [0D62J]
Sprinter/Vito 08AZ32 [0J66D]
Sprinter/Vito 08AZ32A [L52H]
EZS
W203 908AZ60 [1J35D]
W203 908AZ60 [1J35D]
W203 908AZ60 [4J74Y]
W220 908AZ60 [1J35D&4J74Y]
W639 Vito ’03/up [1L02M]
W639 Vito ’03/up [3K85K]
W639 Vito ’03/up [4J74Y]
Nissan
Immo
Immobox with TMS370Cx2x
BSI
Skyline [1L15Y] Wires
Automotive K/CAN
NATS-2 (Motorola)
NATS-2+ 5WK4 652
NATS-4 (TMS)
NATS-5 (TMS)
NATS-5 (ST)
NATS-5 (TMS in 5WK48645)
Opel
Immo
Immo HC05B6 [0F10V]
Immo TMS370C002 (PLCC28)
Immo 5WK4 7631[0L72A]
Peugeot
BSI
307 ’01/03 BSI 912DG128
307 ’01/03 BSI 912DG128A
307 ’02/05 BSI 95160
807 ’04/05 BSI 912DG128
807 ’05/06 BSI 95128
Immo
Boxer Delphi 93C56
106 Valeo 93C46,
Partner Valeo 93C46
Piaggio
Immo
Vespa ’95 AEC302C 705E6 [0F82B]
Renault
Immo
Clio-I immobox Sagem 93C46
Clio-II ’98 BMT Sagem 93C46
Kangoo immobox Sagem 93C46
Master ’99-01 immobox Sagem 93C46
UCH
Clio III Sport [3L91N]
Megane [4L91N]
IR key
Clio key with MC68HC05K3
Rover
Immo
Valeo HC05B6 [0F10V]
Valeo HC05B8 [3D33J]
Valeo HC705B16 [0D28J]
EWS 9S12DG128 [3L40K]
Seat
Dash
Cordoba VDO ’99/01 93C86
Cordoba VDO ’03/05 93C86
Cordoba MM 9S12H256
Ibiza VDO ’00 93C66
Ibiza VDO ’99/01 93C86
Ibiza VDO ’03/04 93C86
Ibiza VDO crypto 93C86
Ibiza MM 9S12H256
Ibiza 6J0 920 801A 24C32
Ibiza 6J0 920 802H 24C64
Ibiza 6J0 920 804L 24C64
Leon VDO v.1 93C86
Leon VDO v.2 93C86
Leon VDO v.3 93C86
Leon VDO v.4 93C86
Toledo VDO v.1 93C86
Toledo VDO v.2 93C86
Toledo VDO v.3 93C86
ECU
EDC15 ’00/04 24C04
EDC16U1 ’04/06 95320
EDC16U31 ’03/05 95320
Skoda
Dash
Fabia VDO ’00/01 v1 93C86
Fabia VDO ’00/01 v2 93C86
Fabia VDO ’04 93C86
Fabia VDO crypto 93C86
Felicia VDO 93C66,
Felicia VDO ’01/02 93C86
Oktavia VDO 93C66
Oktavia VDO ’00/05 93C86
Oktavia VDO crypto 93C86
Roomster VDO crypto 93C86
SuperB VDO ’02/04 93C86
SuperB VDO crypto 93C86
ECU
’00/04 ECU EDC15 24C04
’05/06 ECU EDC16U1 95320
SsangYong
Immo
87110-0930 MSP430F1232
87110-0910 MSP430F1232
MSP430F1232 (universal)
VDO MC68HC05B16 [0D60J]
Suzuki
Immo
Baleno ’99- 93C66
Swift ’99- 93C66
Alto 24C01
Ignis 24C01
Jimny 24C01
SX4 [0L72A]
Toyota
Immo
Immobox 89780-12070 93C66
Immobox 89780-20010 24C04
Immobox 89780-42030 93C66
ECU
ECU 89661-50440 93C56
VW
BCM2
uPD70F3634
VW Beetle dash
Beetle 912D60
Beetle ’03/05 912DG128
Beetle 03/05 912DG128C L05H
Beetle 05/06 9S12H256 K78X
VW Beetle ECU
Beetle EDC16U31 95320
VW Bora dash
Bora MOT’99/00 24C02
Bora VDO 93C66
Bora VDO ’99/00 93C86
Bora VDO ’01 93C86
Bora VDO ’01/03 93C86
Bora VDO ’03/05 93C86
VW Caravelle ECU
T5 ’04/06 EDC16U1 95320
T5 ’04/06 EDC16U31 95320
VW Fox dash
Fox MM 9S12H256
VW Golf dash
G4 MOT 24C02
G4 MOT ’01/03 24C08
G4 BOSCH ’02/03 24C08
G4 VDO 93C66
G4 VDO ’99/00 93C86
G4 VDO ’01 93C86
G4 VDO ’01/03 93C86
G4 VDO ’02/03 93C86,
G4 MOT addr.line 24C02
G6 5K0 920 870C 24C32
G6 5K0 920 872A 24C64
G6 5K0 920 873A 24C64
VW Jetta dash
Jetta VDO ’00 93C66
Jetta VDO ’99/01 93C86
Jetta VDO ’01 93C86
VW Passat dash
Passat B5 MM HC11KG4
B5 VDO 93C66
B5 VDO ’99/01 93C86
B6 VDO ’01/02 93C86
B6 VDO ’03/04 93C86
MOT addr. line 24C02
VW Pointer dash
Pointer ’05/06 93C66
VW Polo dash
Polo VDO ’01/02 93C86
Polo VDO ’01/04 93C86
Polo VDO crypto 93C86
VW Polo ECU
Polo ’04 ECU 1.4 MM 95320
VW Sharan ECU
Sharan ’00/04 EDC15 24C04
Sharan 06/07 EDC16U31 95320
VW Touran ECU
ECU EDC16U34 ’06/07 95320
VW Transporter dash
T4 VDO ’01/03 93C86
T5 VDO ’03/07 93C86
VW Transporter ECU
’00/04 ECU EDC15 24C04
’03/06 ECU EDC16U1 95320
’03/07 ECU EDC16U31 95320
Immo
Fox ’08 Brazil 93LC56
Immo HC05B6 [0F10V]
Immo HC05B6 [0B91T]
Immo HC05B8 [3D33J]
Immo TMS370C002 (PLCC28)
ECU
00/04 ECU EDC15
03/06 ECU EDC16U1
03/07 ECU EDC16U31
06/07 ECU EDC16U34
EEPROM
I2C
24C01
24C02
24C04
24C08
24C16
24C32
24C65
24C128
24C256
24C512
24LC21
MicroWire
93C06
93S06
93C46
93C46
93S46
93C56
93C56
93S56
93C66
93C66
93S66
93C76 WP0
93C76 WP1
93C76 WP0
93C76 WP1
93C86 WP0
93C86 WP1
93C86 WP0
93C86 WP1
4Wire
59C11
59C22
64C10
64C20
64C40
64C80
SPI
25C010
25C020
25C040
25C080
25C160
25C320
25C650
25C128
25C256
Adesto
AT25SF041
AKM
AK6410
AK6420
AK6440
AK6480
AK93C55
AK93C65
Altera
EPCS1
EPCS4
EPCS16
EPCS16
EPCS128
Amic
A25L512
A25L40
A25L080
A25L80
A25L016
A25L16
A25L032
A25LQ16
A25LQ32

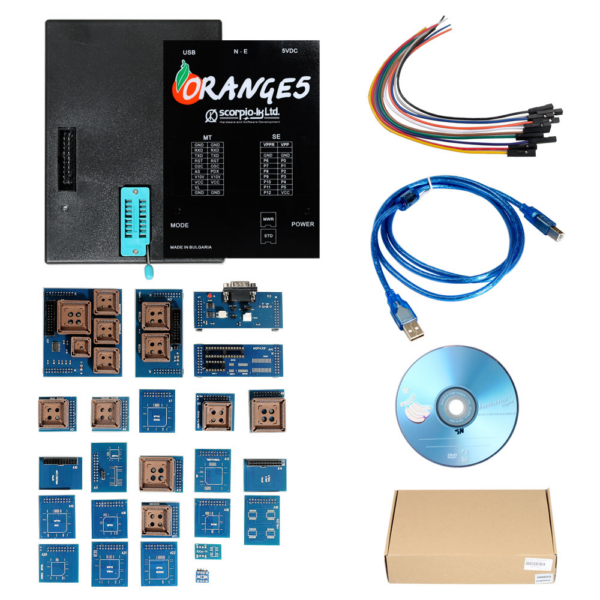

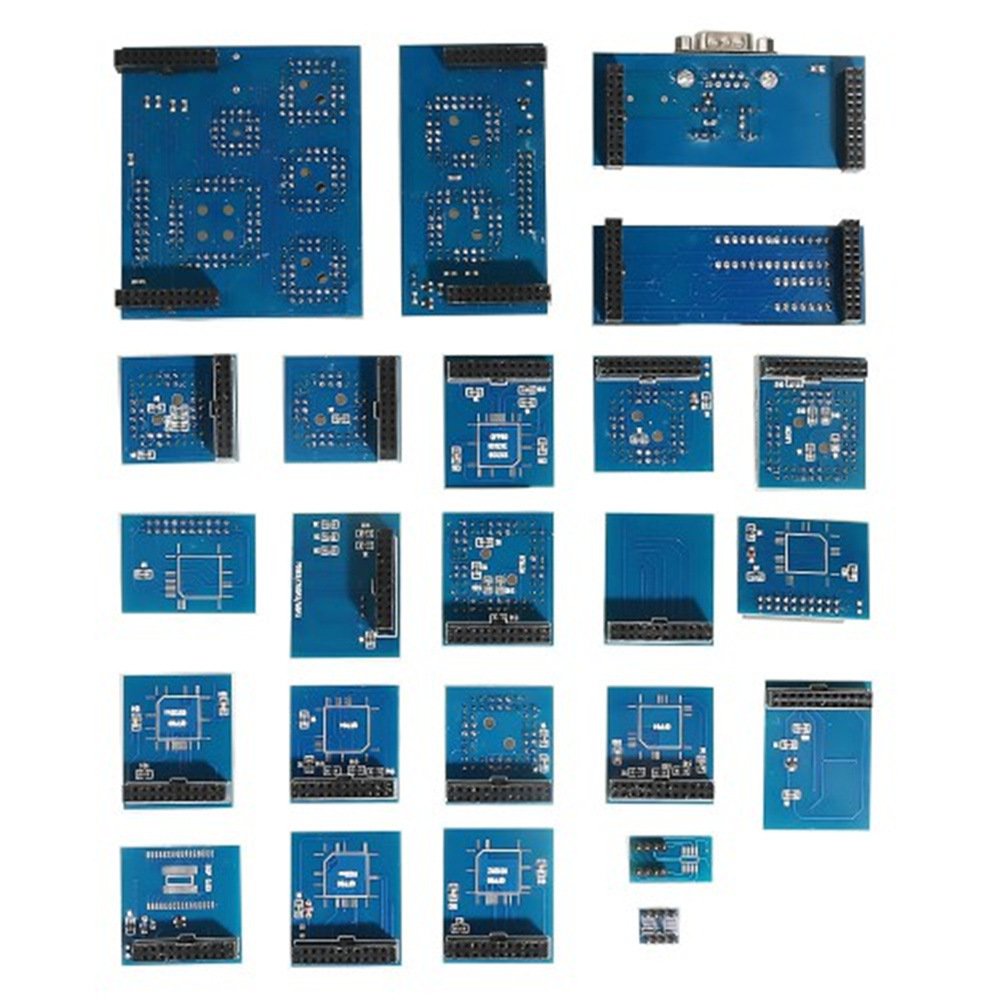

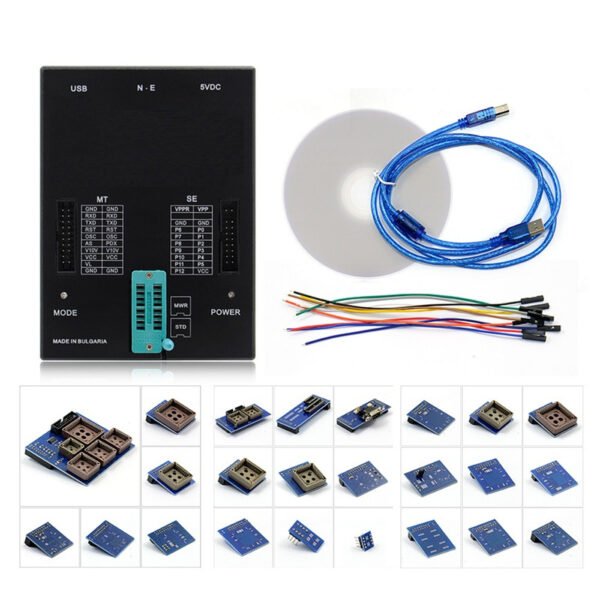

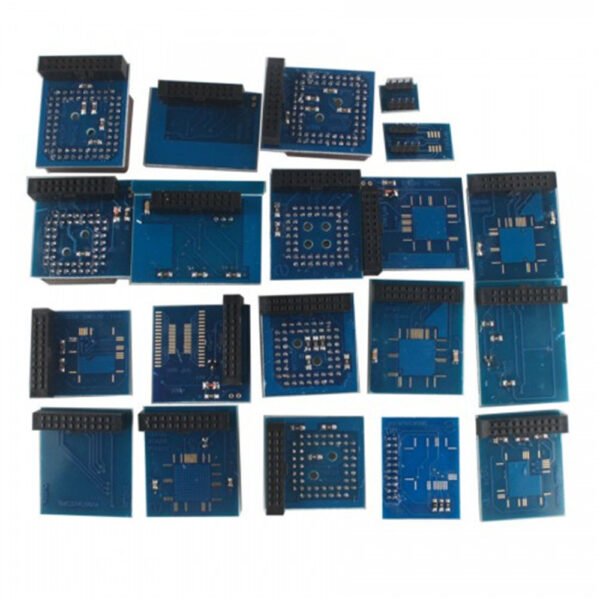

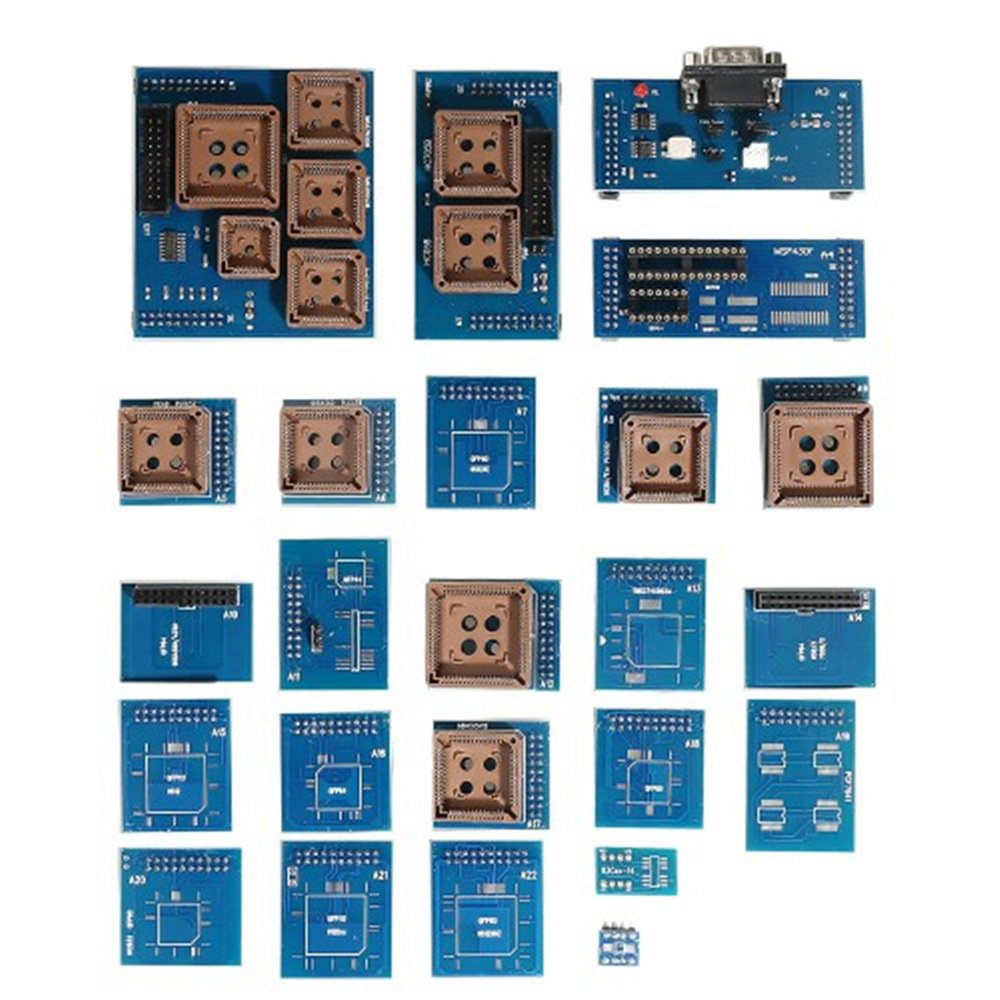

Orange 5 Programmer Package List:
1pc x Orange 5 Programmer
1pc x USB cable
10pcs x Incircuit wire
1pc x SOIC8/DIP8 Expert adapter
1pc x SSOP8/DIP8
1pc x SOIC8/DIP8 adapter
1pc x SOIC8_14_93Cxx adapter
1pc x Lead 11E9(20) with power
1pc x Adapter 05L28/05B
1pc x Adapter 908AS60/AZ60 QFP64
1pc x Adapter 68HC(7)05P3/E6
1pc x Adapter 05B/X_705B/X QFP64 V2
1pc x Adapter 11PA8/11E9 QFP64
1pc x Adapter 68HC05H12
1pc x Adapter 68HC11EA9
1pc x Adapter 908AS60
1pc x Adapter 9S12Dxx
1pc x Adapter 912Dxx
1pc x Adapter 9S12X
1pc x Adapter 912B32 QFP80
1pc x Adapter 68HC11F1
1pc x Adapter 68HC11L6
1pc x Adapter 68HC11KA4
1pc x Adapter 9S12XE
1pc x Adapter PCF7941
1pc x Adapter TMS374C003A
1pc x Adapter MSP430F
1pc x Adapter 68HC11KA4 PLCC68
1pc x Adapter 908JL
