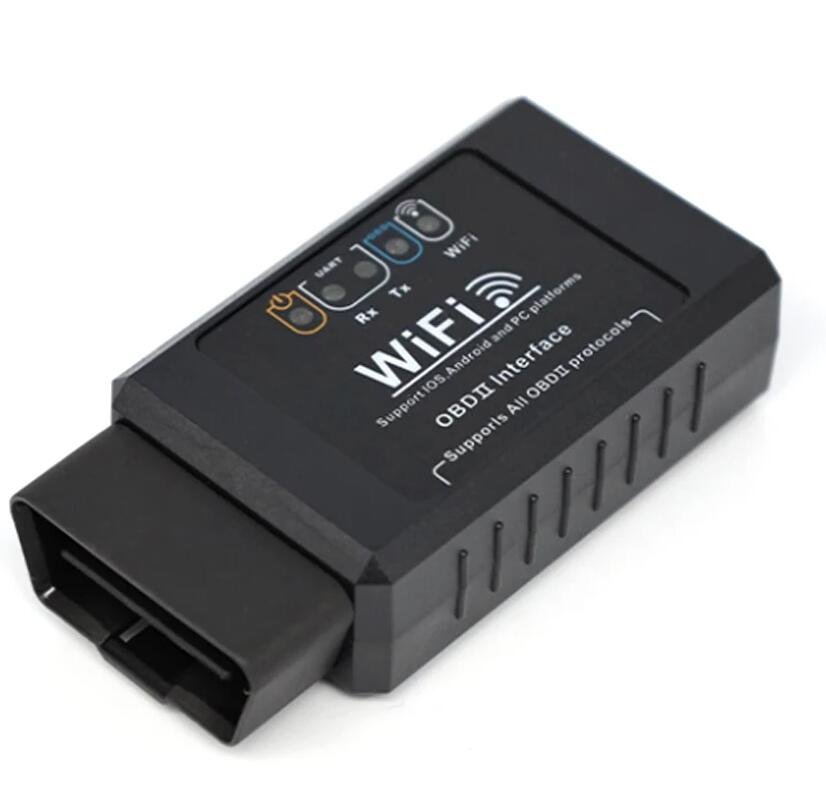

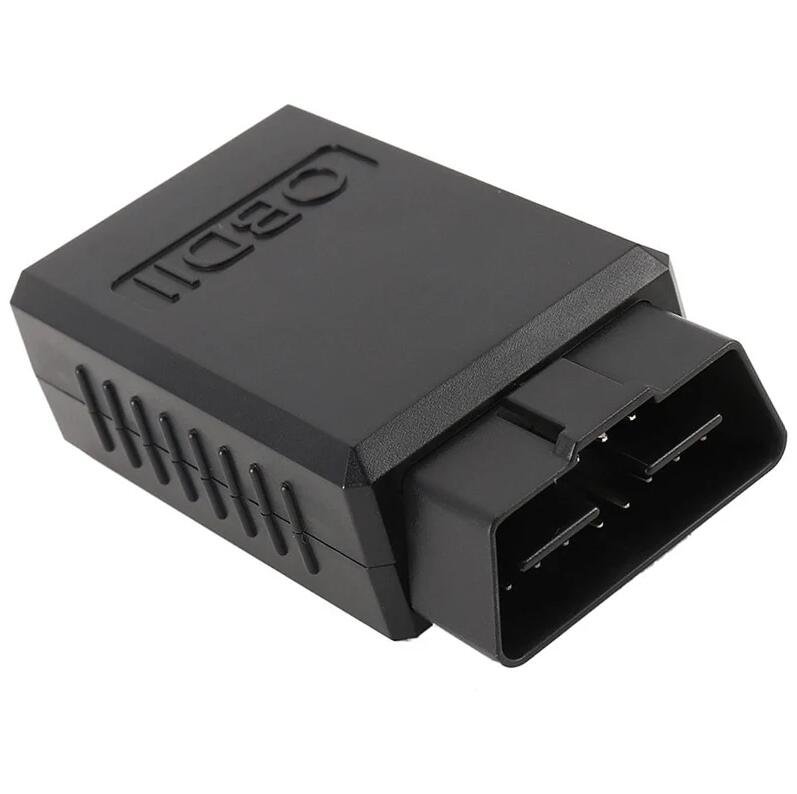

OBD2 V1.5 WIFI ELM327 Support IOS /Android Dual System Auto Scanner

WIFI ELM 327 Description:

1. working voltage: 8V-17V, typical value: 12V
2. working current: 75mA-105mA, typical value: 85mA
3. Communication method: WiFi
4. working temperature: -40℃~+85℃

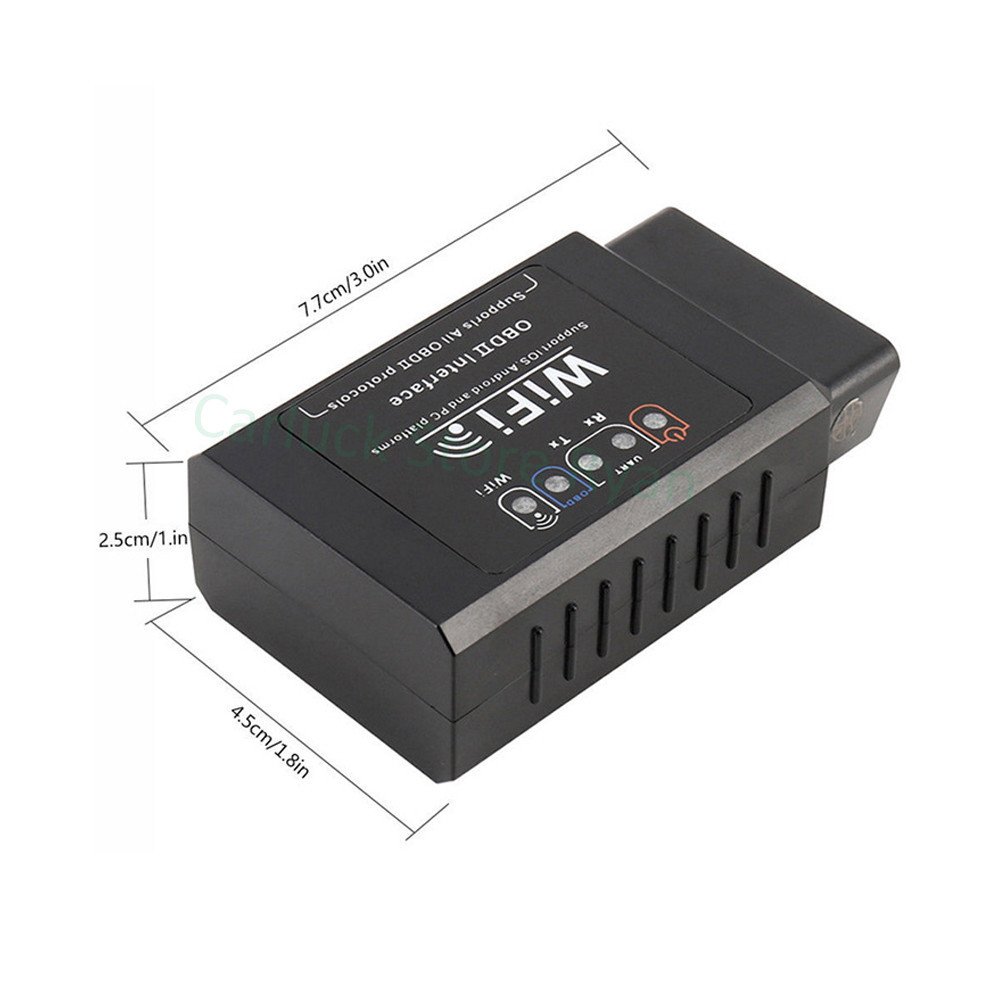

5. Product size: 47mm x 25mm x 88mm
6. Supported system: Android/iOS/Windows
7. Packing size: 63mm x 26mm x 100mm
8. Packing weight: 50g
9. Material: ABS

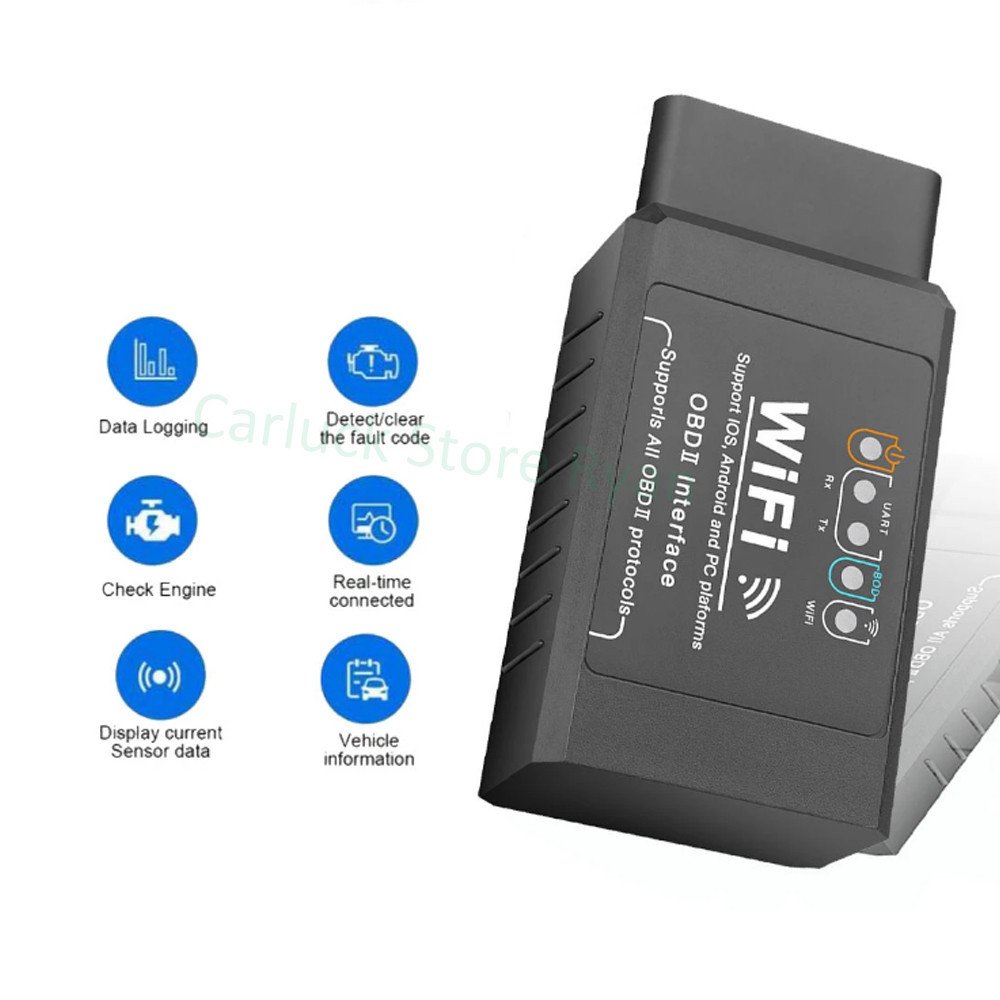

Features:

1, support to read vehicle sensor parameters, for vehicle annual inspection, exhaust detection, emission index comprehensive detection.
2. Support vehicle fault code reading and clearing for vehicle self-test and maintenance.
3, support to read a variety of vehicle states (such as engine speed, water temperature, speed, etc., up to 100 states), with the head-up display, car networking related systems, intelligent garage system, etc.
4, support to read VIN (also known as vehicle identification number or frame number), CID, CVN and other parameters, widely used in auto repair, auto parts and other fields.
5, support long-term use as vehicle status monitoring equipment.

Supported protocols:

1. SAE J1850 Pulse Width Modulation (41.6kbaud)
2. SAE J1850 VPW (10.4 kbaud)
3. ISO 9141-2 (5 baud initialization, 10.4 kbaud)
4. ISO 14230-4 KWP (5 baud initialization, 10.4 kbaud)
5. ISO 14230-4 KWP (Fast initialization, 10.4 kbaud)
6. ISO 15765-4 CAN (11-bit ID, 500 kbaud)
7. ISO 15765-4 CAN (29-bit ID, 500 kbaud)
8. ISO 15765-4 CAN (11-bit ID, 250 kbaud)
9. ISO 15765-4 CAN (29-bit ID, 250 kbaud)

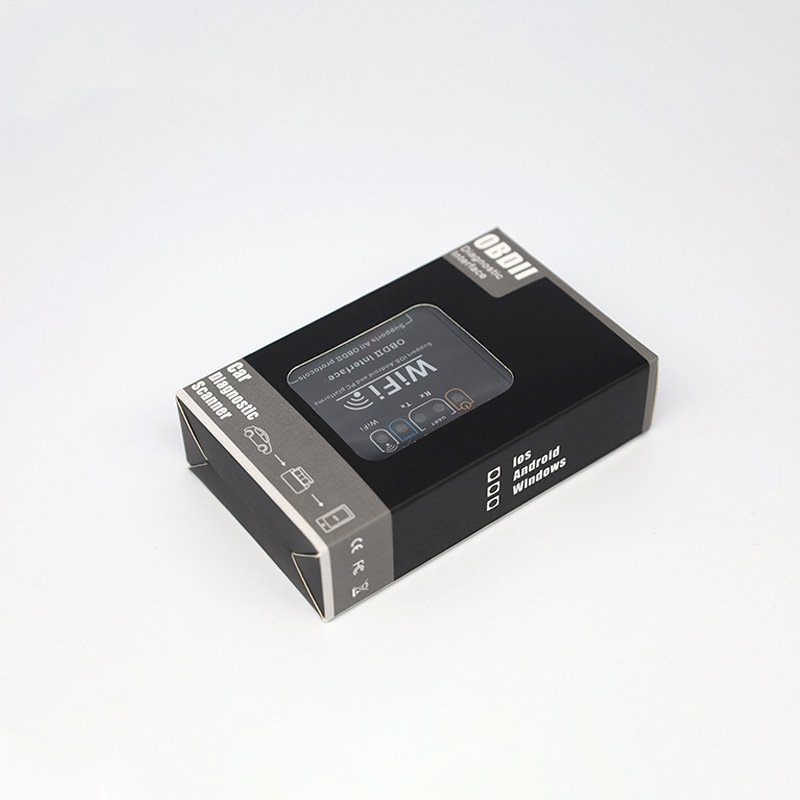

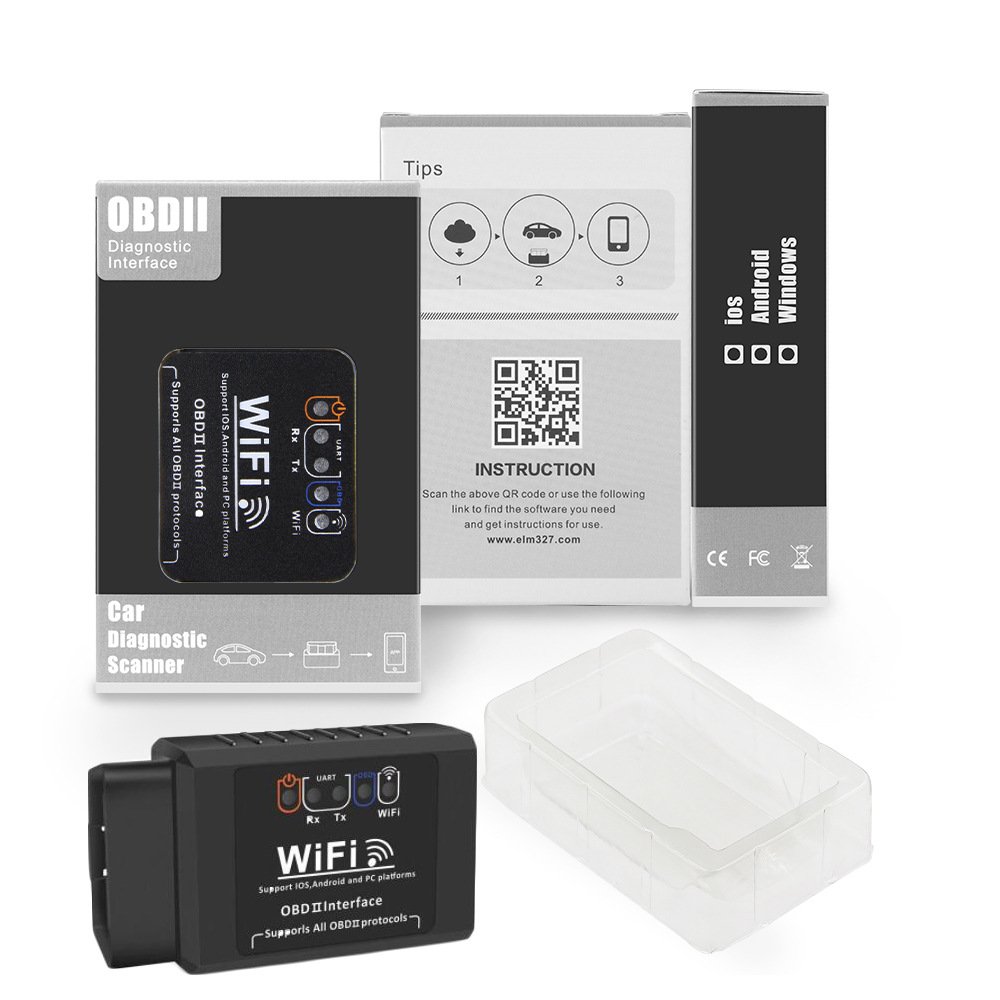

The package includes:

1 x OBD2 scanner

Qr Code Scanning OBD II interface Location:
