OBDLink LX + OBD2 / EOBD Diagnostic Adapter Interface For Scan My Tesla Model 3/Y And All Protocols

OBDLink LX + OBD2 / EOBD Diagnostic Adapter Interface For Scan My Tesla Model 3/Y And All Protocols

OBDLink Official Store___Genuine products ___3 years Warranty

Custom Tax

Important Note: We will not be responsible for any Custom Tax(Tariff) which Might happen in your custom clearance. Since it is out of our control.

Item Location: Russia, China,Australia and U.S.A

Russia Warehouse: it takes 5-10 days to most places in Russia. No Custom tax!

China Warehouse: we use aliexpress shipping. 100% reliable shipping.

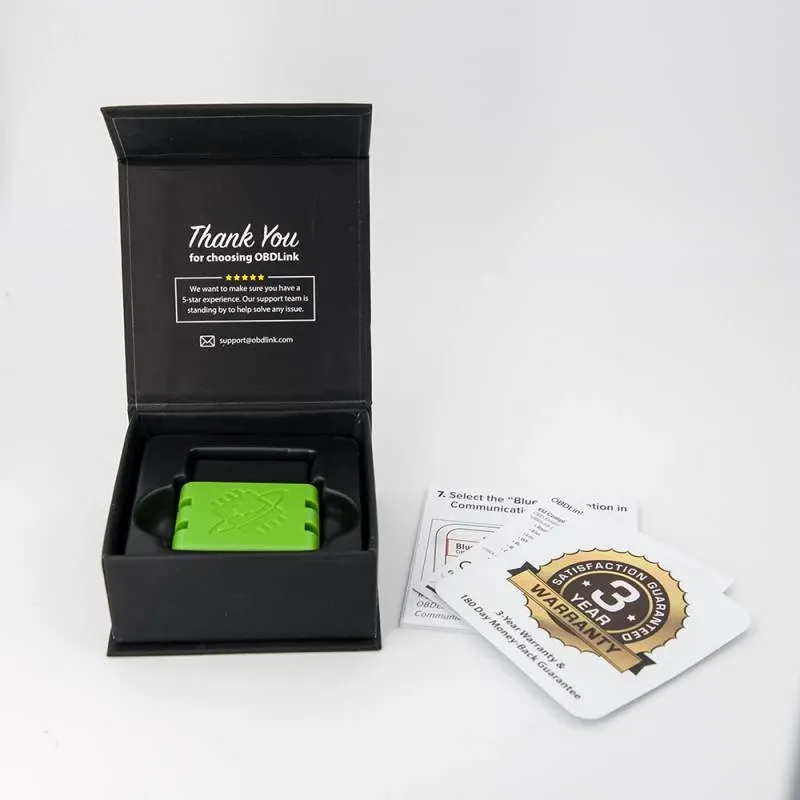

Package included

OBDLink LX WirelessInterface
Printed User Guide
Free OBDwiz Download
Free OBDLink app

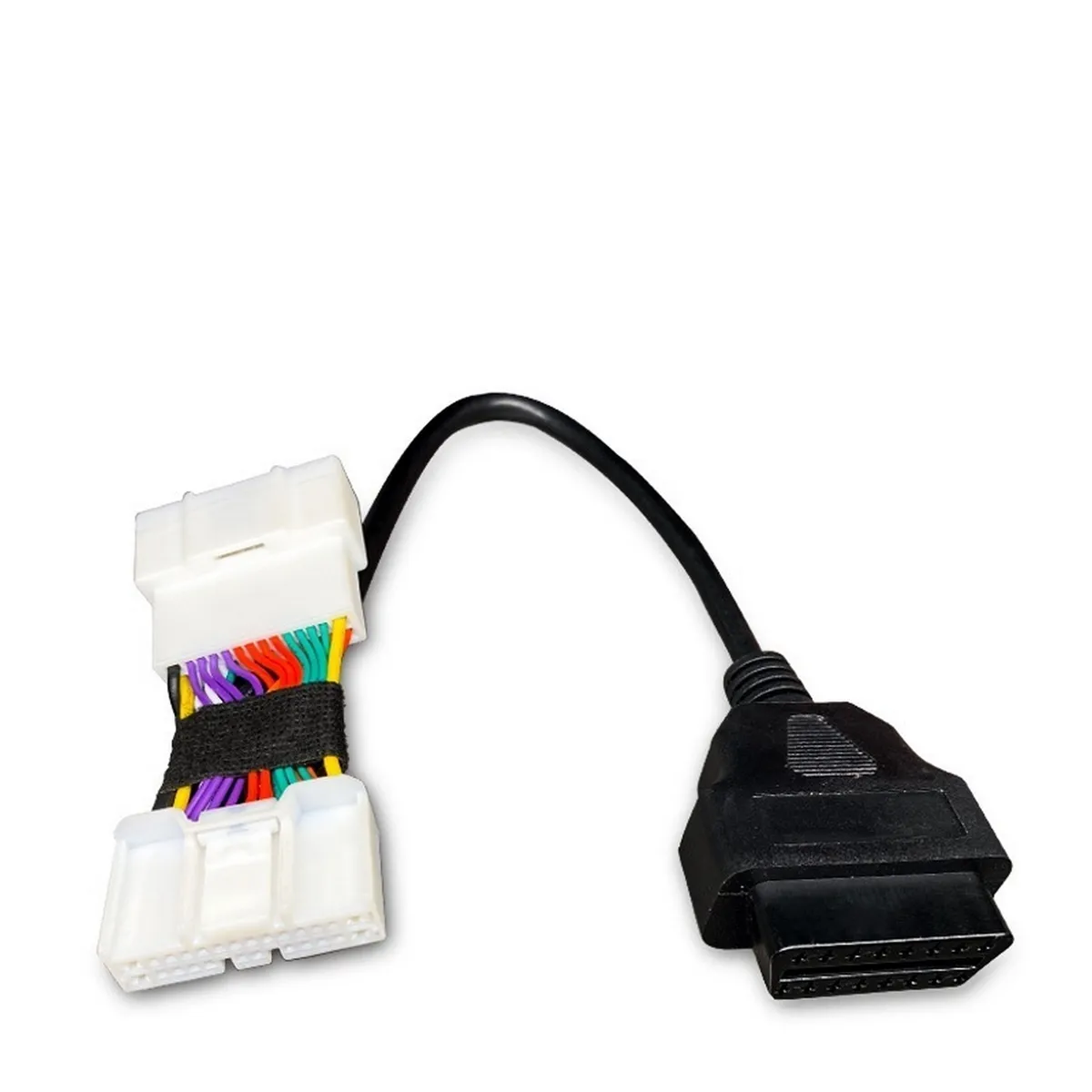

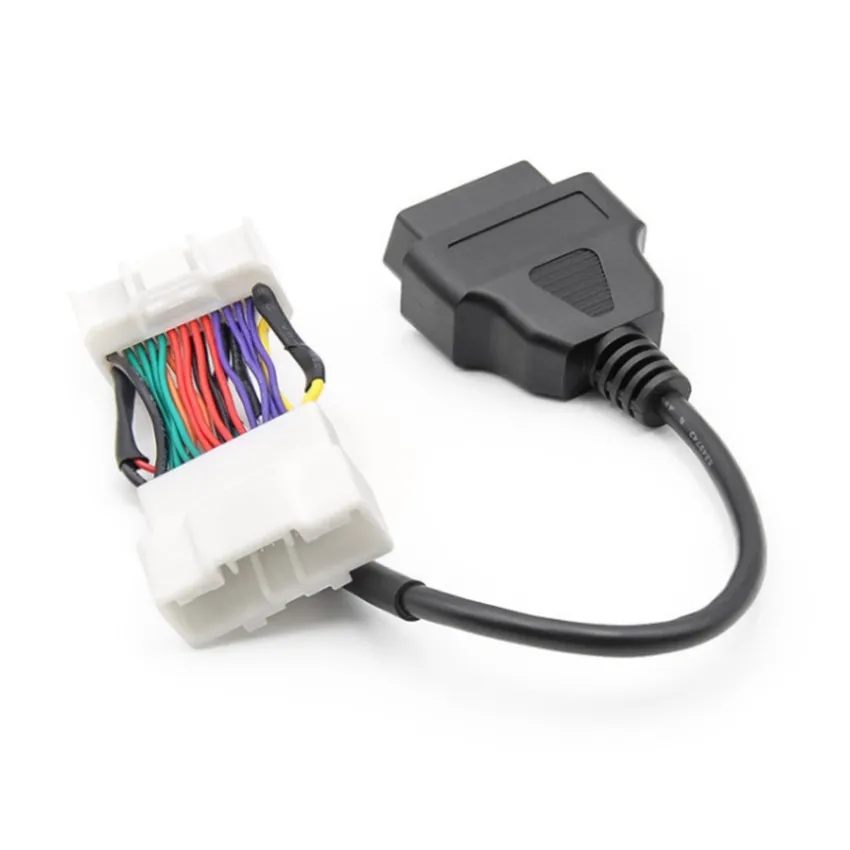

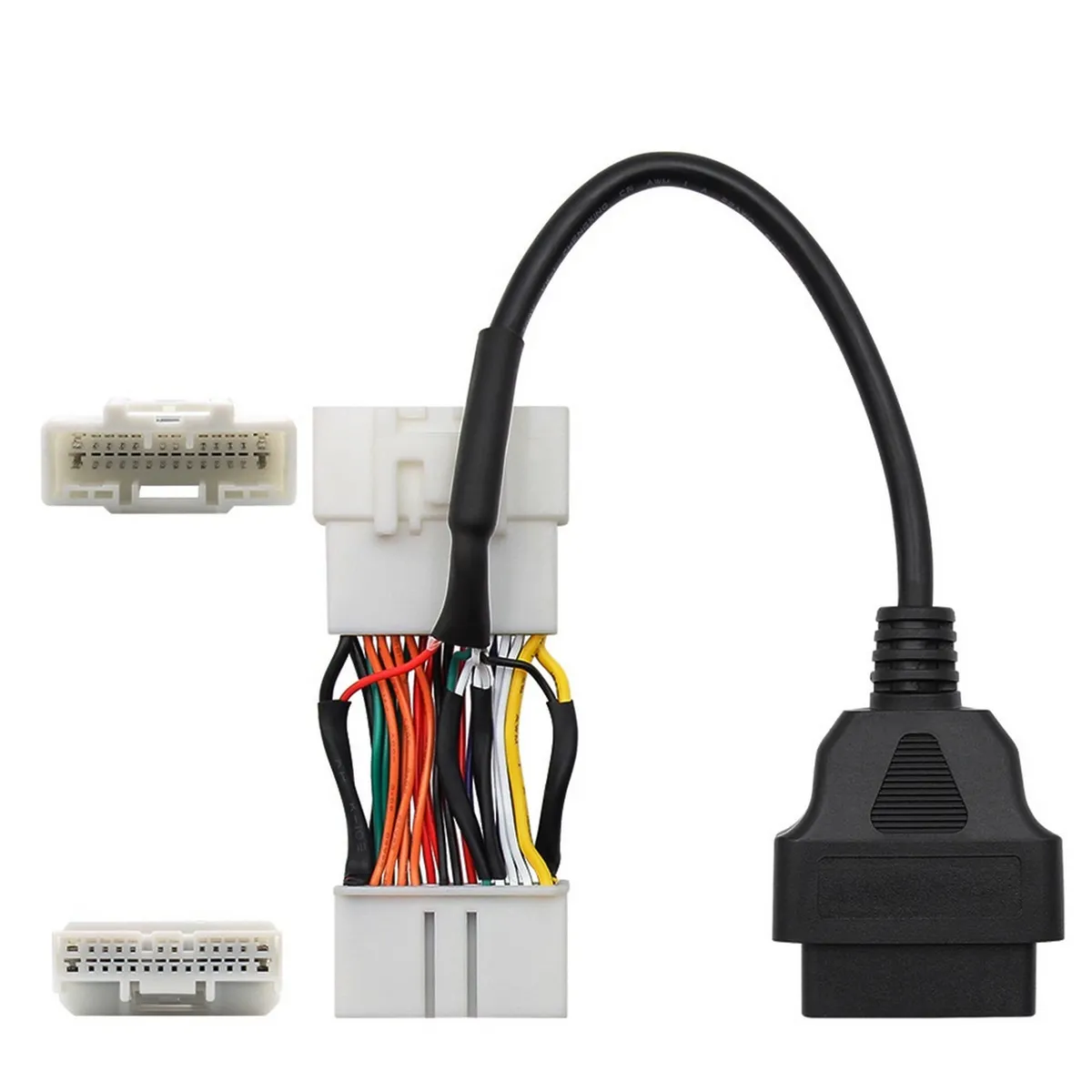

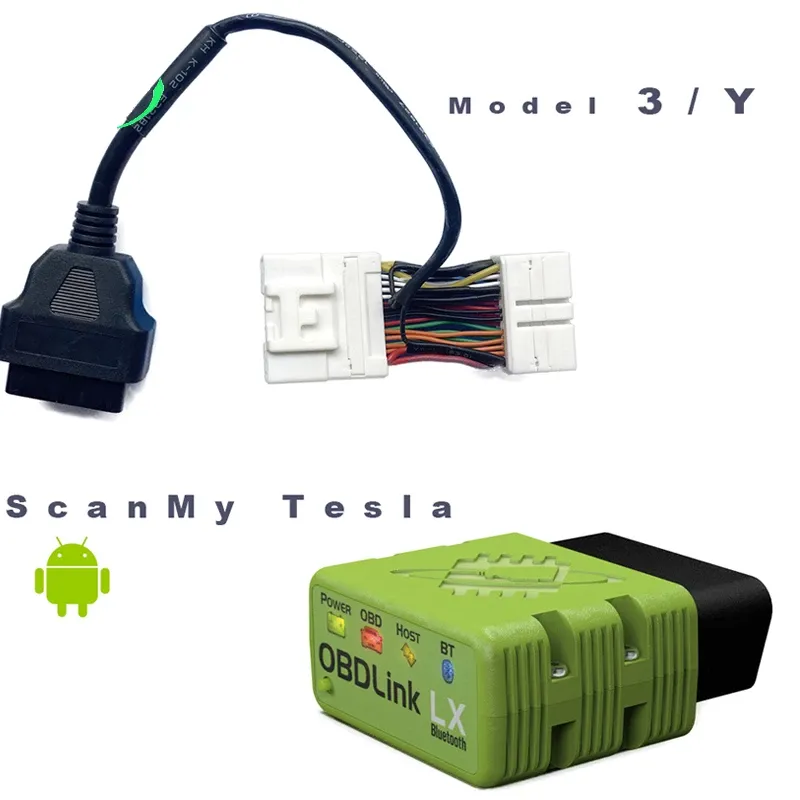

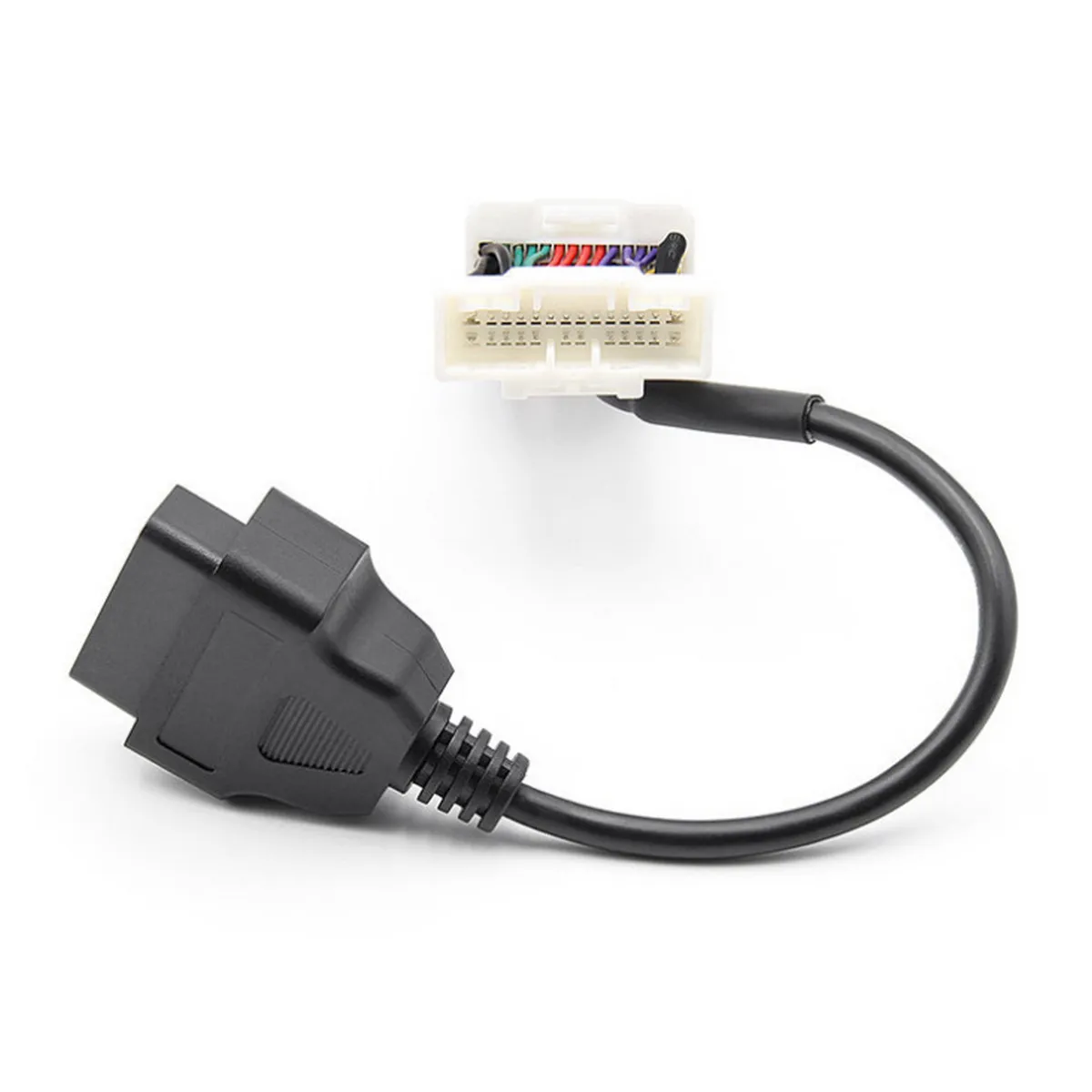

TESLA MODEL 3/Y OBD2 ADAPTER

transfer cable

S/X is consistent, 3/Y is consistent (synchronized with the two current Tesla model platforms), due to the change in the interface design in the middle of Tesla, pay attention to the vehicle production batch when matching, and the applicable models in the TB shop are after 2015.9. 3/Y and after S/X.2019.1.

Description for Tesla

This package allows you to connect between two console connectors. You can now monitor your Model 3/Y Vehicle CAN bus for data configuration and derive operational data from an OBDII port.

Important: To install the adapter cable, the vehicle must be switched off or the HV loop and 12V must be disconnected.

Switching off the vehicle via the display:

In order for the vehicle to switch off completely, no sensors must be operated (doors, seats, pedals). It takes a moment and then you can clearly hear the HV contactor clicking. Only then may the CANBUS be disconnected and the adapter cable inserted. If there is no clicking audible, the HV loop (right under the rear seat bench) and 12V must be disconnected.

To install the cable, the cover of the center console below the ventilation nozzles in the rear footwell must be removed (it is only clipped on).

General Description for MX+

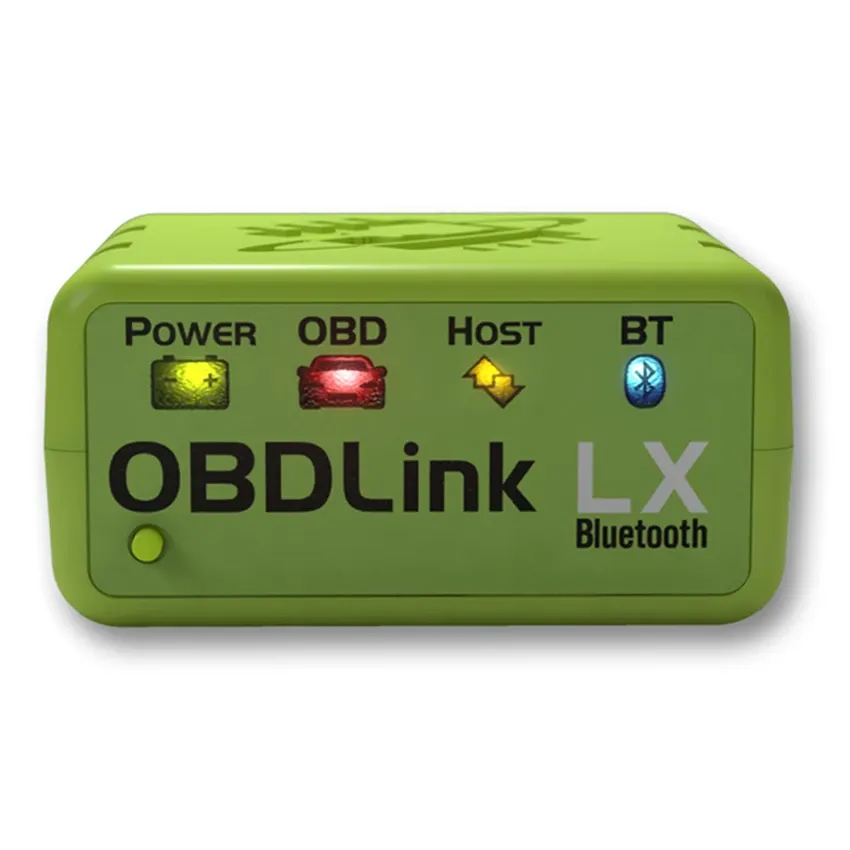

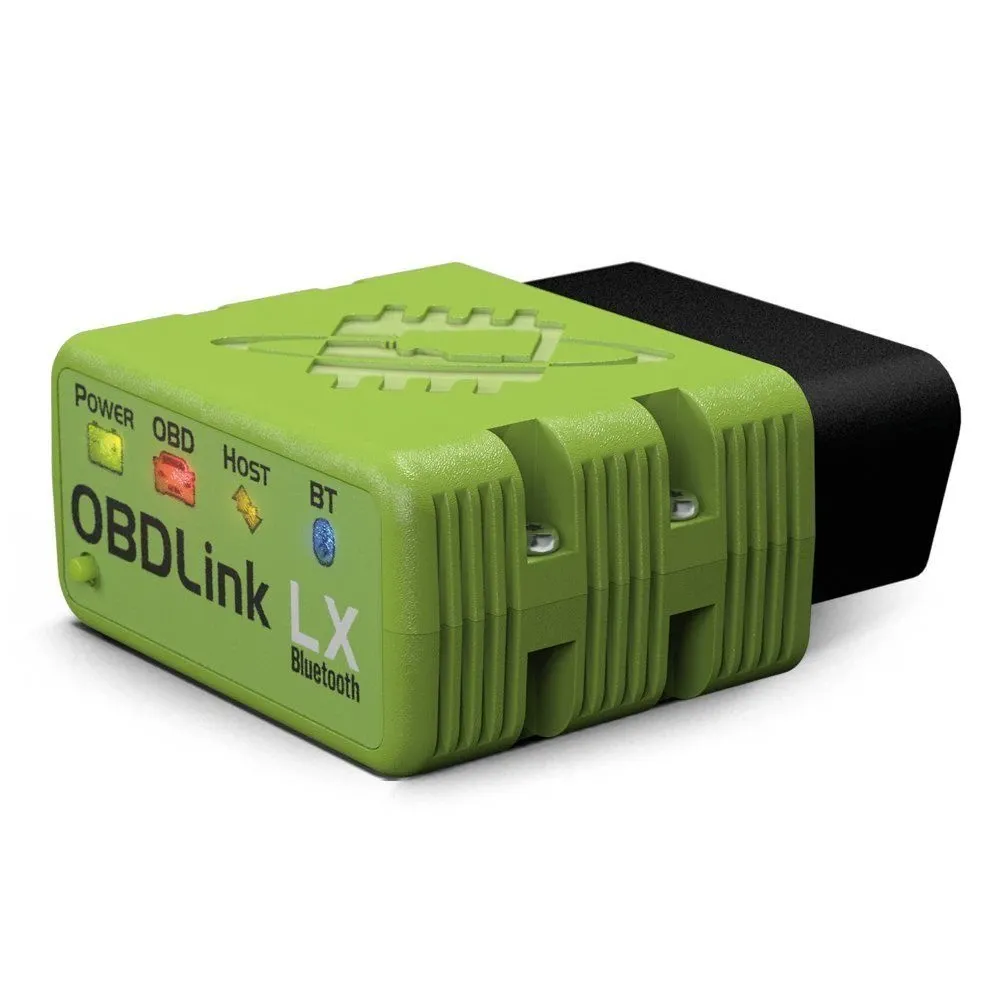

OBDLink® LX is a budget-priced, pocket-size WirelessOBD-II adapter for all OBD-II compliant vehicles .

It can be used as a diagnostic scan tool, trip computer, logger, and real-time performance monitor.
OBDLink LX surpassed performance in every competing WirelessOBD-II adapter, delivering 300% more data samples per second. Its BatterySaver™ sleep mode allows the adapter to stay plugged in continually, without draining the vehicle’s battery.

Unlike the vast majority of WirelessOBD adapters, which constantly broadcast their presence and use an easy-to-guess 4-digit PIN, OBDLink® LX utilizes a unique multi-layered link security mechanism, eliminating the risk of unauthorized access.

OBDLink LX’s support of the de facto standard ELM327 command set, makes it compatible with tons of third-party OBD software and mobile apps.

Key Features

· Maximum vehicle coverage

· Up to 300% faster than nearest competitor

· Automatic sleep & wake-up

· Hacker-proof

· Small form factor

· Free Android & Windows diagnostic software

· Free firmware updates

· More software options

· 3-year manufacturer warranty

· Supports Android phones & tablets

· Supports Windows PC, laptops, netbooks & tablets

· Supports Windows phone 8 & newer

· Note: Apple iOS devices are not compatible

Hybrid or electric vehicles

·Note: This product is not compatible with most hybrid or electric vehicles. But it can work with some Toyota and other vehicles. please check Hybrid Assistant for more details.

Protocols Supported

Legislated OBD protocols:

ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
ISO 14230-4 (Keyword Protocol 2000)
ISO 9141-2 (Asian, European, Chrysler)
J1850 VPW (GM)
J1850 PWM (Ford)

Compatible Devices

Android
Smartphones (Android 2.2 and newer)
Tablets (Android 2.3.3 and newer)

Windows
BT-enabled PCs, Laptops, Netbooks (Windows XP SP2 and newer)
Phone (Windows Phone 8 and newer)
Tablets (Windows 8 and newer)

Blackberry
Smartphone (BB 10.0.0.0 and newer)
Tablet (BB 2.0.0.0 and newer)

Apple/iOS
Not supported

Action Cameras
Garmin Virb XE

Apps&Firmware

Free OBDLink® app for Android and iPhone
Free OBDwiz Diagnostics Software for Windows
Free Firmware Updates

Compare

OBDLink® Vehicle Compatibility Chart

**Please Note: OBD-II compatibility is not related to where the vehicle is manufactured where your vehicle was bought when new. To read the chart below, choose the country where your vehicle was sold new. If you do not see the country below, check your vehicle manual, research online, or consult with your dealership to confirm OBD-II compatibility.

**Please Note: Hybrid and Electric vehicles are low or zero emission vehicles, our scan tools may not work. Check your vehicle manual, research online, or consult with your dealership.

DOES OBDLINK ADAPTERS WORK WITH ELECTRIC AND HYBRID VEHICLES?

Yes, OBDLink adapters will work with electric and hybrid vehicles when paired with an OEM specific third-party app for select vehicles.

Here is a list of apps that support electric/hybrid vehicles:

Scan My Tesla

tesLaX

BimmerLink

BimmerCode

FORScan

Hybrid Assistant

Dr. Prius / Dr. Hybrid

We recommend you contact the app developer directly to confirm support for your vehicle.

CAN I USE OBDLINK TO “FLASH” THE CHIP IN MY ECU?

It is possible to flash or modify the configuration of your ECU using an OBDLink adapter when paired with a 3rd party app such as FORScan, BimmerCode, Carista, AlfaOBD, MotoScan, and others for select vehicles.

AlfaOBDis designed for Aberth, Alfa, Chrysler, Dodge, Fiat, Innocenti, Jeep, Lancia, and RAM vehicles

BimmerCodeis designed for BMW and Mini vehicles

Caristais designed for Audi, BMW, Cupra, Infiniti, Lexus, Mini, Nissan, Scion, Seat, Skoda, Toyota, and Volkswagen vehicles

FORScanis designed for Ford, Lincoln, Mazda, and Mercury vehicles

MotoScanis designed for BMW and Husqvarna motorcycles

We recommend that you confirm support for your vehicle with any apps you are considering.

CAN I RUN OBDWIZ ON MORE THAN ONE PC?

Yes, OBDwiz can be installed on up to three PCs per license.
