OBDSTAR AIRBAG RESET KIT P004 Adapter + P004 Jumper Working With OBDSTAR X300 DP Plus Odo master P50 for Airbag Reset

Highlights:
1. OBDSTAR airbag reset kit works with X300 DP Plus C and Odo Master Full Configuration for airbag reset. With the airbag reset kit, multi-functions can be completed in one tablet device. It’s friendly, economical, convenient for vehicle repair plants and fast repair shops.

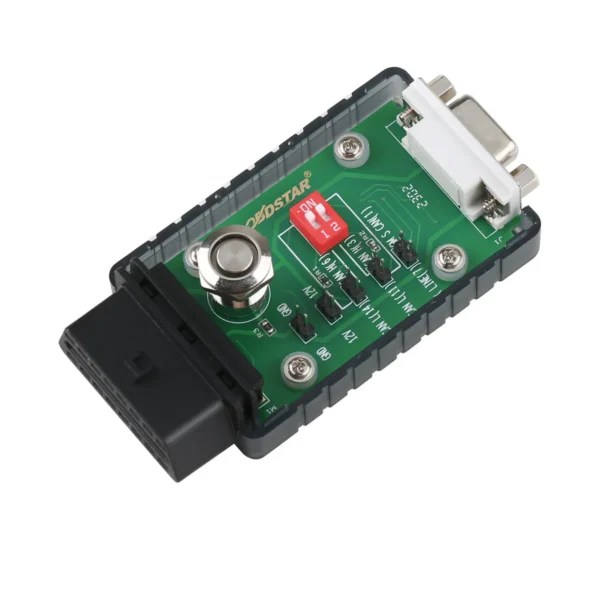

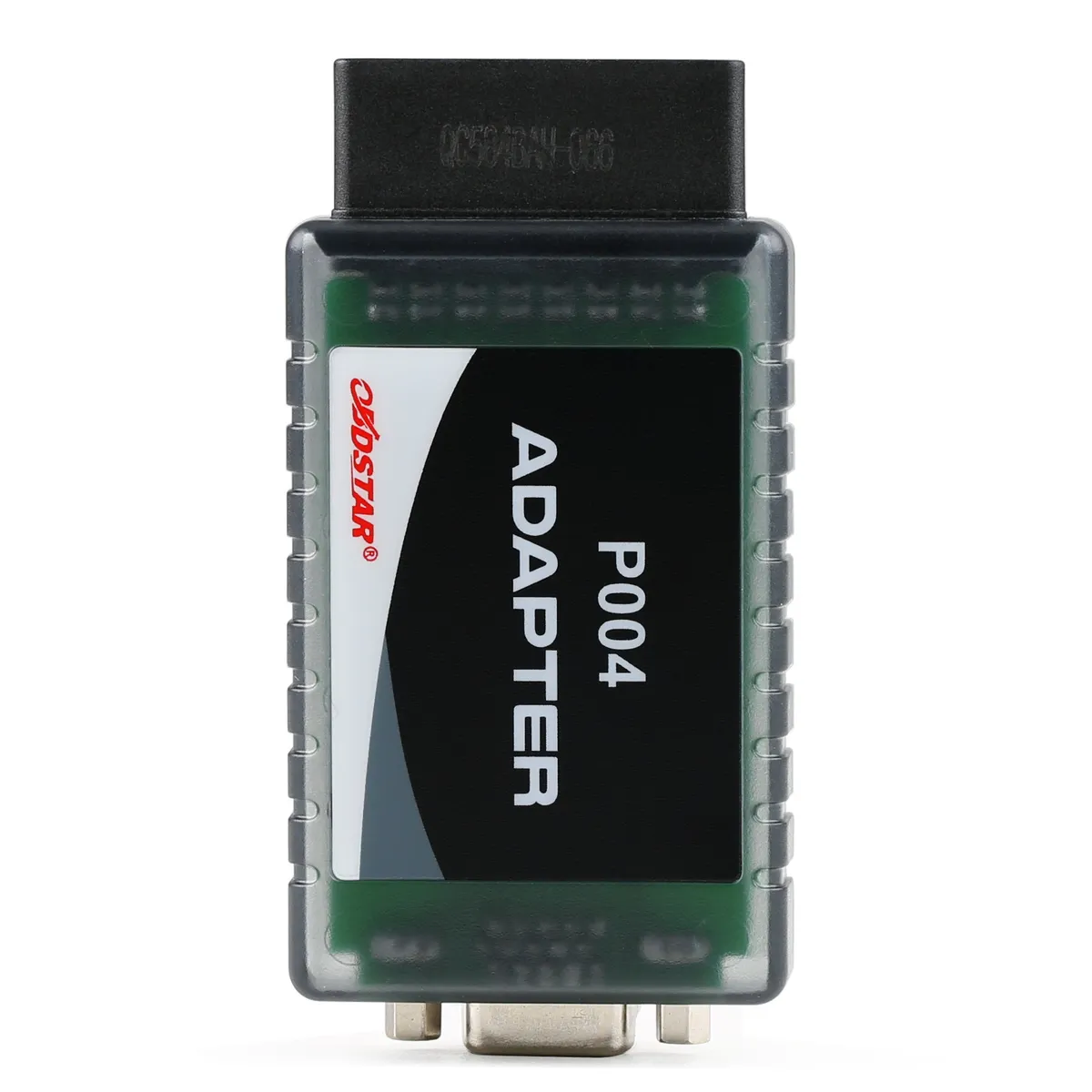

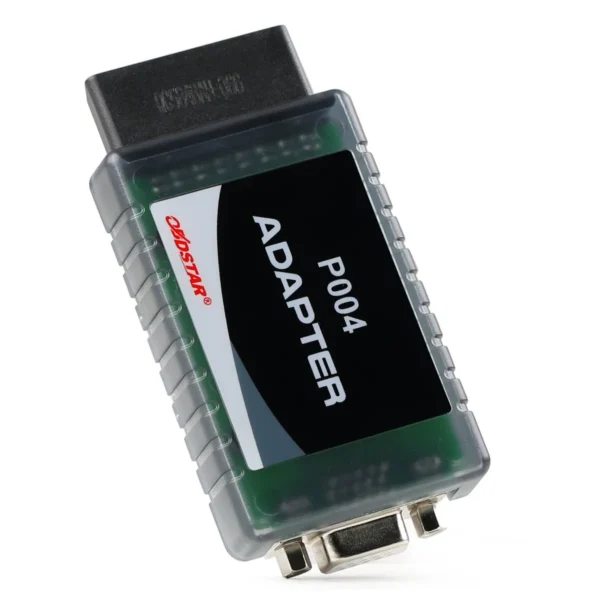

2. P004 adapter is designed for ECU programming, reading or writing data in bench mode.

Notice:
X300 DP PLUS full version only need to buy this kit to do airbag reset.
Odo Master needs to buy Airbag Reset Software Plus P004 Adapters & Jumper Cable

1. Programming devices keep in normal communication no matter the 12V power button is turned on or off ;

2. Turn on or off 120Ω resistance at any time for CANBUS ECU;

3. Support 6&14 and 3&11 CANBUS communication at the same time;

4. Support GM Single CAN(GM SCAN);

5. Support K communication;

6. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;

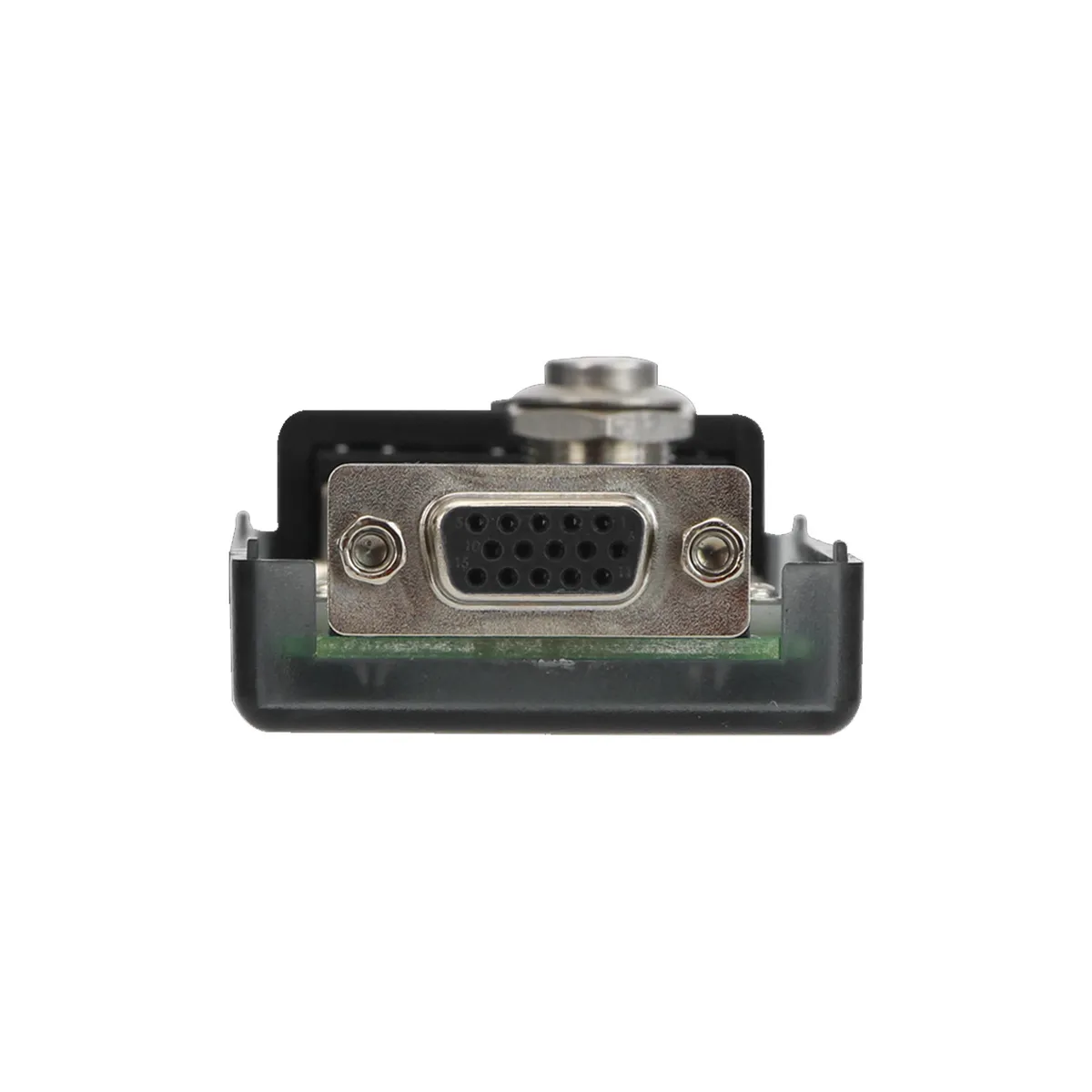

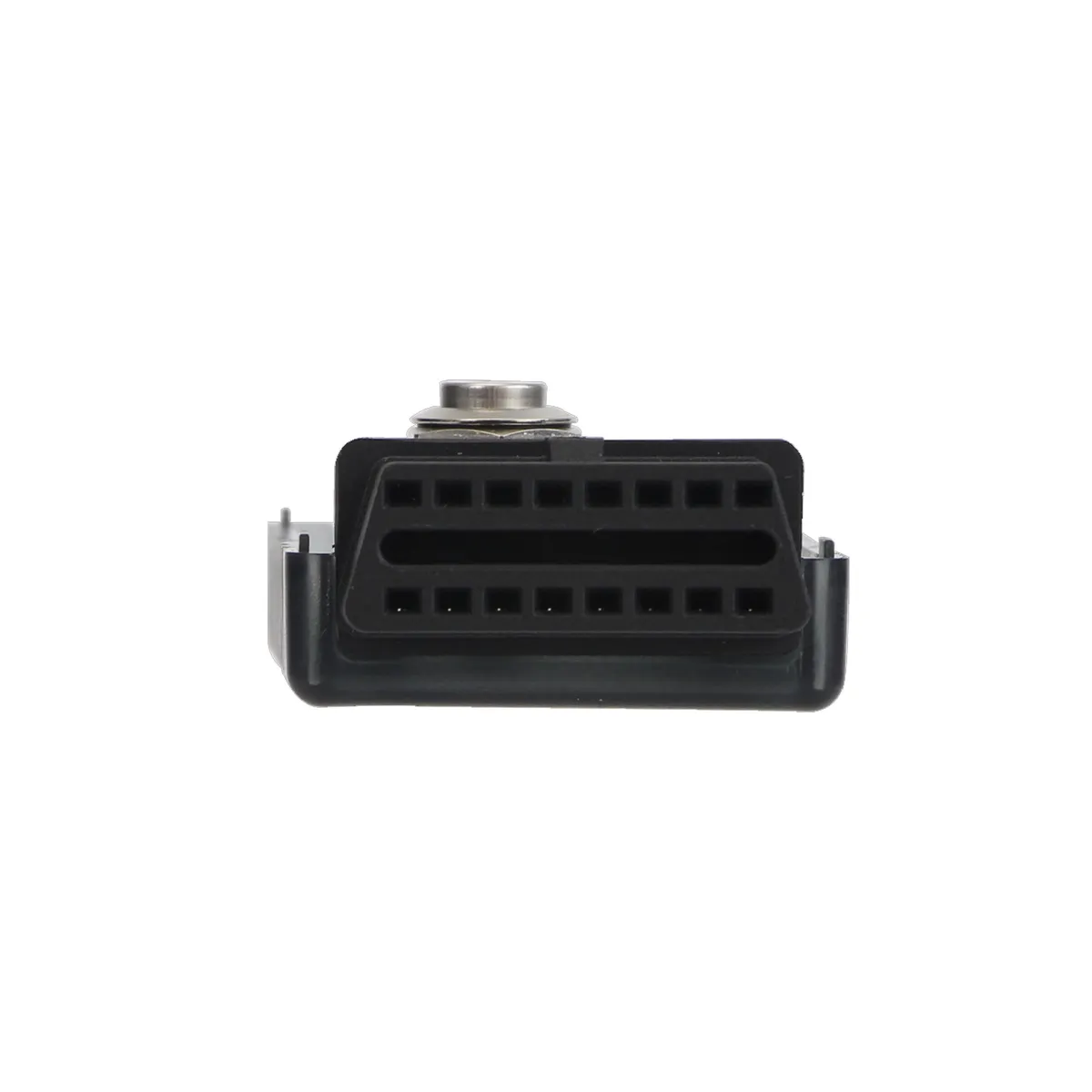

7. DB15 connector can communicate with any OBDII-16 I/O interface.

1. supports one-click airbag reset for 38 brands and over 3000 ECU part No.

2. supports fuzzy search for ECU part No.

3. contains clear BENCH mode wiring diagram

4. contains powerful and complete description files for fault code

5. calculate PinCode

More functions are in developing…

Ecu Info. /Read DTC/ Erase DTC/ Read EEPROM/ Write EEPROM

Read FLASH/ Write FLASH/ Erase Crash/ Write VIN …

1. Supported Brands(38 Brands)

Acura, Audi, Benz, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Dodge, Ford, GMC, GreatWall, Honda, Hyundai, Infiniti, Jaguar, Jeep, KIA, Land Rover, Lincoln, Maserati, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Subaru, Suzuki, Tesla, Toyota, VW, Volvo

2. Over 3000 ECU part No.(supporting fuzzy search)

3. MCU types

H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570

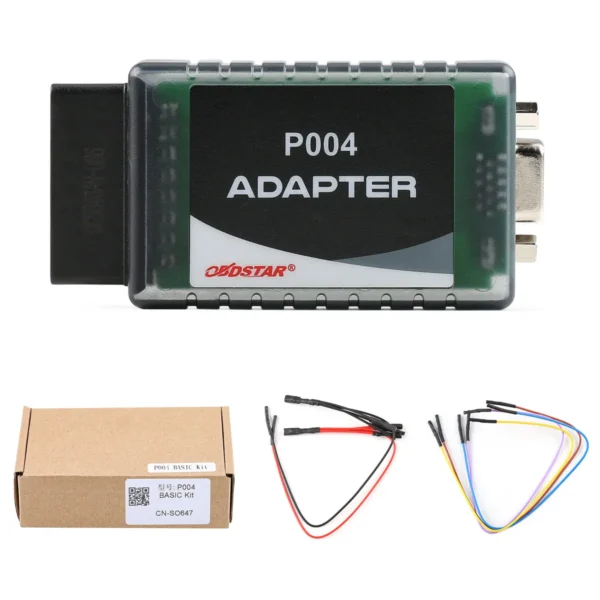

1pc x P004 adapter

1pc x P004 jumper
