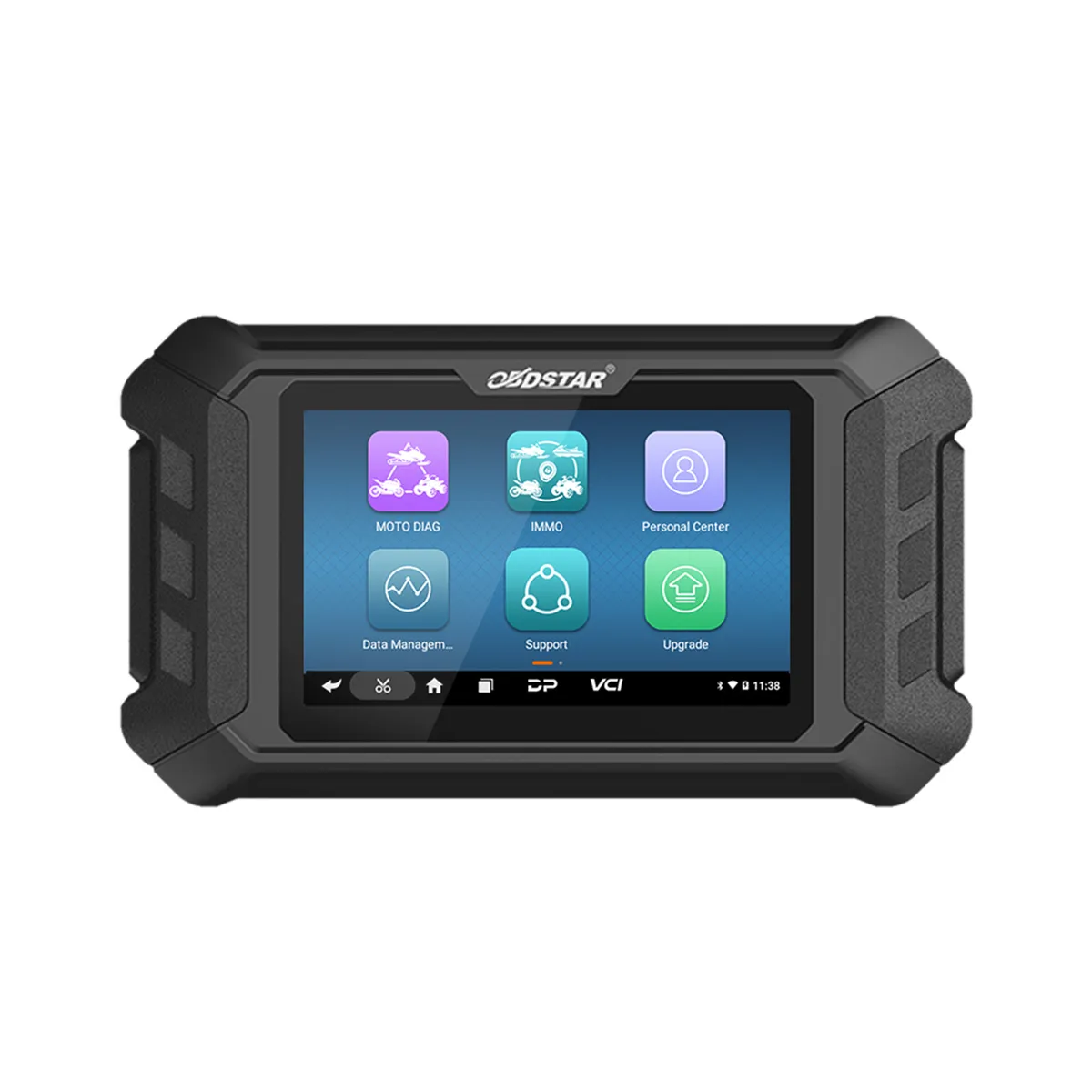

OBDSTAR iScan MV Agusta Intelligent Motorcycle Diagnostic Tool Portable Tablet Scanner

OBDSTAR iScan MV Agusta,specialized for MV Agusta, is a portable tablet which has super performance and industrial style appearance. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, it brings customer professional diagnosis experience.

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Menu arbitrary selection is more convenient and quick;

4. Wi-Fi connection to the internet, one-click software upgrade;

5. One-click remote function, OBDSTAR technical staff remote assistance.

1. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

2. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;

3. Support MV AGUSTA diagnosis

1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;

2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

MV AGUSTA

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin

3)Manual Service Function

4)Supported Systems List/Vehicles List

5) Diag Socket/Diag Connector Location

6) Special Function-MV AGUSTA

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20°C~55°C (14℉~131℉)
Storage temperature	-20°C~70°C (-4℉~158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

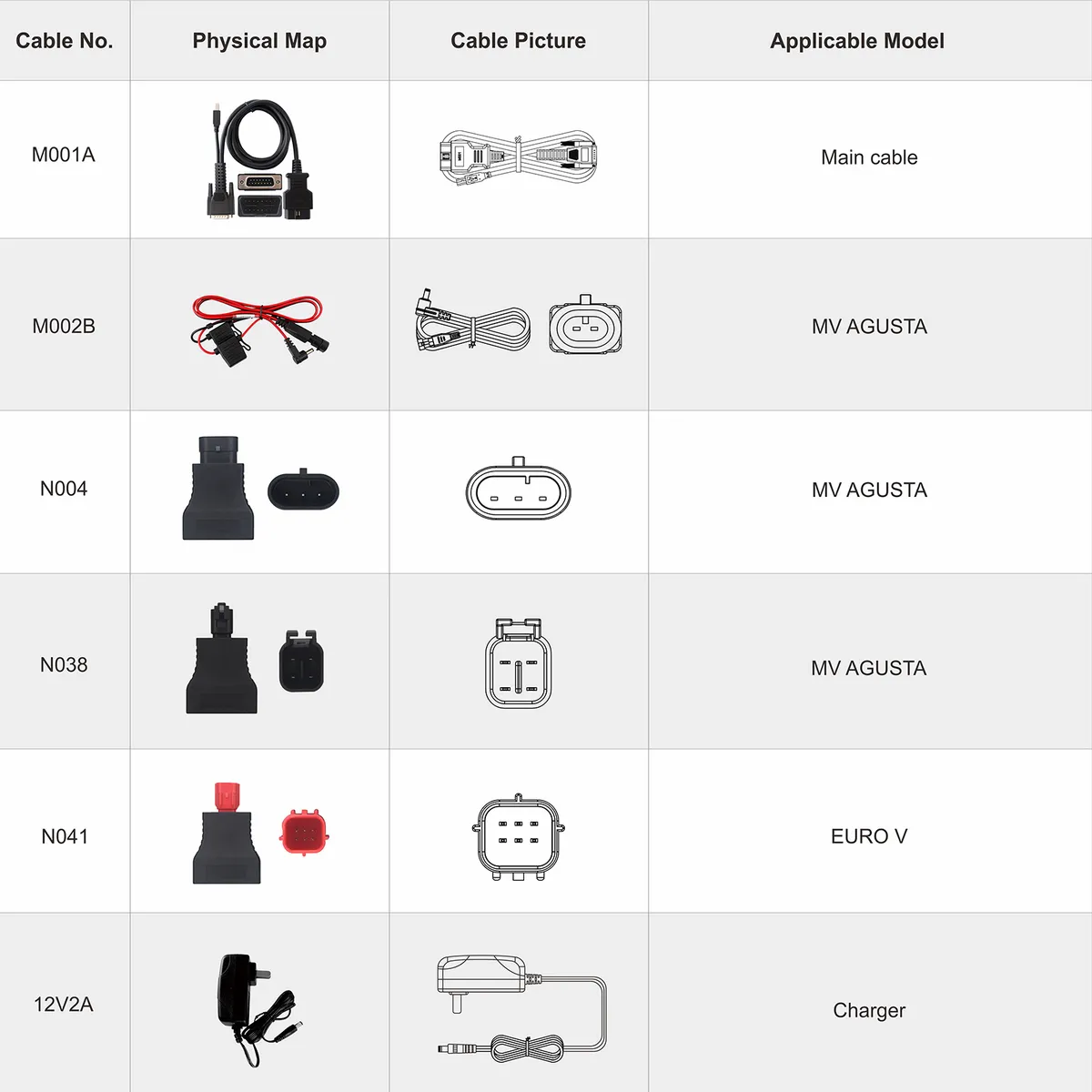

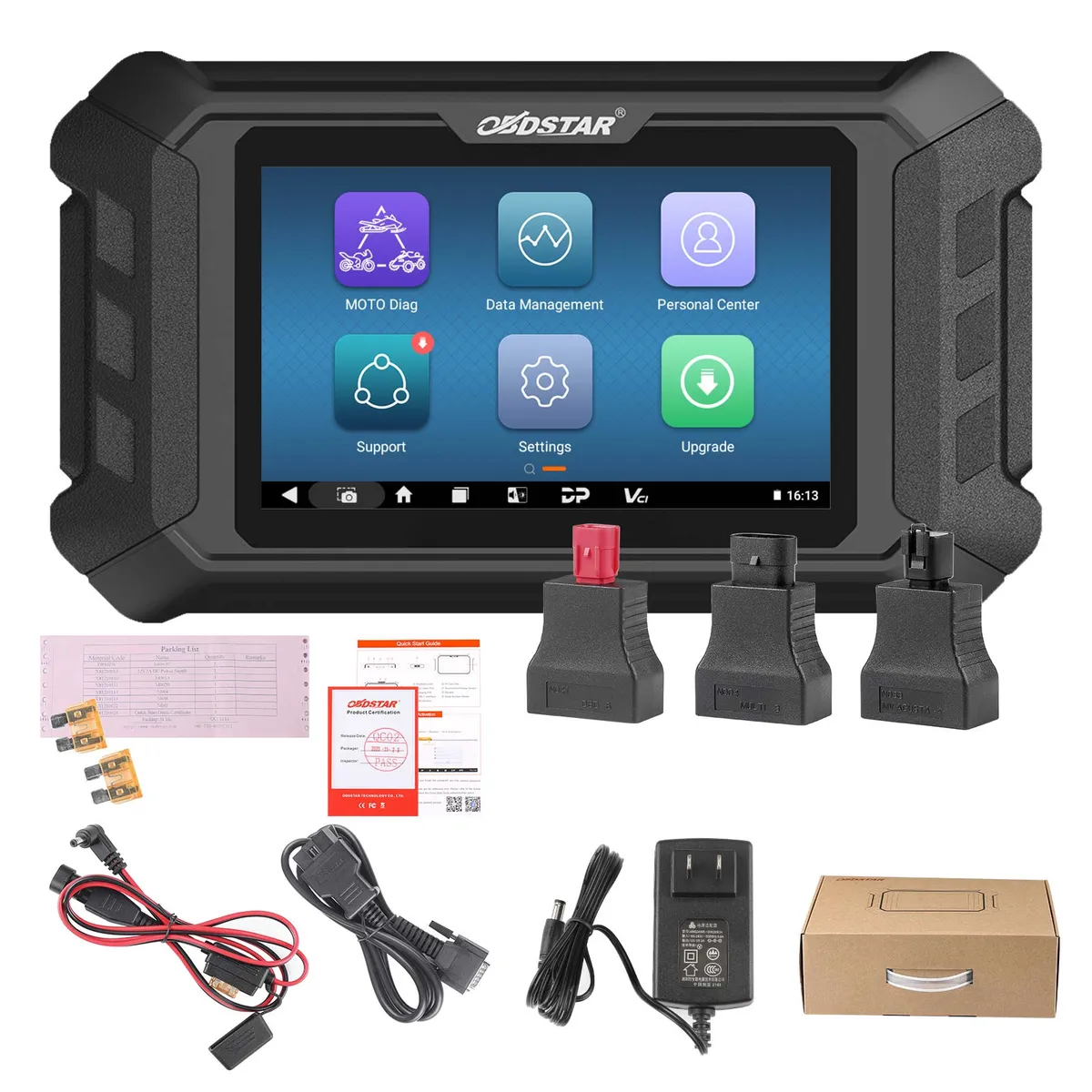

1pc x M001A main cable

1pc x M002B MV AGUSTA power line

1pc x N004 MV AGUSTA adapter

1pc x N038 MV AGUSTA adapter

1pc x N041 EUROV adapter

1pc x 12V2A MV AGUSTA charger
