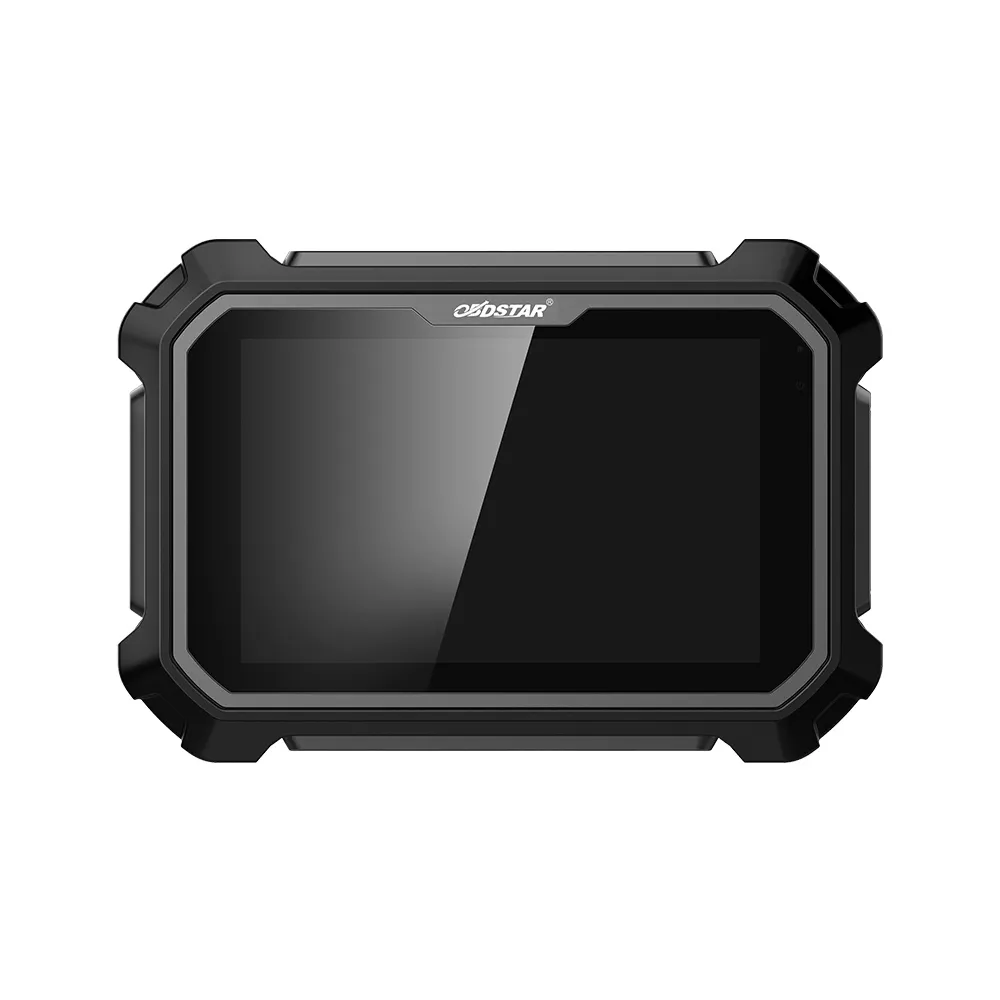

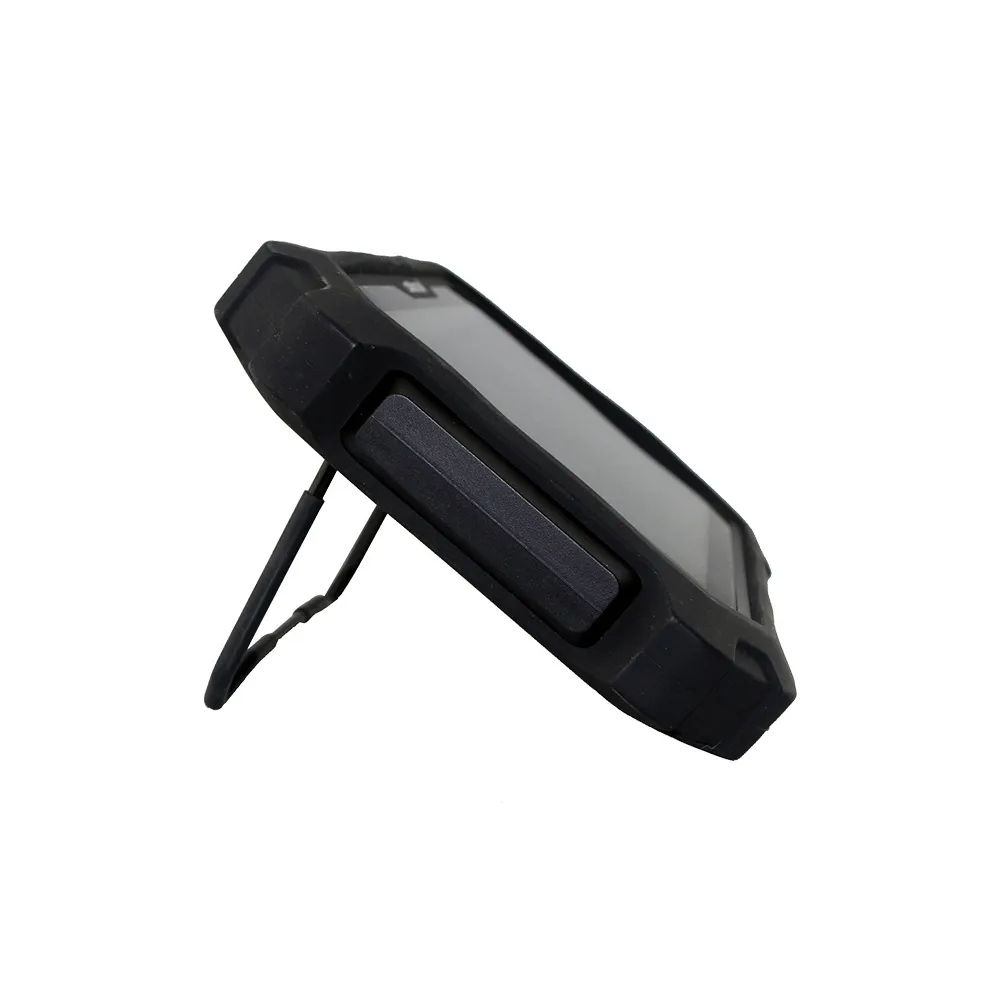

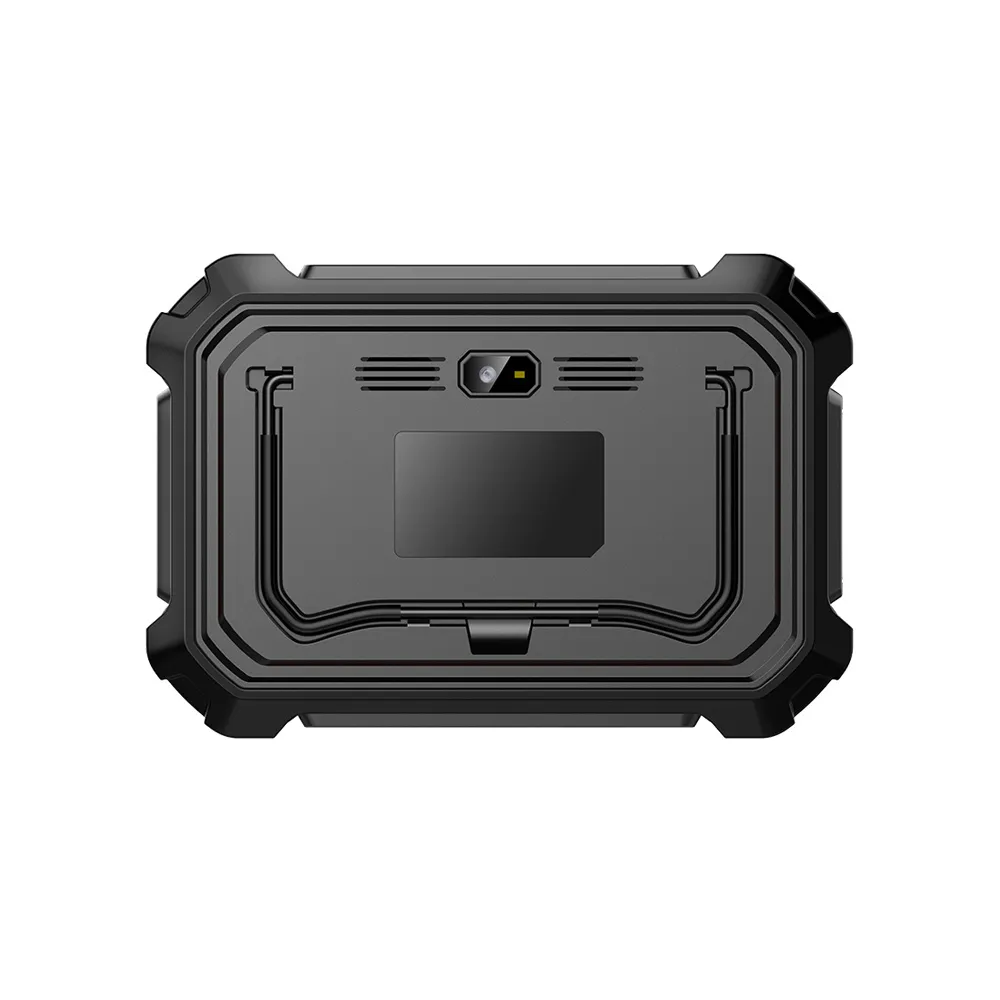

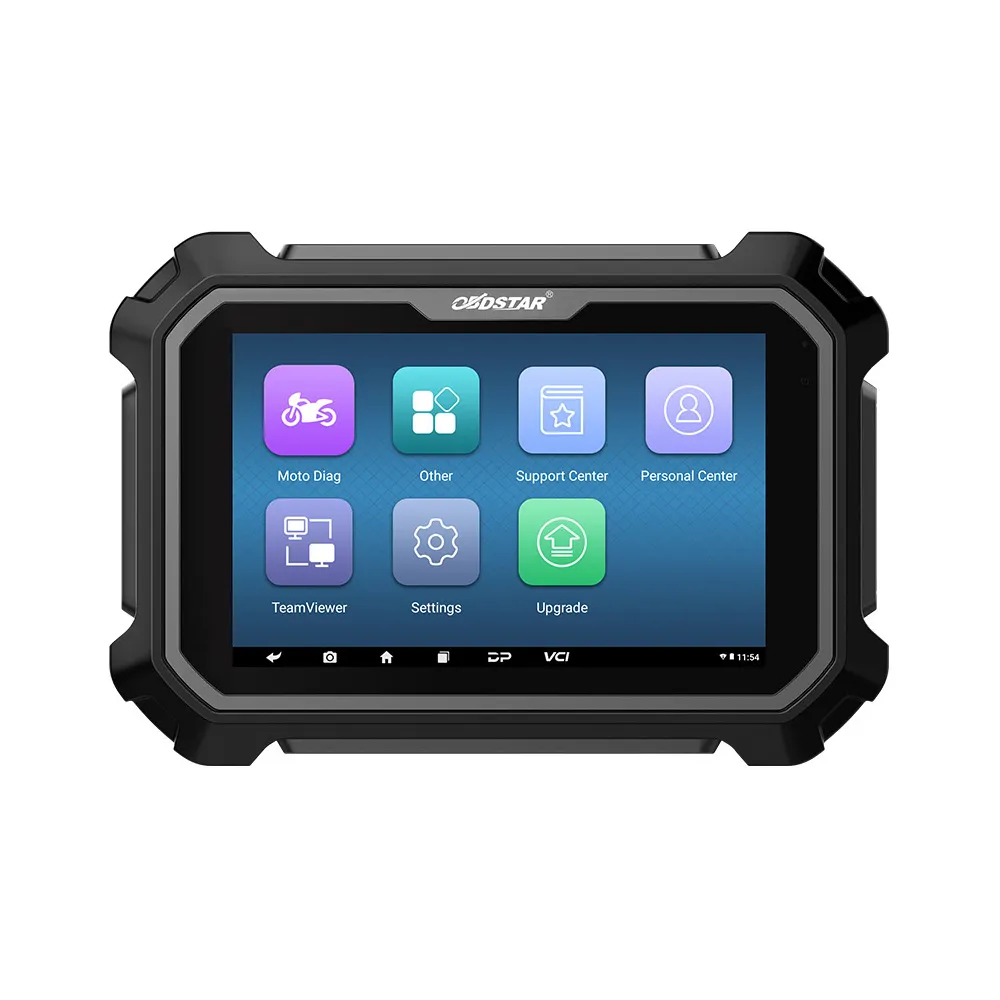

OBDSTAR MS80 Intelligent Motorcycle Diagnostic Tool Support IMMO Function

OBDSTAR MS80 Intelligent Motorcycle Diagnostic Tool Support IMMO Function

Description
OBDSTARMS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!

OBDSTAR MS80 Highlights:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/ Snowmobile/ ATV/ UTV Diagnostic Function Support Vehicle Series:

Asia:
Honda, Hondamontesa, Kawasaki, Kymco, Suzuki, SYM, Yamaha
Europe:
Aprilia, Benelli, BMW, Derbi, Ducati, Gasgas, Gilera, KTM, Malaguti, Moto Guzzi, MV Agusta, Peugeot, Piaggio, Triumph, Vespa
Americas:
BRP, Harley Davison, Indian, Victory
Motorcycle Key Programming Support Vehicle Series:
Gilera, Harley Davison, Peugeot, Piaggio, Triumph, Vespa
PWC Support Vehicle Series:
BRP, Honda, Kawsaki, Yamaha

More functions under developing…

OBDSTAR MS80 Latest Update Information:

MUTT MOTORCYCLE DIAG UPGRADE [V31.02]

DAFRA MOTORCYCLE DIAG UPGRADE [V31.02]

KYMCODIAGUPGRADE[V30.10]UPGRADEon Jul 30th, 2022

MS80/MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:

MS80/MS50 ENFIELD[V30.00] UPGRADEon Mar 30th, 2021

MS80 ADIVA V30.00 Update on Mar 16th, 2021:

MS80 KVNMOTORS V30.00 Update on Mar 16th, 2021:

OBDSTAR MS80 Functions:

OBDSTAR MS80 Vs. MS50:

Item			MS80	MS50
Diag Cable			High Quality, low price	High Quality, low price
Main machine			8 inch android tablet	5 inch android tablet, OBD charge
Plastic Cover			Industrial Design	Industrial Design
Smart switch pin			Highly integrated diagnostic connector	Highly integrated diagnostic connector
Diag Connector			OBD adapter, no need to disassemble	OBD adapter, no need to disassemble
Operation System			Android	Android
Wifi			one button click	one button click
Language			English and more local language	English and more local language
Remote assistance			Yes, engineer can assistant via remote control software	Yes, engineer can assistant via remote control software
Motorcycle IMMO	European Area	TRIUMPH	√
		GILERA	√
		PEUGEOT	√
		PIAAGIO	√
		DUCATI	√
		VESPA	√
	Americas Area	HARLEY	√
Motorcycle Diagnosis	Asian Area	HONDA	√	√
		KAWASAKI	√	√
		KYMCO	√	√
		SUZUKI	√	√
		SYM	√	√
		YAMAHA	√	√
		MONTESA	√
		PGO	√	√
		HARTFORD	√	√
		AEON	√	√
		BENELLIDSK	√
	European Area	APRILIA	√
		BENELLI	√	√
		BMW	√
		DUCATI	√
		KTM	√	√
		PIAGGIO	√	√
		TRIUMPH	√
		VESPA	√	√
		MALAGUTI	√
		GASGAS	√
		GILERA	√
		GUZZI	√
		AGUSTA	√
		DERBI	√
	Americas Area	HARLEY	√
		INDIAN	√
		VICTORY	√
		BRP	√
OBD	OBD-II	OBD	√	√
Motorboat Diagnosis	Asian Area	HONDABOAT	√

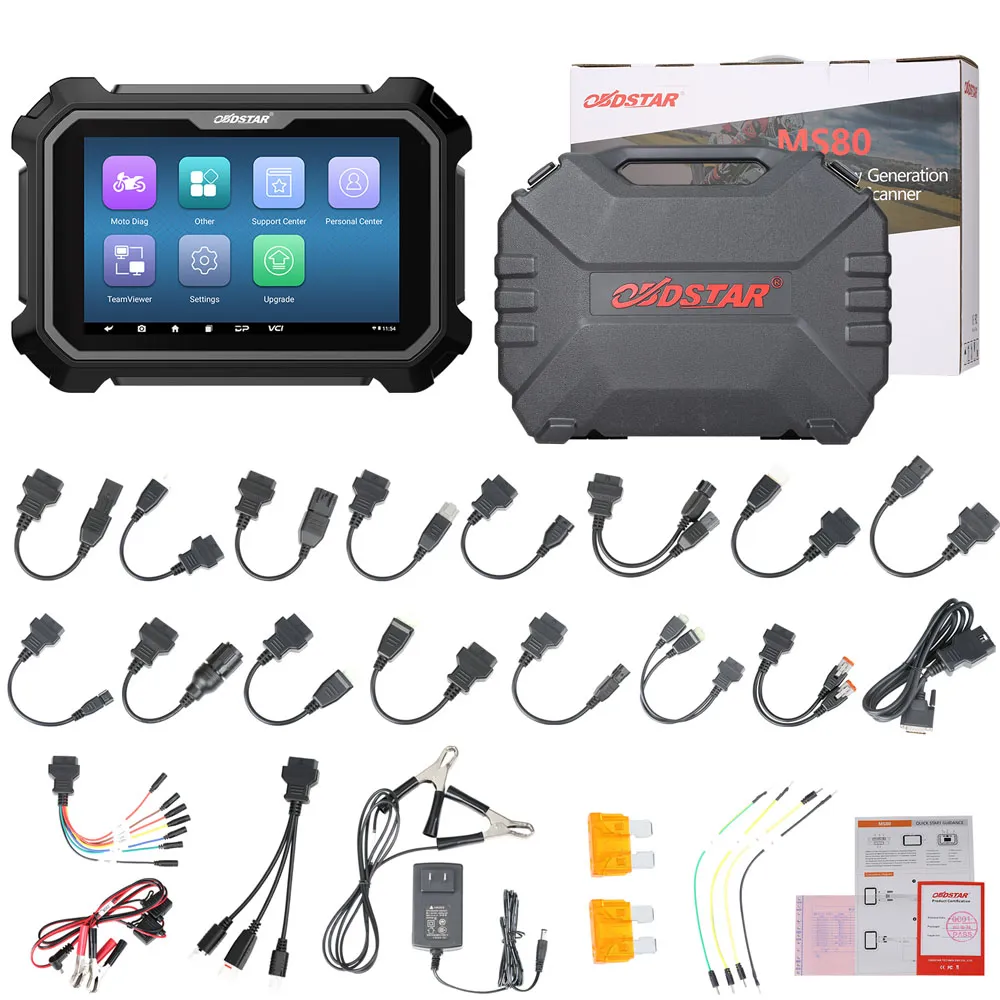

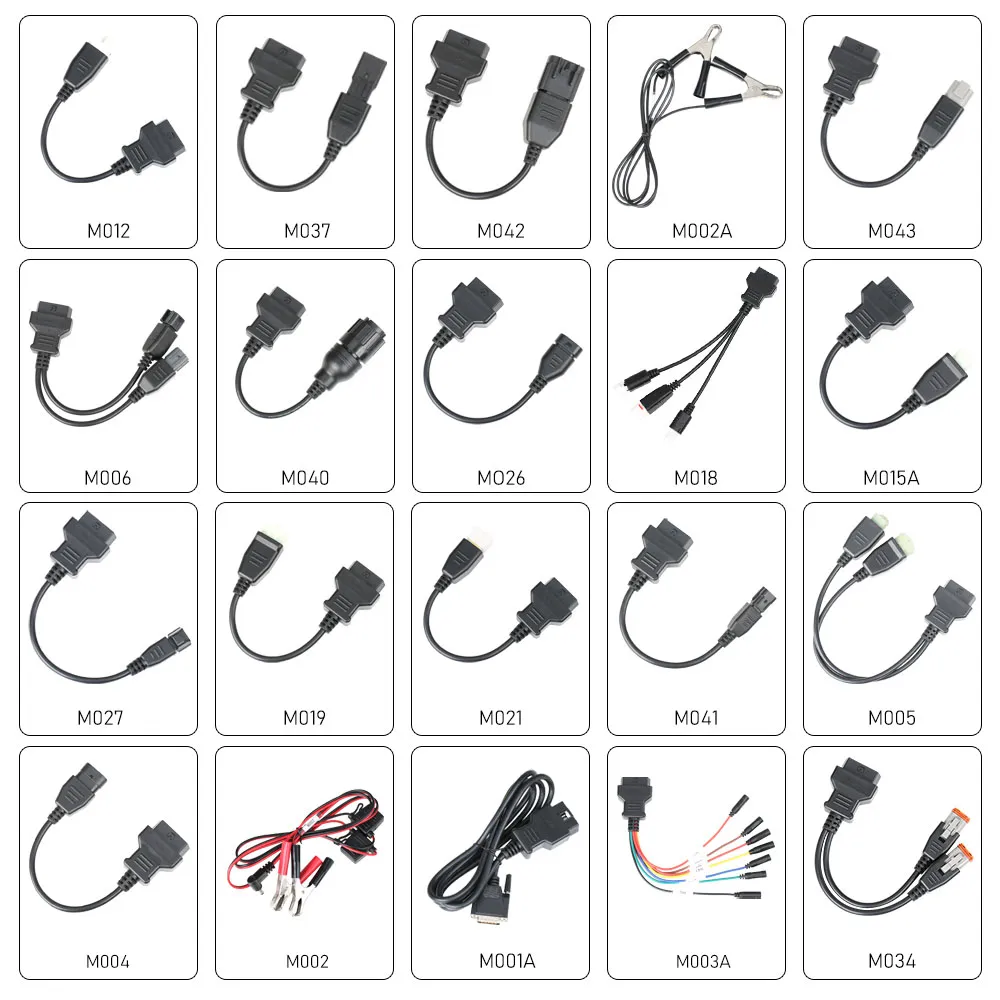

Accessories Comparison
M001		Main Cable	√	√
M002		Power Cable	√	√
M002A		GND	√
M003A		Multi functional jumper	√	√
M004		APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA	√	√
M005		KAWASAKI	√	√
M006		KAWASAKI	√
M012		SUZUKI	√	√
M015A		HONDA/HONDA MONTESA	√	√
M018		YAMAHA	√	√
M019		KTM	√
M021		AEON/BENELLI/BENELLI DSK	√	√
M026		SYM	√	√
M027		KYMCO/KAWASAKI	√	√
M028		pgo		√
M030		HARDFORD		√
M034		HARLEY-DAVIDSON	√
M037		DUCATI	√
M040		BMW	√
M041		EURO V	√	√
M042		INDIAN/VICTORY	√
M043		BRP	√
P001		IMMO KIT(Optional)
12V2A		CHARGER	√	√
Support system			1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems	1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
Advanced Function			Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)	Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)
Diagnostic connector location			√	√
Diagnostic connector Display			√	√
Technical Bulletin			√	√
Fault Guidance			√	√
Data Flow Text/ Waveform Diagram			√	√
Instrument Diagram			√	√
Any menu back			√	√
Interactive Circuit diagram			√	—
Components Description			√	—
