OBDSTAR X300 Pro4 Key Programmer KeyMaster5 Full Version Free Update Online

OBDSTAR X300 Pro4 Pro 4 Key Master Auto Key Programmer

OBDSTAR X300 Pro4 is an all-purpose immobiliser programming device meticulously designed by OBDSTAR for locksmith.The device inherits the automobile immobiliser programming technology from OBDSTAR with a lot of advantages of early start,wide model coverage, fast programming speed and special features All-in-one machine structure, more convenient to use full optimization hardware, running more stable, faster and smoother.

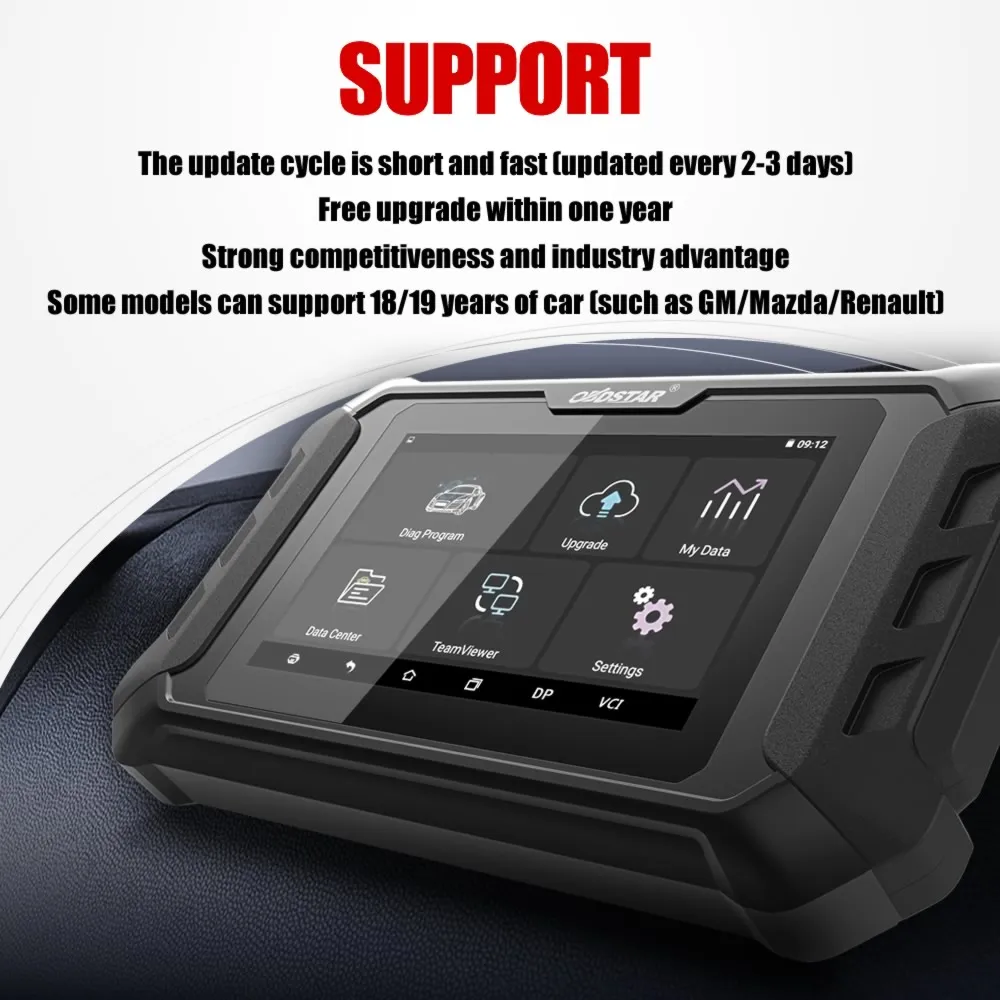

OBDSTAR X300 Pro4 Highlights:
1. OBDSTAR X300 Pro4 covers same immo function as OBDSTAR X300 DP Plus.
2.The update cycle is short and fast (updated every 2-3 days)
3.Free Update Online for One Year, after one year it will cost $300 per year.
4. Strong competitiveness and industry advantage
5.Some models can support 18/19 years of car (such as GM/Mazda/Renault)
6. Add a new help function as shown below: (Applicable to some models, R & D information is being update)

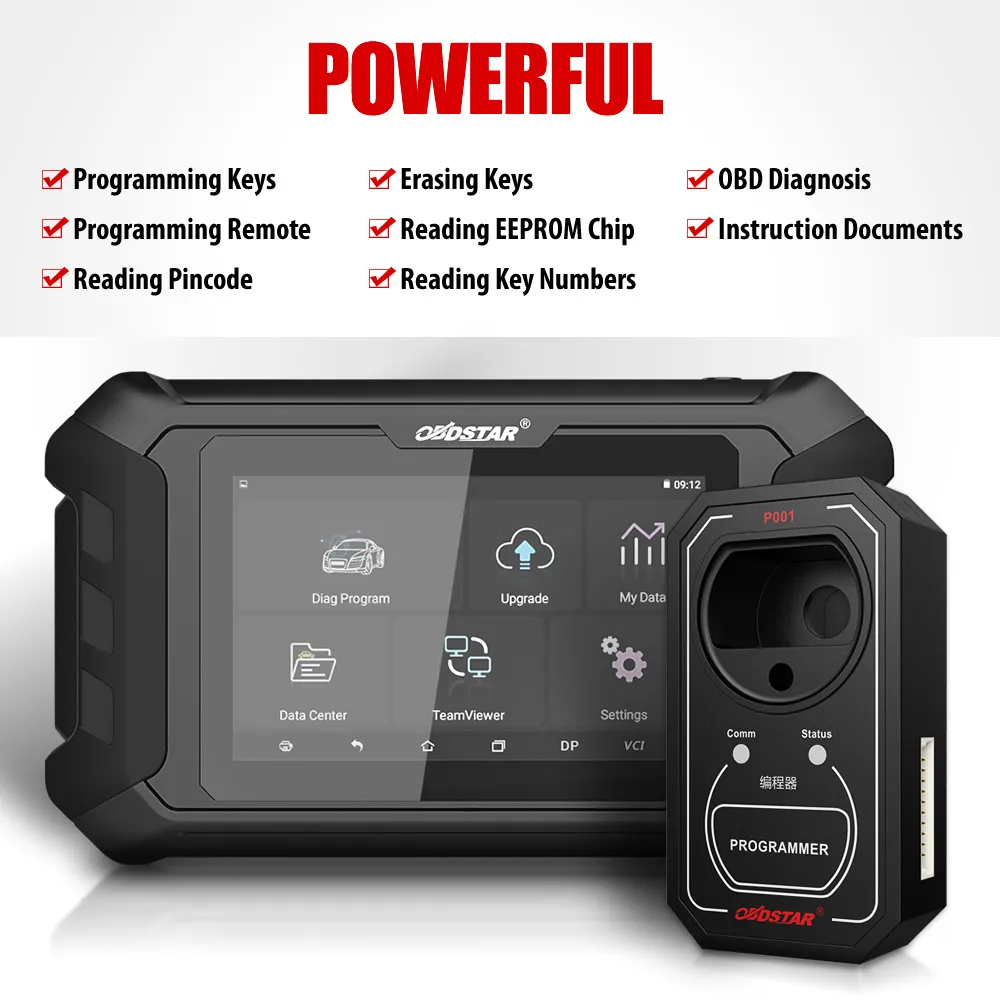

OBDSTAR X300 Pro 4 Programmer Function List:
Programming Keys
Erase Keys
Programming Remote
Read Key Numbers
Pincode Reading
EEPROM Chip Read
OBDII Diagnosis

OBDSTAR X300 Pro 4 Update Note:
OBDSTAR X300 DP Plus Update Oct 29th,2019

CAS1 7 Series E65/E66 2001-2005
CAS2 3 Series E90/E91/E92/E93 2005-2007
CAS2 5 Series E60/E61 2004-2007
CAS2 6 Series E63/E64 2003-2008
CAS2 7 Series E65/E66 2005-2009
CAS3 1 Series E81/E82/E87/E88 2007-2008
CAS3+ 1 Series E81/E82/E87/E88 2009-2012
CAS3 3 Series E90/E91/E92/E93 2007-2009
CAS3 3 Series E90/E91/E92/E93 2009-2012
CAS3/CAS3+ 5 Series E60/E61 2008-2010
CAS3/CAS3+ 6 Series E63/E64 2008-2010
CAS3+ X1 E84 -2014
CAS3+ X5 E70 2008-2013
CAS3+ X6 E71/E72 2008-2014
CAS3/CAS3+ Z6 E89 2008-
CAS3+ Mini 2008-2014

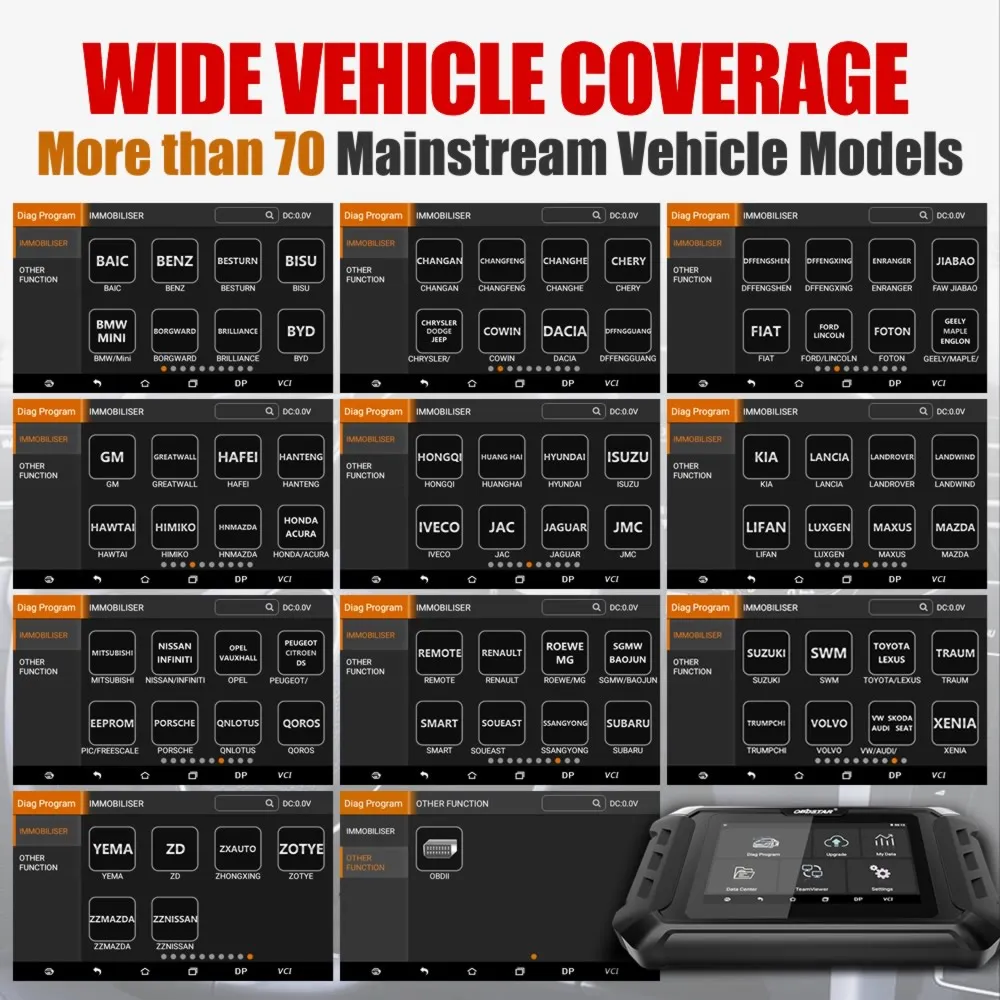

OBDSTAR X300 Pro 4 Programmer Support Car Models List:
Europe:
BMW,Benz,Borgward,Peugeot,Citroen,DS,Dacia,Fiat,Jaguar,Lancia,Land Rover,Opel,Porsche,Renault,Smart,Volvo,Iveco,VW/Audi/Skoda/Seat
Japan:
Honda,ISUZU,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota,Lexus
Korea:
Hyundai,KIA,Ssangyong
America:
Ford,Chrysler,GM
China:
Baic,Besturn,Bisu,Brilliance,BYD,Changan,Changhe,Chery,Cowin,DFFengshen,DFFG,Dfliuzhou,Enranger,Foton,Geely,

Greatwall,Hafei,Hanteng,Hawtai,HimikoHongqi,Huanghai,JAC,Jiabao,JMC,Lifan,Lufeng,Luxgen,Maxus,Qnlotus,Qoros,Roewe,

Sgmw,SWN,SoUEAST,TJFAW,Traum,Trumpchi,Xenia,Yema,ZD,Zhongxing,Zotye,Changfeng

	Function	ProuductPhoto
		X300DPPlus	X300Pro4
		AvailableOrNot
Software (Immo)	ProgrammingKeys	√	√
	EraseKeys	√	√
	ProgrammingRemote	√	√
	ReadKeyNumbers	√	√
	PincodeReading	√	√
	EEPROMChipRead	√	√
	OBDIIDiagnosis	√	√
	ClusterCalibration	√	×
	Diagnosis	√	×
	ECUClone	√	×
	ECUProgramming	√	×
	OilServiceReset	√	×
	OtherSpecialFunctions	√	×
	RT100Remote	√	×
	LuxuryModelsCoverage	√	×
Specification	OprationSystem	Android5.1.1	Android5.1.1
	Camera	supported	×
	CPU	Exynos4418DualCoreARMCortex A91.4GHz	RK3128quad-core, [email protected]
	Battery	3700mA, rechargeablepolymerlithiumbattery	2600Malithiumion
	ExtensionMemoryCard	32GMicroSD(TF)cardsupported	32GMicroSD(TF)cardsupported
	StorageCapacity	32GB	16GB
	LCD	8.0inch	5.0inch
	LCDresolution	1280*800	800*600
	Touchscreen	Capacitivetouchscreen	Capacitivetouchscreen
	Wi-Fi	supported	supported
	WorkingTemperature	-10°C~55°C(14℉~131℉)	-20°C~55°C(14℉~131℉)
	StorageTemperature	-20°C~70°C(-4℉~158℉)	-20°C~70°C(-4℉~158℉)
	Weight	about1.0kg	about700g
	Dimension	254mm*174mm*35mm	140mm*89mm*18mm

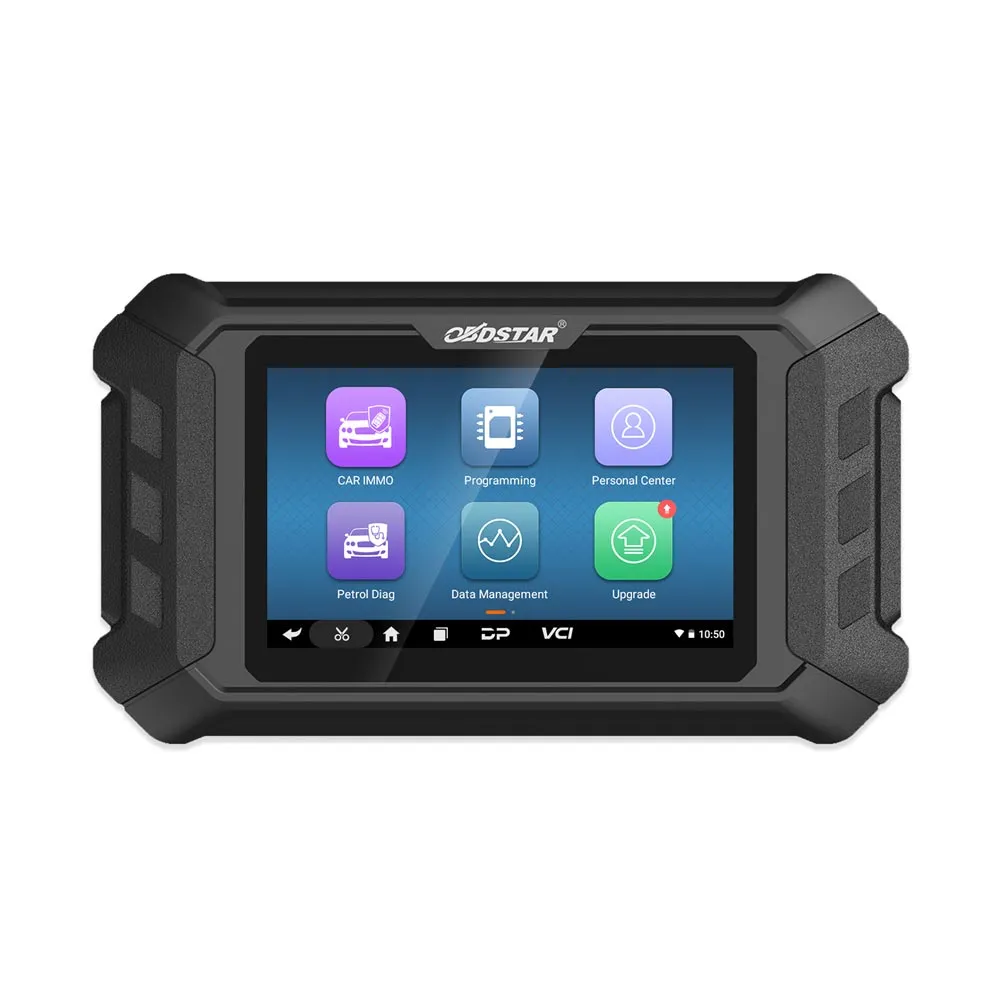

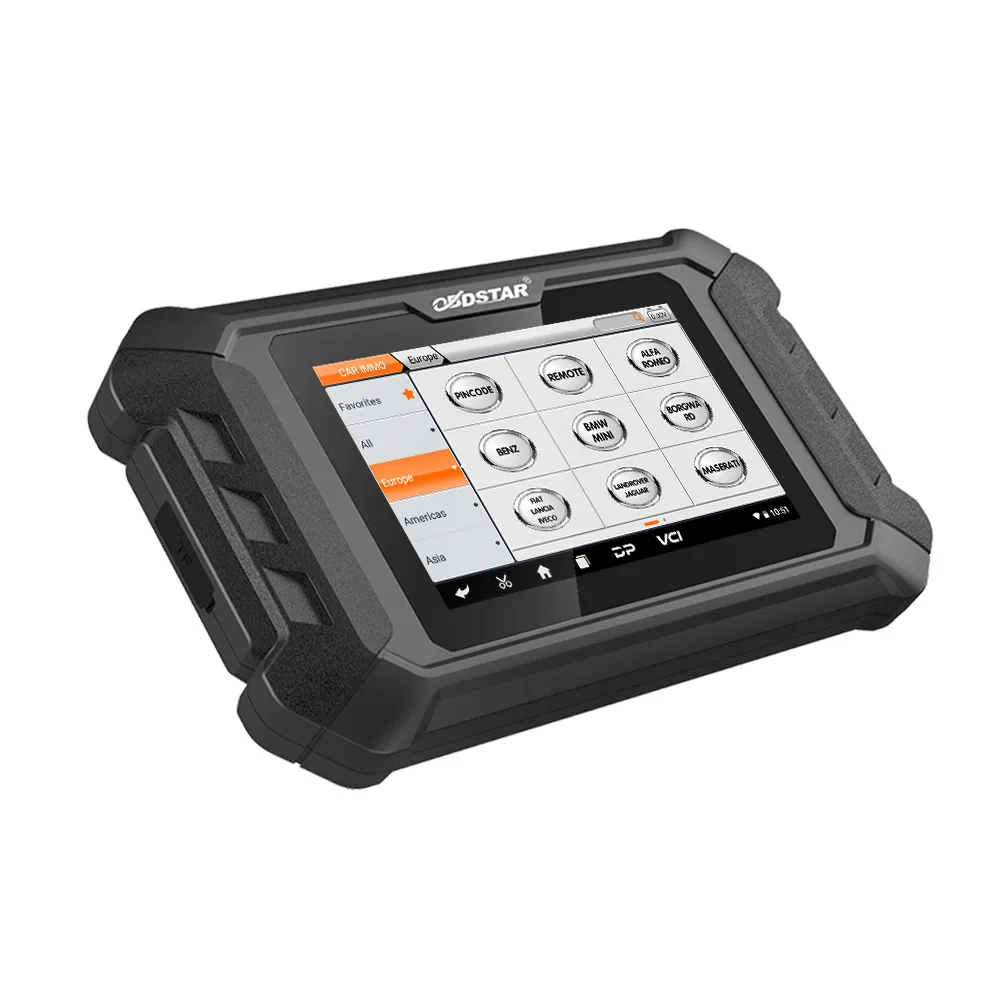

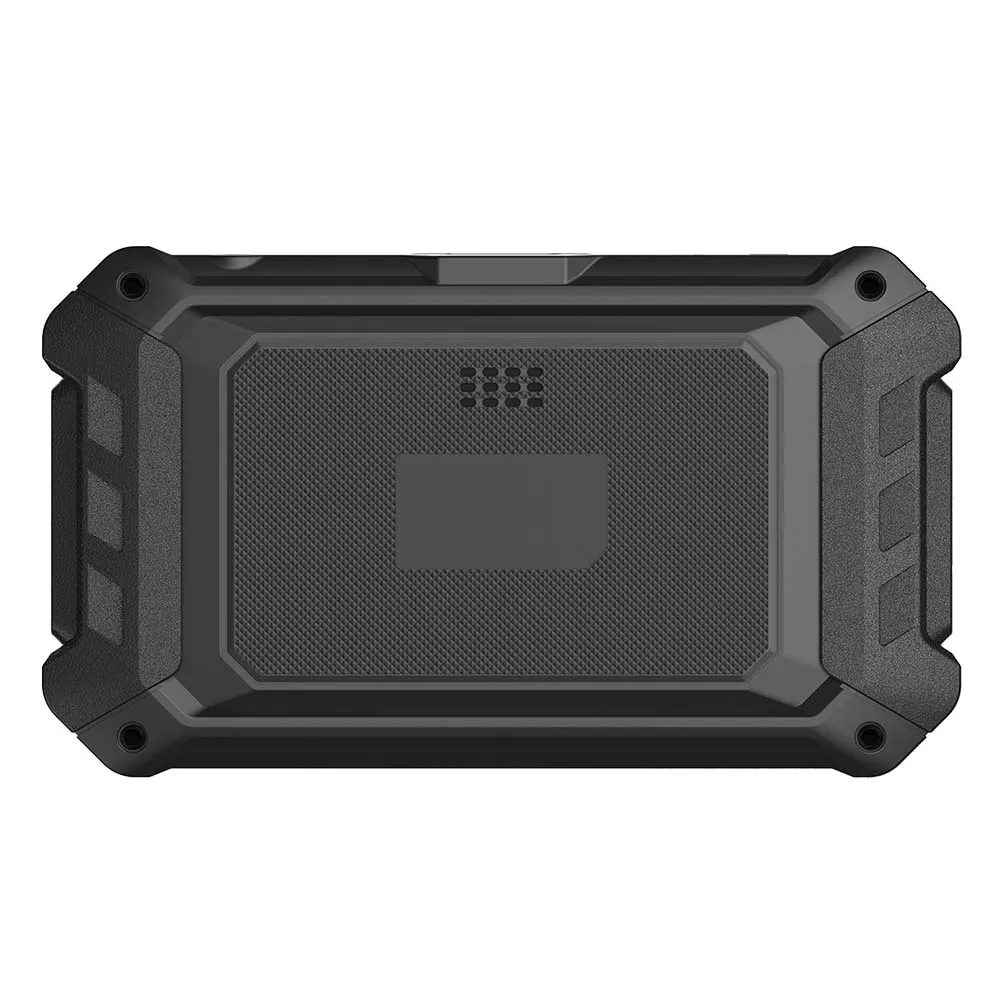

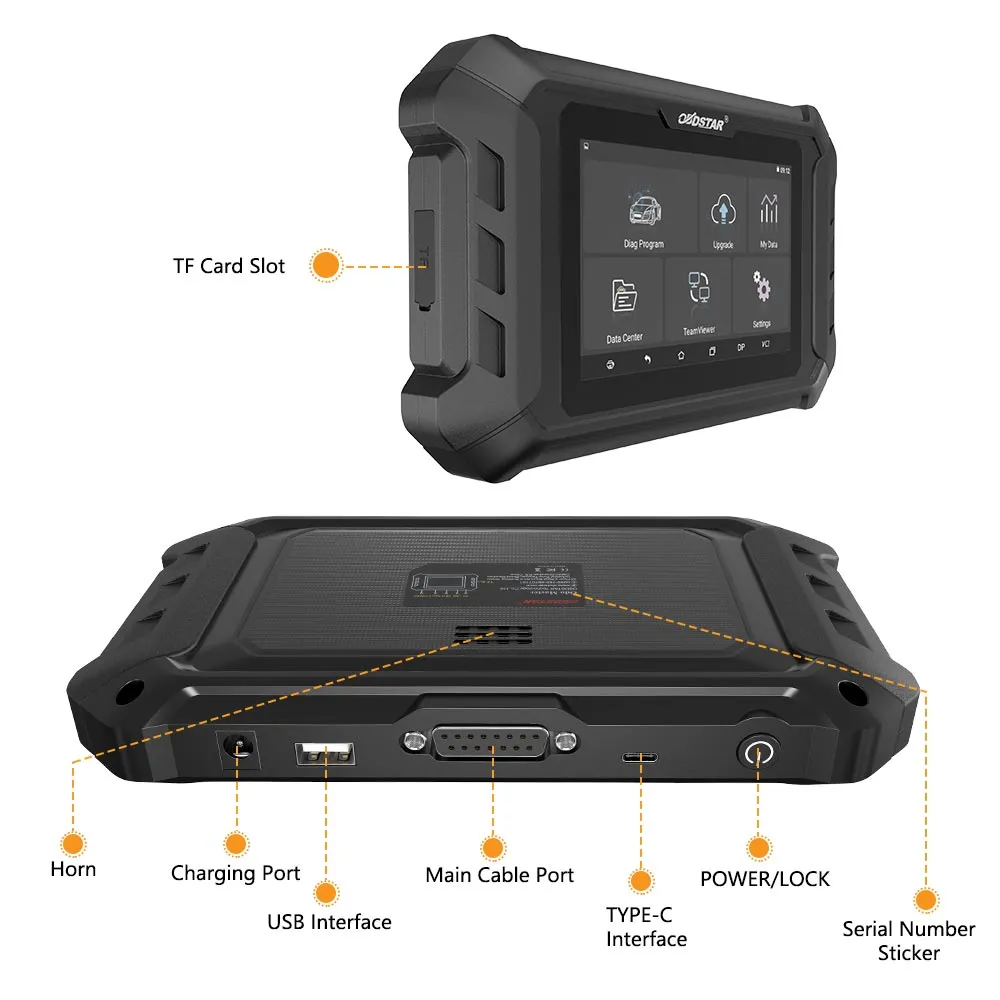

OBDSTAR X300 Pro4 Overview:

① Power/Lock
② Main Cable Port
③ Charging Port
④ TYPE-C Interface
⑤ USB Interface
⑥ TF Card Slot
⑦ Touchscreen/Display Screen
⑧ Speaker
⑨ Serial Number Sticker
How to Register Activation and Update?
Power on
Long press Power button for 5 seconds
Register Activation
Click on the VCI function on the screen–>User information–>Register–>fill in information

OBDSTAR X300 Pro 4 Programmer Specifications:
Operation System: Android5.1.1
CPU: RK3128 quad-core,ARM Cortex A7 at 1.2Ghz
Battery: 2600Ma lithium ion
Extension Memory Card: 32G Micro SD(TF) card supported
Storage Capacity: 16GB
LCD: 5.0 inch
LCD Resolution: 800*600
Touch Screen: Capacitive touch screen
WiFi: Supported
Working Temperatures: -20°C~55°C(14℉~131℉)
Storage Temperature: -20°C~70°C(-4℉~158℉)
Weight: About 700g
Dimension: 140mm*89mm*18mm

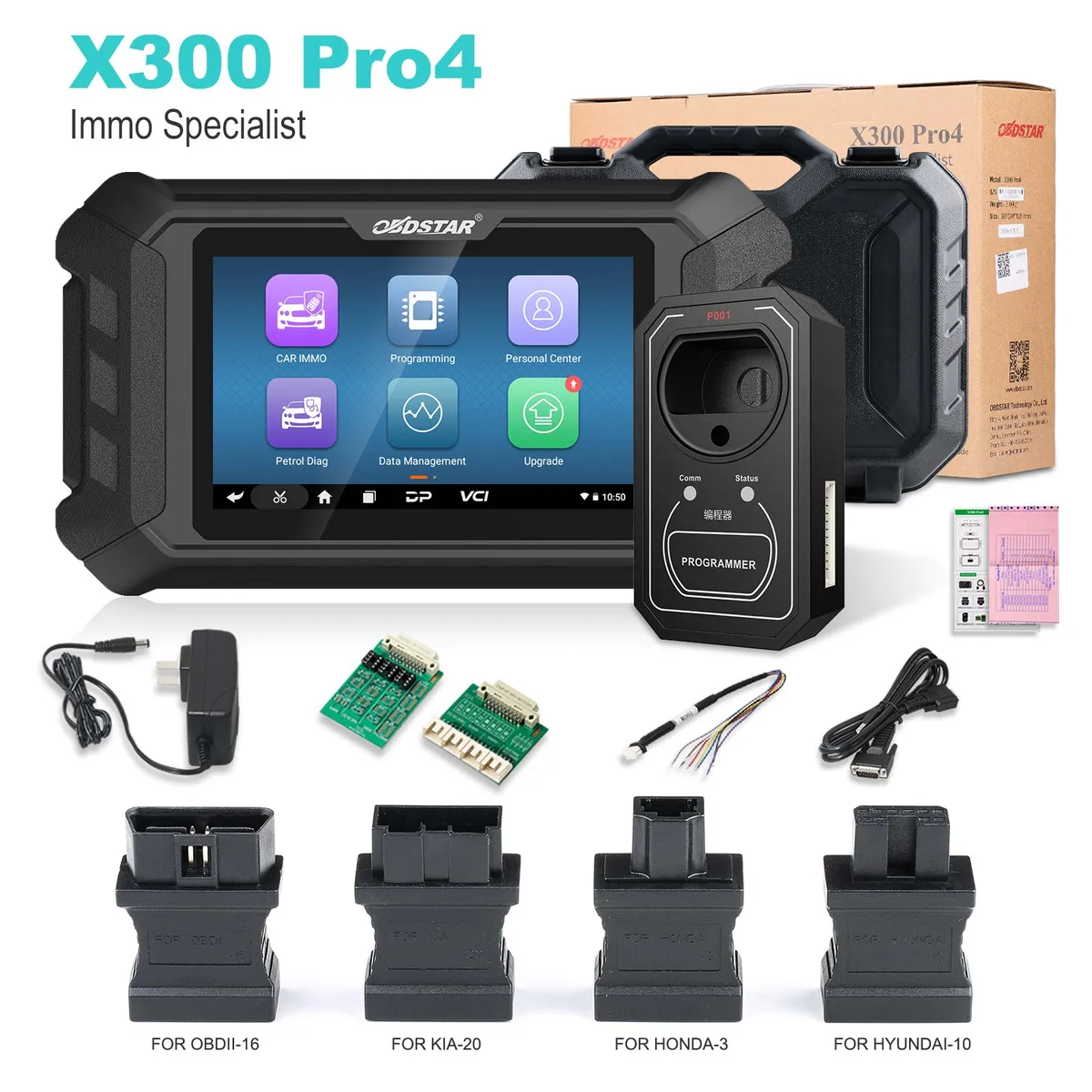

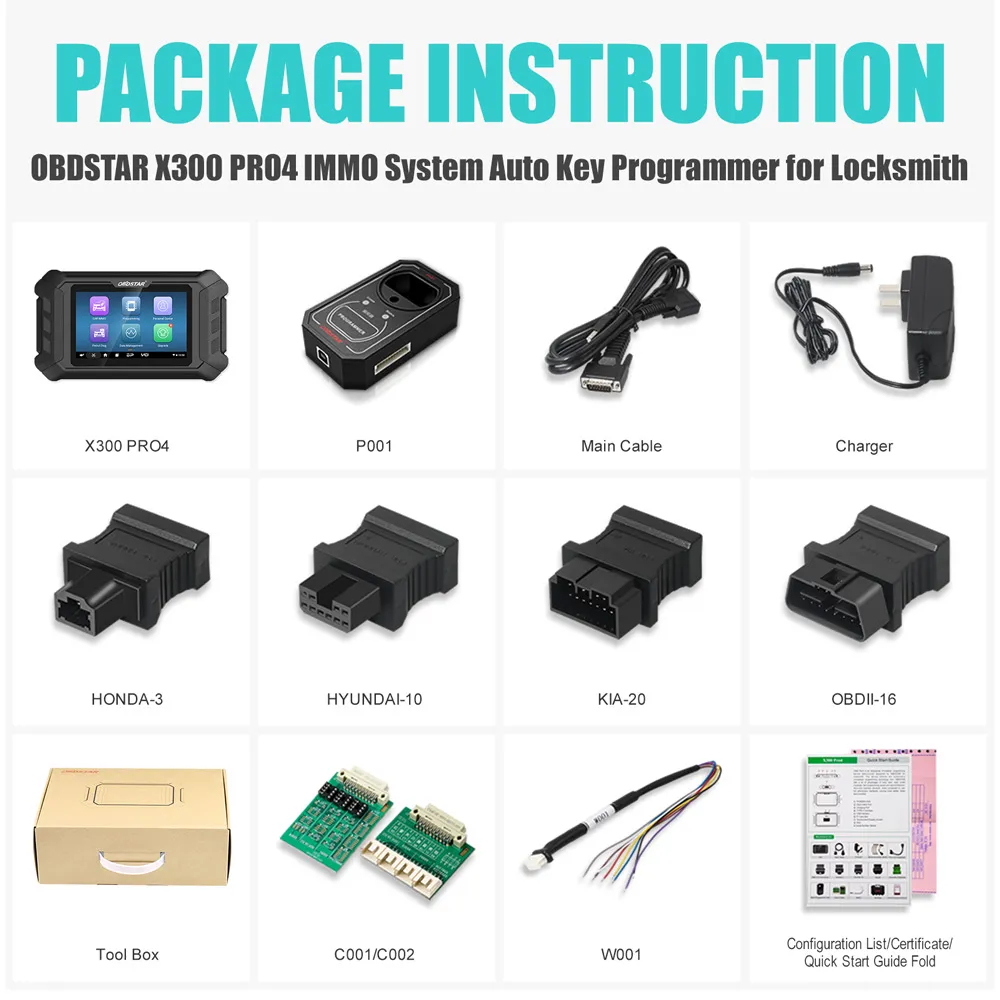

OBDSTAR X300 Pro 4 Programmer Package list:
1pc x X300 Pro 4 Unit
1pc x Main cable
1pc x Charger
1pc x OBDII-16
1pc x HYUNDA-10
1pc x KIA-20
1pc x HONDA-3
1pc x P001 Programmer
1pc x C001 Board
1pc x C002 Board
1pc x W001

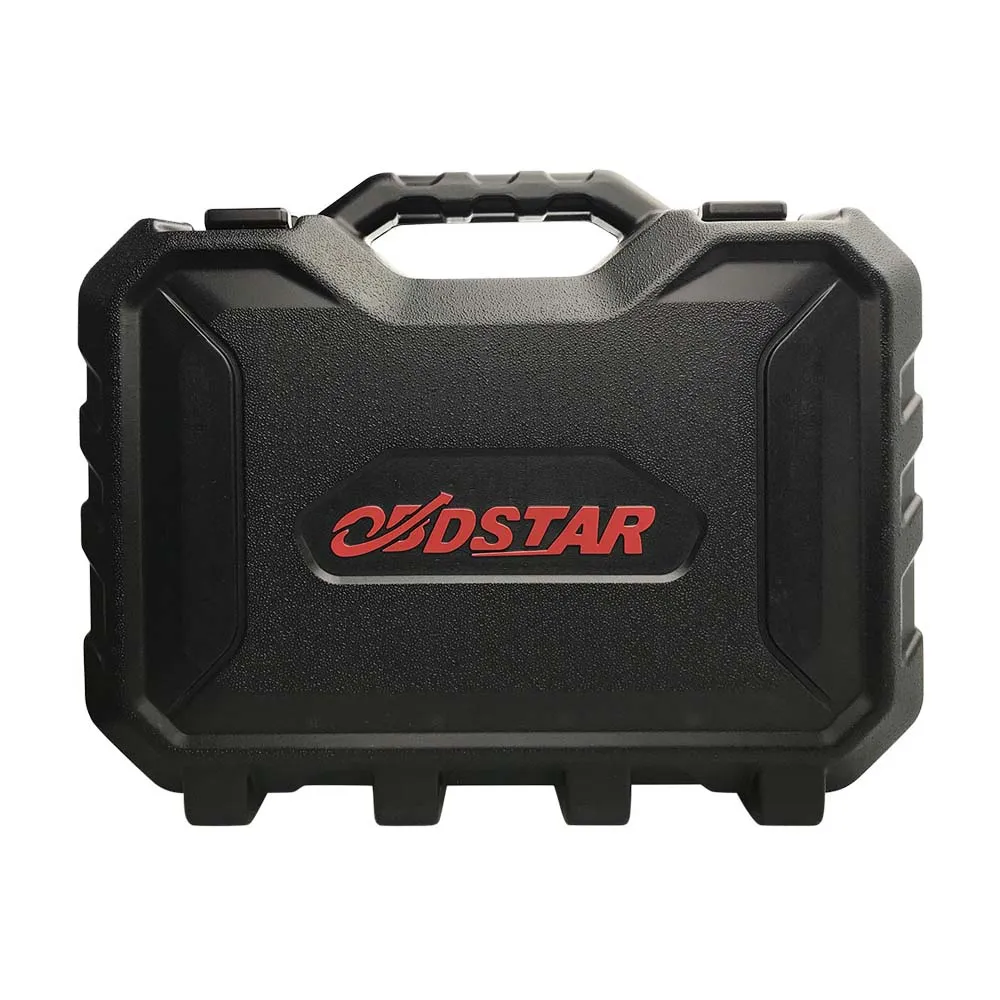

1pc x Tool Box
1pc x OBDSTAR Certificate
1pc x X300 Pro 4 Fast Guide Manual
1pc x Packing List
1pc xMultifunctional Jumper (Optional)
1pc xRenault Converter (Optional)
1pc xFCA 12+8 (Optional)
