Autel TESKIT Autel Tesla Diagnostic Adapter Cables Work with MaxiSYS Tablet
Features:
1. Compatiable Tablet:Autel Maxisys Ultra , Maxisys MS909, Maxisys MS919, Ultra, 908S, 908S Pro, 906BT, 906TS, 906, Elite, 906S, 906 Pro, 906 Pro-TS, Elite II, D1 Pro
2. Supported Vehicle Model: Tesla S and X Vehicle Models
3. Functions: Enables Autel Tablet to Activate Factory Mode and Perform System Diagnostics

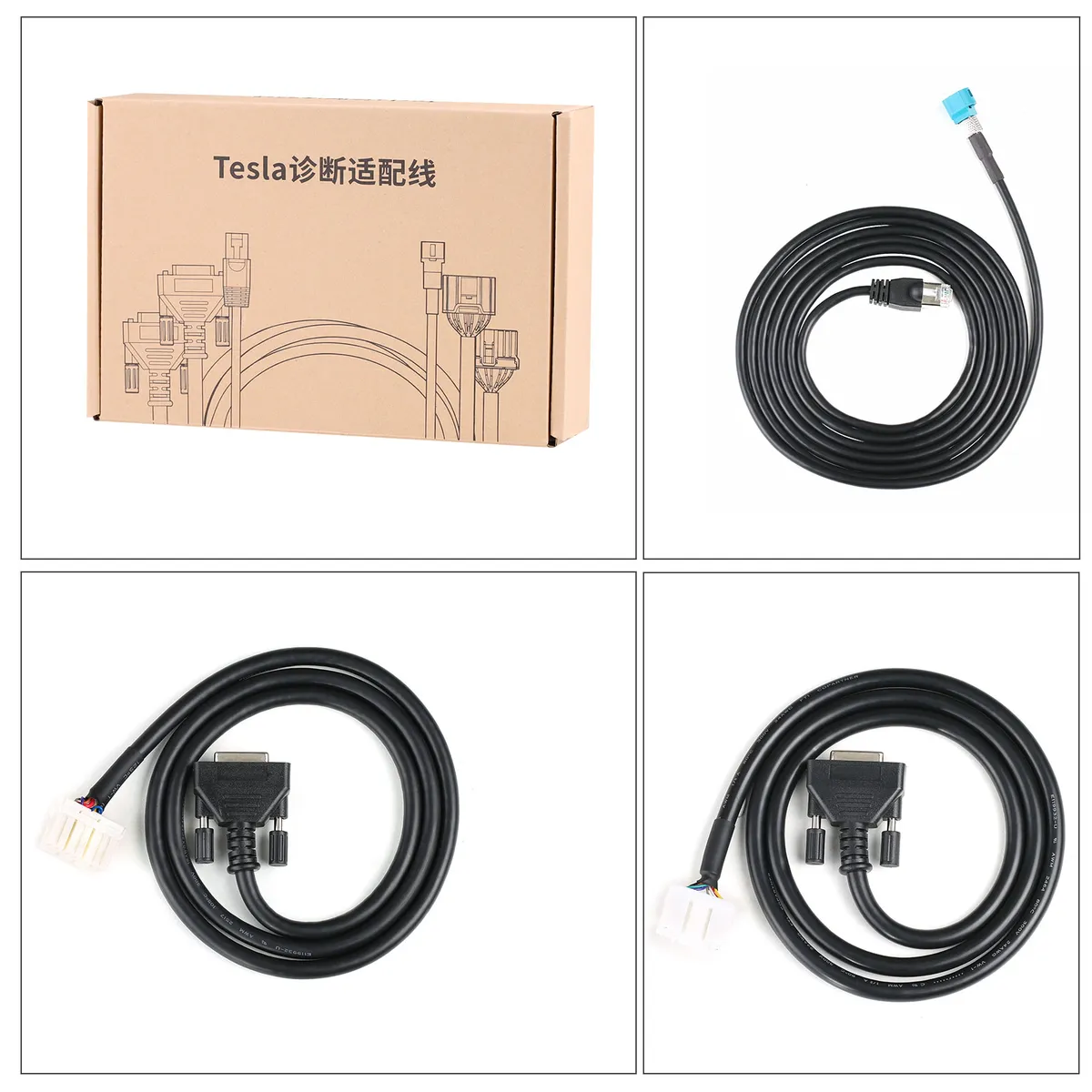

4. Kit Includes: Cable LAN001, cable CAN001 and cable CAN002
Functions of Each Cable:

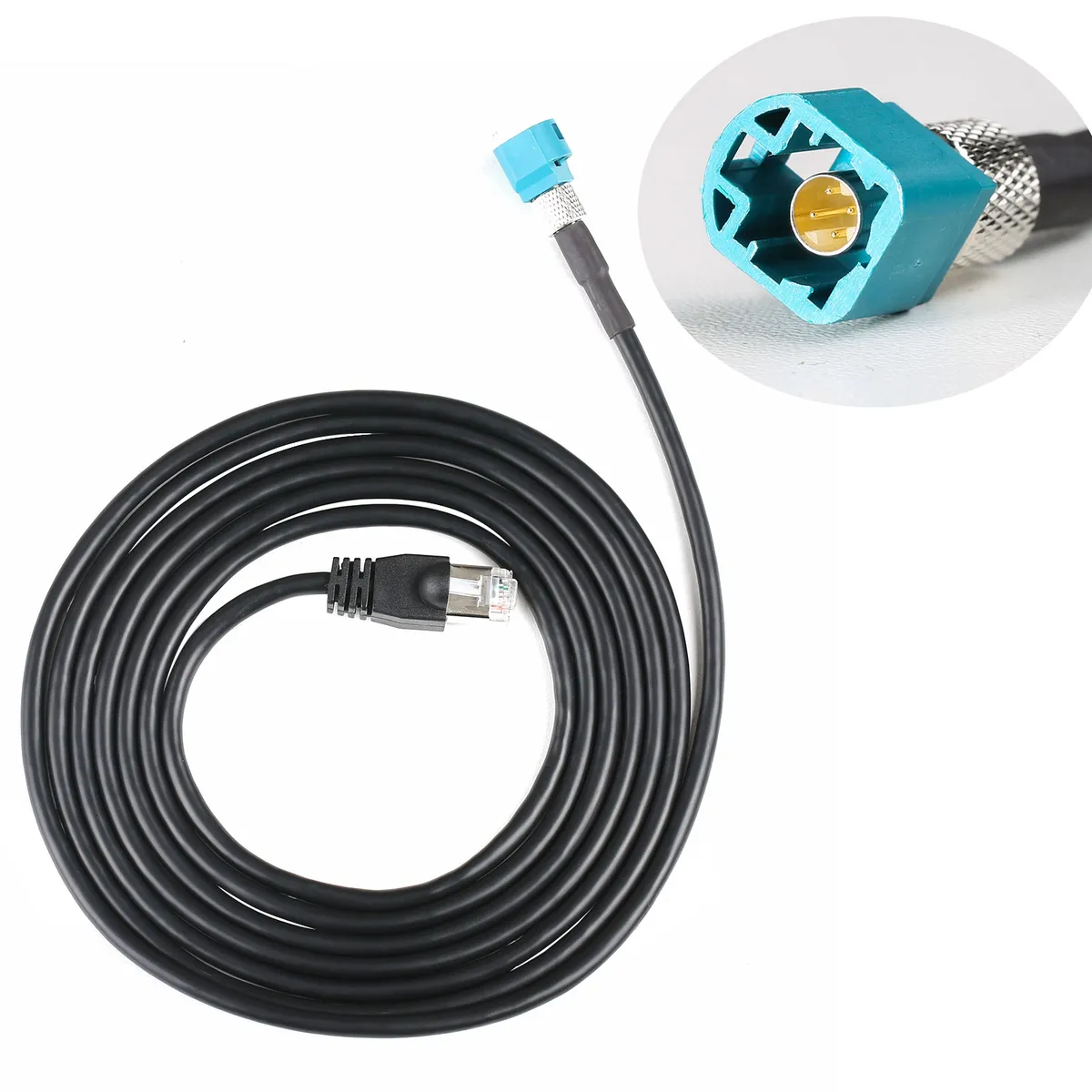

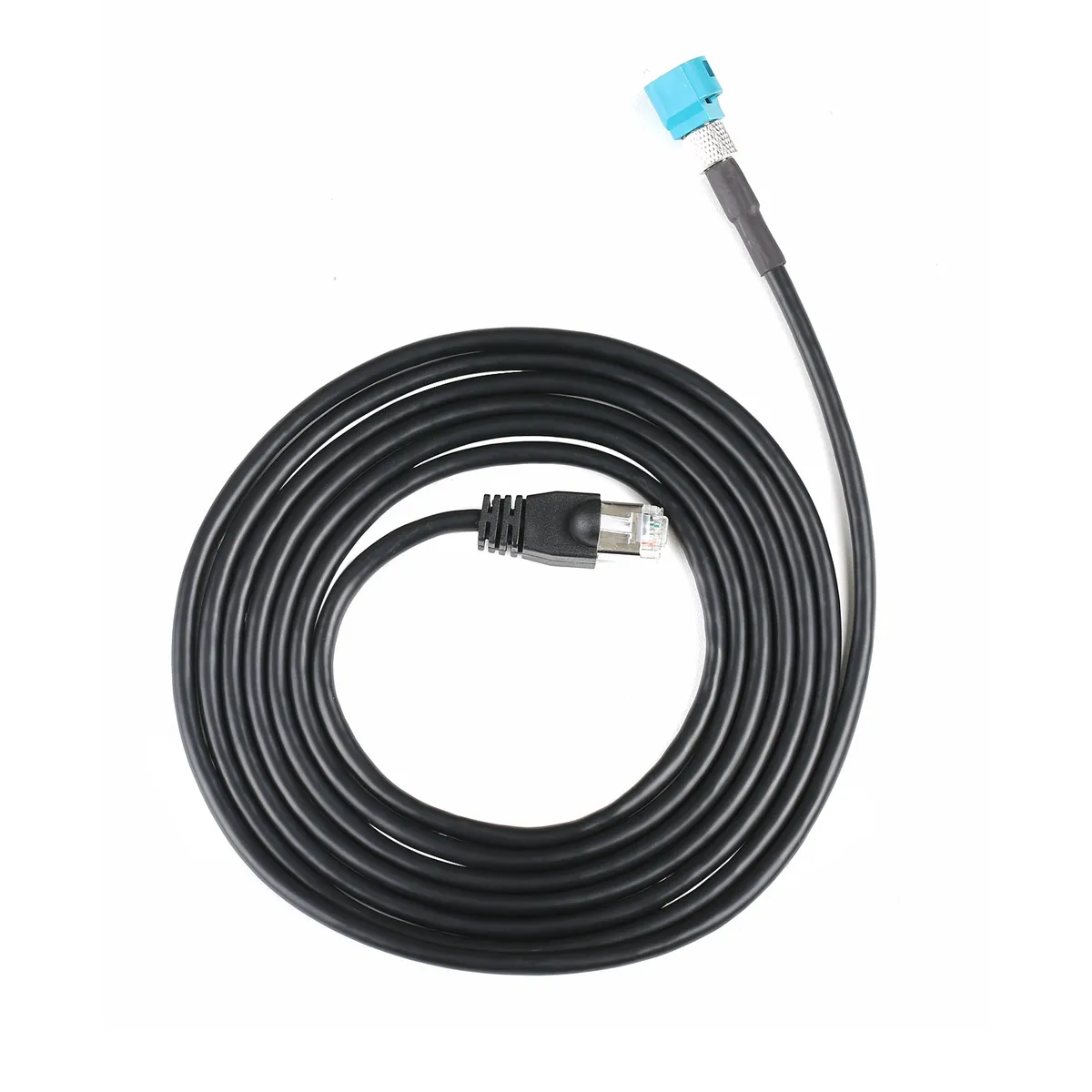

LAN001
– Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
– Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.
– Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015/Sept vehicles.

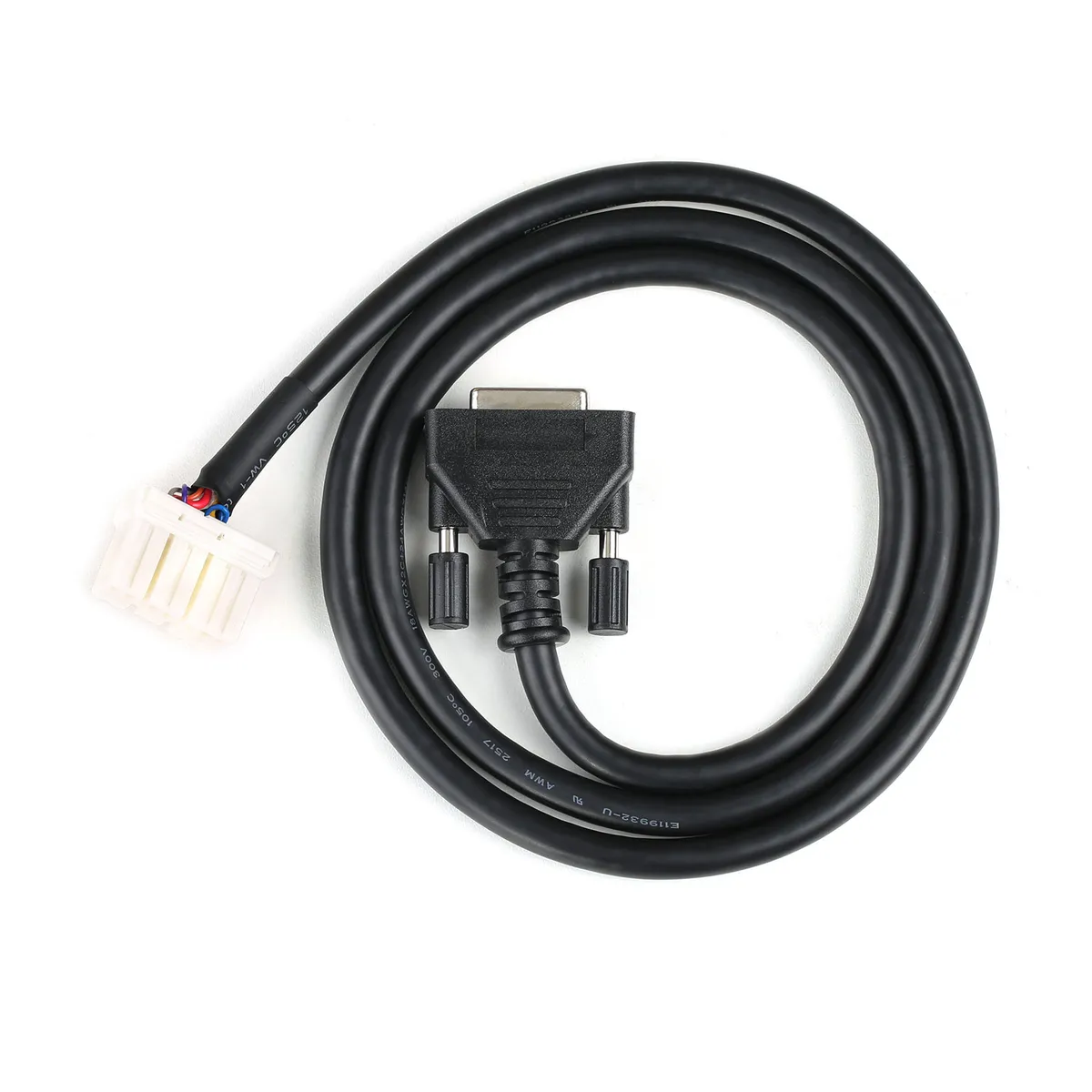

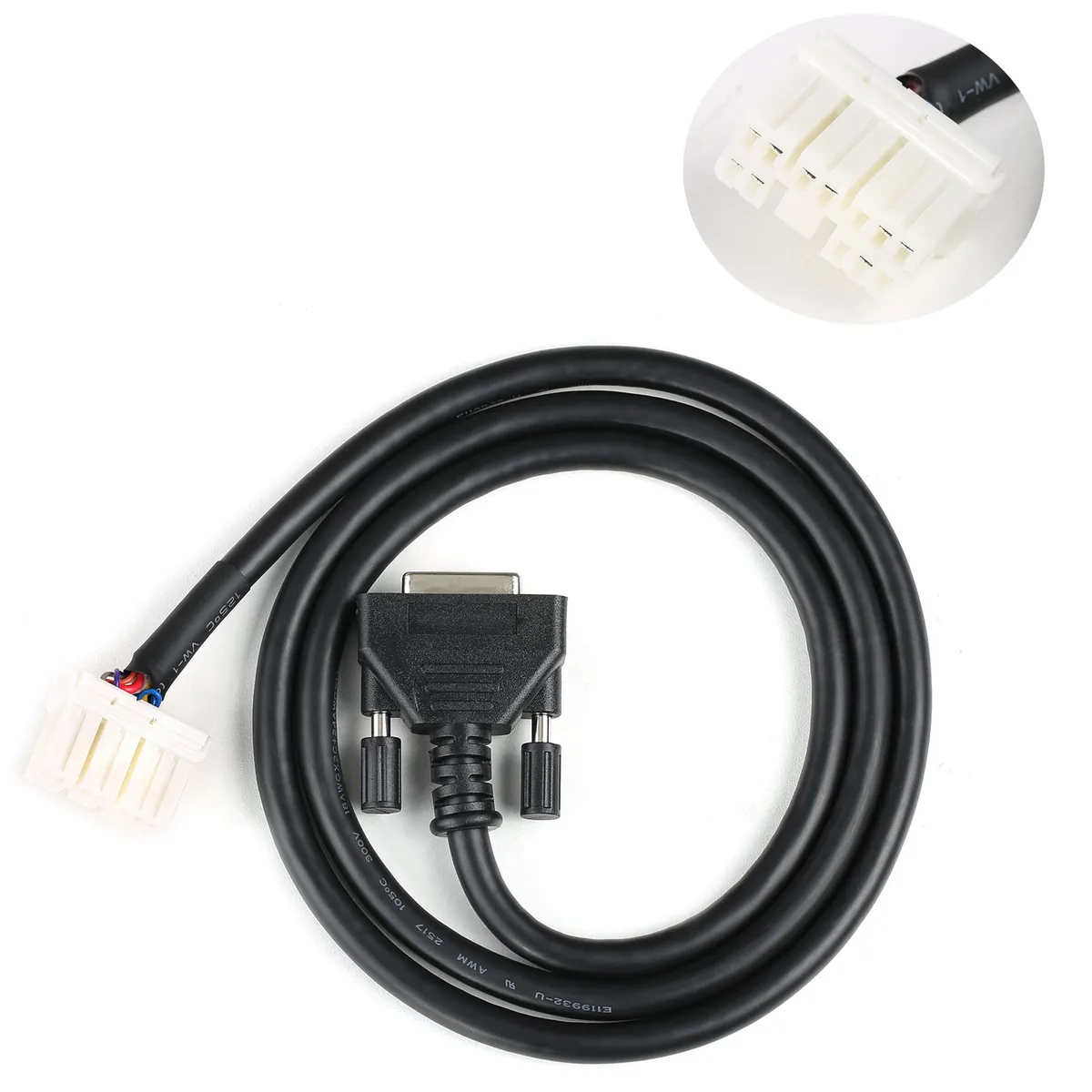

CAN001
– Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.

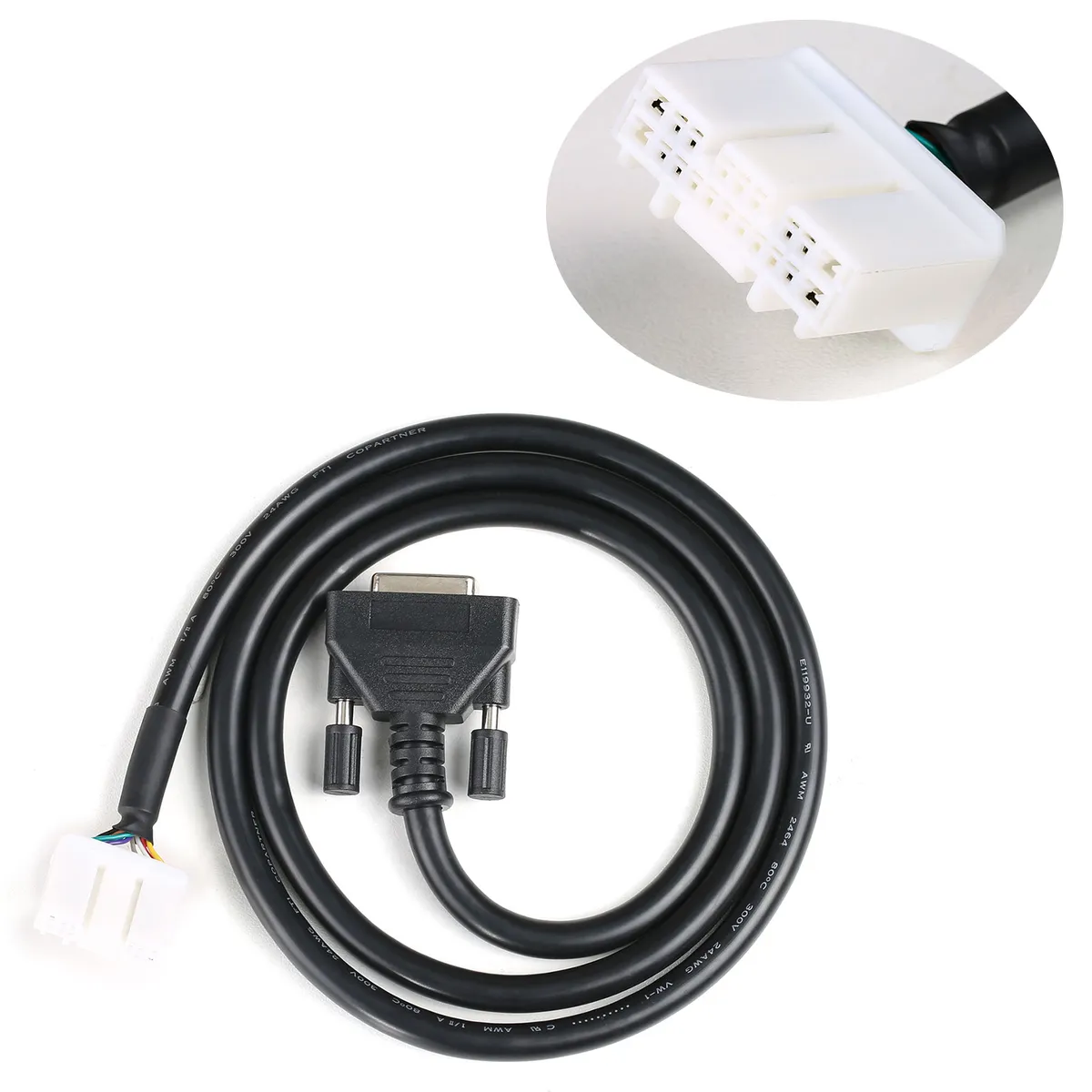

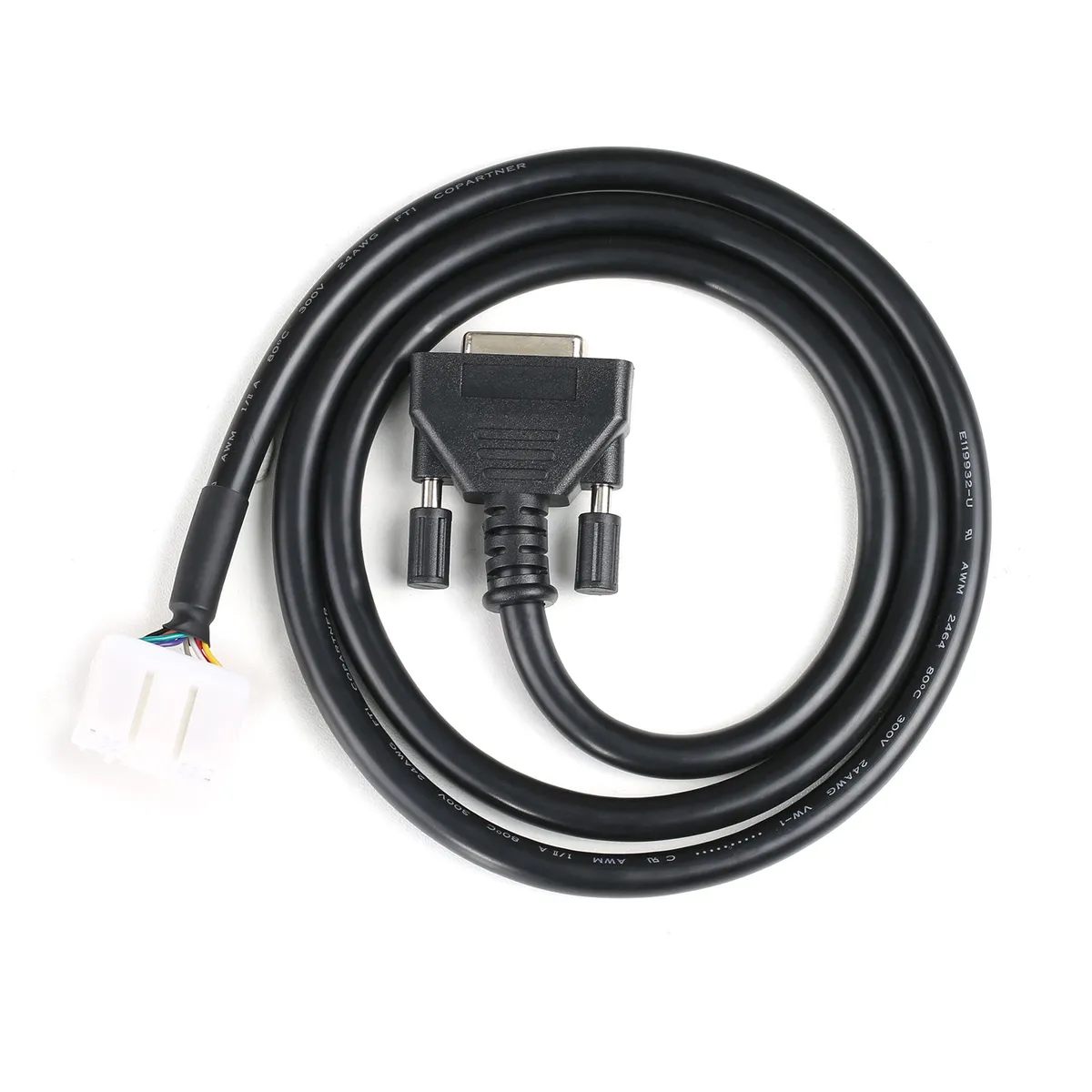

CAN002
– Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015/Sept vehicles.
| Adapter Cable | Supported Model | Model Year | Connection Port | Connection Port Location | Function |
| TLAN001 | Model S/ Model X | All | X861 | On the back of the instrument cluster | Activate Factory Mode |
| After Sep 2015 | X863 | Below the Central Control Screen | Perform Diagnosis for Lan related Systems | ||
| BeforeSep 2015 | On the left side of the Instrument Cluster | ||||
| TCAN001 | After Sep 2015 | X437 | Below the Central Control Screen | Perform Diagnosis for Can related Systems | |
| TCAN002 | Sep 2015 |
Package List:
1set x Autel TESKIT Autel Tesla Diagnostic Adapter Cables
