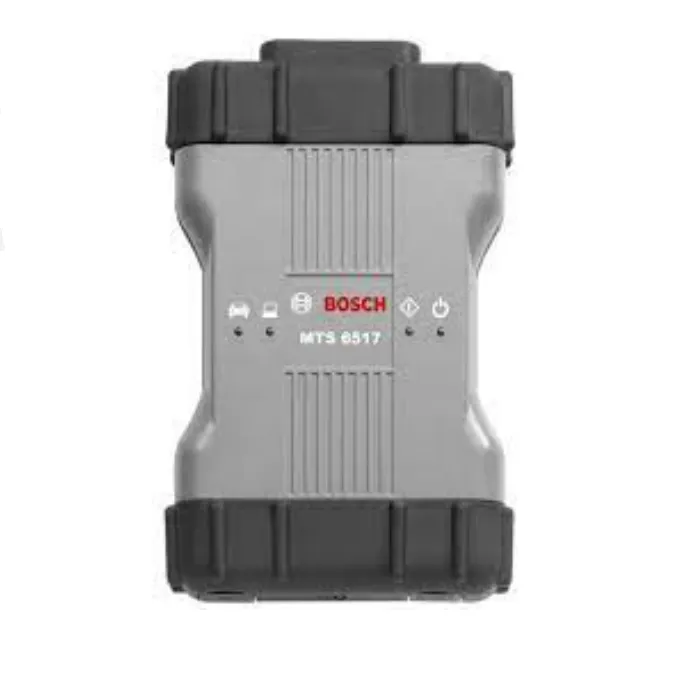

Original Bosch MTS 6517 Vehicle Communication Interface Without Software

Original Bosch MTS 6517VehicleCommunicationInterfaceWithout Software

Bosch MTS 6517:

The MTS 6517 is a standard-based tool – supporting the SAE J2534 interface, the ISO 22900-2 Diagnostic-Protocol Data Unit (D-PDU) API and RP1210 API.

MTS 6517 for Maximum Flexibility Designed for flexibility and future needs the MTS 6517 offers OEMs a wide application range far beyond standard vehicle communicationleading to reduced investment costfor workshops.

Features:

Workshop efficiency
Setting an industry benchmark for VCI pass-through performance with its 520 MHz ARM processor and optimized software structure. Enabling high speed ECU reprogramming. In addition, the VCI software facilitates secure immobilizer system reprogramming strategies.

More than a Pass-Thru device – Embedded applications
The Bosch MTS 6517 VCI includes an embedded runtime framework which enables the VCI to run embedded applications. This enables a wide range of use cases e.g. drive recorder, parking lot re-flash (standalone reflash), and diagnostic runtime. This is supported by an extended temperature range of -20 to +70 °C, sleep/ wake modes, IP54 protection and 4 GB Micro SD-card to store e.g. drive recorder log files.

Workshop flexibility – Embedded web-server
Embedded web server supports external browser-based display devices via HTML for an extended range of service bay use cases.

Support of 24V systems
With an input voltage of 6-32 V and a 24V diagnostic bus .the MTs 6517 can also be used for 24V systems, e.g. inlight and heavy tucks.

Compliant with SAE J2534 and ISO 22900 (MVCI)
Supporting worldwide legislated communication standards, with a wide range of supported protocol.

Supports newest vehicle electrical architectures
The MTS 6517 allows simultaneous communication on three separate CAN channels.

Supports a wide variety of legacy vehicles
Due to its simultaneous communication on two separate UART buses, integrated J1850 controller and wide rangeof protocols.

Flexible host communication
High-speed USB 2.0 for high performance data communication as well as user-friendly wireless
communication with WiFi 802.11 b/g/n certified for operation in more than 130 countries.

Worldwide emissions testing
Full EOBD/OBDII compliance supporting allstandard protocols.

Supported Standards
*MVCI (ISO 22900-1) forhardware interoperability
*D-PDU API (ISO 22900-2) for completeprotocol abstraction
*J2534-1/-2 Pass-Thru

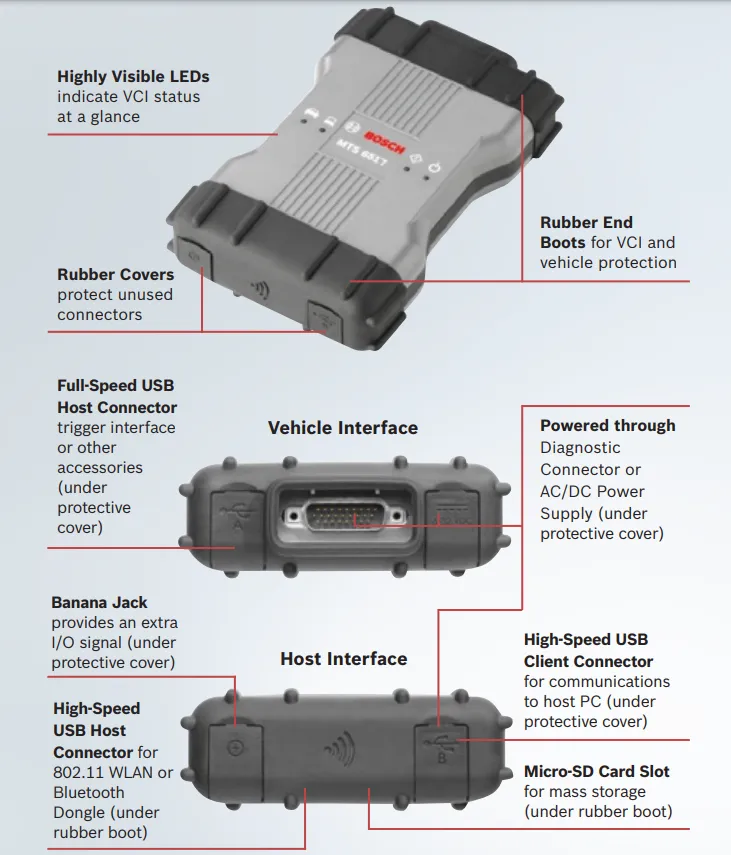

Vehicle Interfaces
*CAN – 3 independent highspeed channels
*CAN – 1 independent singlewire channel
*CAN – 1 independent faulttolerant channel
*ISO K-Line and L-Line – 2 independentchannels 12V & 24V
*J1850 VPW and PWM
*J2534 compliant programmingvoltage terminal

Host Interfaces
*Wired USB 2.0 High Speed
*Wireless 802.11 b/g/n

Other Features
*Processor: PXA270, 520 MHz
*4 GB micro SD card for mass storage
*IP54 compliant
*USB 1.1 peripheral expansion port
*Auxiliary power input
*Operating temperature range: -20 to+70 degrees C
*Energy management (sleep/wake mode)
