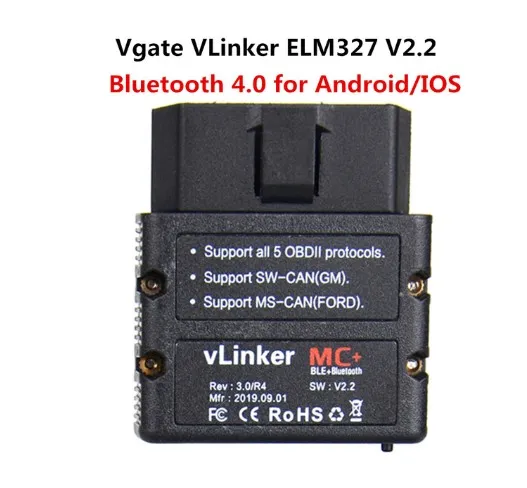

Original Vgate vLinker MC+ ELM327 Car Scanner OBD2 Auto Bluetooth 4.0 Diagnostic Tool for Android/IOS
compatible with 95%+ world car models
1.Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc
2.Support Almost All ELM327/ELM329/OBDLINK Adapter Software
3.Automatic sleep and start to reduce power consumptione
4.OBD2 Standard Protocols+More protocols
5.Support user-defined commands
6.Request bytes up to 48 bytes
7.Support Firmware Update
8.Support user-defined APP
Support Protocols
Multiple protocols:
–15 ELM format protocols;
— 23 STN format protocols;
— Up to 64 user-defined protocols.
OBDII 5 standard protocols:
— SAE J1850 VPW
— SAE J1850 PWM
— ISO 9141-2
— ISO 14230-4
— ISO 15765-4 CAN
Additional protocols:
— SAE J1939 CAN
— ISO 11898 (raw CAN)
— for GMLAN Single Wire CAN (for GMW3089)
— for Ford Medium Speed CAN (MS CAN)
These protocols cover almost 99% of the OBDII Cars on the market
Software Support:
Perfect compatibility: For Bimmer Code/For Torque/For Forscan/For JScan/For Auto Doctor/For OBD Fusion etc. 99% APP Software
Rich instruction set, compatible with more APP software:
— Fully compatible with ELM’s AT command set;
— Fully compatible with STN’s ST command set;
— Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;
–39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
— Compatible with ELM and STN power management solutions.
— Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
— Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
— Device sleep power consumption is less than 2 mA.
— OBD request byte up to 48 bytes, can meet the needs of some special long frame communication.
— UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
— 256-byte storage unit
— More than 100,000 erasable times
— Read and write operations on any unit in the storage area by using the VT command
— Mix ID Sending” mode of CAN protocol.
— Optional formatted send data according to protocol
— Multiple WM sequence settings
— Support AT command to manually set WM sequence
— Support for specifying a protocol or a full protocol-wide temporary WM sequence
— Support for a permanent link between a protocol and a private WM sequence
— Secure bootloader for easy firmware updates
Typical Applications:
• Vehicle telematics
• Fleet management and tracking applications
• Usage-based insurance (UBI)
• OBD data loggers
• Automotive diagnostic scan tools and code readers
• Digital dashboards
Special Function:
Fully automatic identification of vehicle protocols,quick reading of vehicle information
Fully automatic standby/start,no manual switch button required
Connection method:
BT4.0/3.0:
1.Turn on theIgnition in the car
2.Plug in the adapterinto the OBD Port
3.Turn on Bluetooth,Bluetooth only needs to be turned on
4.Open OBD Auto Doctor choose “Extras” ,cick “Connectivity”,choose “Bluetooth”and “vLinker MC+” Drop out software and Enter again
WIFI:
1.Turn on theIgnition in the car
2.Plug in the adapterinto the OBD Port
3.Turn on WIFI,connected “vLinker”
4.Open OBD Auto Doctor choose “Extras” ,cick “Connectivity”,choose “WIFI”,Drop out software and Enter again
Packing List:
1 x vLinker MC+ Bluetooth 4.0
1 x User manual
