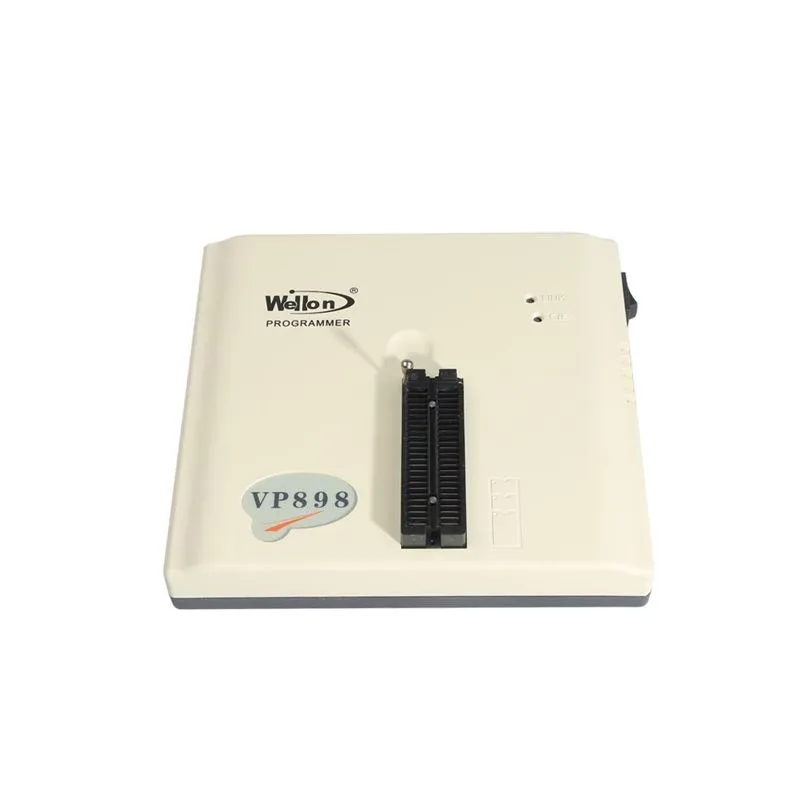

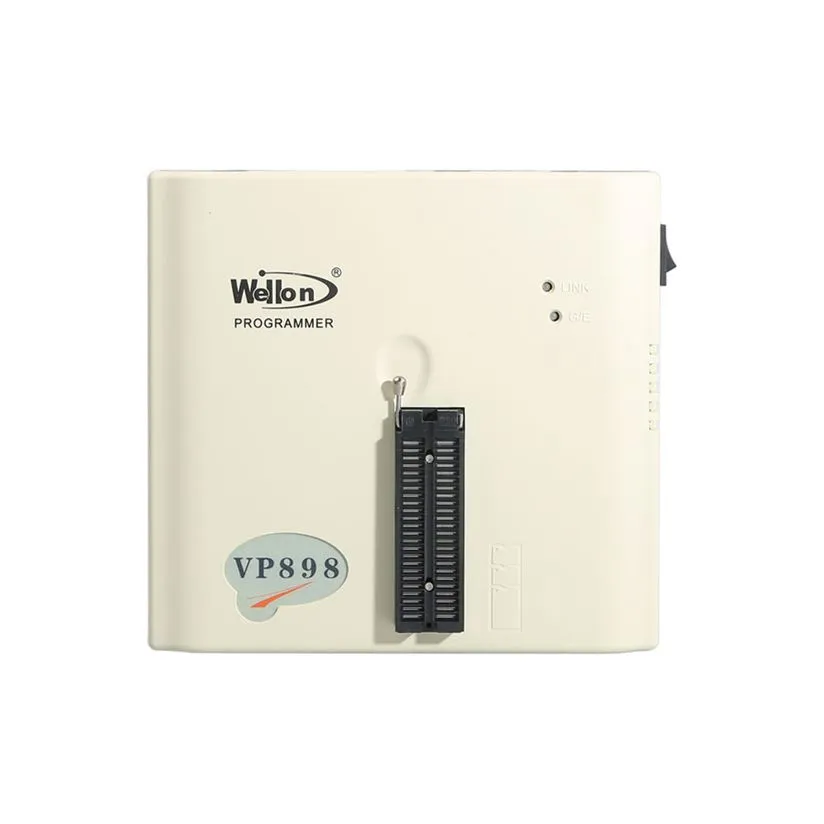

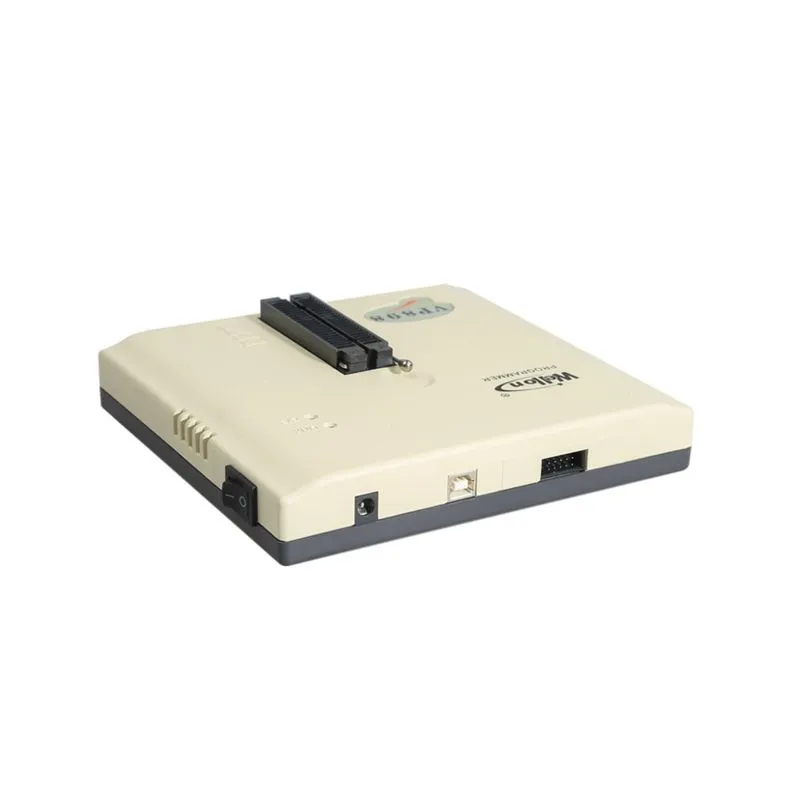

Original Wellon VP898 VP 898 Unniversal Programmer
Supports Multi-language:English, Korean, Poland, Italian, Portuguese, Dutch, Turkish,Hungary,Chinese(Simplified), Chinese(Traditional).
Supports Operating System:XP/Vista/ Windows 7/8/10
Update Online for free.
Supports Operating System:XP/Vista/ Windows 7/8/10
Update Online for free.
Features:
1. Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W
2. 48 Pin ZIF socket with universal pin-drivers.
3. Interface with LAPTOP, PC or compatibles through USB port
4. Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
5. Manages 16 and 32-bit word split (Set Programming)
6. Features Test Vector capability and multiarray fuse map editor
7. Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
8. Optimum programming for each individual device
9. Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
10. Device insertion and poor-pin-contact check
11. Support 1.5v Low voltage devices
12. Not need exterior adapter for mostly devices.
13. Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
14. Auto-run mode starts programming automatically upon detection of chip insertion
DEVICE SUPPORT: VIEW
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.
IC TEST:
TTL (74 series), CMOS (40/45 series) Logic IC
SRAM (2114, 6116 …) memory device

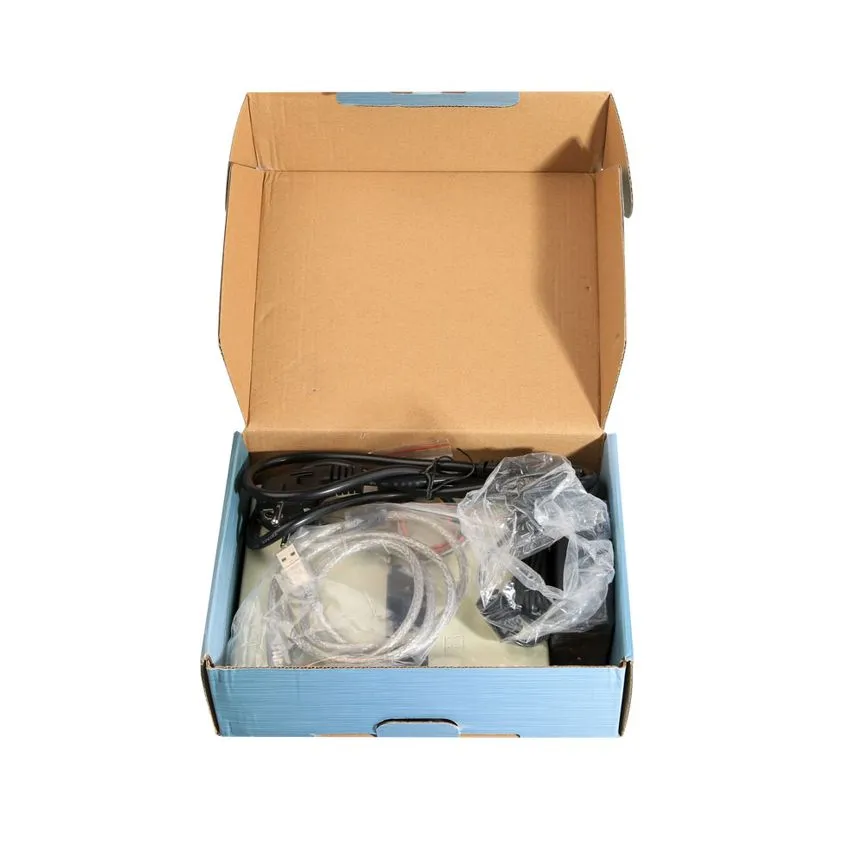

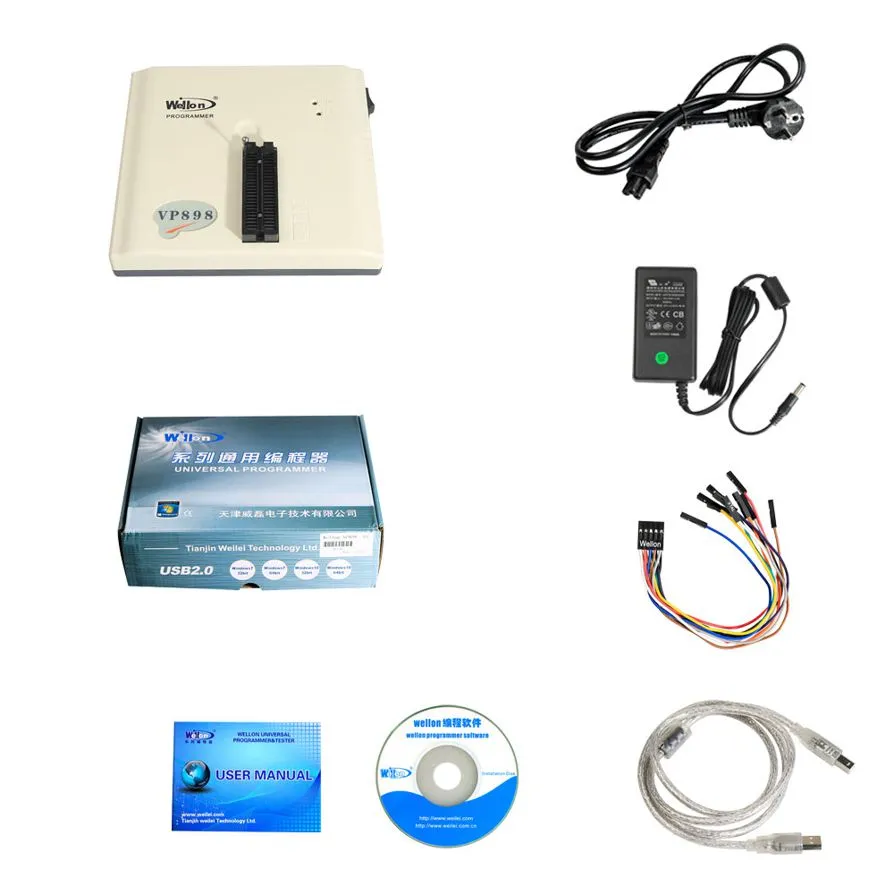

Package includes:
1pc x Original Wellon VP898 VP 898 Unniversal Programmer
1pc x Quick guide

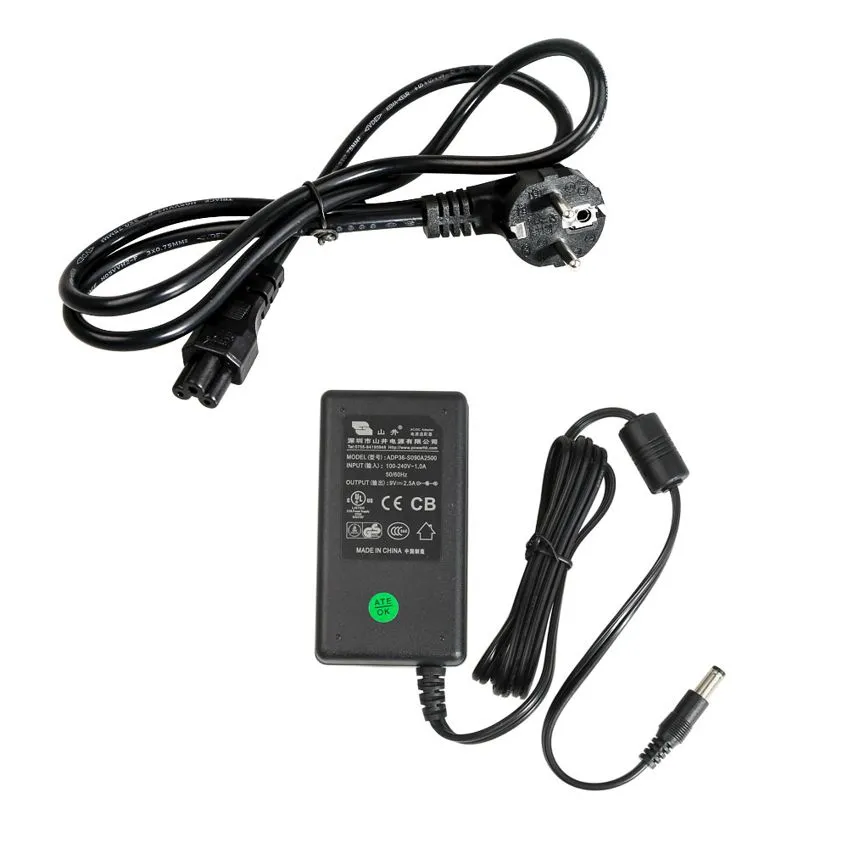

1pc x Power supply

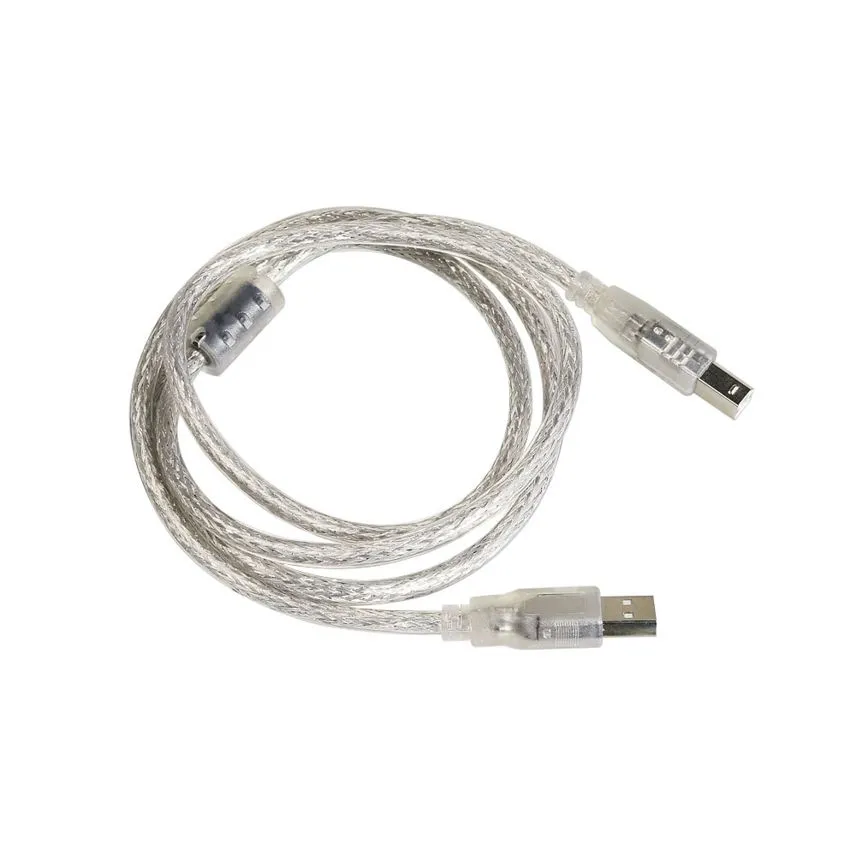

1pc x USB Cable

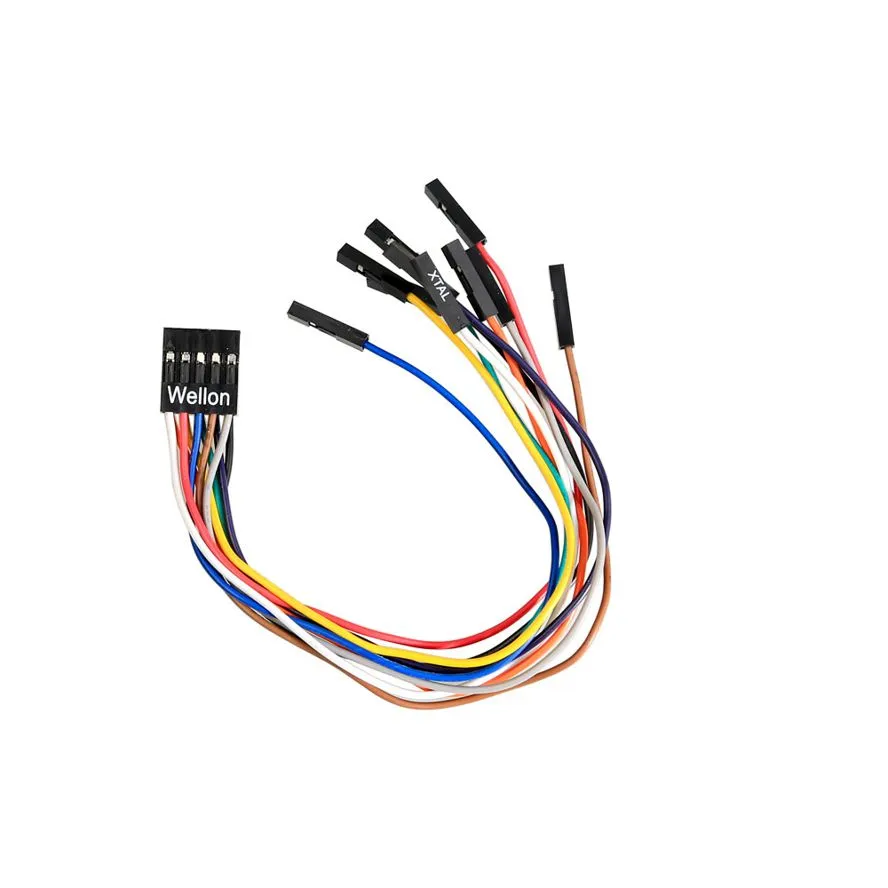

1pc x Cable
