Name: Original Xhorse VVDI MB BGA TooL Benz Key Programmer Including BGA Calculator Function For Customer Bought Xhorse Condor Plus EIS/ELV Test Line
SKU: GFX25052
Price: 1232.99 USD
Availability: InStock

Original XhorseVVDI MB BGA TooLPlus EIS/ELV Test Line
You Can Only Buy This One When You Have Already Bought Condor Key Cutting MachineOr Can’t Sell At This Price and Need to Choose OHXT005

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.

2. NEC V051,V057 support on board get password

3. All NEC keys support on board write and erase

4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5. Support renew EIS and ELV

6. Support write EIS and ELV

7. Support online generate key file

8. Unlock ELV function will be released soon.

9. Renew other control modules function will support soon

Supports Password Calculator Function.It takes 4 minutes to collect data, and 2 minutes to calculate. Check MB BGA Tool Token Service

VVDI MB TOOL latest software version V4.9.0 update2019-06-20
Require firmware V4.5.0
************************************************************************
===== BENZ V4.9.0 =====
1. This update no need update the firmware
2. Add new type for calculate password while all key lost:
a. Support W230 get key password with VVDIMB Power Adapter (All KEY LOST, 20 minutes-1 hour)
b. Support W169 type2 get key password with VVDIMB Power Adapter (All KEY LOST, 15 minutes)
c. Support W169 type2 get key password with slow method
d. Support W164/W251 -2009 (NEC chip)get key password with VVDIMB Power Adapter (All KEY LOST, 30 minutes)
3. Support write Mark value to NEC key from IR
4. Support write VIN to HC08/HC12 EIS(Kline)
5. Bugfix
VVDIMBTOOL latest software versionV4.8.0 update 2019-01-27
***RequirefirmwareV4.5.0
************************************************************************
=====BENZV4.8.0=====
1.Thisupdatenoneedupdatethefirmware
2.SupportW215,W220,W230calculatepasswordwhileallkeylost:
a.NomoreneedMCU’sde/soldering,verysafeandquickly
b.SupportW215,W220getkeypasswordwithslowmethod(AllKEYLOST,2-3hours)
c.SupportW230getkeypasswordwithslowmethod(AllKEYLOST,2-3hours)
VVDIMBsupportalltheFBS3EISwhileallkeylost:
W166,W197,W212,W218,W246
W172,W204,W207
W216
W164,W251(-2009)
W164,W251(2009-)
W169,W209,W211
W202,W208,W210
W215,W220
W230
W203,W463,W639
W639(2009-)
W906
W221
3.Bugfix
Support Key Types Display:

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model Support IR/OBD:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906

Keys Version Supported:

v03, v06, v08

v05, v07, v09

v59,v61

Package List:

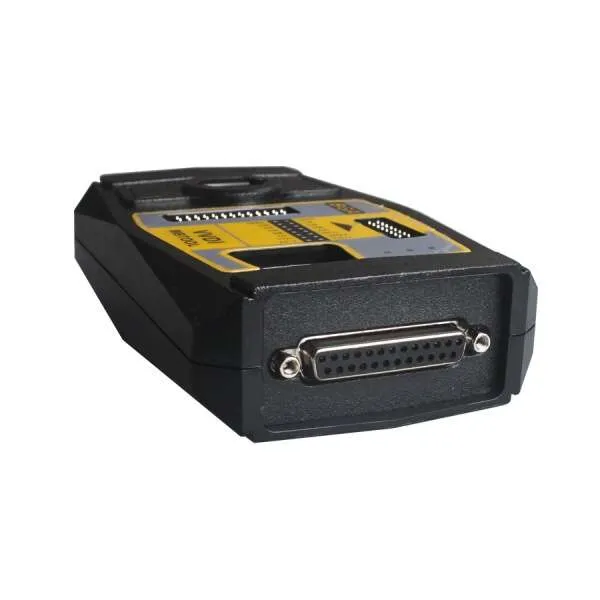

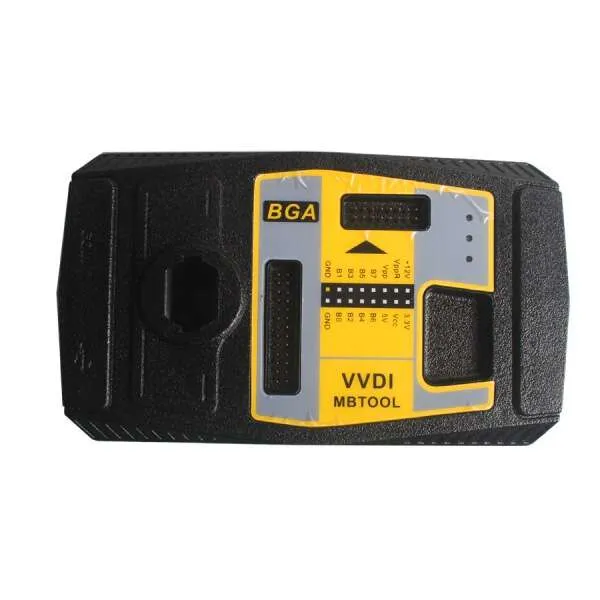

1. VVDI-MB TOOL device

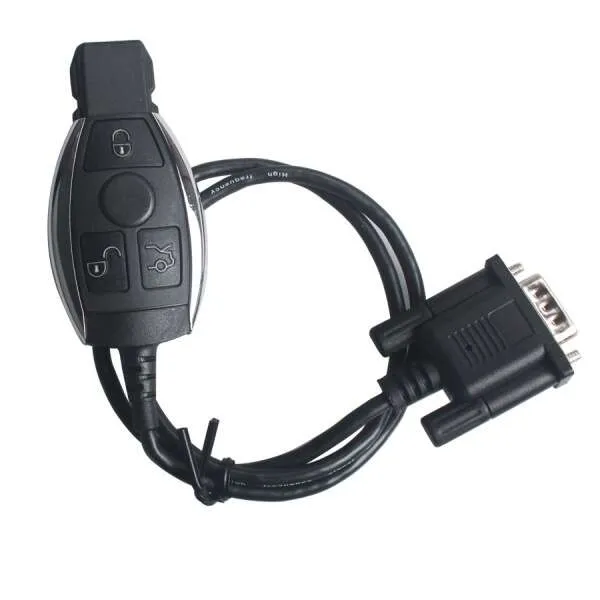

2. IR adaptor

3. USB cable

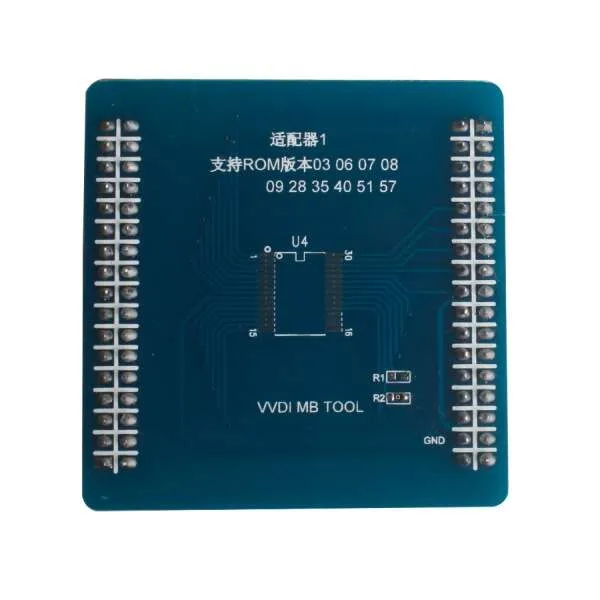

4. NEC adaptor 1

5. NEC adaptor 2

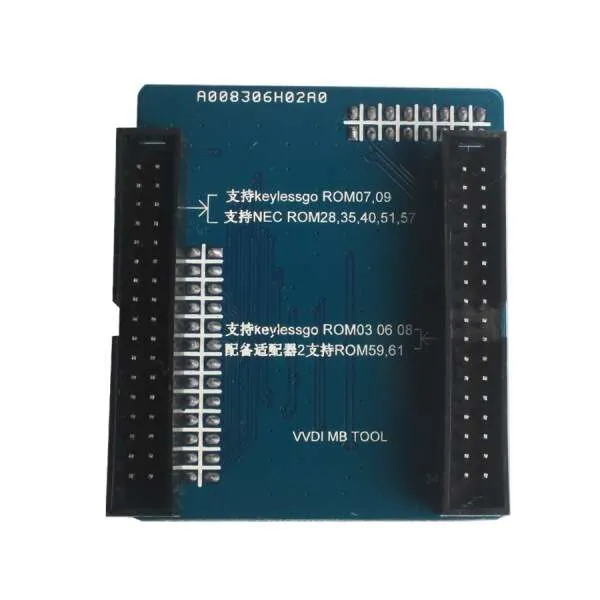

6. NEC adaptor base PCB

7. K Line in OBD line

8. OBD line

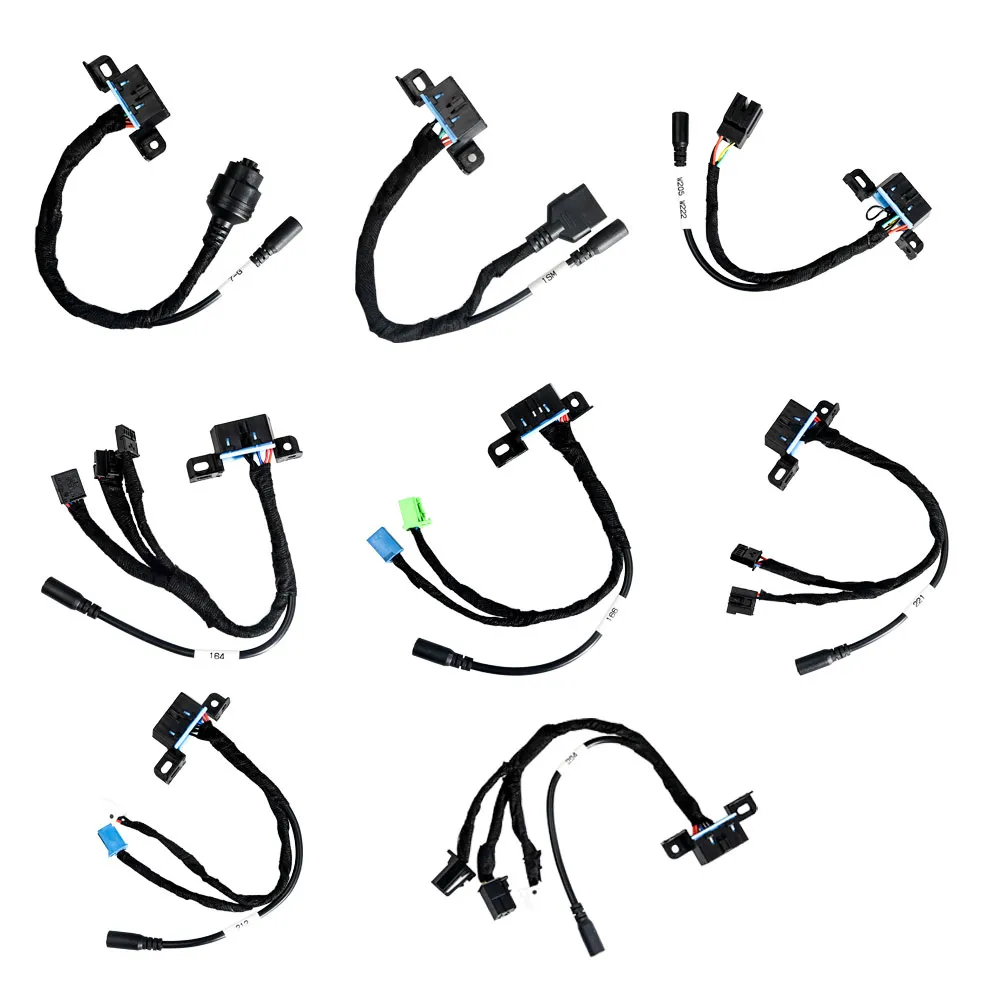

9. Mercedes Locks OBD Test line
Package List Diisplay:

Connection Display:

FAQ:
Q1:I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

Can any one test?
A1:Read eis via obd for W164, W169, W211, W209, require gateway connected

Show More Show Less
