Orignal Car Bluetooth 5.04.0 TPMS Monitor Alarm System Tire Pressure Sensor For Andriod IOS for Car Safety
1.Dynamically monitor tire pressure on 4 wheels at same time,prevent damage from flat tire,Improve fuel efficiency, prolong tire life span, ensure driving safety.
2.It was designed as a direct tire pressure monitoring system,installing pressure and temperature sensor on the tire, then displaying the real-time data on phone (Android , IOS, IPad) through Bluetooth connection,
3.During travel, tire pressure and temperature displayed in real time and send alert when statistics’ abnormal. For your safety.
4.TPMS supports both Android and iOS, requires Bluetooth 5.0 .
-External Type-
Sensor Specifications:
Processor:ARM M0
Working Voltage :3V
Working Current:100μA
Bluetooth Working Frequency:2.4GHz
Bluetooth Transmitting Power:0dBm MAX
Waiting Time:≤5s
Display:Phone APP
Waterproof Standard:IP67
Working Humidity:95% MAX
Tire Pressure Detection Range:100-1300kPa
Tire Pressure Detection Accuracy:±10kPa
Tire Temperature Detection Accuracy:±3ºC
Working Temperature :-30–80ºC(Outer Sensor)
Working Temperature:-40–85ºC(Inner Sensor)
Storage Temperature:-30ºC–+85ºC(Outer Sensor)
Storage Temperature:-45ºC–125ºC(Inner Sensor)
Battery Capacity:140mAh(Outer Sensor)
Battery Capacity:330mAh(Inner Sensor)
Battery Life:2-3Years(Outer Sensor)
Battery Life:3-5Years(Inner Sensor)
Sensor Weight:10g±1g (Outer Sensor)
Sensor Weight:33g±1g(Inner Sensor)
-Question And Answer-
C:Could you please tell if battery is changeble for the sensor?
Seller:Yes,it could.
C:Can change the sensor position ?
Seller:Yes,it can.
-APP Description-
Compatible Operating System:TMPS Support Both Android And IOS,Requires Bluetooth 5.0
-APP Installation-
Option 1: Scan QR code on card, then download and install;
Option 2: Search “BEL TPMS” in APP Store or Google play Store, then download and install.
1: Support cellphone with Bluetooth 4.0 or above. DO NOT support Cellphone with Bluetooth lower than 4.0.
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously, please parking and check if there’s any problem with the tire.
This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire.It’s important to use.
4: Tire with high quality. Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.
Pairing instructions
Recommend use method: bind by scanning code Open the APP. Pleaase scan the QR code card which with words” one-clicking binding” or complete the binding by scan the corresponding sensor ID code.
Installation and pariring Open APP. Please follow the sensor’s mark and install sensor on correspoding tire until get each sensor date The installation is complete.
Note :
If the date of sensor cant be get , pls re-install the sensor. (please install slowly to make the air pressure fully contact the sensor)

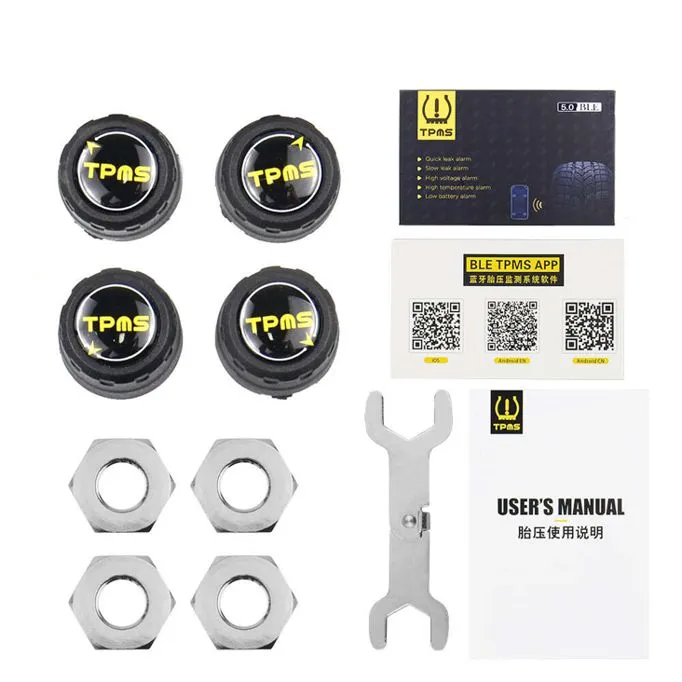

Packing List:
